Citadel colour paint pot rack and storage system
Print Profile(3)
Description

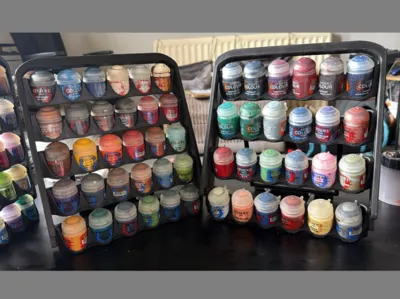

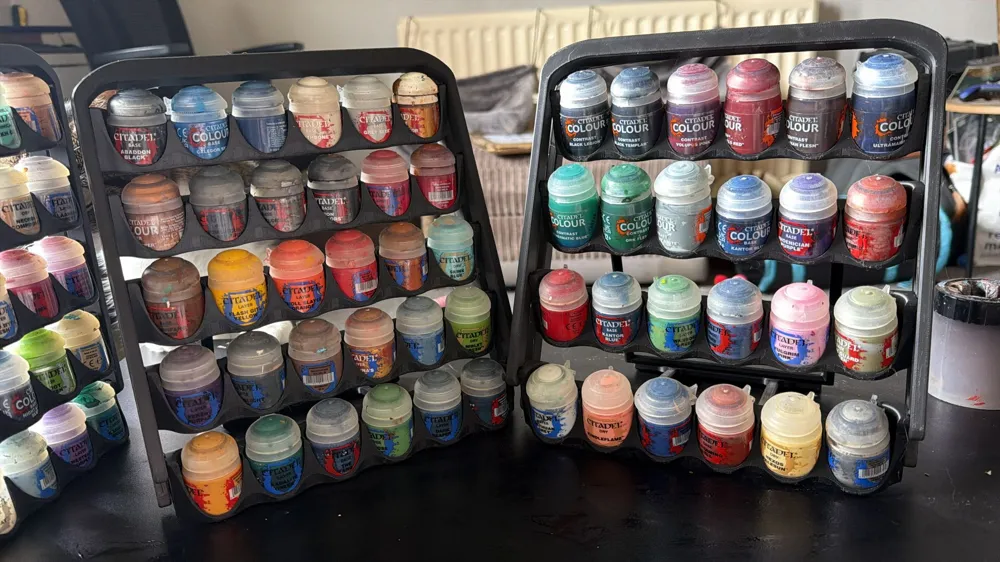

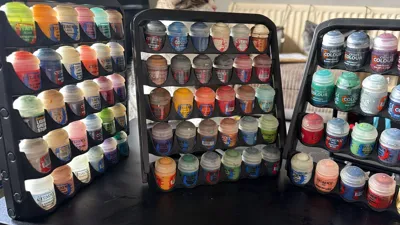

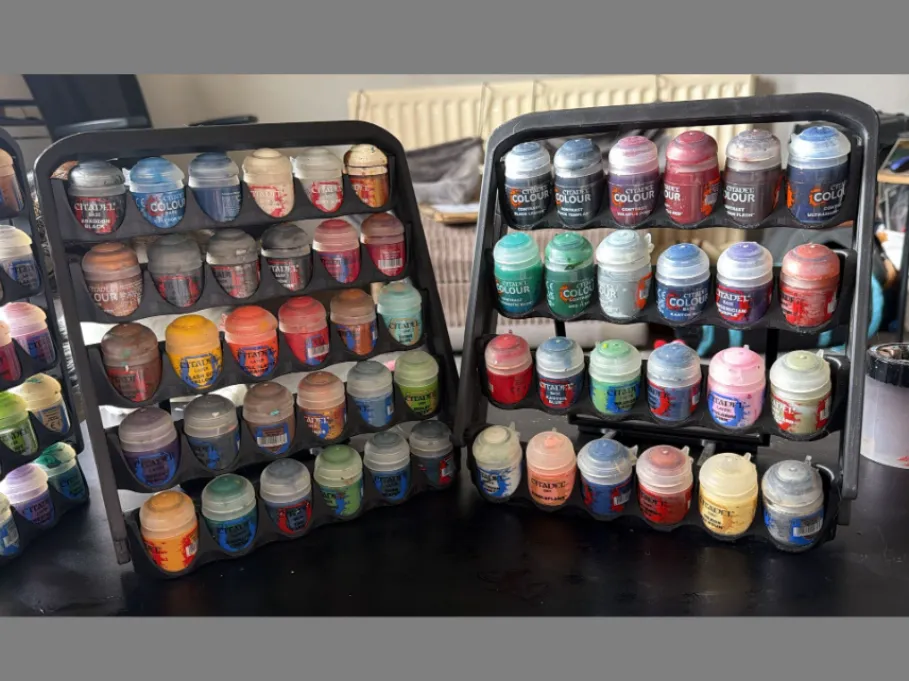

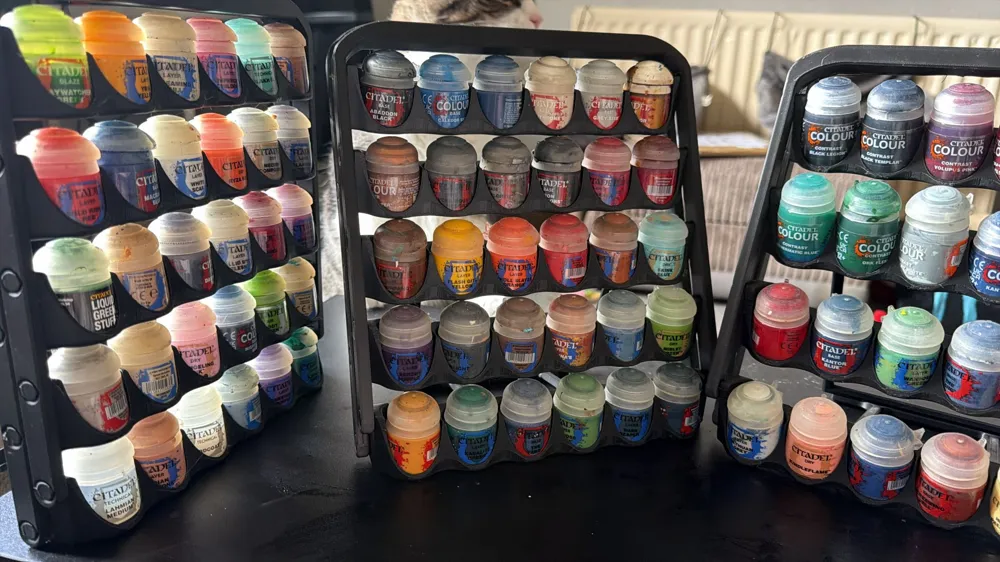

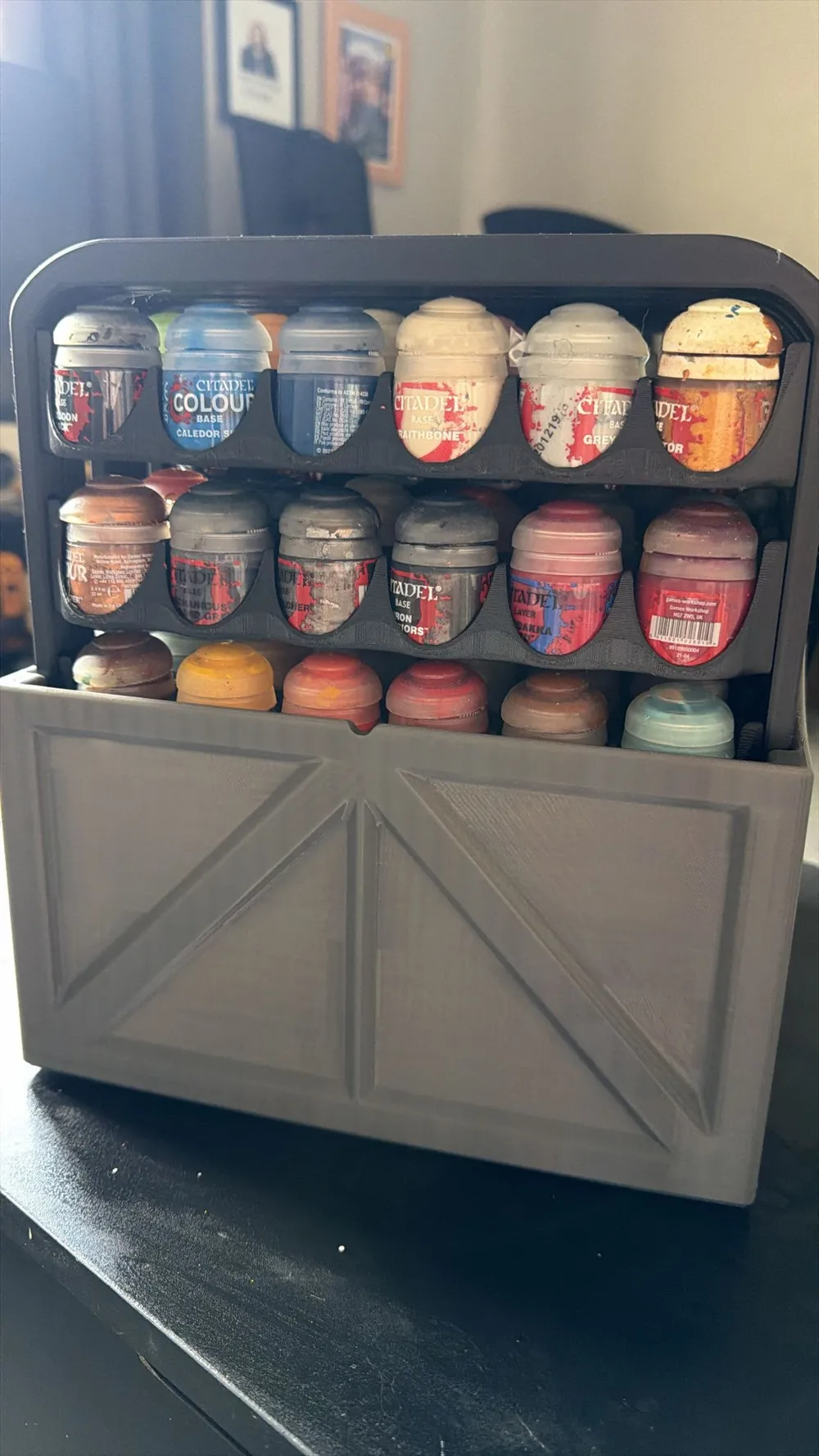

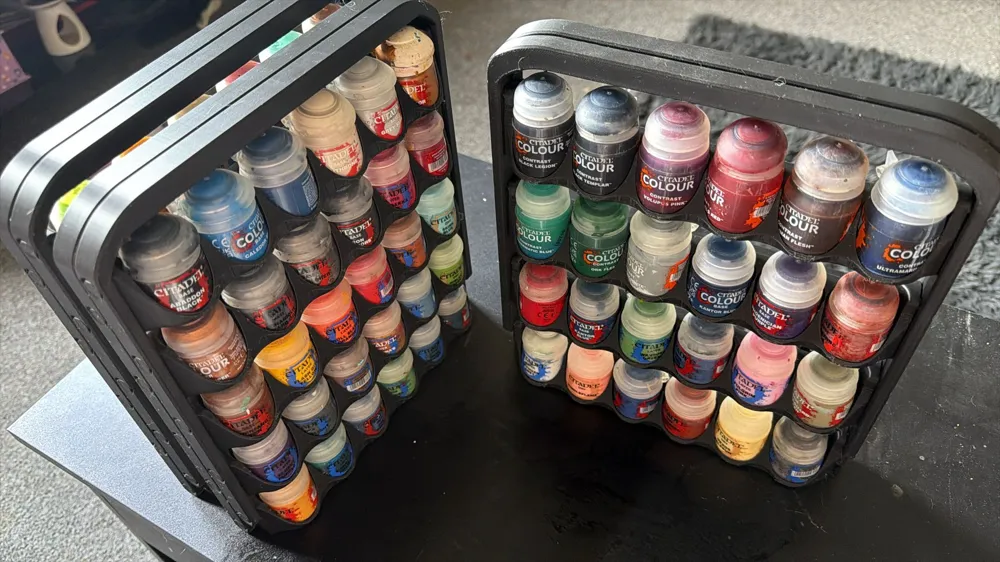

Storage of 24 large citadel paint bottles or 30 smaller bottles.

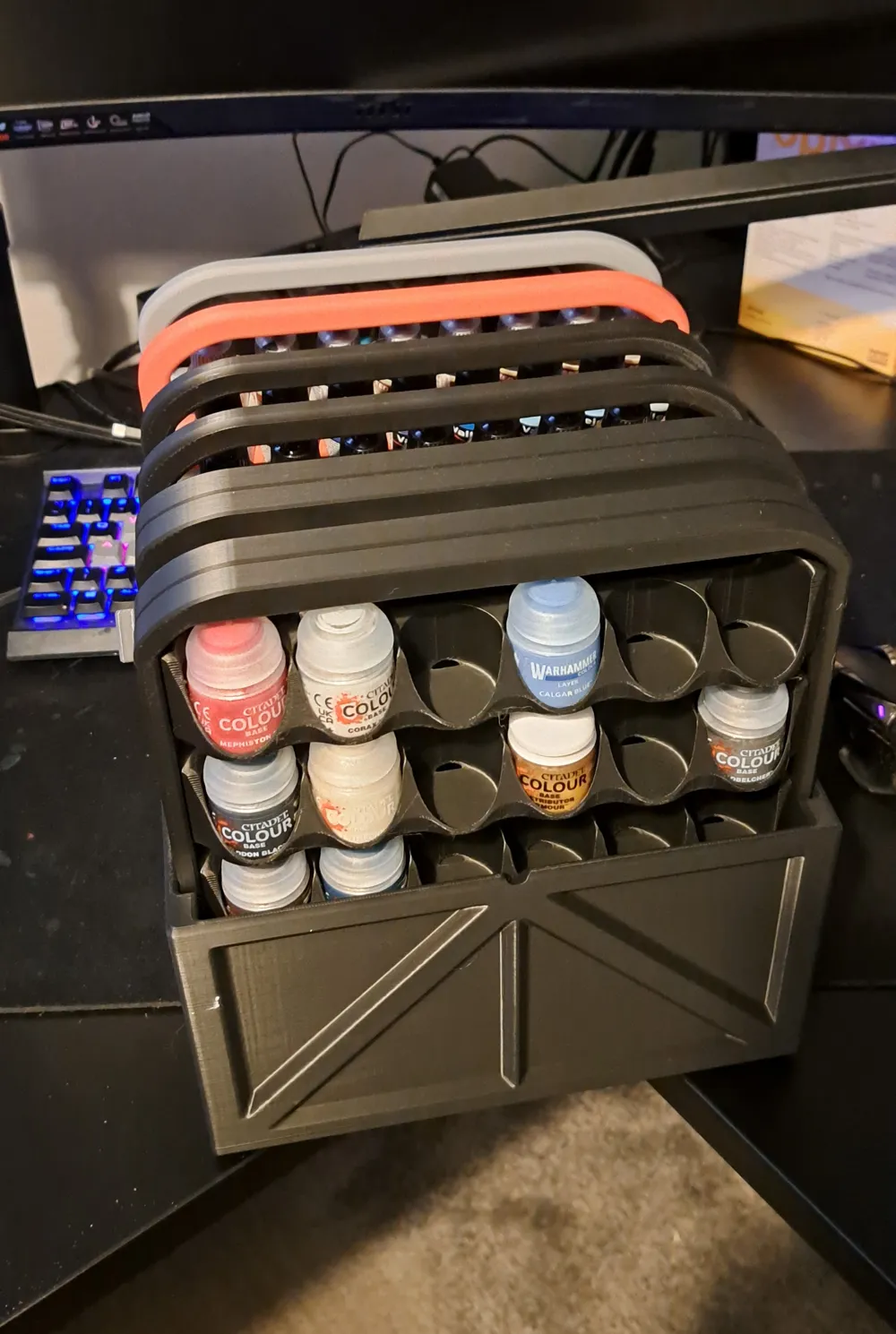

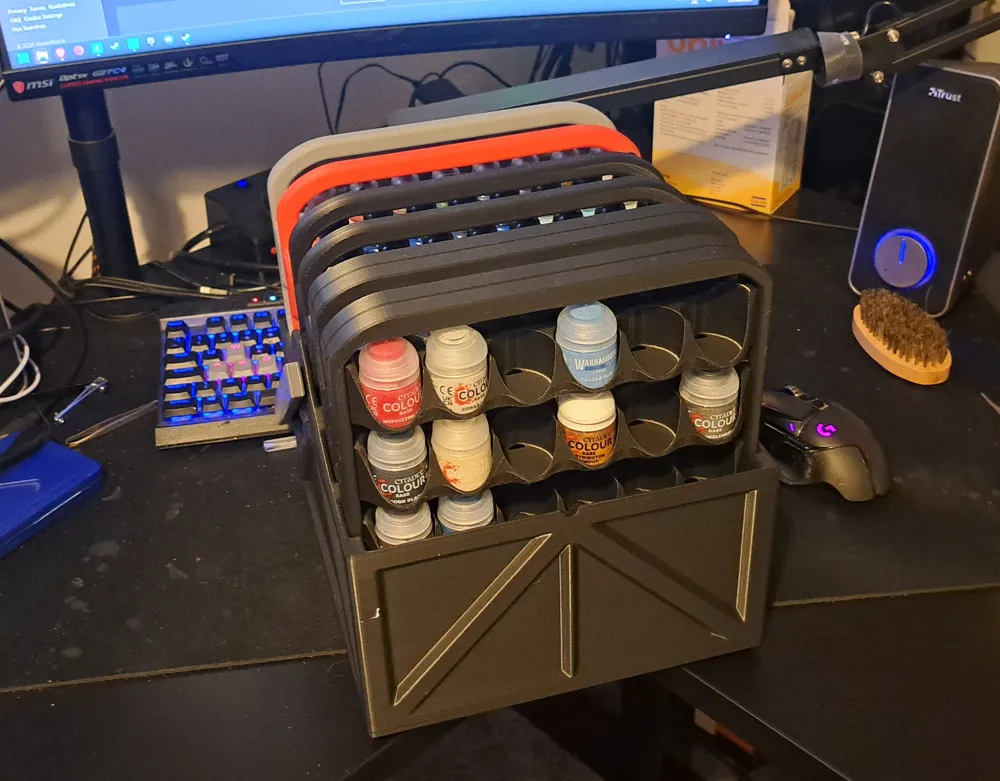

The rack is print in place and has a fold out stand at the back of the model, the paint bottles tilt to allow easier access to the bottles.
This is optimised for print in place PLA with PETG as an interface layer, I will upload a non AMS version but it does not come out as clean as the version with PETG.
For version with PETG layers please ensure you increase the purge values for when switching from/to PETG, I set this to the Max value the standard value from my experience can cause layers to separate.
Once model is taken off the printer please ease off the 2 stand components off the back first, then use a sharpish object to pry the PETG layer from the PLA this usually comes out in one piece, then gently work one side of the stand into a tilt then the other side , the tilt mechanism will ease off after a few repetitions.
https://makerworld.com/collections/28547547
