Model 12 — (small bun) edge banding pivot bracket (multi-color printable)

Binding Strip Spool Holder - Instructions for Use

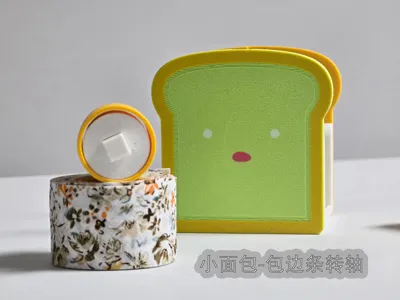

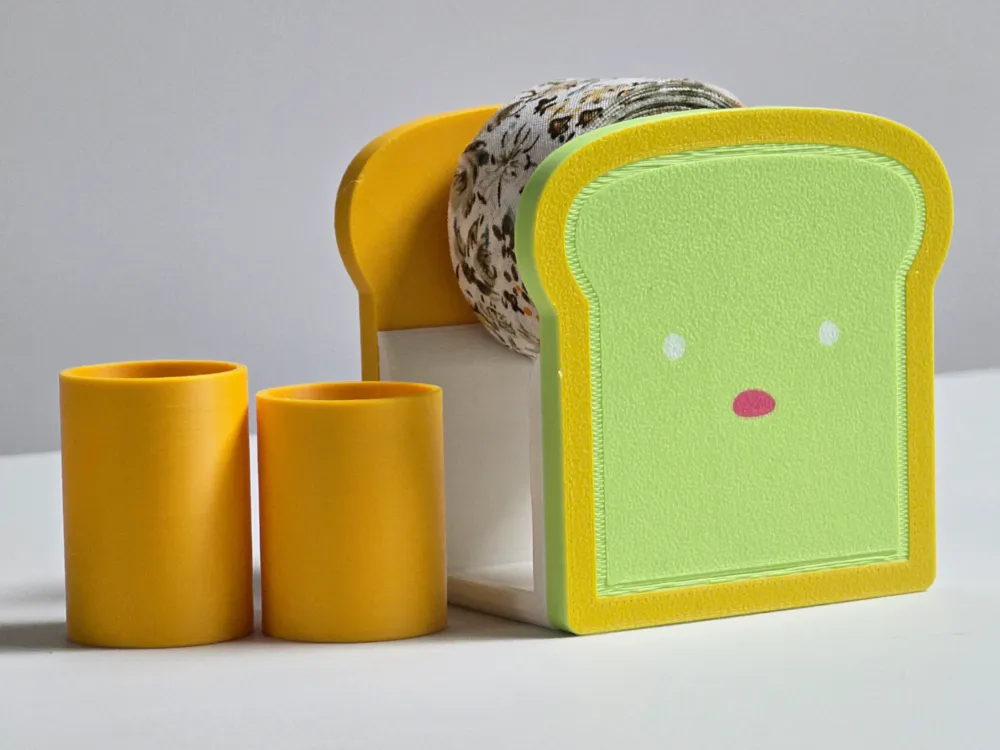

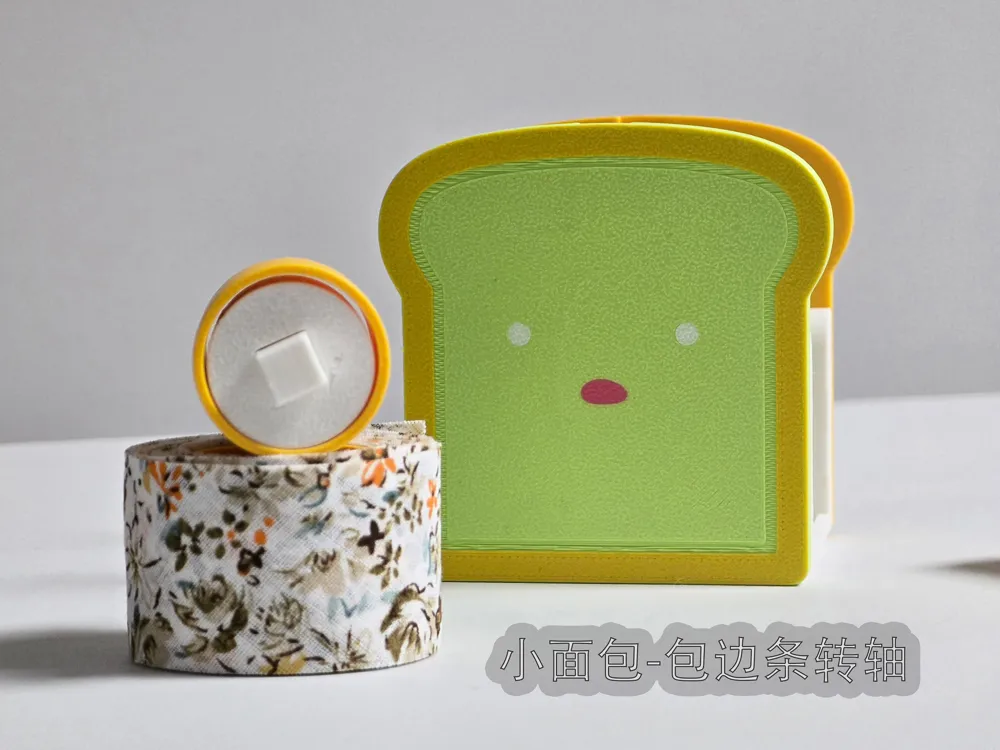

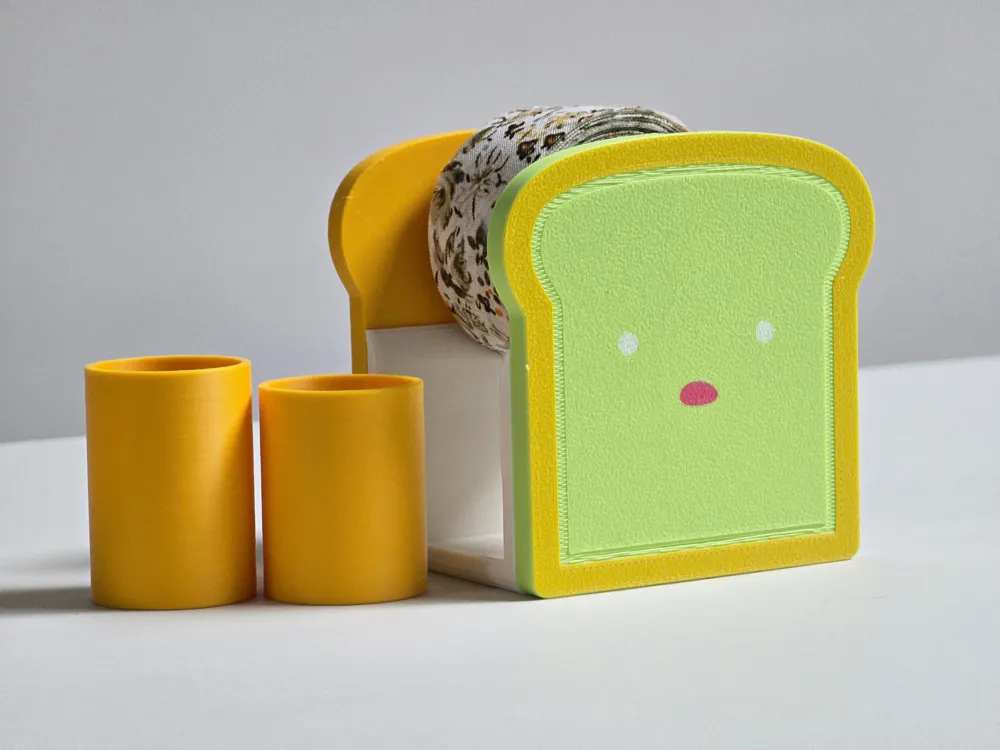

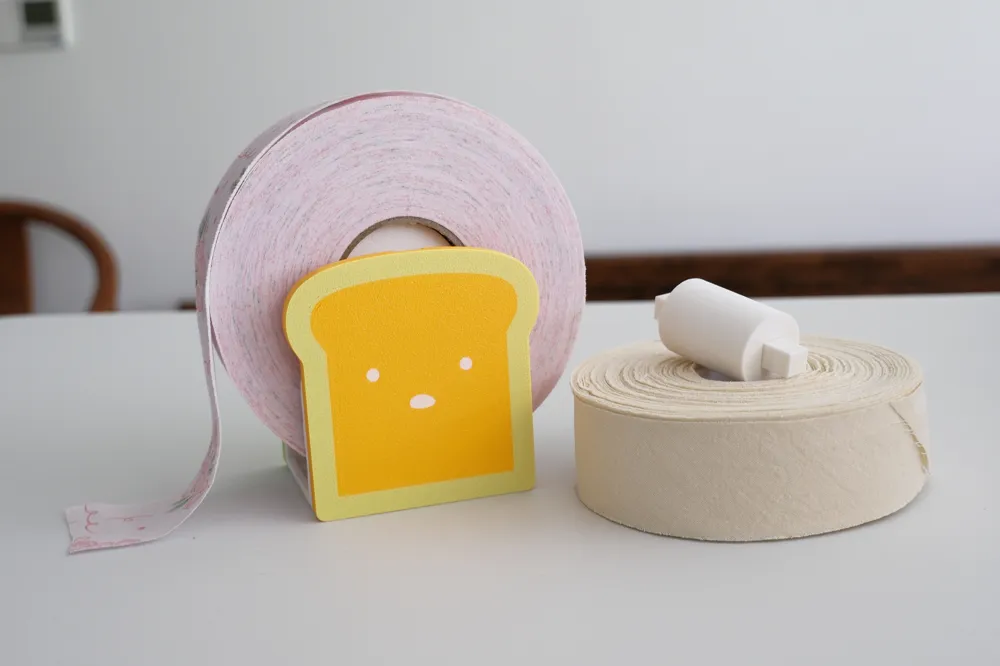

[Purpose] - This spool holder has a similar structure to a tape dispenser, suitable for finished/DIY binding strip rolls with a diameter of up to 12cm. It is primarily used to hang binding strips vertically for easy dispensing, allowing flexible extraction, saving desktop space, and increasing sewing enjoyment

Regarding Assembly: During product assembly, the 'bread slice' and main frame need to be joined using 401/502 glue for auxiliary fixation. After fixing one side, let it sit for a few minutes before gluing the other side. All other accessories are for movable use

Regarding multi-color:

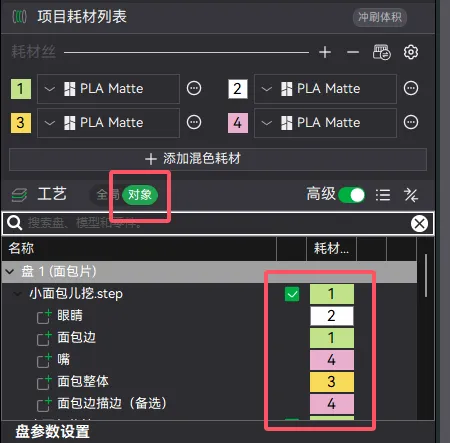

• For more specific color suggestions, go to the "Objects" tab in Bambu Studio on your computer and adjust freely according to your filament

• If you do not have suitable colors of filament, you can also print everything using the same filament, i.e., print in a single color

• The default filament color configuration for the profile is:

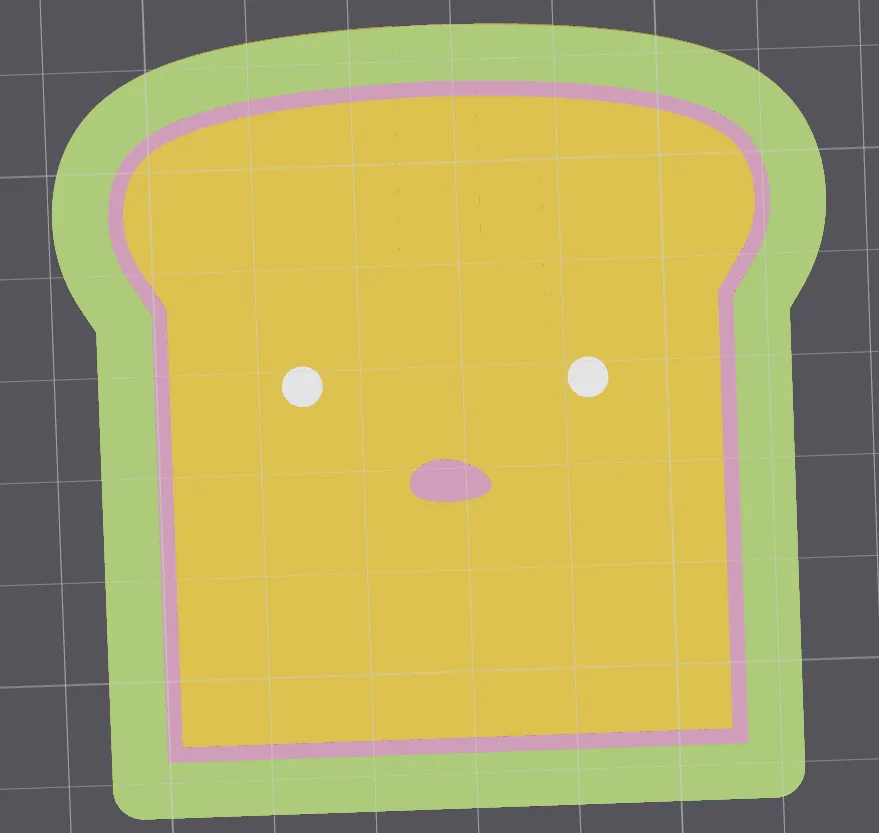

• Changing the "Bread Edge Outline (Optional)" to another color can achieve the following effect (example):

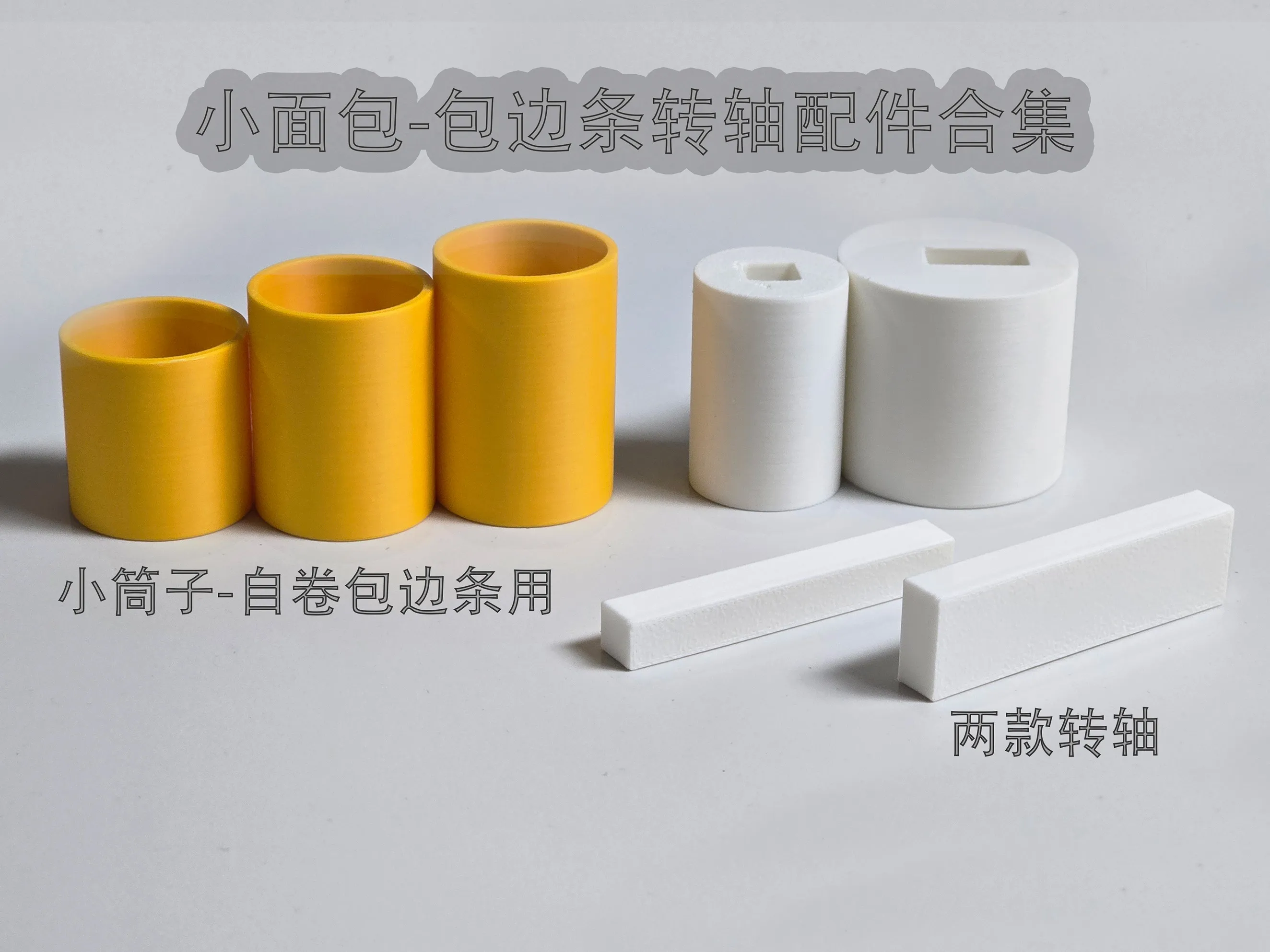

[Accessory ① - DIY Binding Strip Small Core] - There are three sizes, suitable for 2.8/3cm, 3.6/3.7cm, and 4cm respectively. The small cores are used to add cores to homemade binding strips or purchased binding strips without paper cores, for use with this product

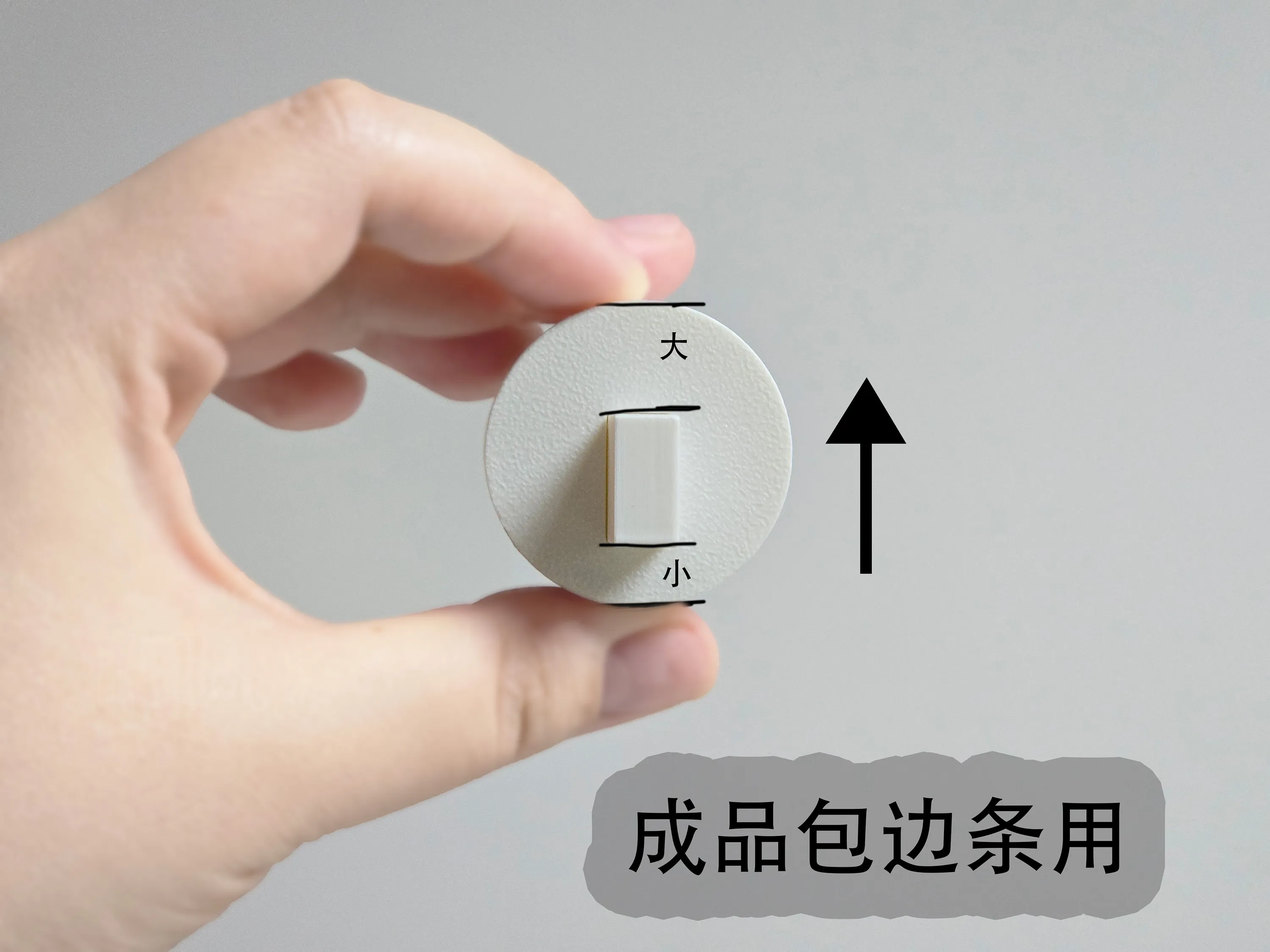

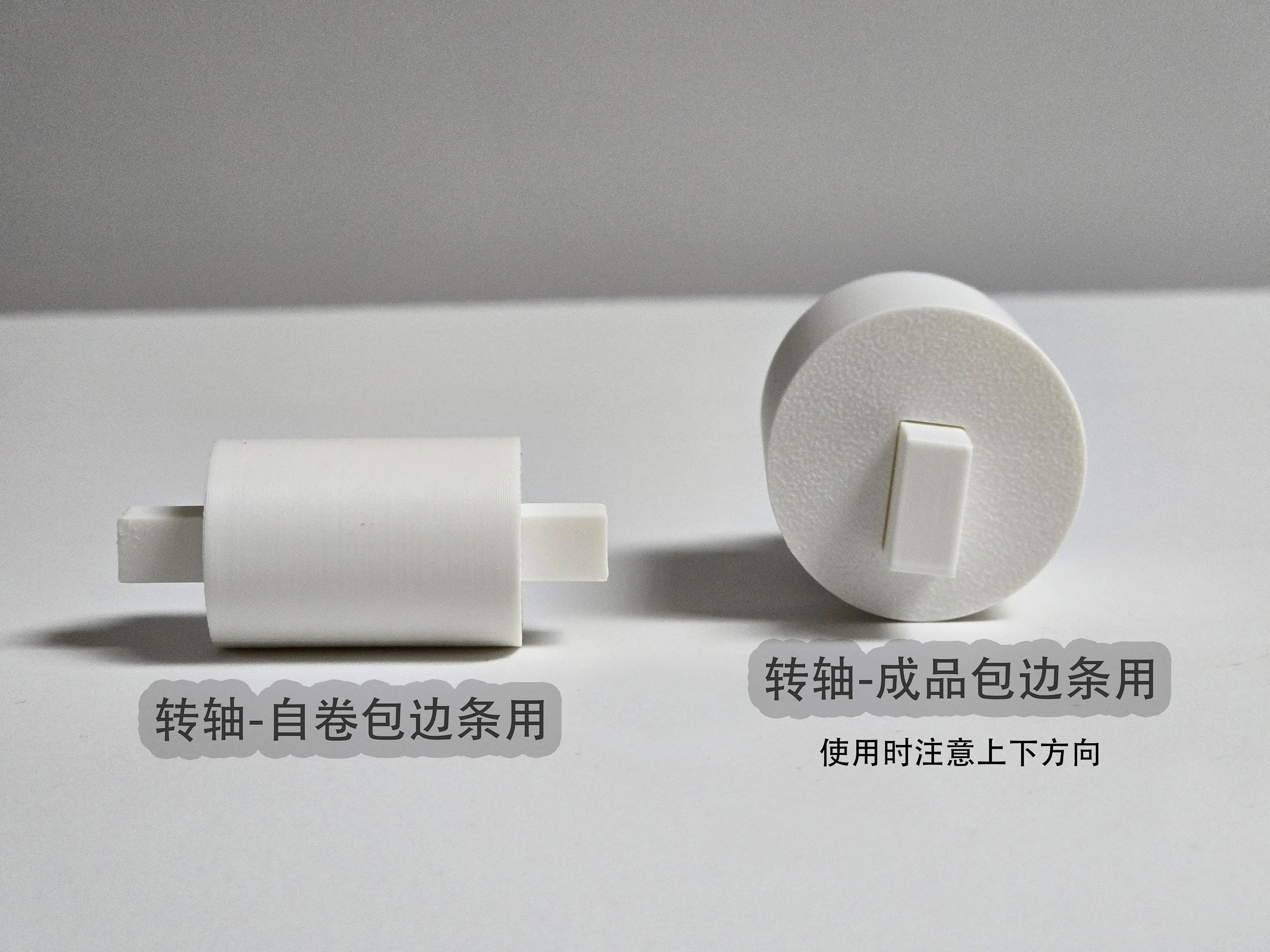

[Accessory ② - Spindle] - There are two types of spindles (Figure 2): one (large ring) is designed for finished binding strips, pay attention to the up and down direction during use (see Figure 3 for illustration); the other is designed for DIY binding strips, to be used with Accessory ①
