Name Brick Customizer — Multicolor Keychain

🧱 LEGO-compatible Brick with Custom Name (Parametric)

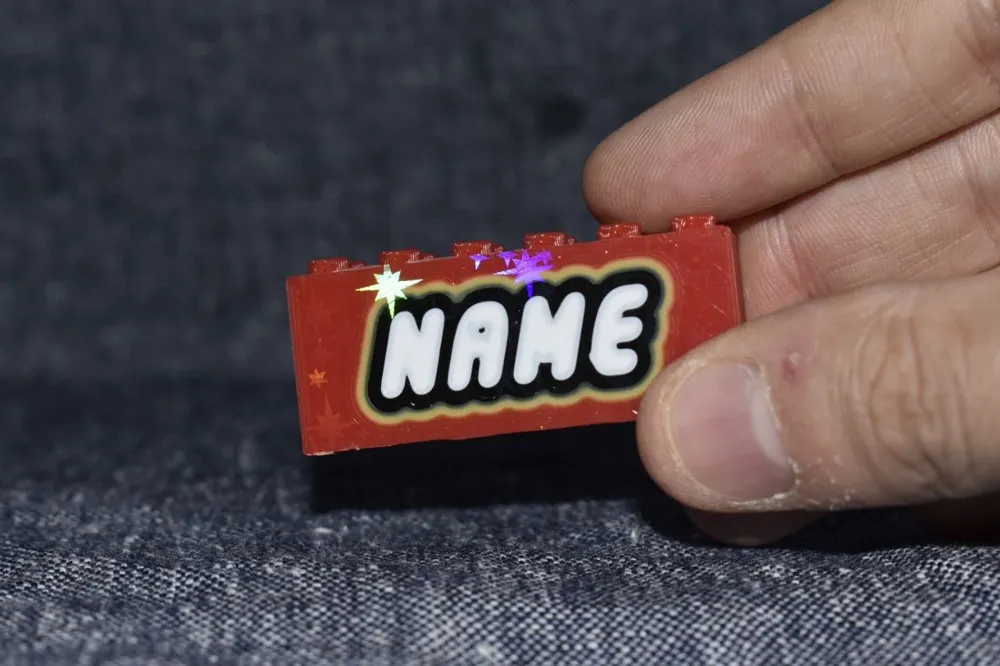

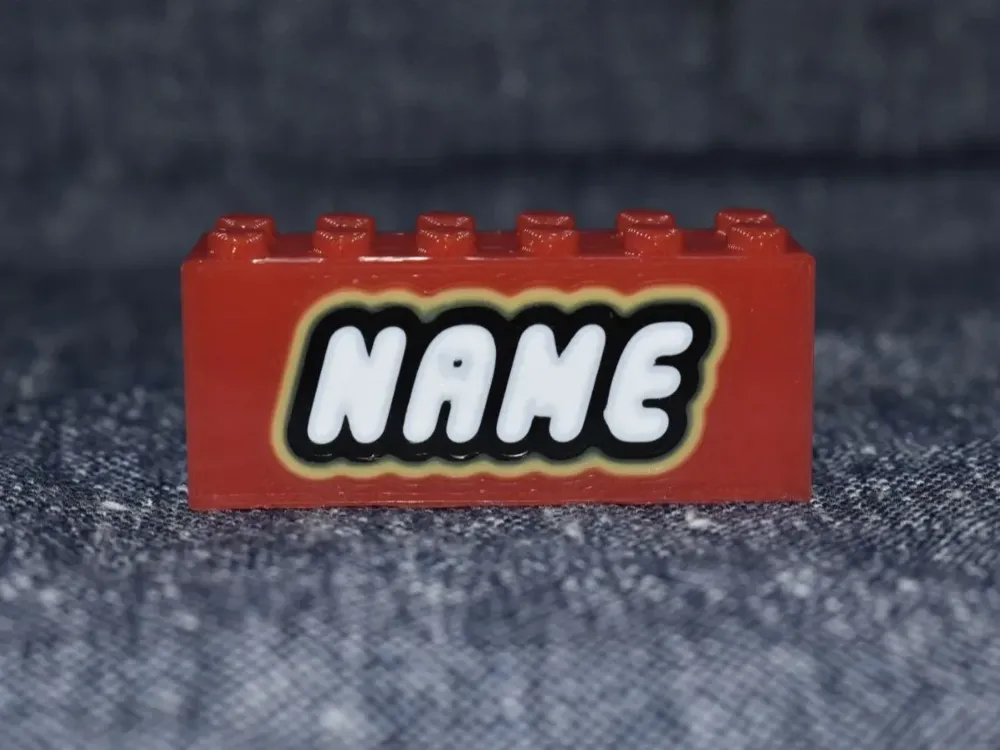

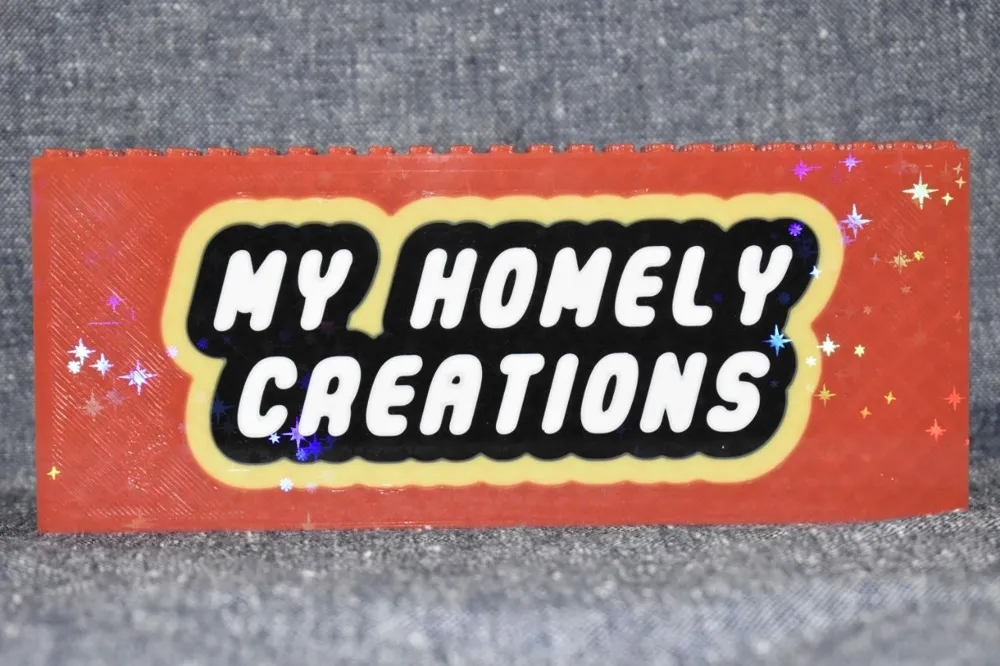

Create your custom brick directly from the MakerWorld configurator. Write the text, choose the colors, and download the ready-to-print model. The font is already geometrically embedded to ensure a clean three-color look (letters, outline, halo) on a body color of your choice. Perfect as a nameplate, place card, keychain, or gift idea

✨ What You Can Do

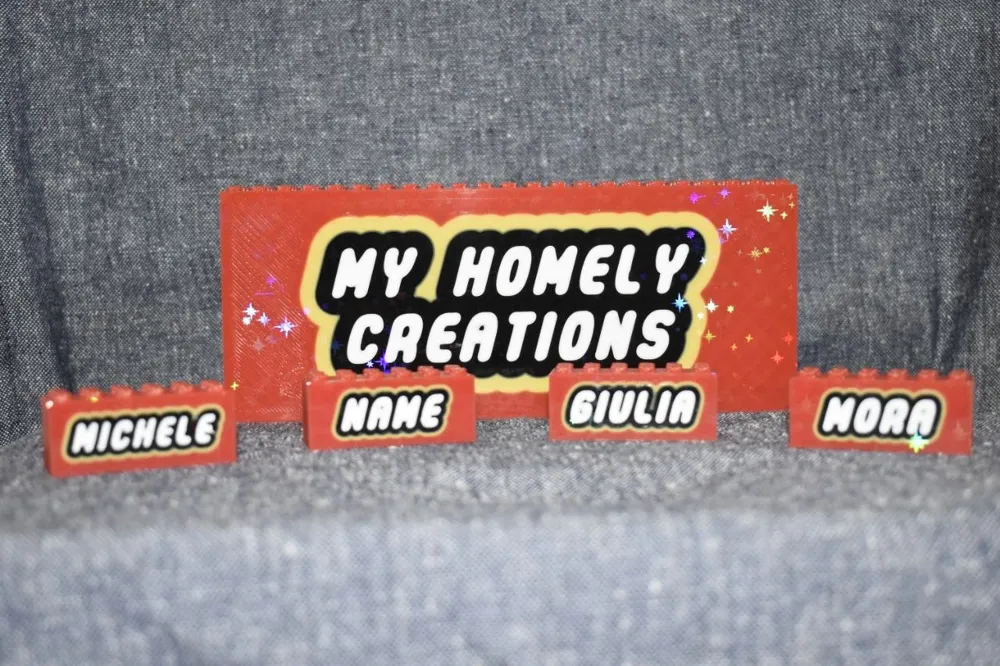

• Multi-piece: Generate up to 8 LEGO bricks simultaneously on the same build plate
• Multi-color Effect: Text embossed and structured with three distinct color levels
• 3 Base Types: Choose between Solid, Stackable, or Interlocking Hollow
• Keychain Function: Add the attachment eyelet with a single click
• Adaptive: The text automatically resizes to remain centered and proportional

📋 Configurable Parameters

• Text: Manage number of bricks, insert text strings, activate italics, spacing, and line break management (up to 3 lines)
• Dimensions: Adjust width, depth, and text infill factor on the piece
• Interlocks: Adjustable tolerances (interlock_clearance and stack_clearance) to adapt the fit to your printer's precision
• Extra Options: Activate keychain eyelet or custom text on the top face

🧩 The Three Base Types

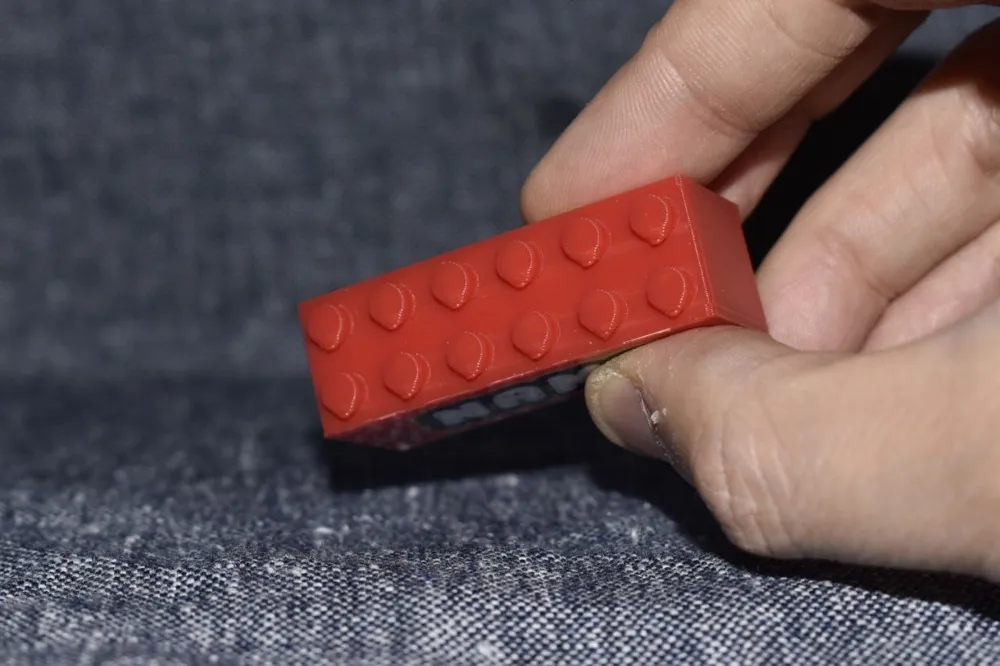

1. Solid: Solid brick without bottom recesses. It is the most robust and simplest version, ideal for nameplates and place cards. No supports required

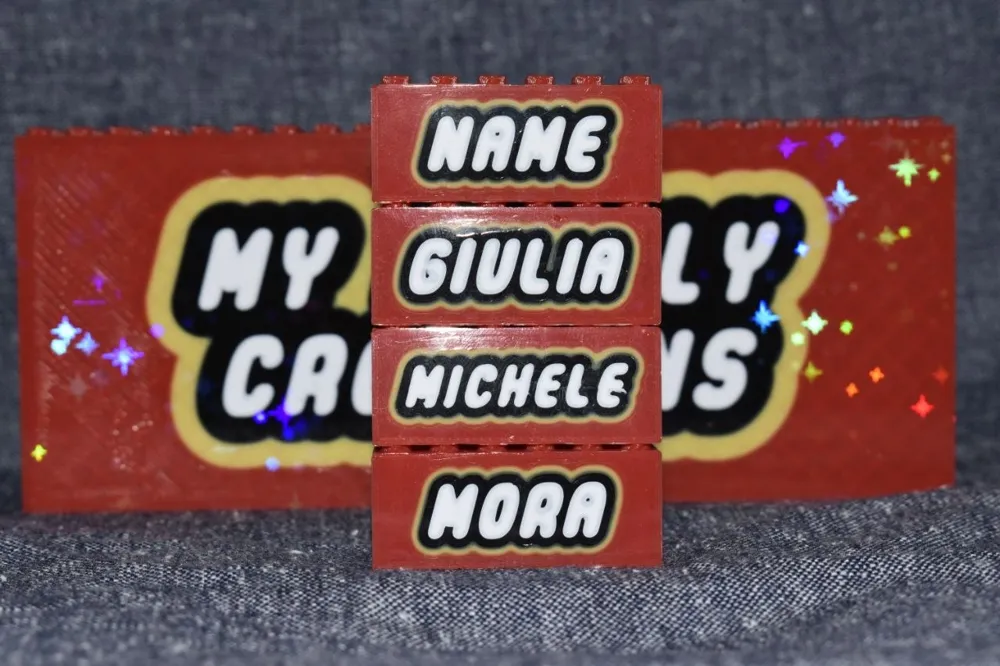

2. Stackable: Base designed with holes corresponding to the top studs for stacking pieces in alignment. Requires support activation for the bottom holes

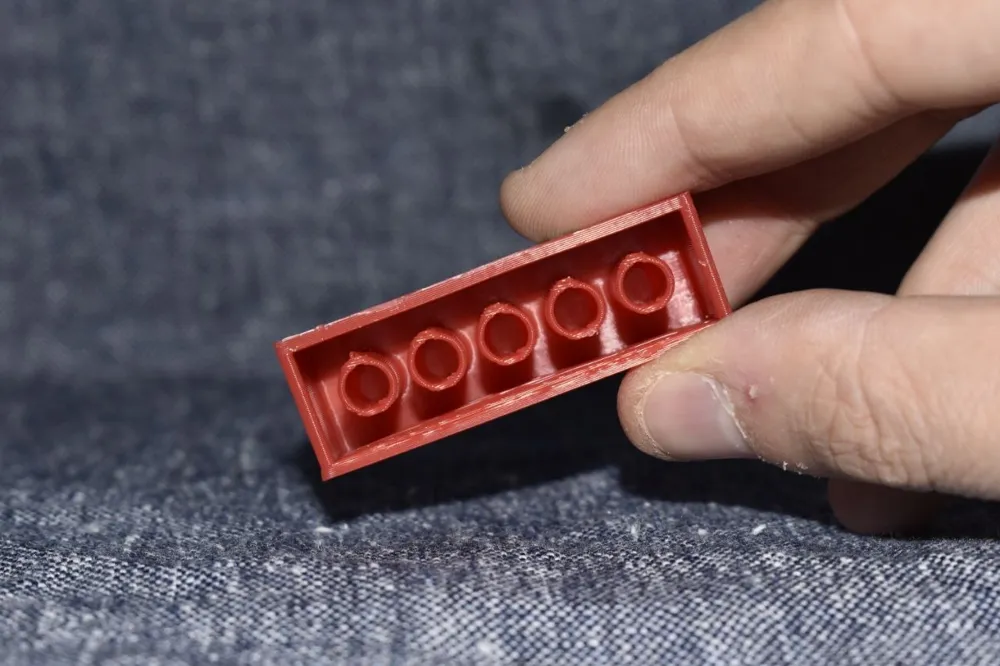

3. Interlocking Hollow: Replicates the classic building block structure with internal tubes, also compatible with offset interlocks. Vertical printing is recommended

🎨 Color Management (AMS / Multi-color)

The 3D model is generated already divided into distinct geometric zones. In the slicer, you just need to assign the filaments to their respective areas. The classic recommended combination is

• Letters: White
• Outline: Black
• Halo: Yellow
• Brick body: Color of your choice

💡 Tip: Open the .3MF file generated by the Customizer directly to find the ready-made and associated color tags and segments

🖨️ Recommended Print Settings

• Nozzle: 0.4 mm
• Material: PLA
• Layer height: 0.20 mm (go down to 0.12 mm for the Stackable version to get more defined holes)
• Infill: 15–20%
• Supports: Not necessary for the Solid version. Only necessary for the bottom holes in the Stackable version

Note on tolerances: Since every printer and filament varies slightly, if the interlock is too tight or loose, modify the clearance parameter values in the configurator before exporting the file.

💬 Feedback and Requests

If you find this parametric model useful, leave a Boost and a comment with photos of your prints!

Constructive feedback is always welcome to improve the configurator. If you're looking for a specific name and don't want to use the configurator, write it in the comments: I will upload ready-made print profiles for the most requested names

Created by MyHomely Creations — Model for personal use.
