45° Layout Square for precise marking
Print Profile(1)
Description

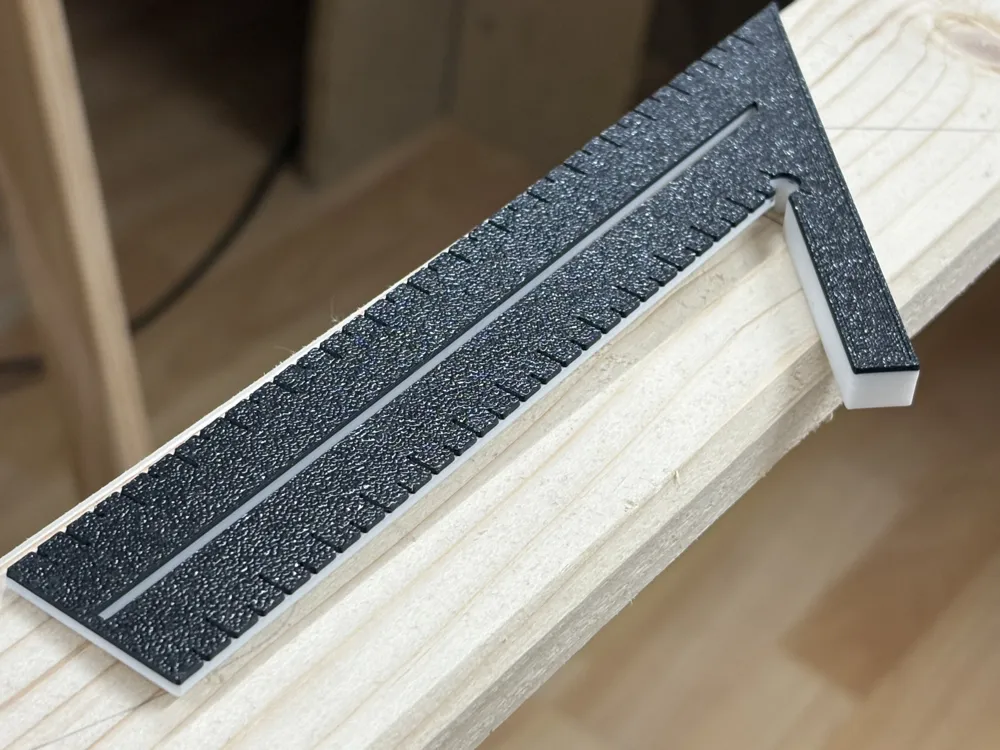

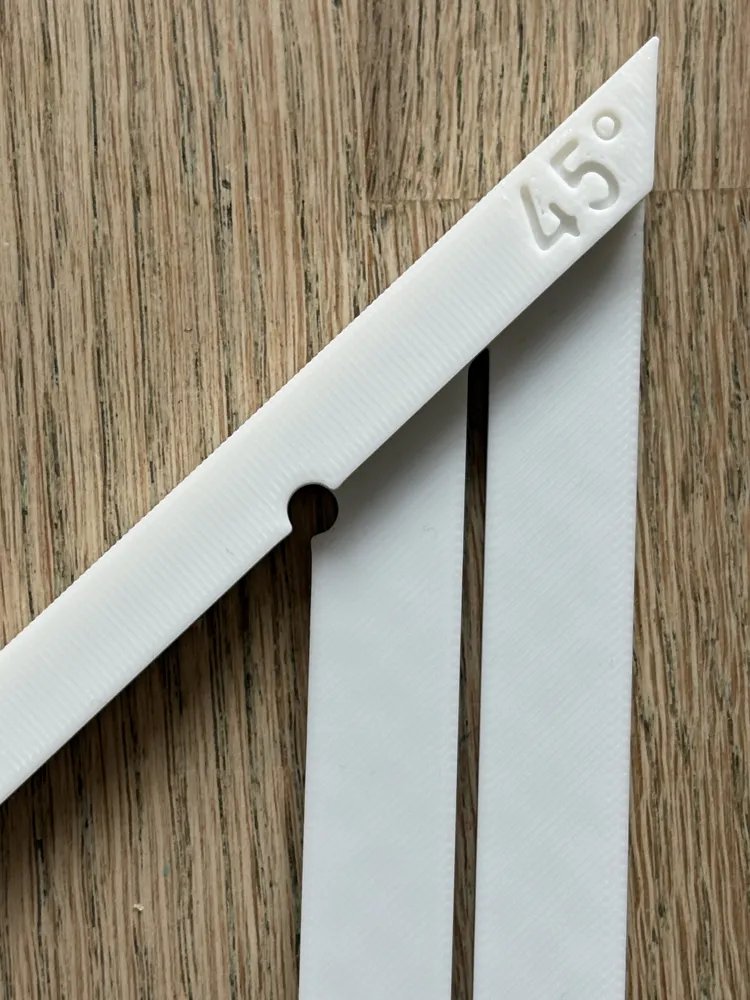

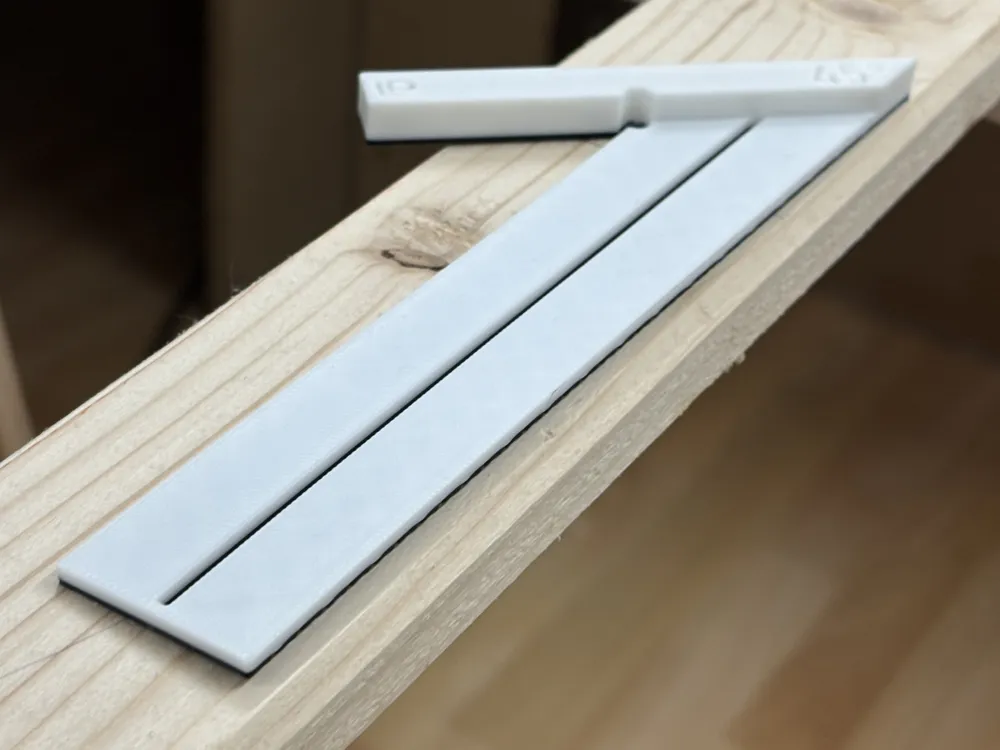

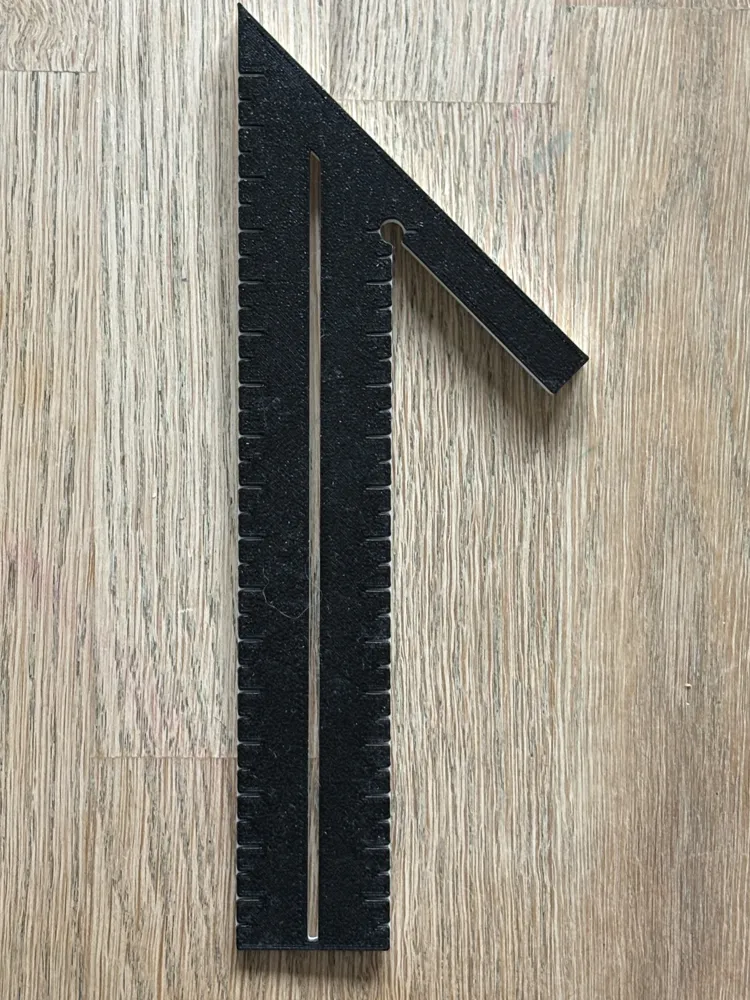

This 45° layout square was specifically developed for precise marking, measuring, and aligning workpieces. Thanks to the integrated stop, the square can be securely placed against an edge to quickly and easily mark clean and exact 45° lines.
The integrated measuring lines facilitate transferring dimensions and checking distances and positions. This makes the tool ideal for miter cuts, model making, woodworking, craft projects, and numerous other applications where precise 45° angles are required.
The model is optimized for 3D printing and offers a practical addition for every workshop, maker workspace, and hobby workbench.
Features:
- Precise 45° angle for marking and aligning
- Stop for quick and repeatable positioning
- Integrated measuring lines for additional orientation
- Ideal for miters and angled markings
- Compact and lightweight design
- Optimized for 3D printing
- Simple and intuitive handling
Applications:

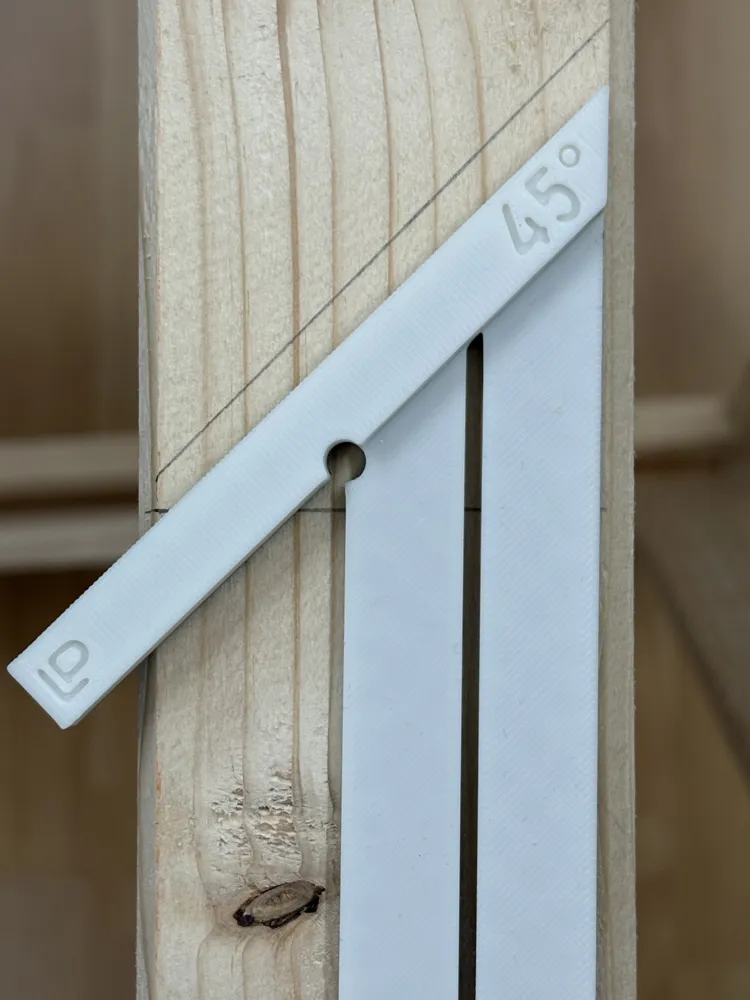

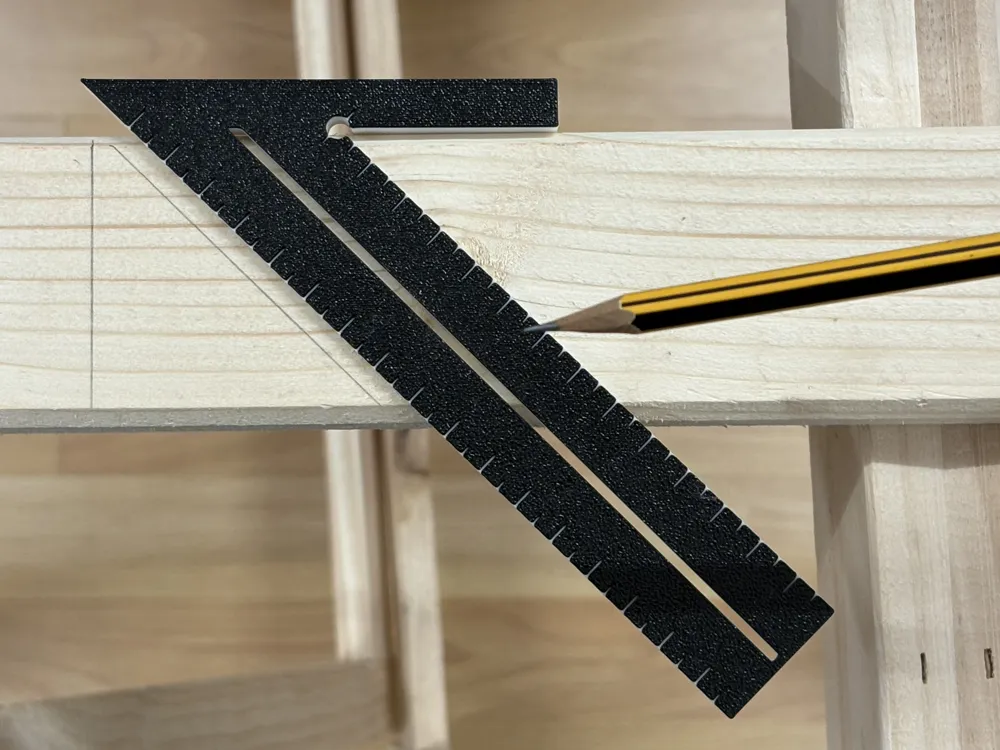

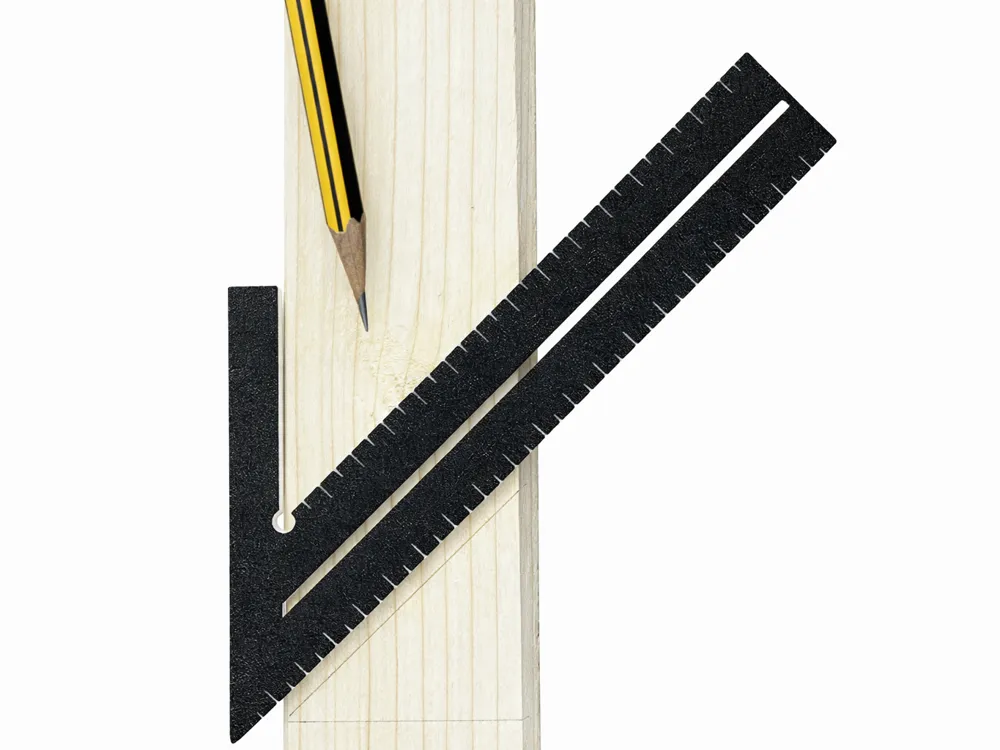

- Marking 45° lines
- Preparing miter cuts
- Aligning workpieces
- Model making and prototyping
- Wood and plastic processing
- DIY and craft projects
Print Notes:
- Recommended material: PLA, PETG or ABS
- Print with fine layer height for maximum accuracy
- Printable without support structures
