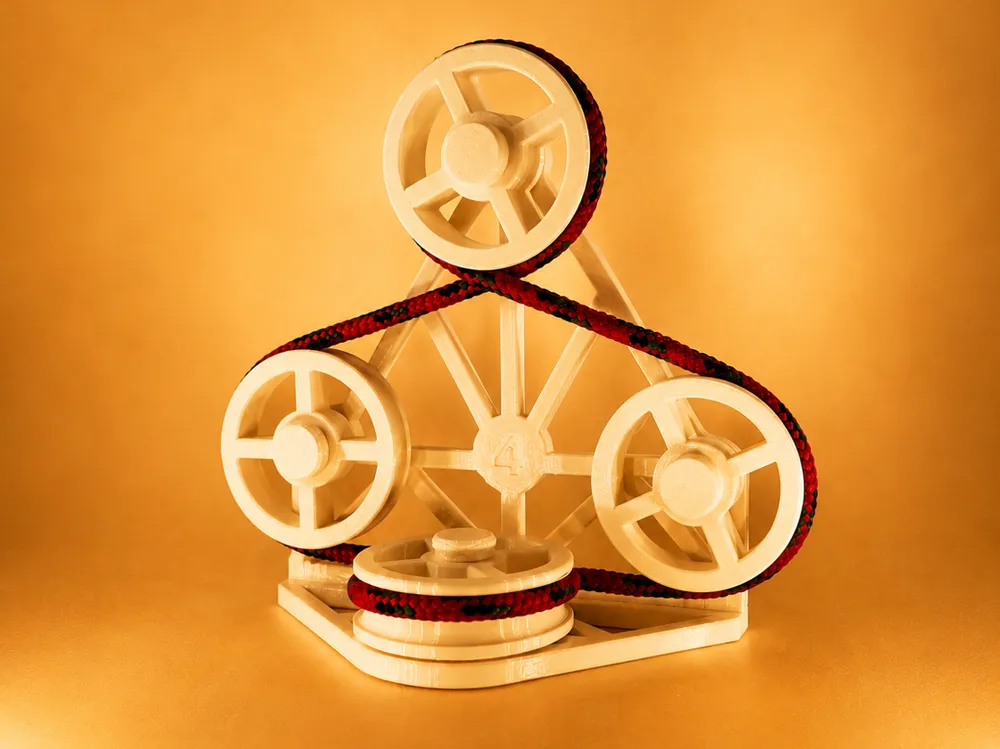

507 Mechanical Movements : 4 (Right Angle Pulley)
Print Profile(1)
Bill of Materials

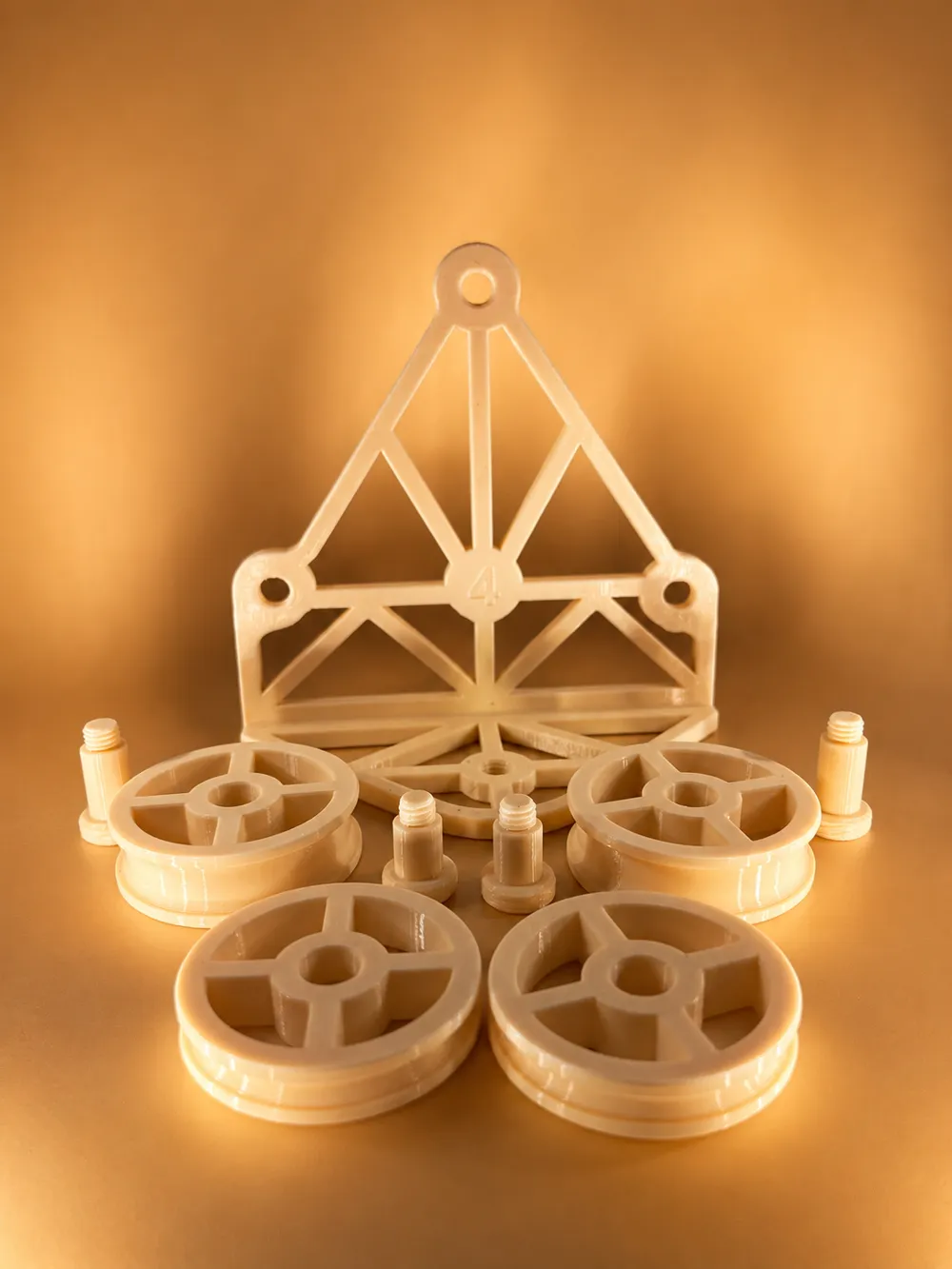

- paracord x 1: will need a bit
Description

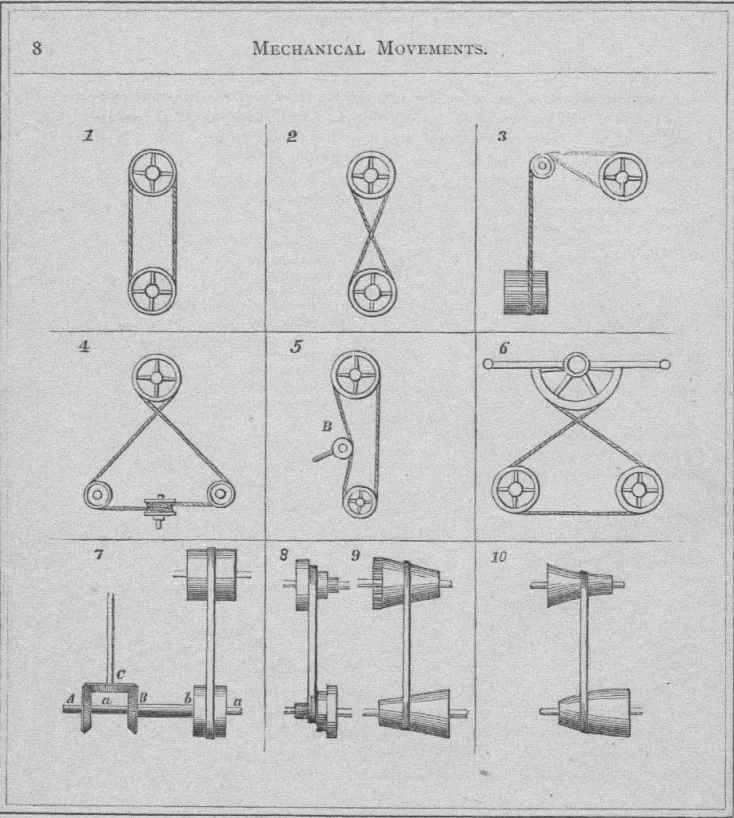

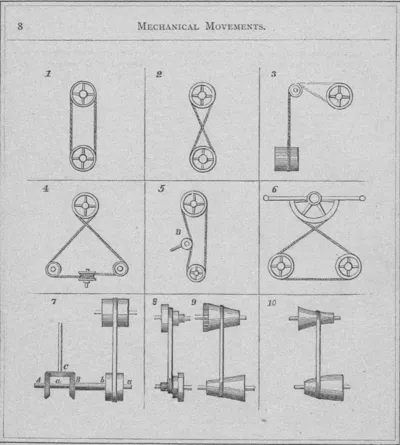

4th mechanical movement from 507 Mechanical Movements by Henry T Brown
“4. A method of transmitting motion from a shaft at right angles to another whose axis is in the same plane. This is shown with a crossed belt. An open belt may be used, but the crossed one is preferable, as it gives more surface contact.”
May need a bit of paracord for the pulley.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
