160*160 Pegboard - Infinitely Connectable
Print Profile(1)
Description

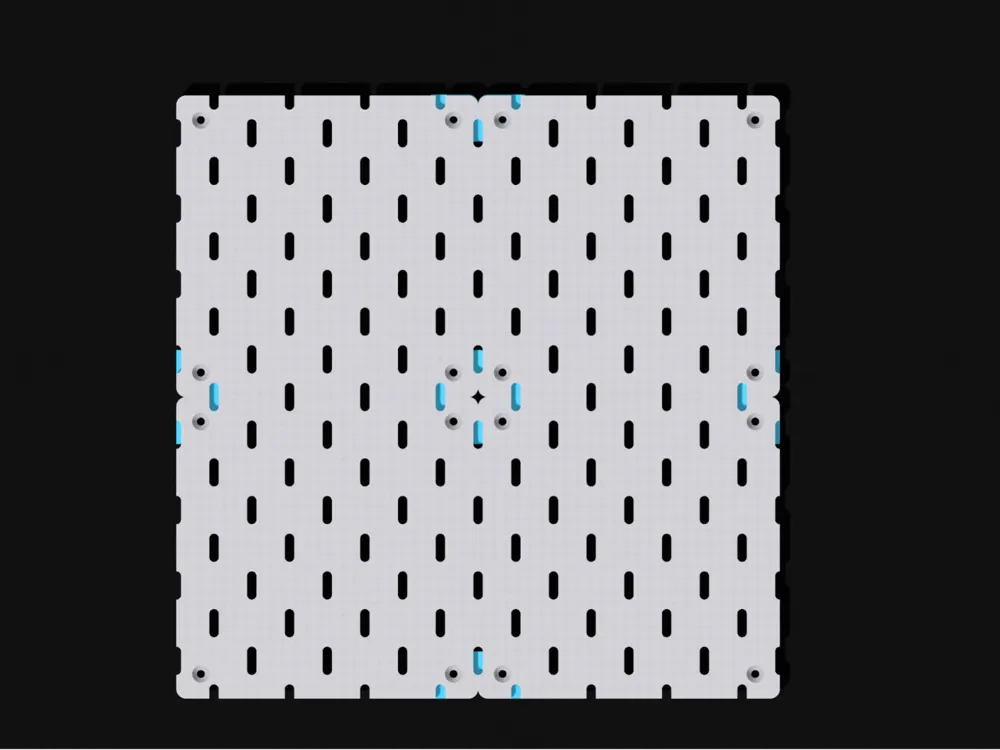

5mm thick IKEA-style pegboard, 160*160mm in size, printable with A1 mini.

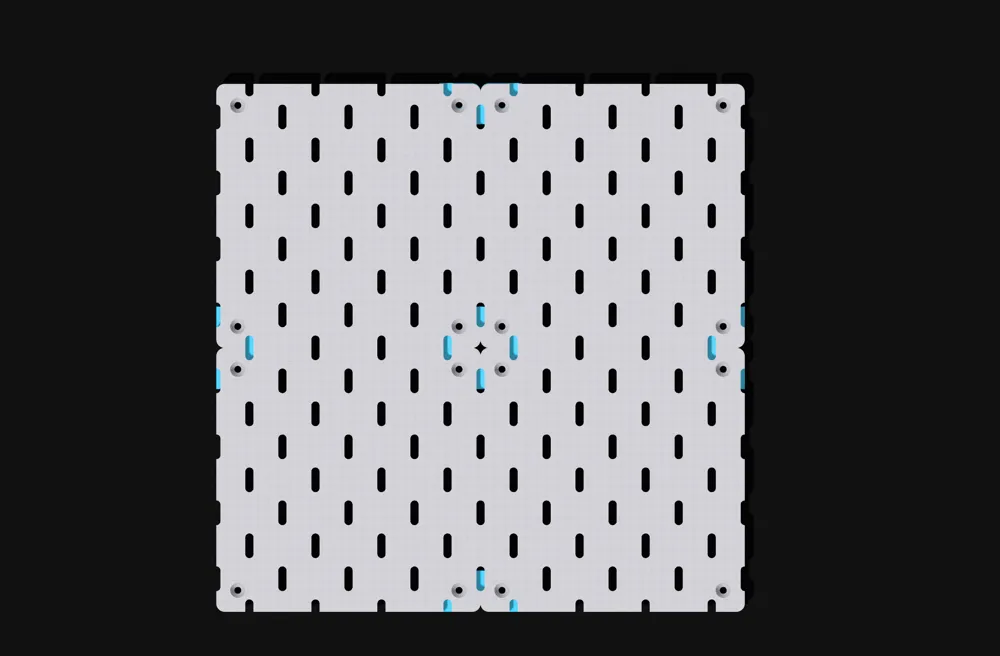

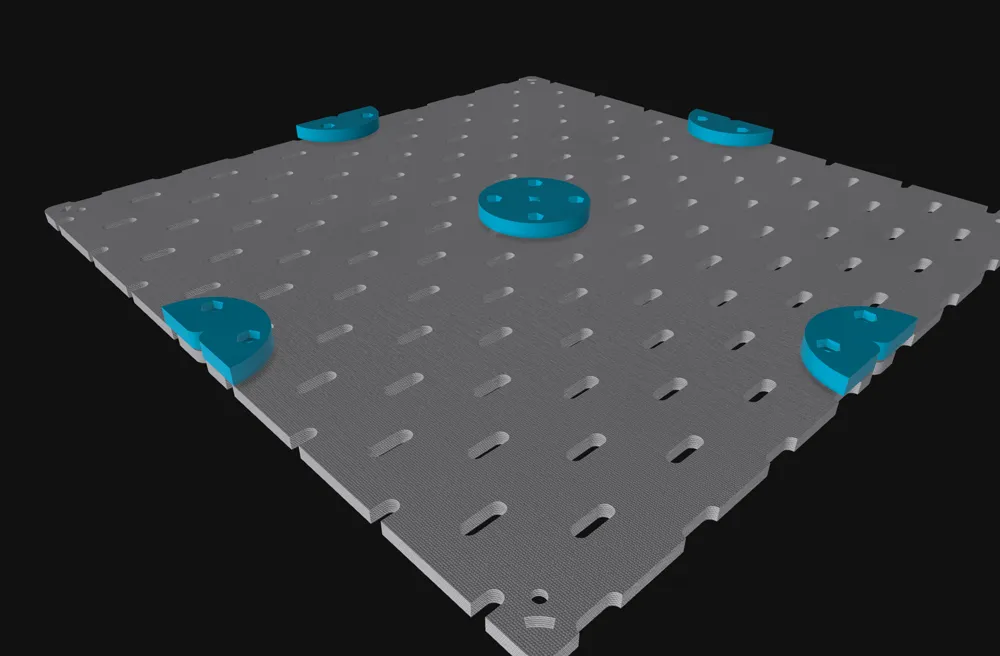

1. Infinitely connectable.
2. The connector is 7mm thick, supporting the pegboard 7mm off the wall.

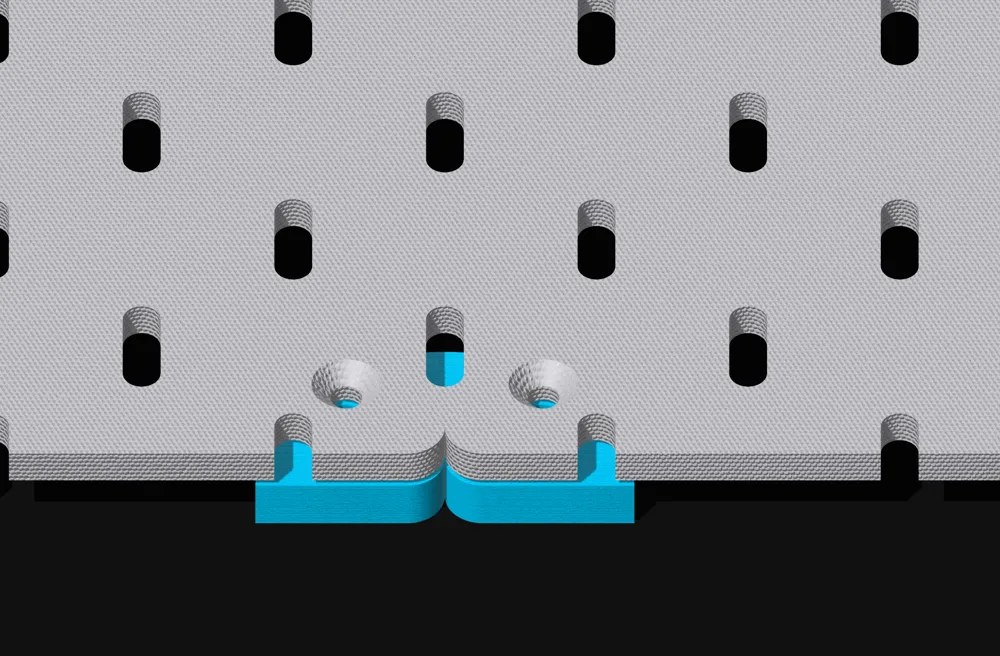

3. The connector and pegboard are joined using a mortise and tenon joint plus screws, making it very sturdy.

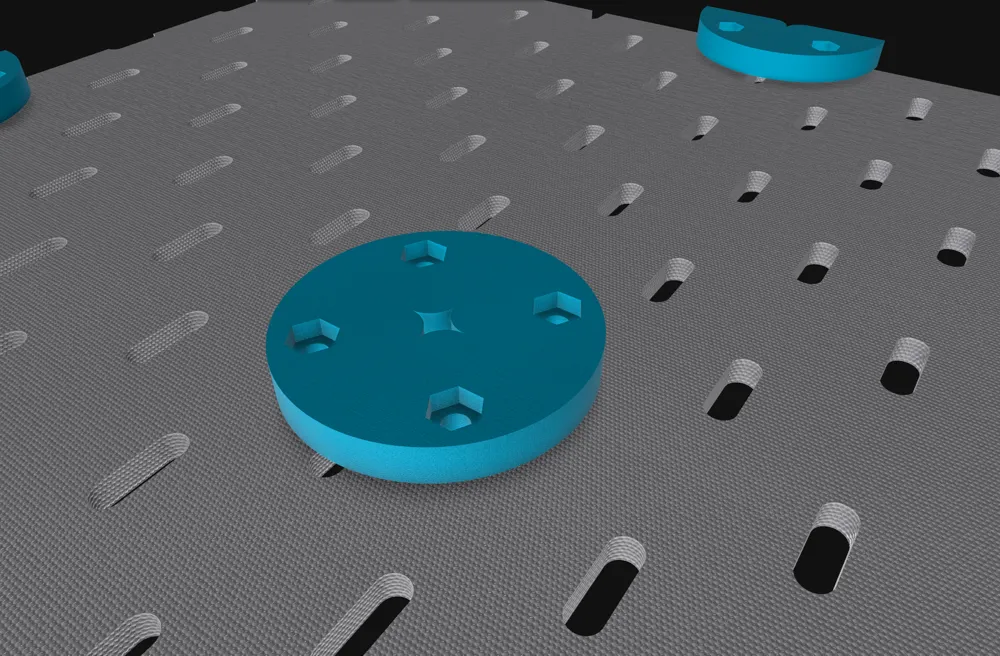

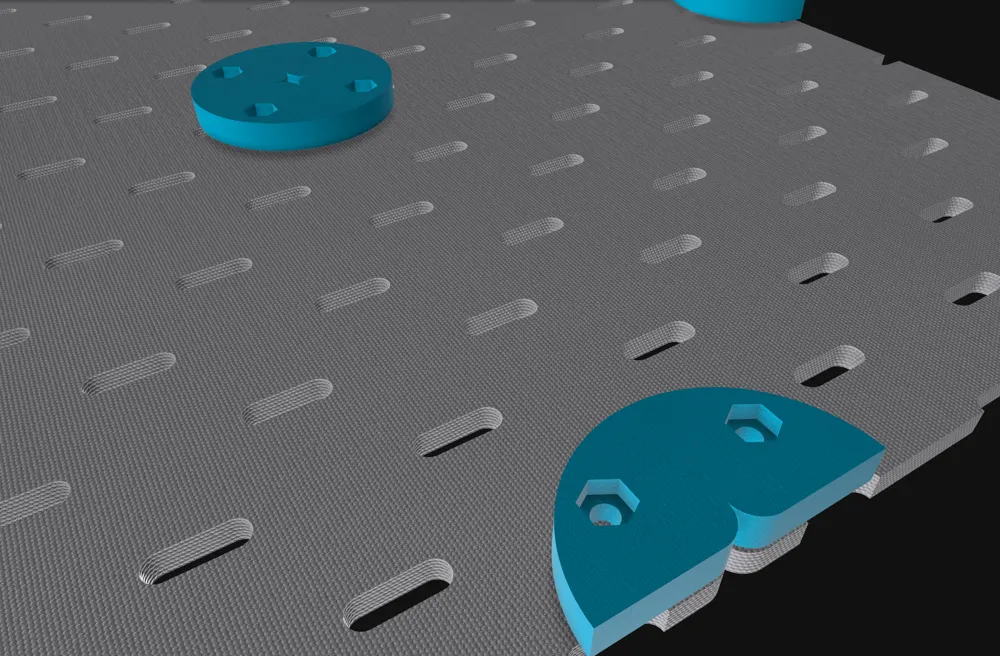

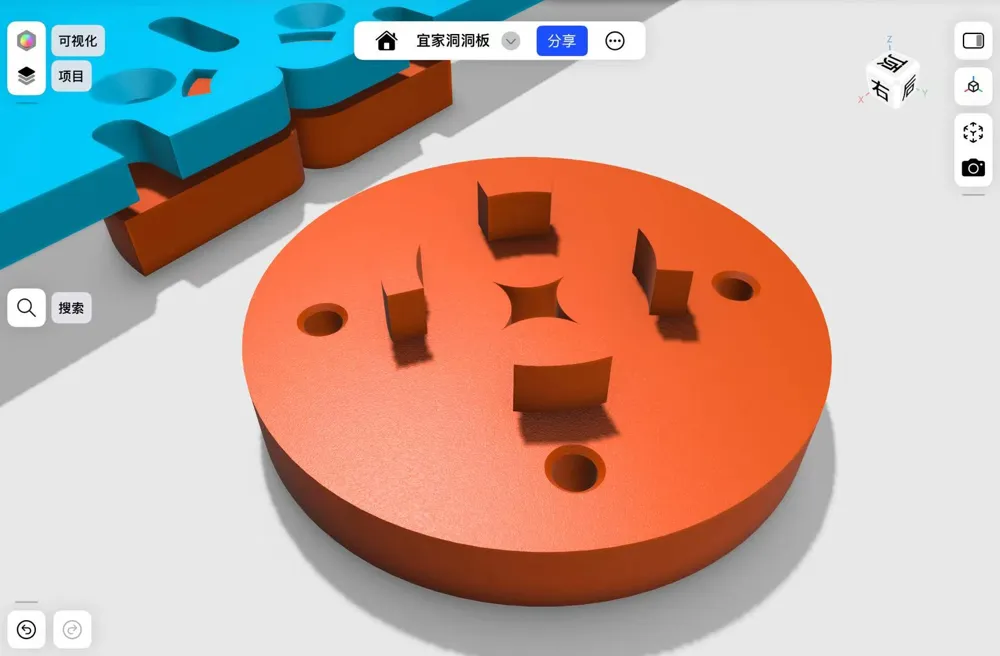

4. Two methods are provided for screw connection: a. The connector has reserved embedded nut grooves for a secure connection. b. The connector has no reserved nut grooves, allowing screws to be directly driven in, replacing nuts.
5. M4*10mm screws are used for connection.
6. Special note: The reserved screw holes in the four corners can be directly fixed to the panel corner grooves of 30*30 European standard aluminum profiles.

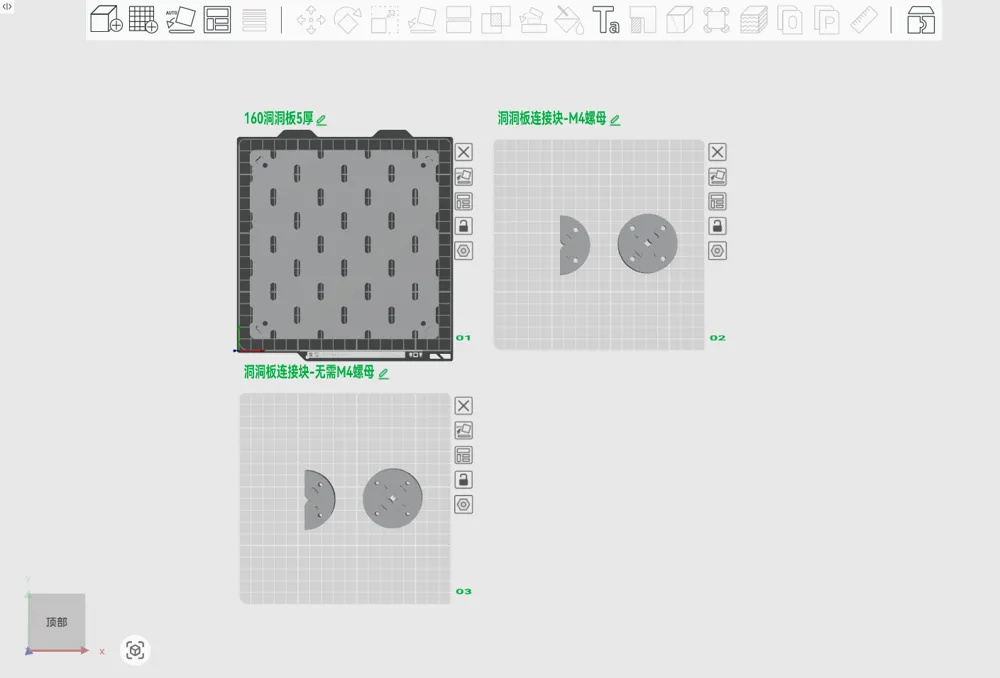

7. Separate plates for printing: plate 1 is the pegboard; plate 2 is the connector with reserved nut positions; plate 3 is the connector without nuts. Choose which to print yourself.
