Hi Makers! I'm a mechanical engineer & open source developer. You'll find all my designs are inter-operable and have documentation at OpenLab Project.
Find my content on Youtube to learn about:
- design for 3D printing
- open source hardware
- multidisciplinary engineering

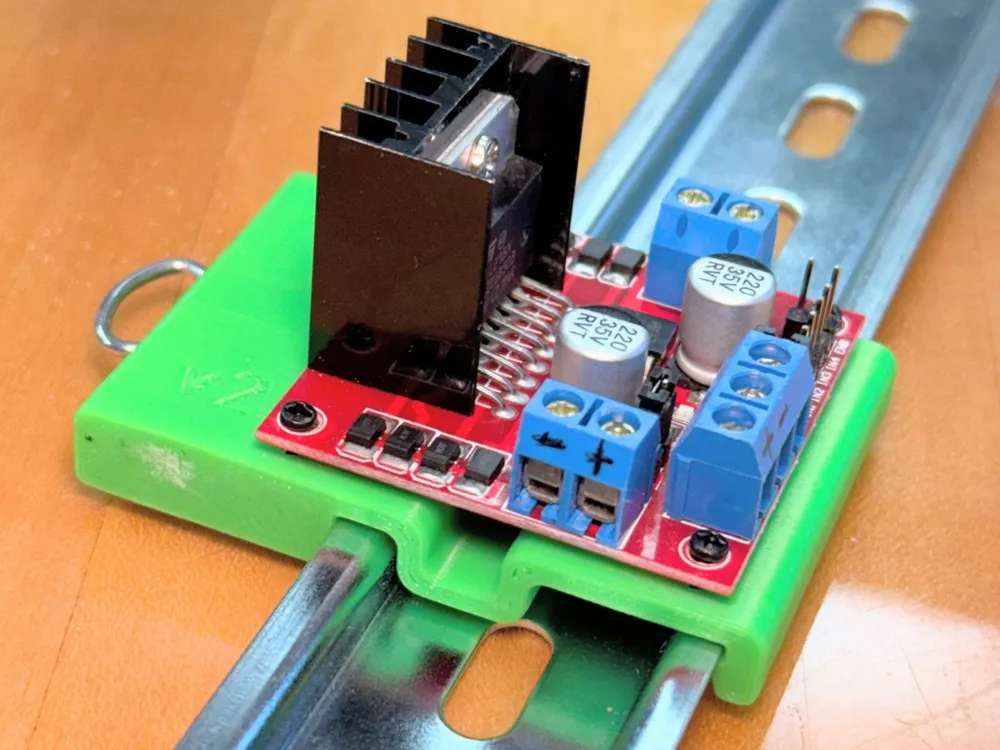

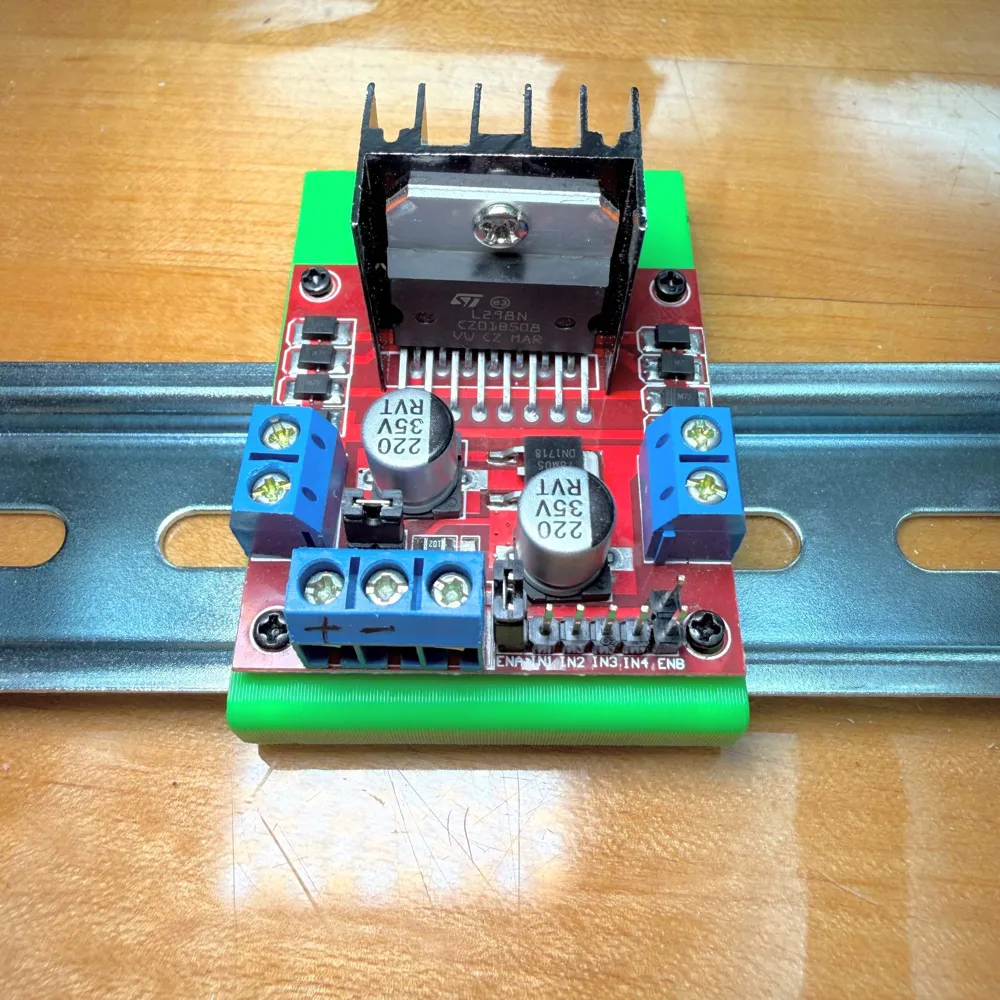

The maker's most popular motor driver: L298N on a common unbranded circuit board, and a printable DIN-rail mounting bracket.
► abstracted but accurate CAD model for lightweight modeling
► board & holes designed from real parts.
►
This design helps maker's build more clean prototypes by arranging parts on DIN rail. This is a popular addon for SCUTTLE robot actuators in engineering projects.
Note the original DinSpring model which has a parametric printable design for this very same bracket.
dinSpring
