Ayaneo Pocket Vert - Charging and Display Stand
IP Report
Print Profile(1)
0.16mm layer, 2 walls, 15% infill
Designer
3.8 h
1 plate
Open in Bambu Studio
Boost
3
6
0
0
2
0
Released
Description

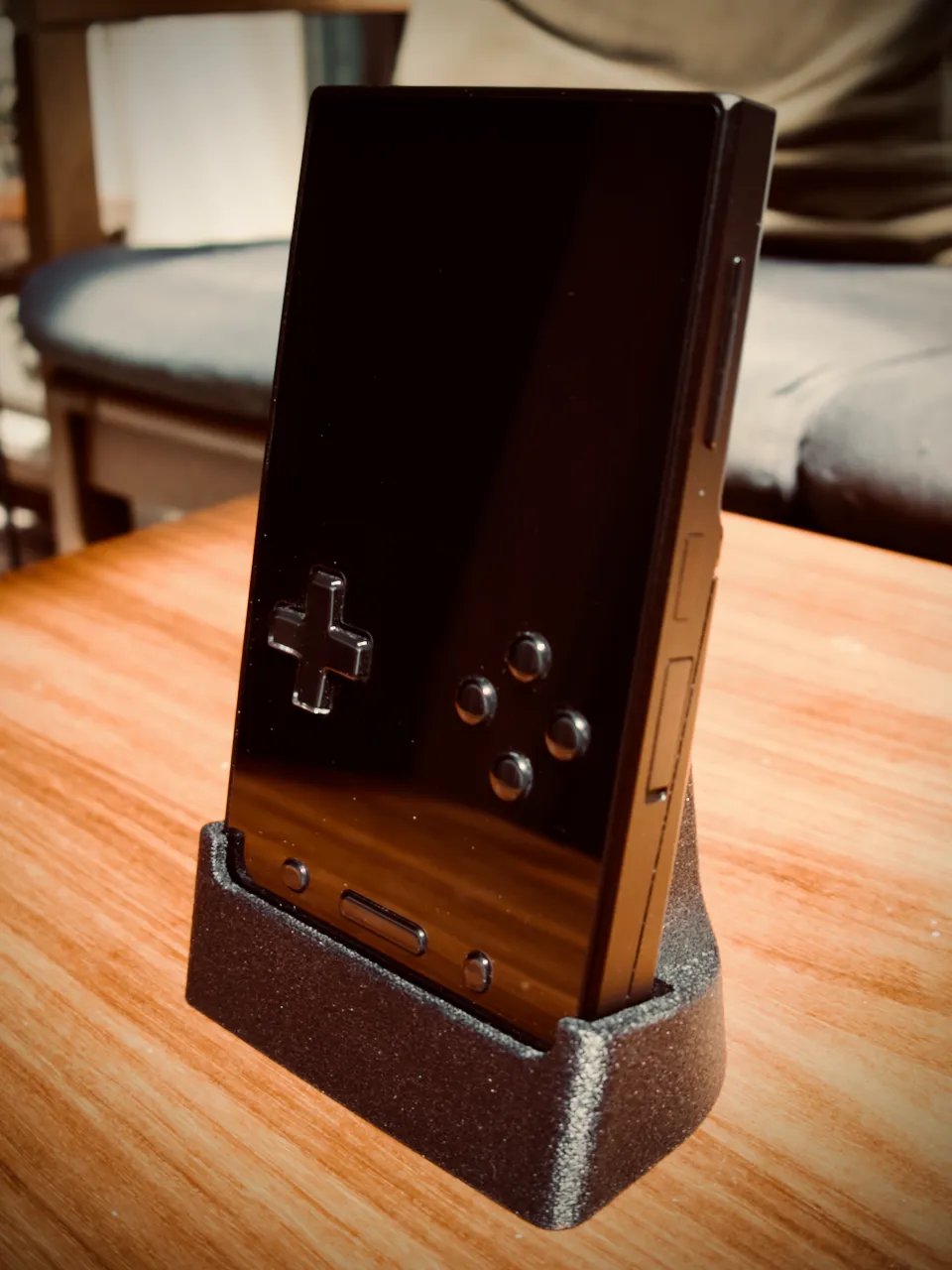

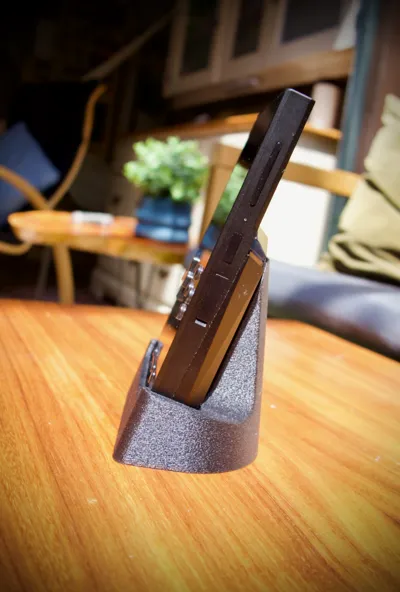

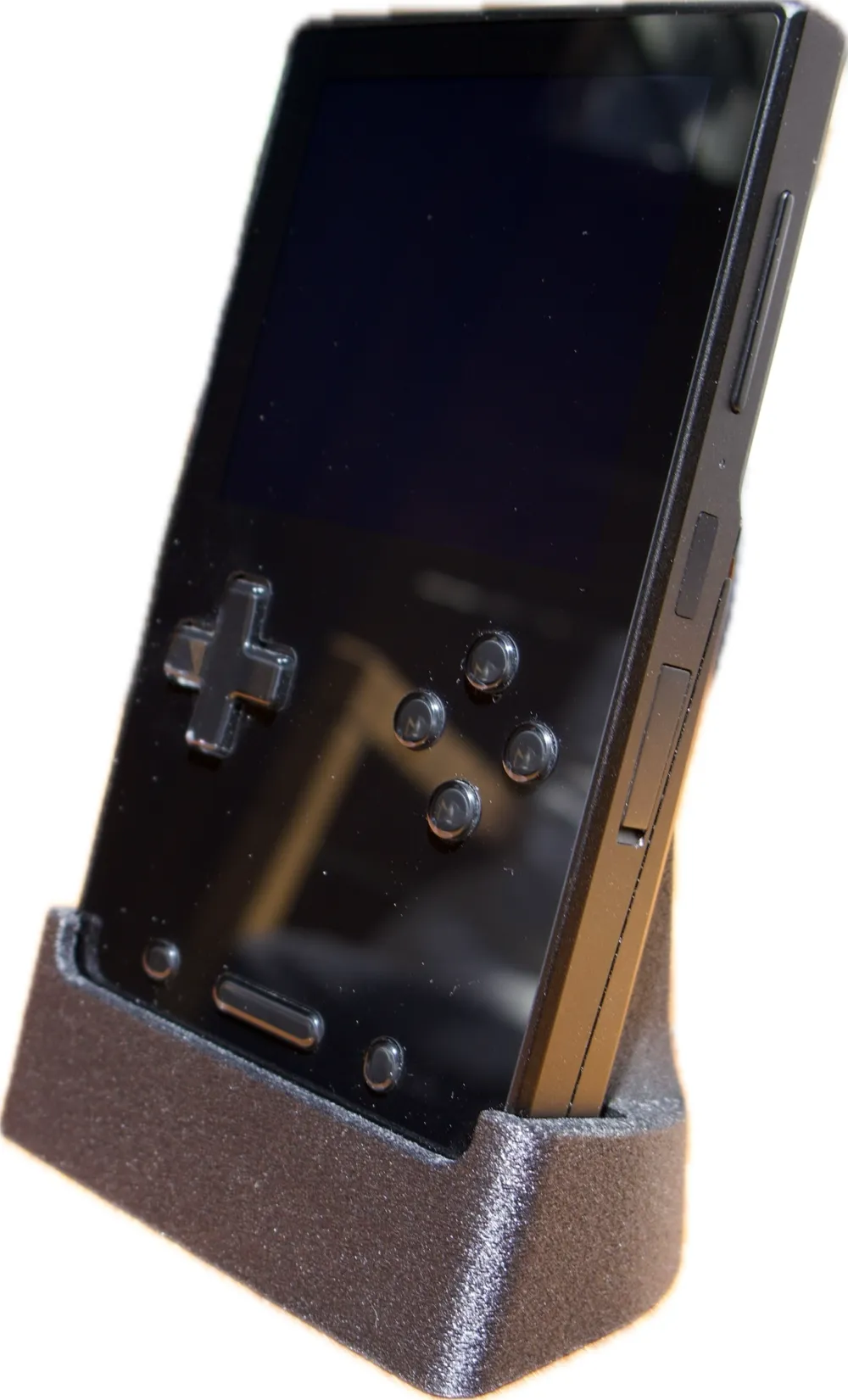

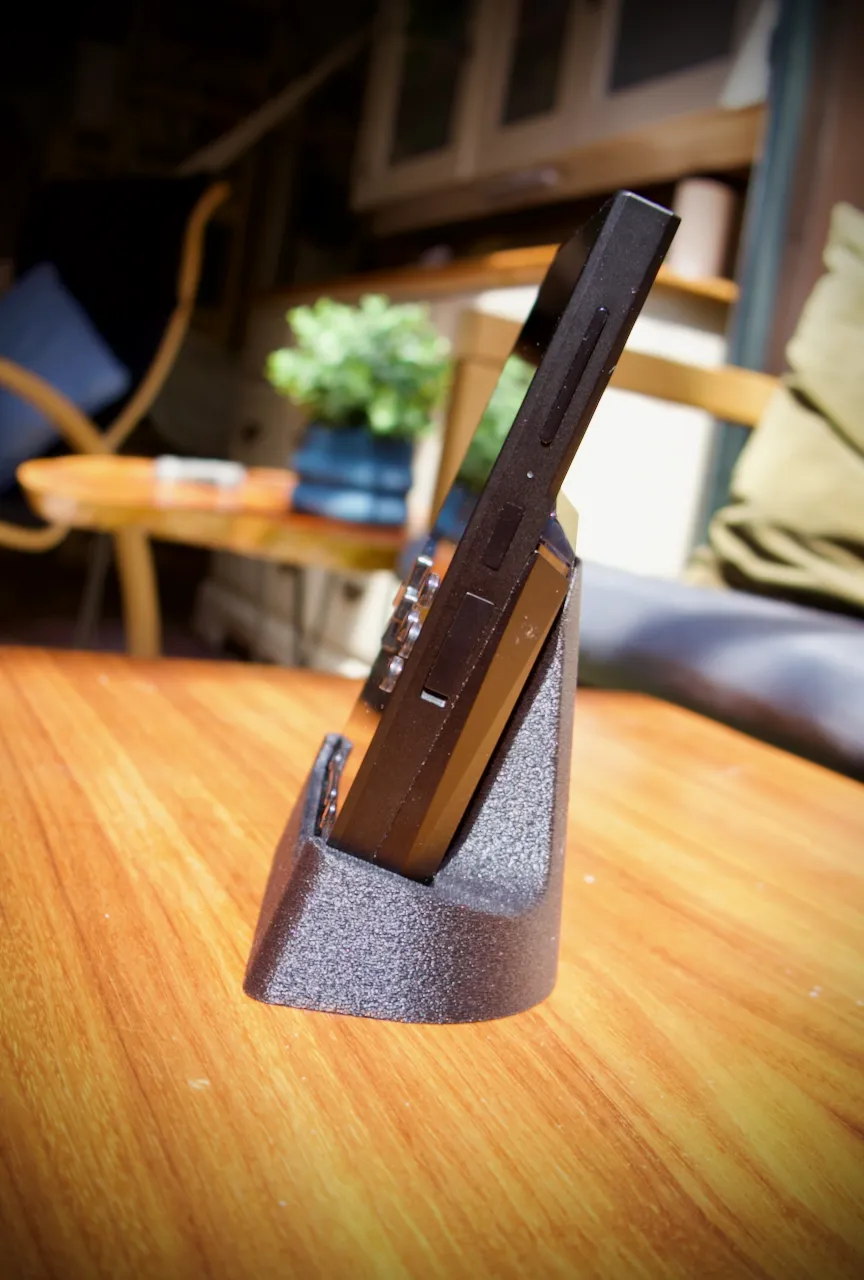

This stand is custom-built for the Ayaneo Pocket Vert.

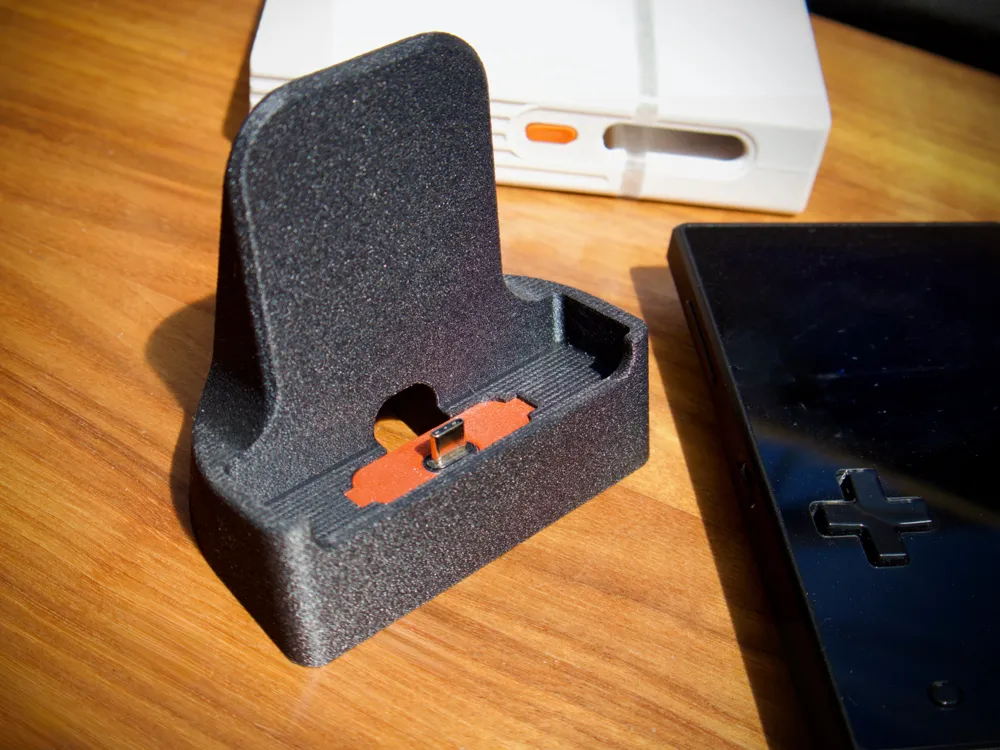

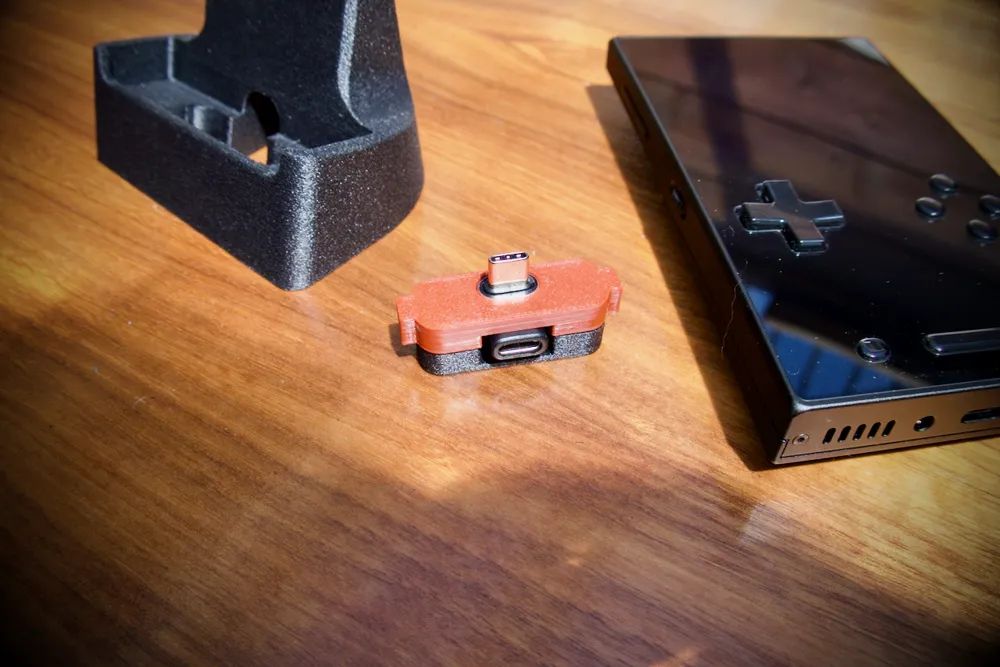

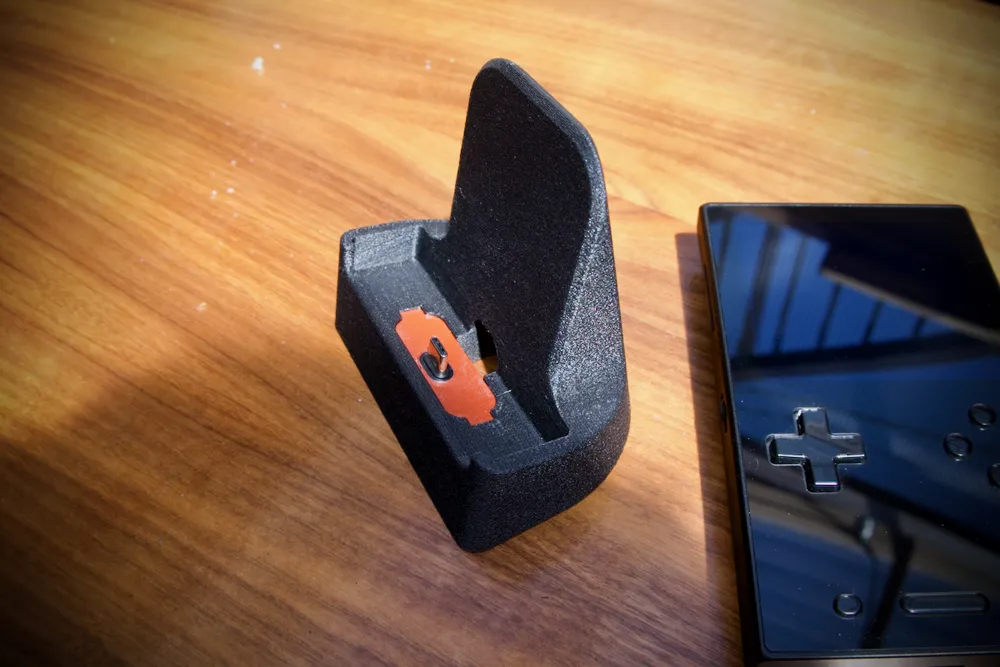

This custom-built stand features a minimal, clean design while maintaining high compatibility, allowing you to easily connect HDMI cables, USB adapters, and other accessories. It is designed to be used with a right-angle USB adapter so you can charge the console while it's docked. To maximize compatibility, the plug port is a separate piece, allowing you to adjust it to fit your own hardware.
Hardware Needed:
- USB Adapter: Poyiccot USB C 90 Degree Adapter (40Gbps, PD 240W) (https://www.amazon.ca/dp/B0BRCPXJ7C)
- Screws: 2 tiny screws to connect the top and bottom sections.
- Assembly: Super glue to lock the plug insert in place once you've dialed in the fit.
Print Settings:
- 3MF File: Includes pre-configured fuzzy skin walls for a textured finish.
- STL Files: Clean STLs are also included if you prefer to slice it yourself.
