Toolgrid Individual plier holder (Toolify3d)

Toolify3d Individual plier holders for ToolGrid style boards (My boards are linked below)

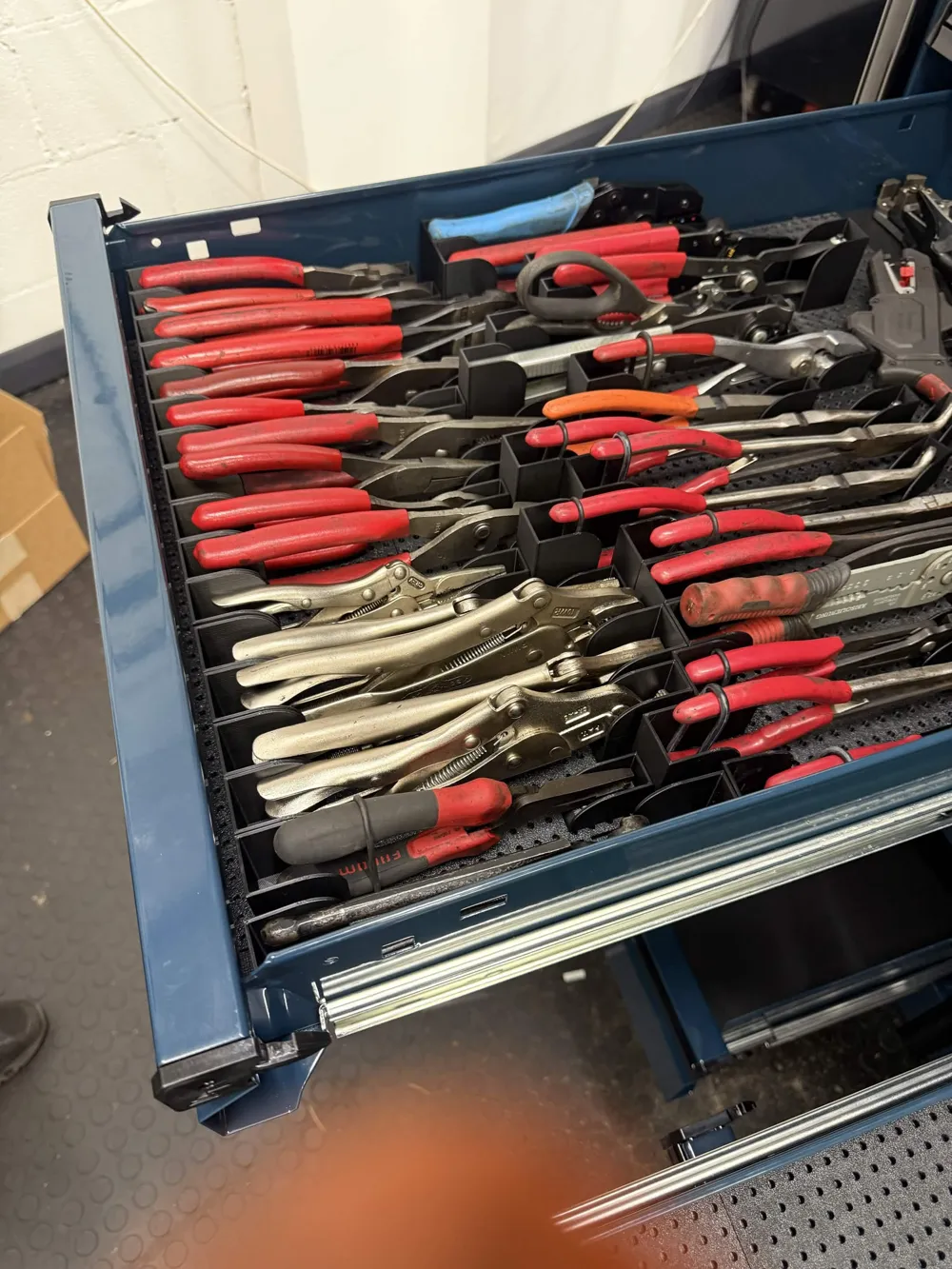

I created these on request of a work colleague and honestly… the space saving is insane, check out the picture of his plier draw that used to take up two wider draws when laid flat!

Screw size required: i have been using 4mm x 10mm cheap plastic forming screws off amazon and 4mm x 8mm plastic forming screws (Socket holders only), the ToolGrid genuine screws also are compatible being 4.55x10mm just slightly tighter.

a chap at my work uses 4x10 wood screws and they're also compatible.

Please note, Most of my attachments for this board will require a maximum 8mm head size, a guy at work does force 8.5mm in and seems to hold well… just be sure to find the right screws. Any questions… just ask!

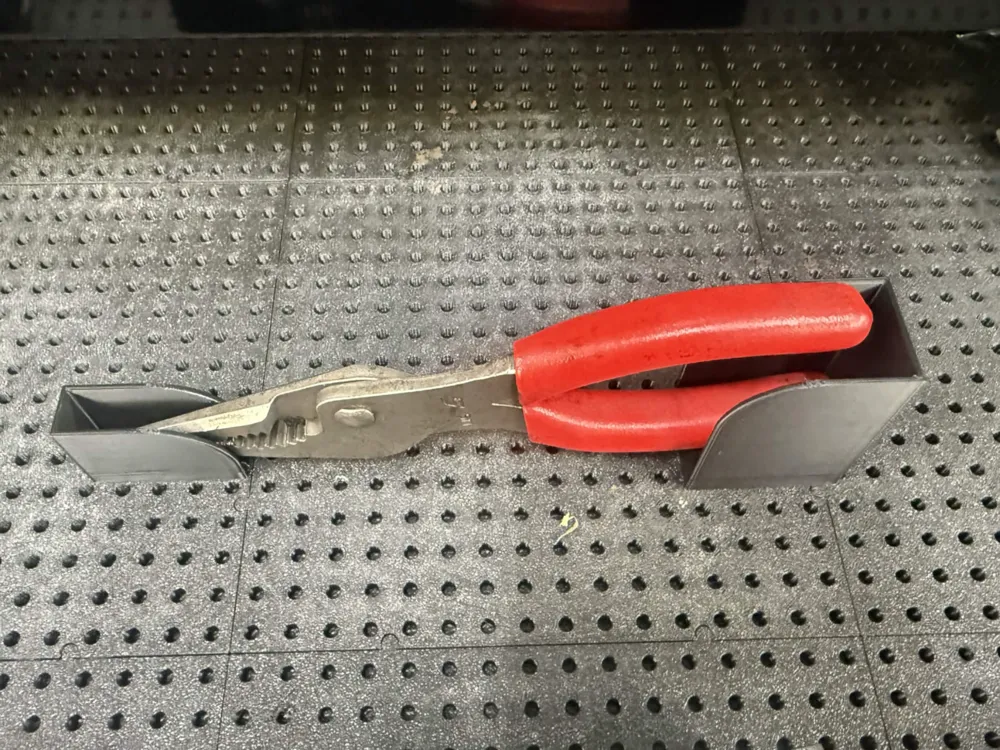

each holder has a 1.75mm wall, plenty to keep your pliers in place, i currently have just a few design widths to my work collogues requirements, but I'm sure this will evolve over time.

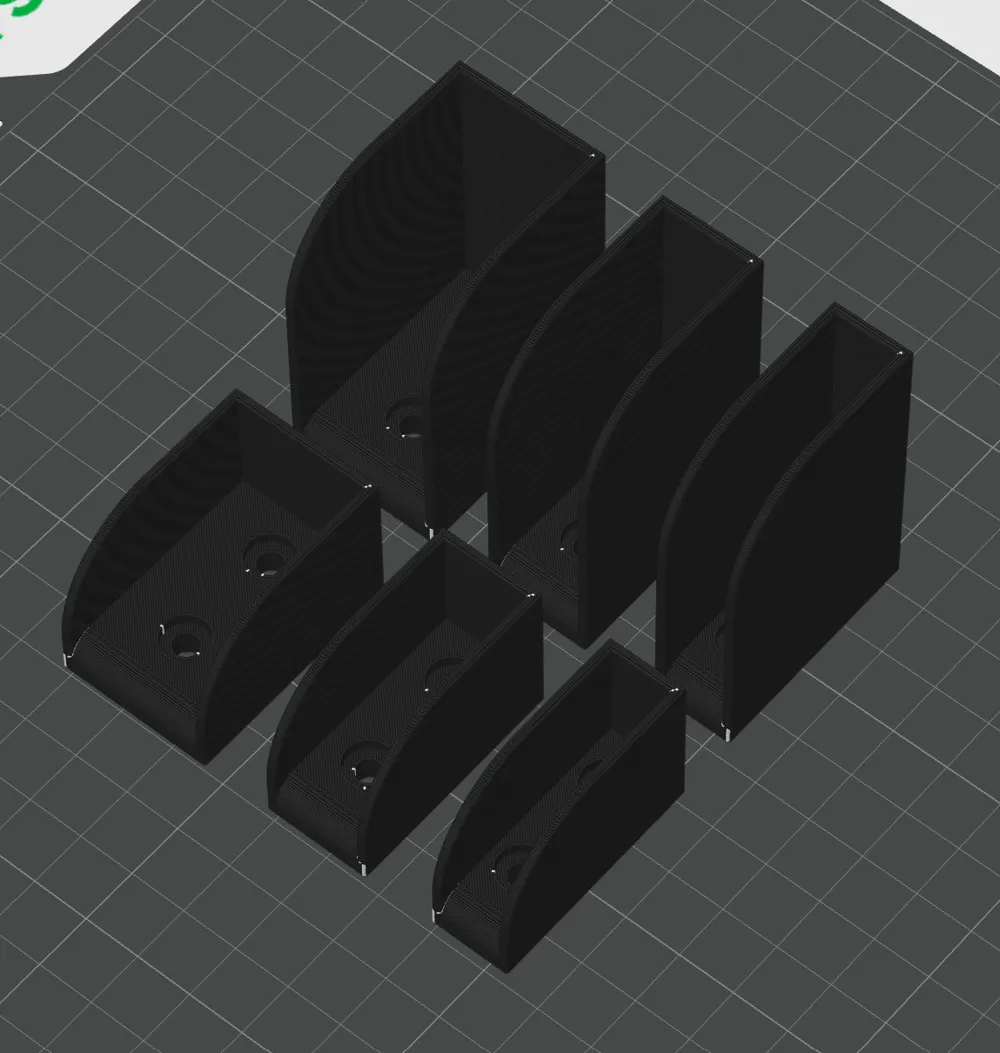

Print profiles:

• 10mm width, 55mm tall
• 10mm width, 27.5mm tall
• 15.5mm width, 55mm tall
• 15.5mm width, 27.5mm tall
• 24.5mm width, 55mm tall
• 24.5mm width, 27.5mm tall

NOTE: IF YOU WOULD LIKE A SPECIFIC SIZE/CHANGE… drop me a message or write a 5 star review ;) i will endeaver to reply within 24h and aim to provide a print profile within 48h.

Hole sizes are 9.5mm apart and work perfectly with my board and should work with any other creators ToolGrid style boards including the genuine ToolGrid boards.

I have used cheap Sunlu PETG HS Matte black to print these, since it was only £30 for 4 refill rolls on amazon, thus i purchased 16kg of it. i cannot see why this wouldn't work with any other material, however i have not tested this.

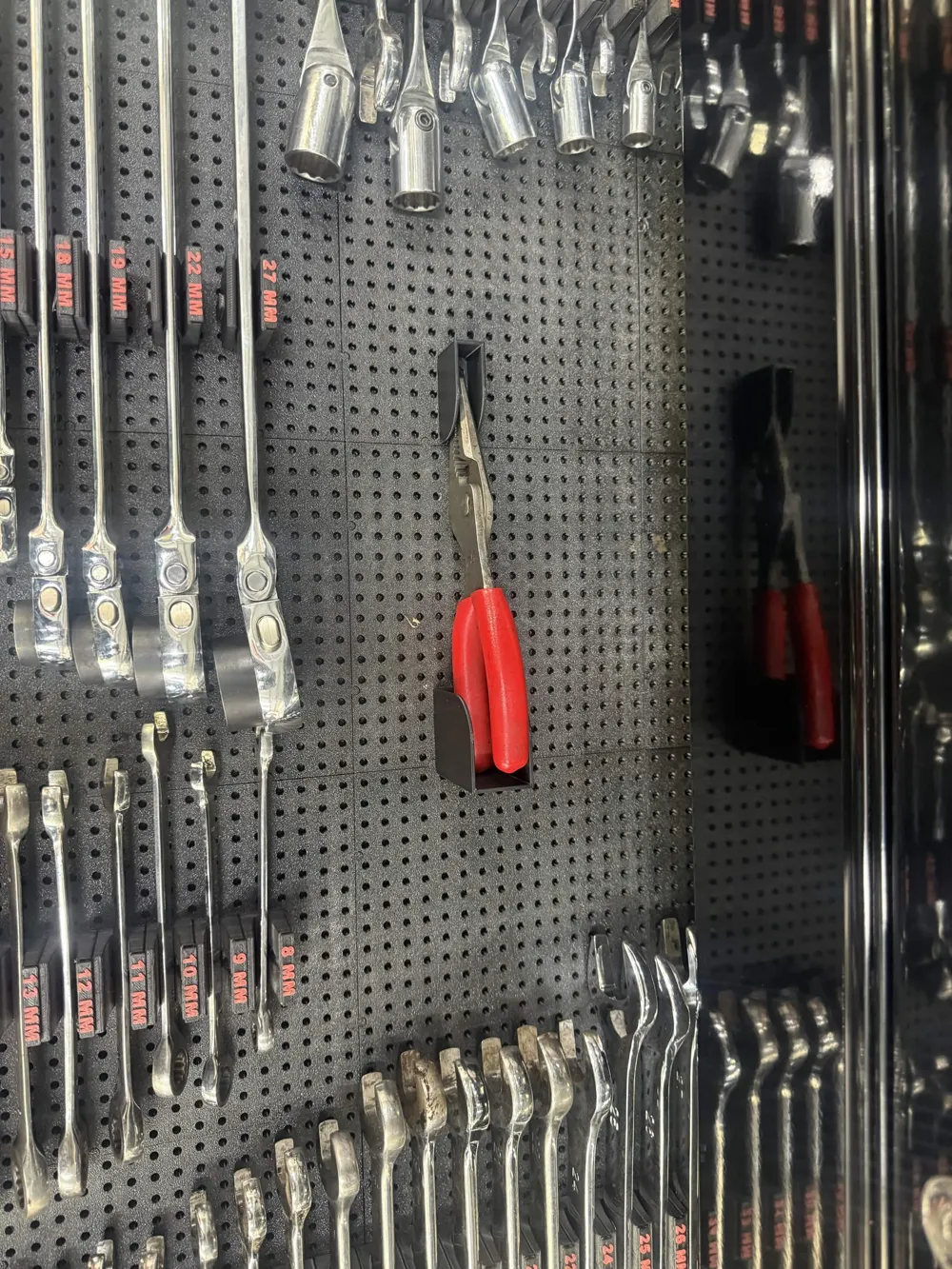

Since printing these, i have discovered alternate uses, such as holding the ends of prybars, heel bars, adjustable spanners or even just normal spanners if my spanner holders are not for you… uses are endless!

Happy boarding/organizing those toolboxes guys/gals !
