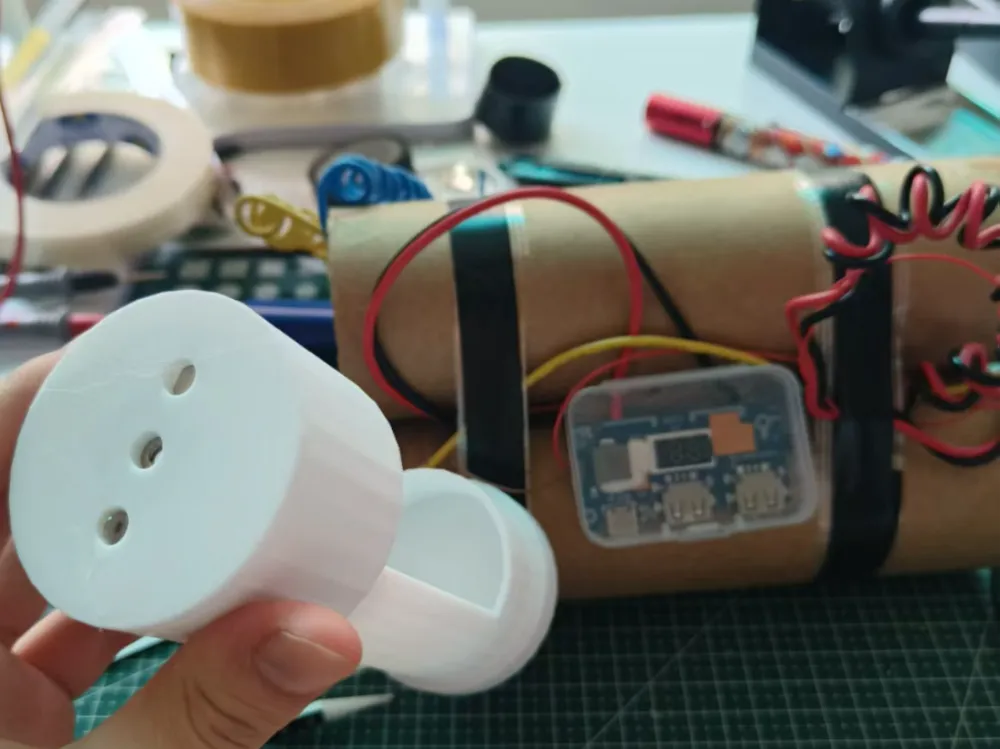

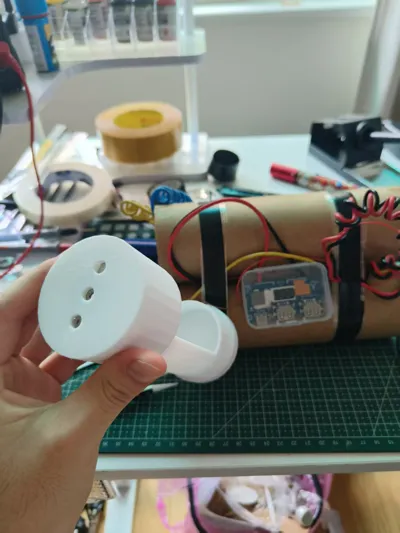

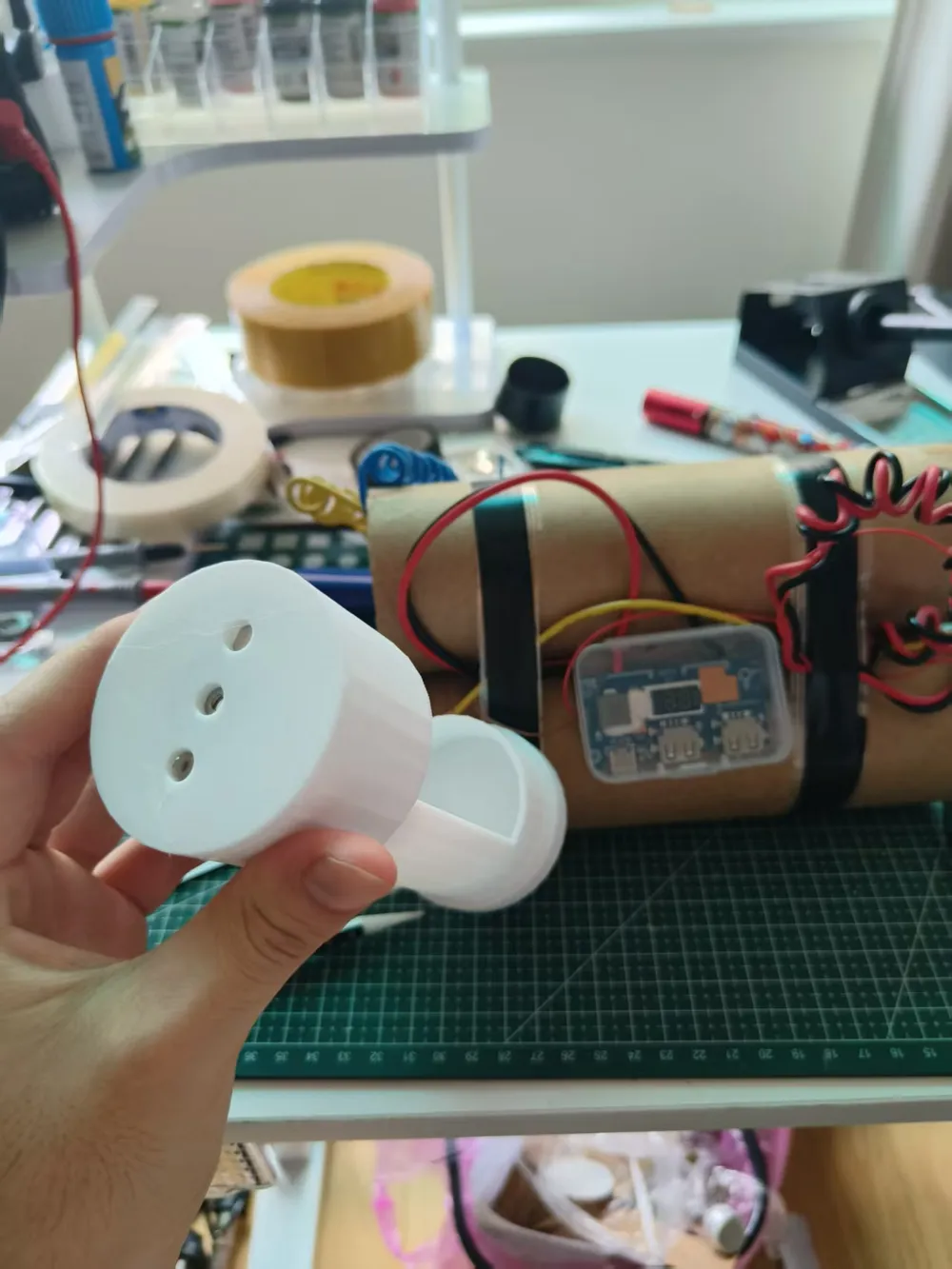

Battery compartment for automotive-grade batteries
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
3.1 h
1 plate
Open in Bambu Studio
Boost
0
0
0
0
0
0
Released
Description
Content has been automatically translated.
Homemade super high-capacity power bank, max 126000 mAh. This is for holding batteries. The positive and negative terminals of these batteries are on the same side, so it had to be redesigned.
It's simple to make and feels quite safe, as I placed the positive and negative terminals in layers, separated by hot glue in the middle.
The assembly order is:
Top layer: thin plate

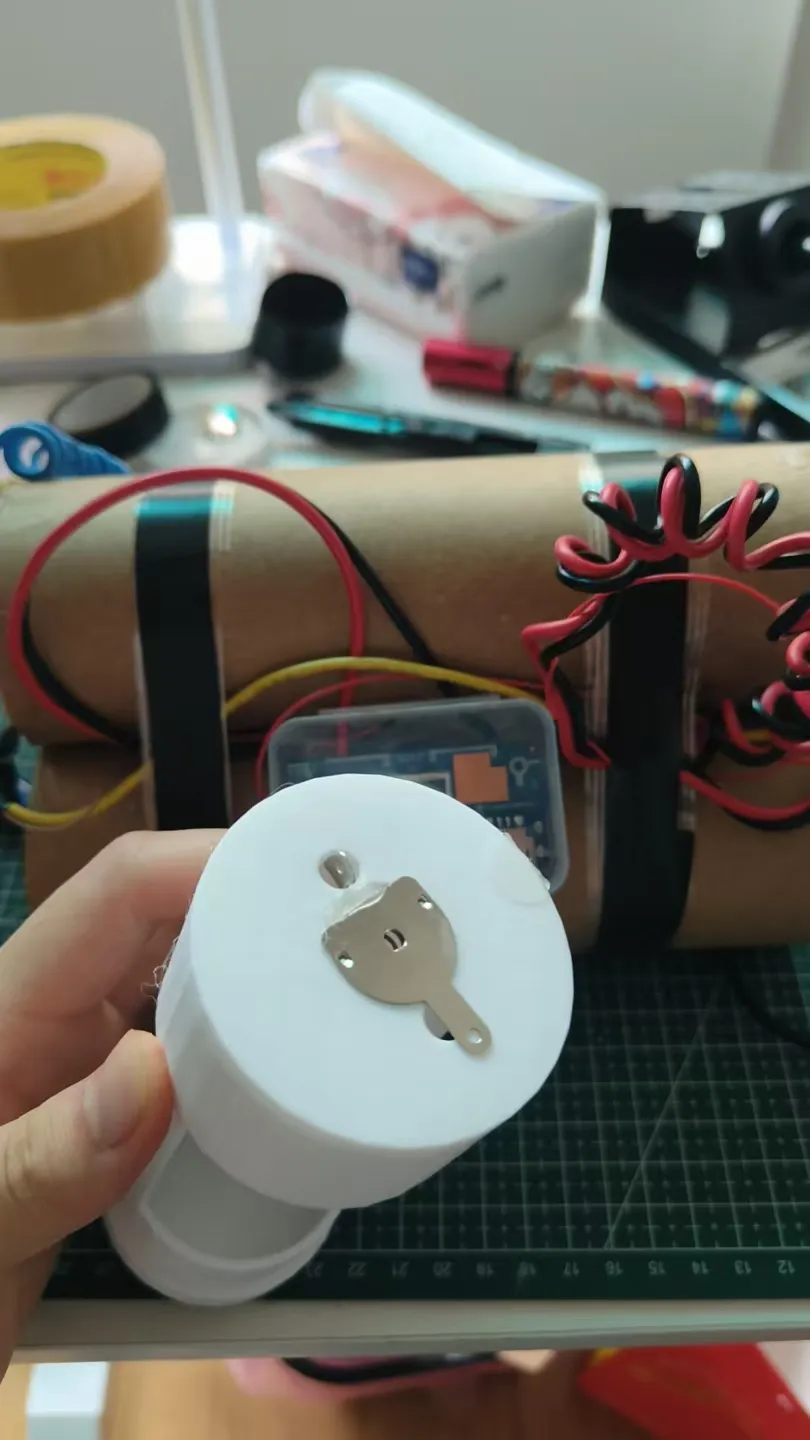

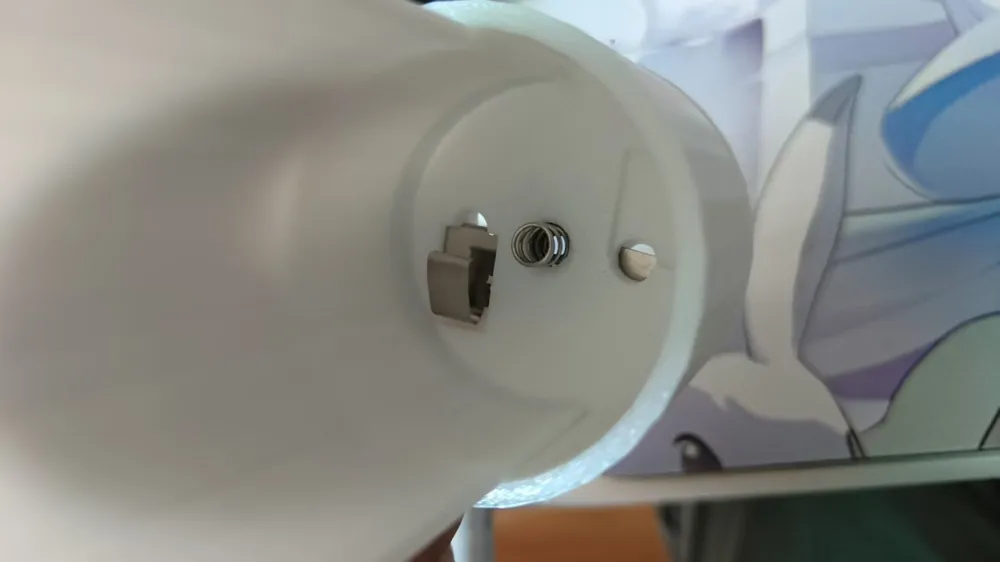

Middle: cover, with the spring-loaded base on top, and L-shaped contacts embedded at the bottom.

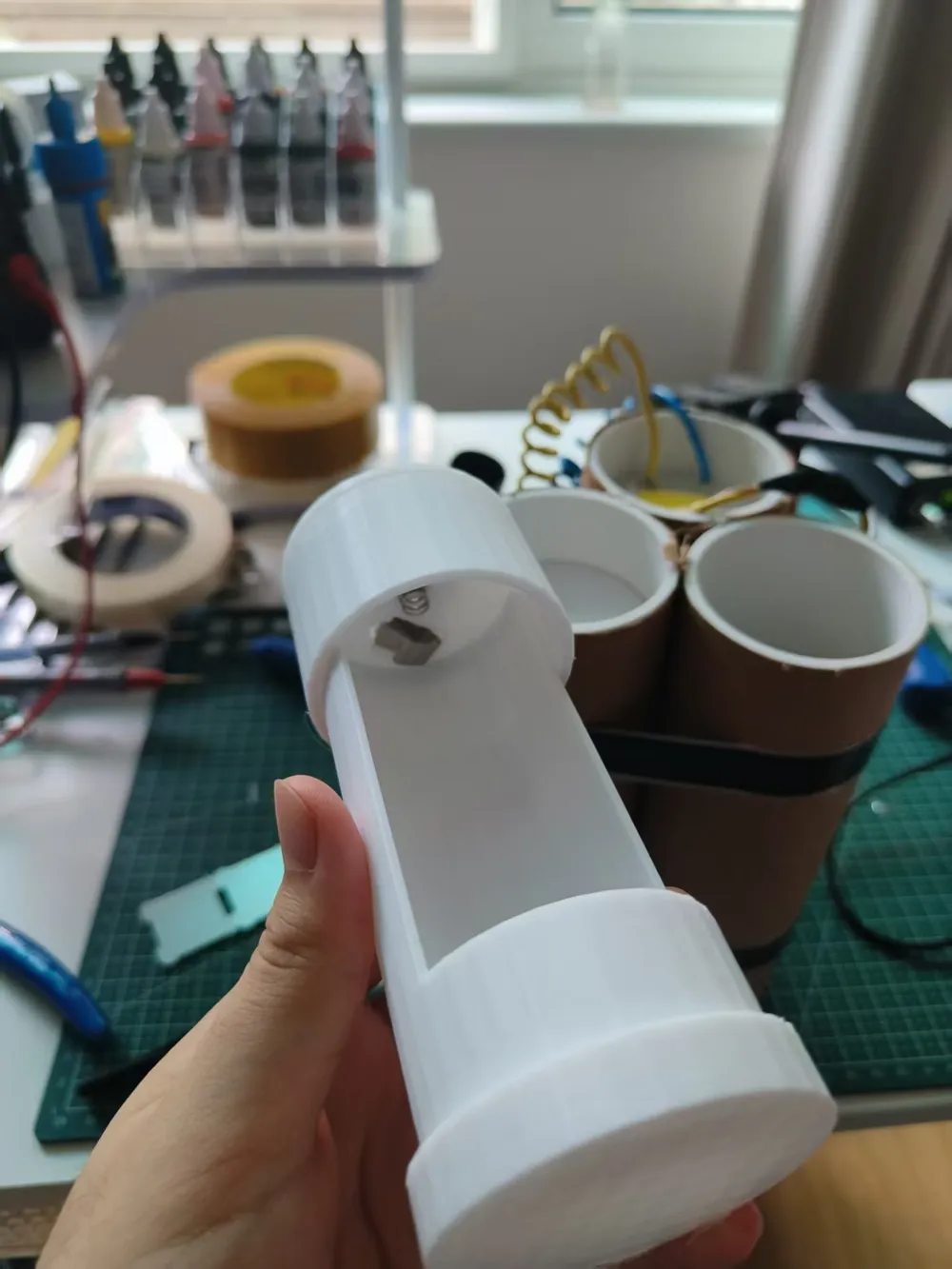

Bottom: compartment body
Connect using hot melt glue.

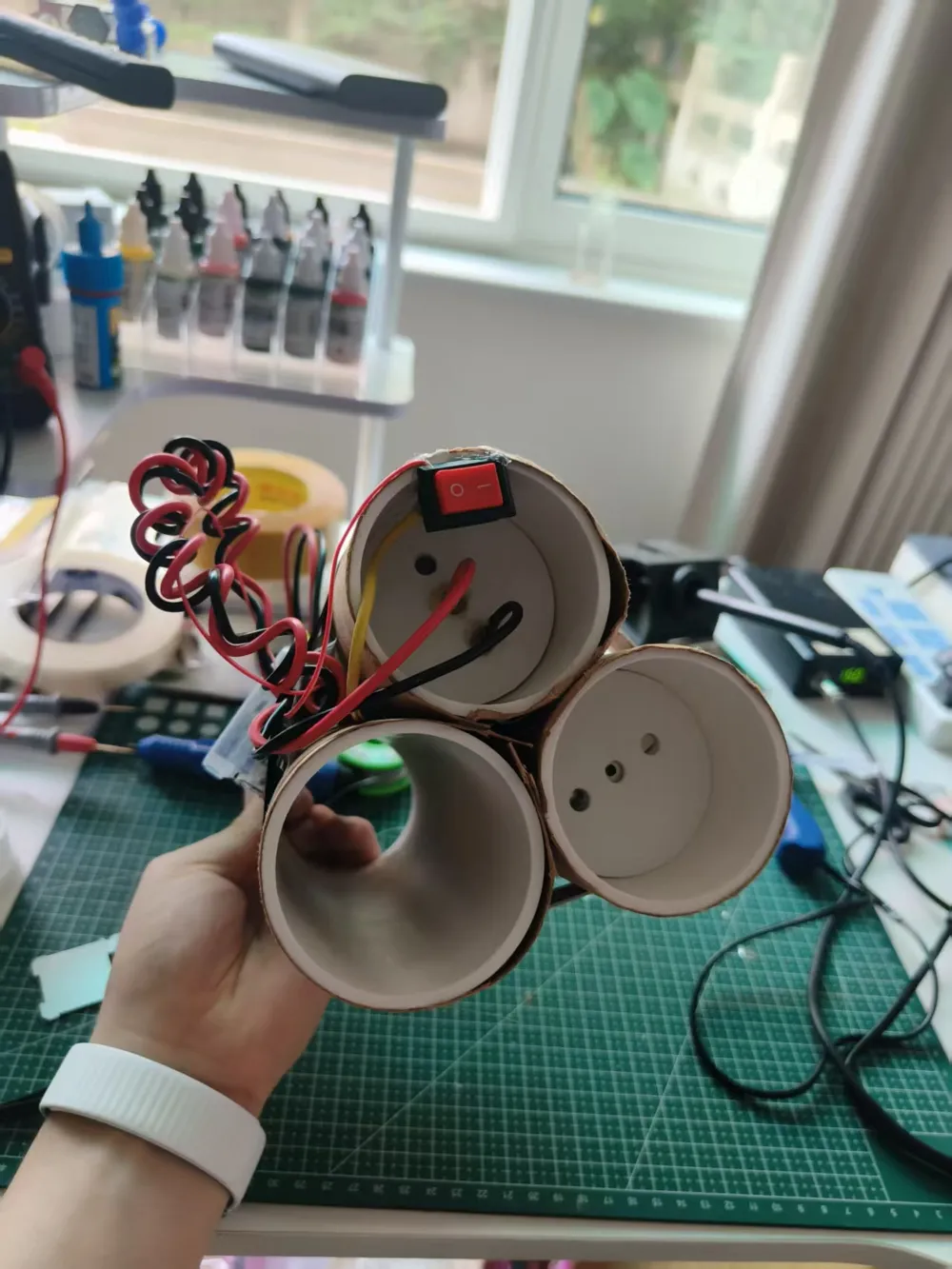

This way it can snap right into the pipe and won't fall out.
