Minimalist Wall Mount Bike Helmet Shoes Glasses v1
Print Profile(1)
Description

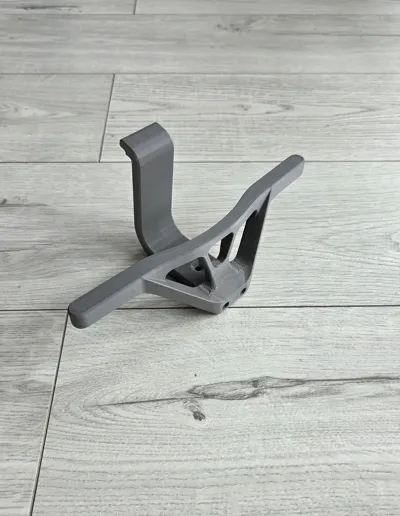

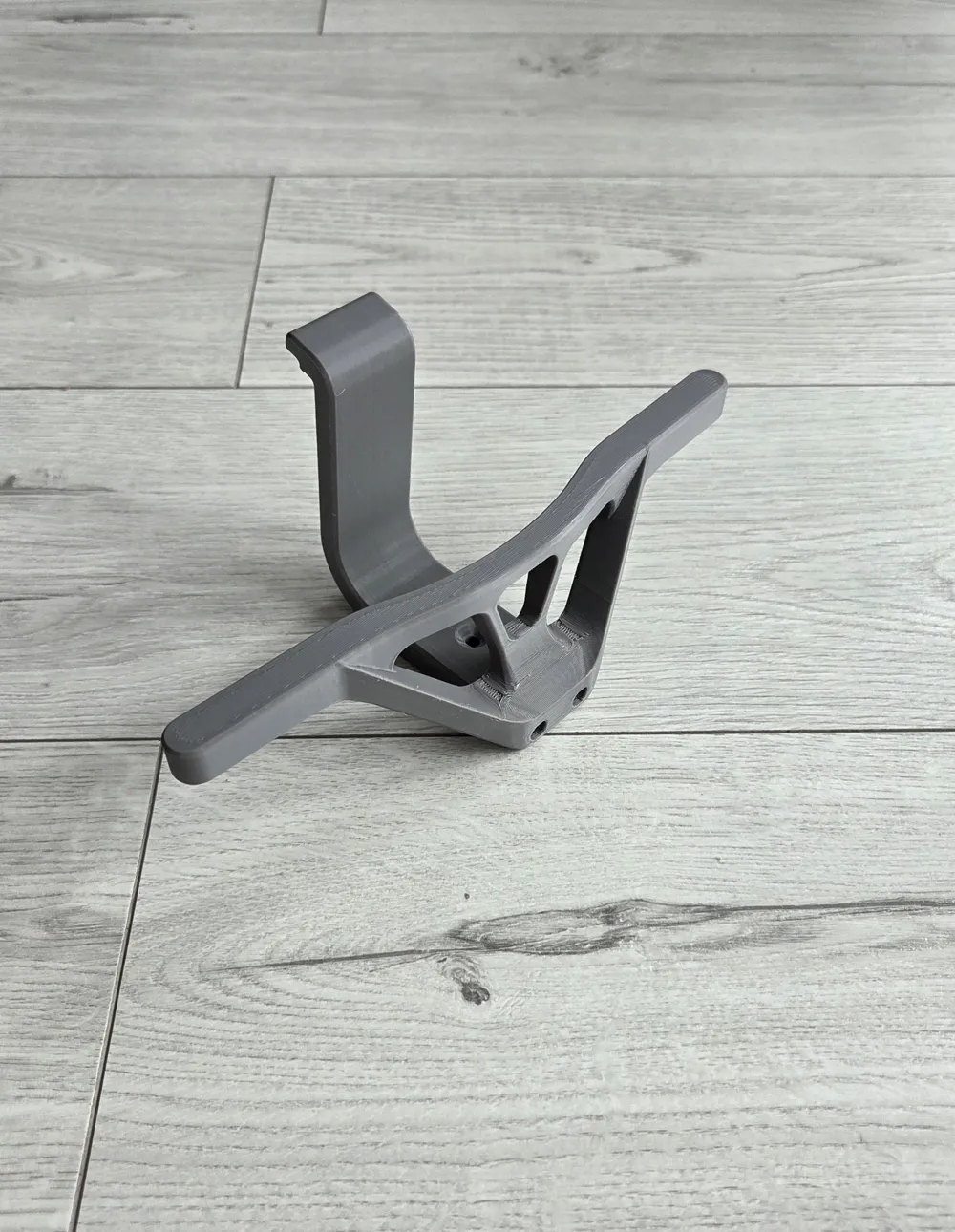

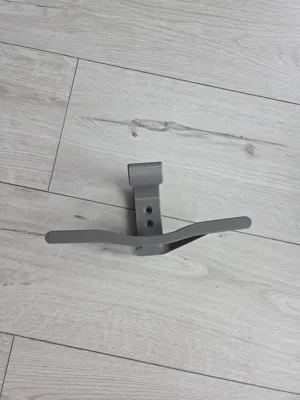

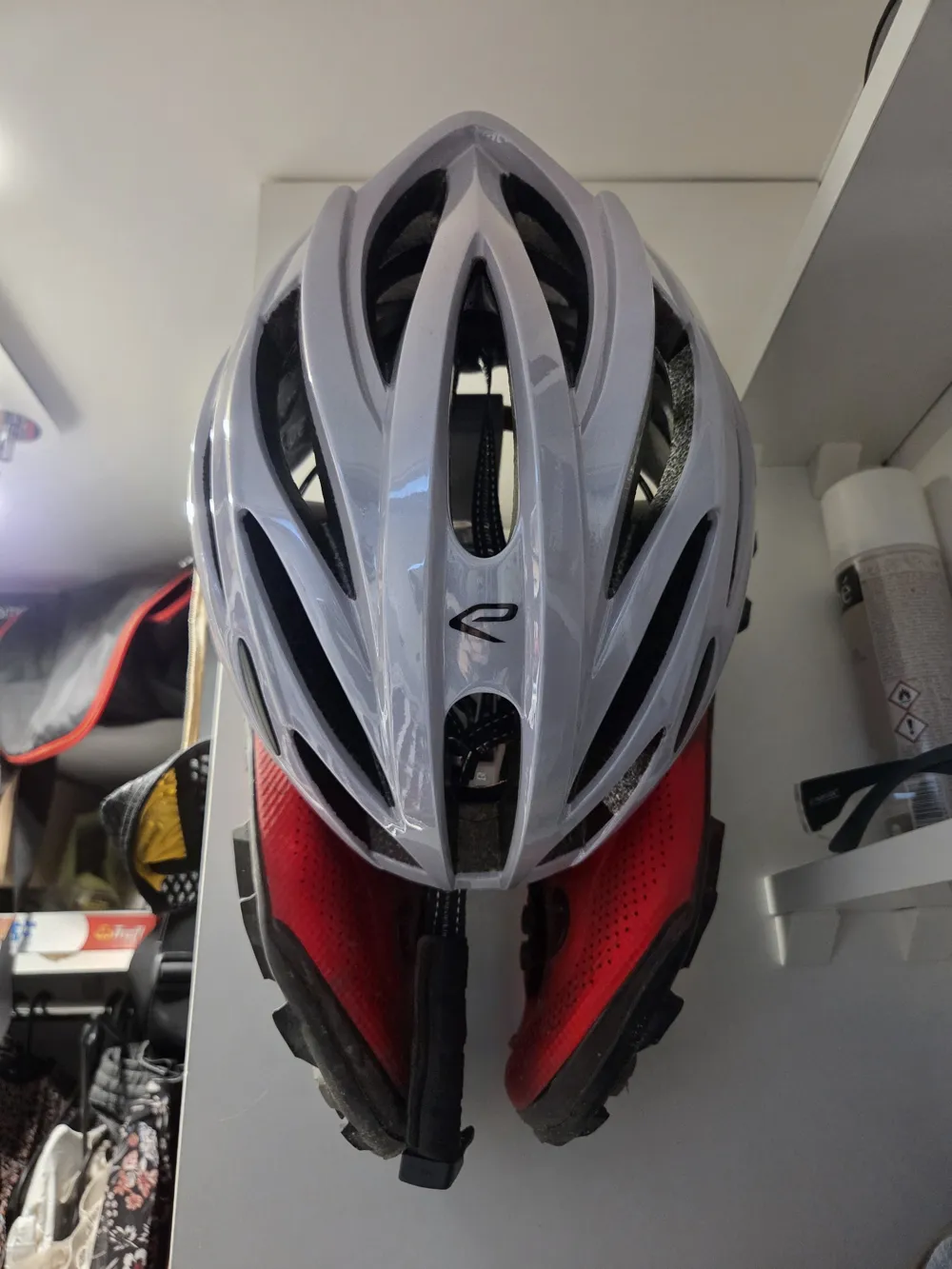

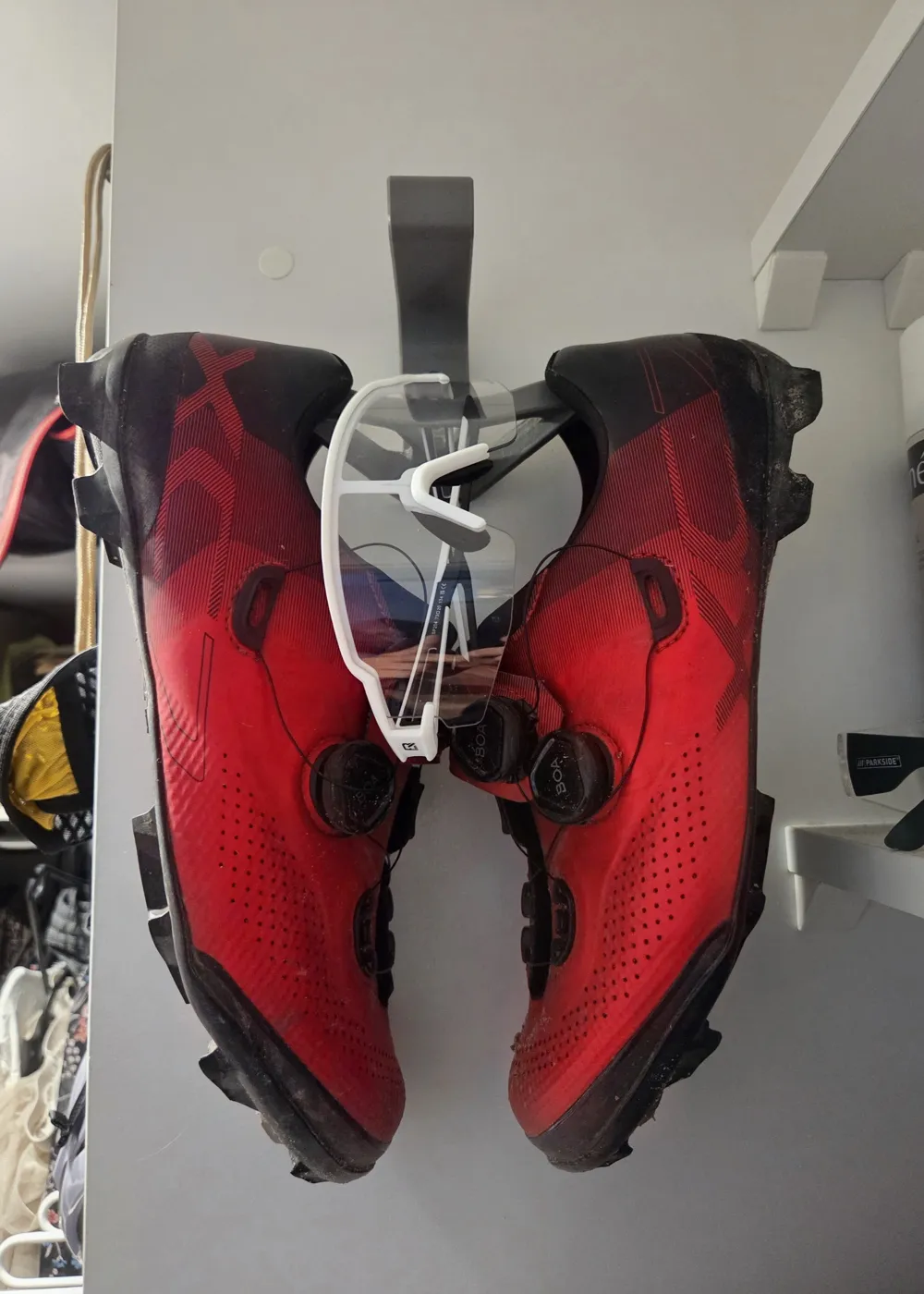

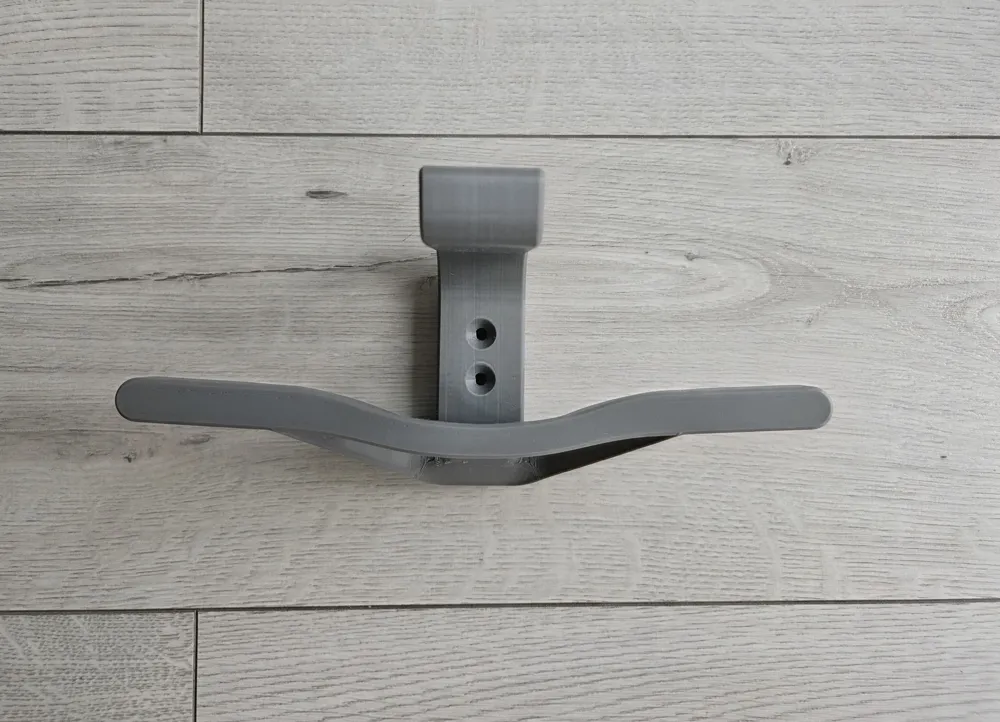

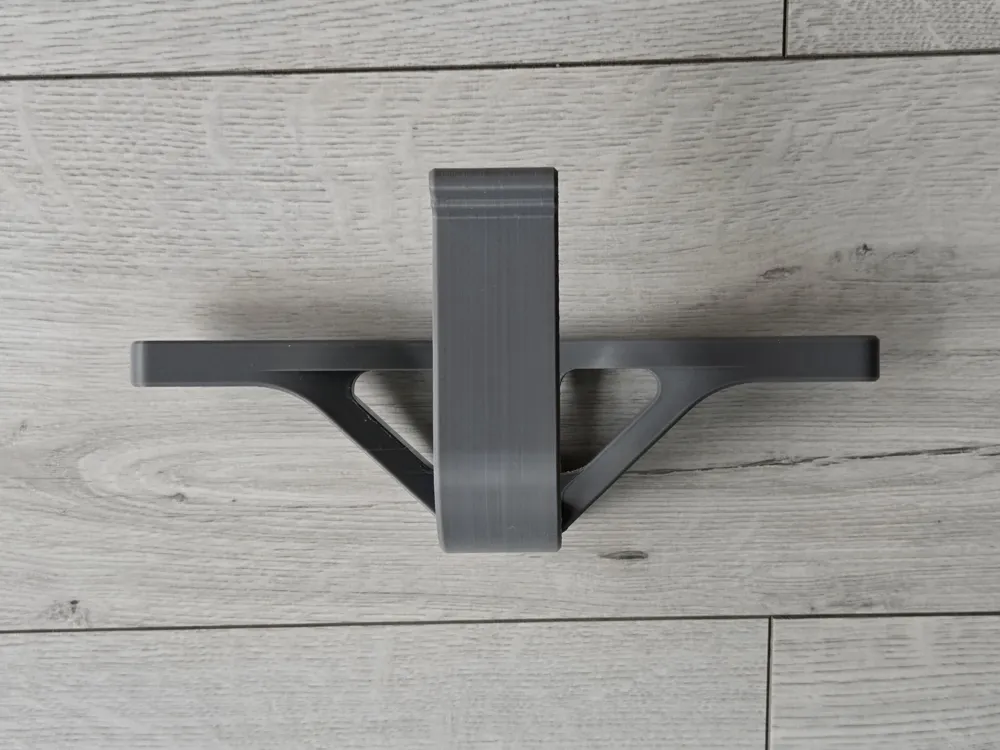

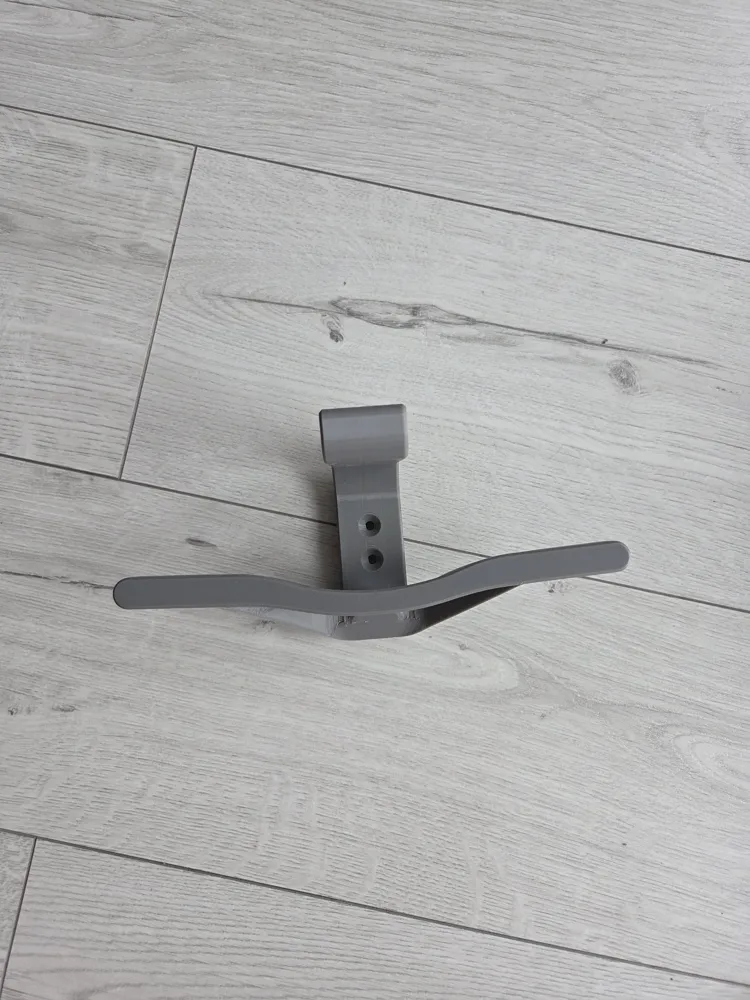

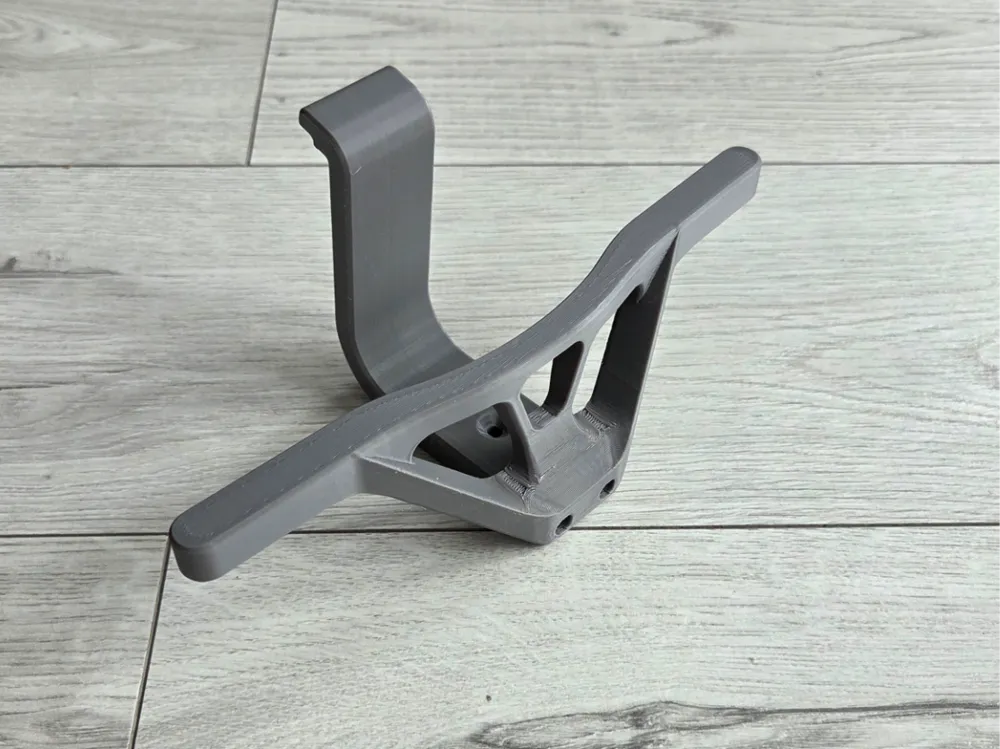

A sleek, space-saving wall mount designed to keep your cycling gear organized and ready to go. This single, minimalist holder securely stores your bike helmet, cycling shoes (Road or MTB or Gravel ), and sports glasses in one place.
Features:
- Secure top rest for your helmet.
- Angled side arms to hold cycling shoes.
- Integrated resting spot for sports glasses.
- Minimalist, low-profile design.
Bill of Materials (BOM): To assemble and mount the holder, you will need:
- 2x M3 heat-set inserts (5mm length)
- 2x M3 screws (minimum 15mm length)
- Wall mounting hardware: The mounting holes are designed for M4 screws (length depends on your wall type).
Print Settings:
- Material: PETG is strongly recommended for its superior layer adhesion, flex, and load-bearing capabilities.
- Walls/Perimeters: 3 to 4 walls for extra structural strength.
- Infill: 25-30% (Gyroid or Cubic recommended).
Assembly Instructions:

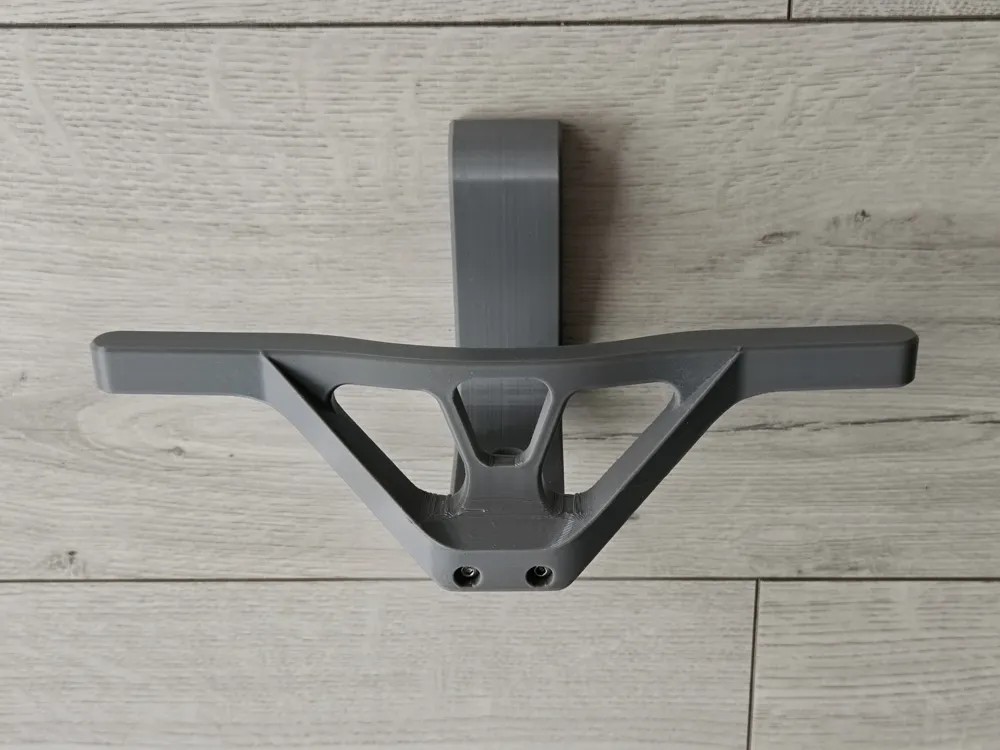

- Melt the two M3 (5mm) heat-set inserts into the designated holes on the main body using a soldering iron.
- Align the bracket and secure the two parts together using the M3 screws (15mm+).
- Mount the assembled holder securely to your wall or wooden cabinet using M4 screws.
