Multi-Purpose Fiber Laser Engraving Jig
Print Profile(1)
Description
Increase your productivity and engraving accuracy with this versatile multi-purpose positioning jig designed for fiber laser engraving machines.
This fixture allows quick and repeatable placement of several popular engraving blanks, making it ideal for batch production, personalization businesses, and workshop use.

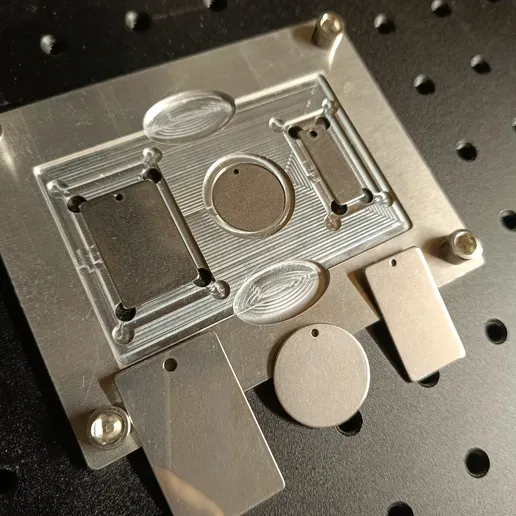

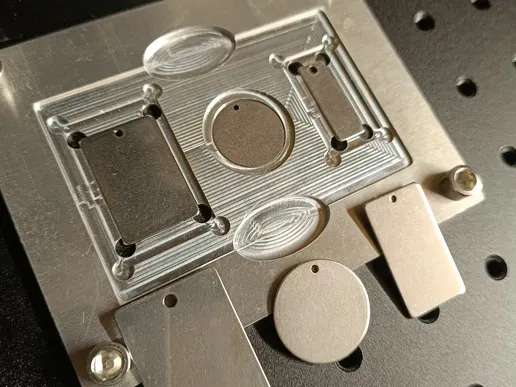

Supported Blanks

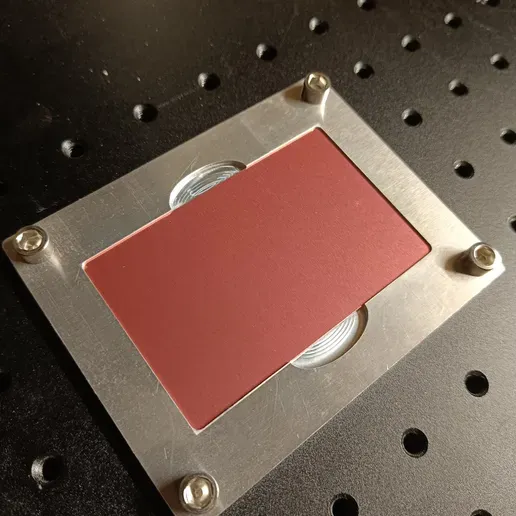

✅ Metal business cards
✅ Dog tags / military tags
✅ Round coins and medallions
✅ Keychains and metal tags
✅ Rectangular identification plates
✅ Custom blanks with similar dimensions
Features
✅ Multiple fixture sizes integrated into a single jig
✅ Fast and repeatable positioning
✅ Reduces setup and alignment time
✅ Consistent engraving placement between parts
✅ Perfect for production runs and personalization projects
✅ Compatible with fiber laser worktables and fixture plates
✅ Easy to print and customize
Benefits
- Faster workflow
- Improved engraving consistency
- Reduced positioning errors
- Easy part loading and unloading
- Professional production results
Ideal For
🔥 Fiber laser engraving
🔥 Batch production
🔥 Personalized gifts
🔥 Nameplates and identification tags
🔥 Dog tags and military tags
🔥 Coin and medallion engraving
🔥 Workshop and small business use
Printing Recommendations
- Material: PLA, PETG, ABS, or ASA
- Layer Height: 0.20 mm
- Infill: 20–30%
- Walls: 3–4 perimeters
- Supports: Not required
- Print flat on the build plate
How It Works

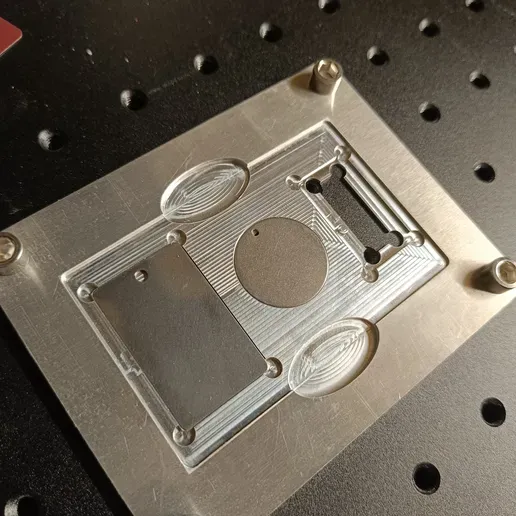

Simply mount the jig on your laser worktable, place the blank into the corresponding pocket, and start engraving. Each pocket is designed to provide reliable and repeatable positioning, minimizing setup time between jobs.
Customization
The design can easily be modified to fit additional blank sizes and shapes, allowing you to create a complete fixture system tailored to your workflow.
Notes
Always verify dimensions and perform a test engraving before production runs, as blank sizes may vary between suppliers.
If this fixture helps improve your laser workflow, don't forget to share a make and leave a rating!
Tags: Fiber Laser, Laser Jig, Positioning Fixture, Dog Tag Jig, Business Card Jig, Coin Jig, Medallion Jig, Fiber Laser Accessory, Engraving Fixture, Laser Engraving, Workshop Tool, Batch Production, Galvo Laser, MakerWorld, FiberLaserFR.
