Perfect fix catch for LoboCNC rubber band blaster

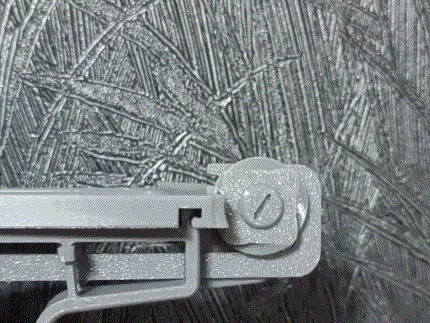

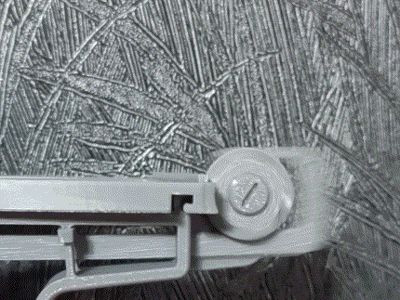

The original LoboCNC design had a flaw where the pawl could not engage the ratchet. Pickle's designed clamp could solve this problem, but it might prevent the ratchet from resetting correctly
Based on both authors' work, I designed a new buckle that effectively solves all issues

Instructions for use:

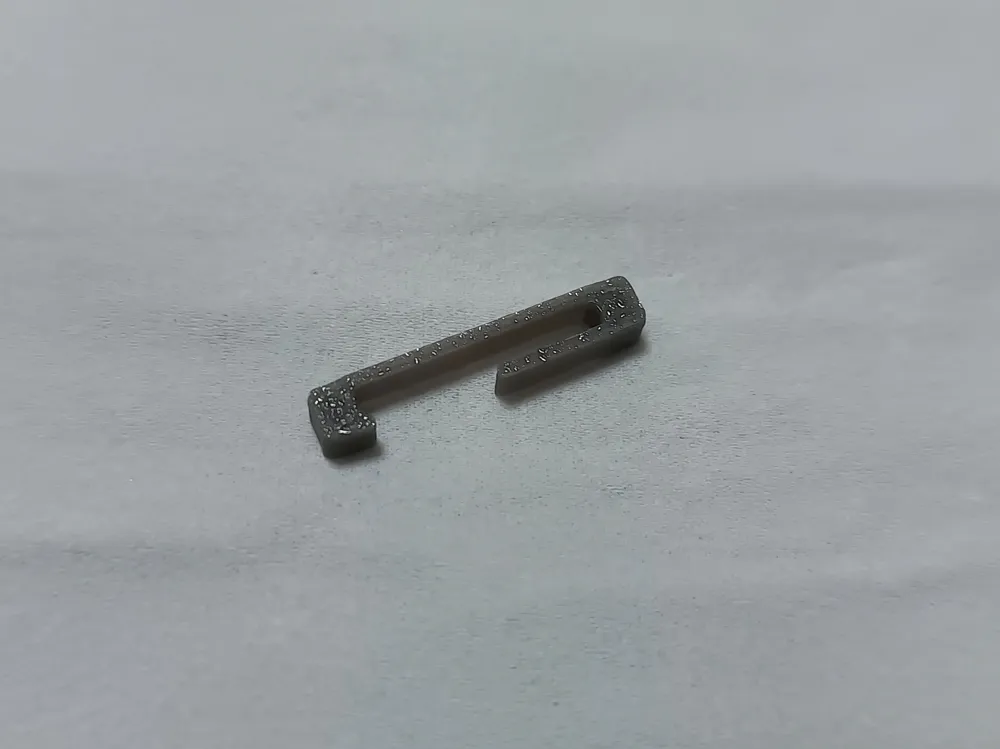

After printing Maenuwa's profile in LoboCNC's work or manually printing a 75% scale of the original LoboCNC file, print my clamp and install it in the position shown in the picture:

I have not tested the 100% scale version of LoboCNC. If you need to add a clamp to this version, you can try scaling up my model and fine-tuning it, but I cannot guarantee it will achieve the same results as mine

Notes:

The ratchet is recommended to be printed with a 0.16mm or 0.12mm layer height

The trigger rubber band can be replaced with a 0.6*5*35mm tension spring

All models were printed and tested using sailner PETG. Using a different profile than mine may require adjustments to achieve optimal results
