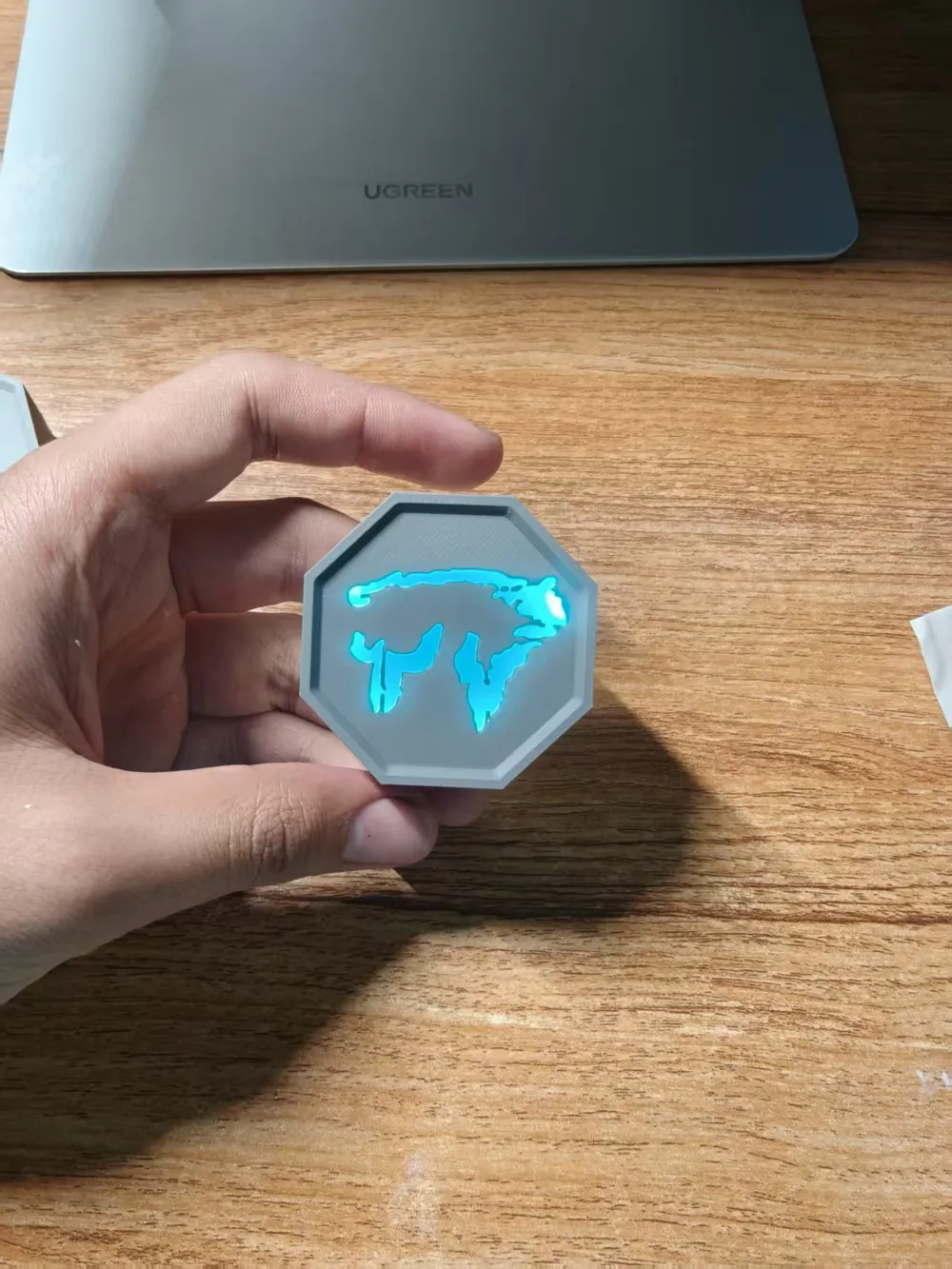

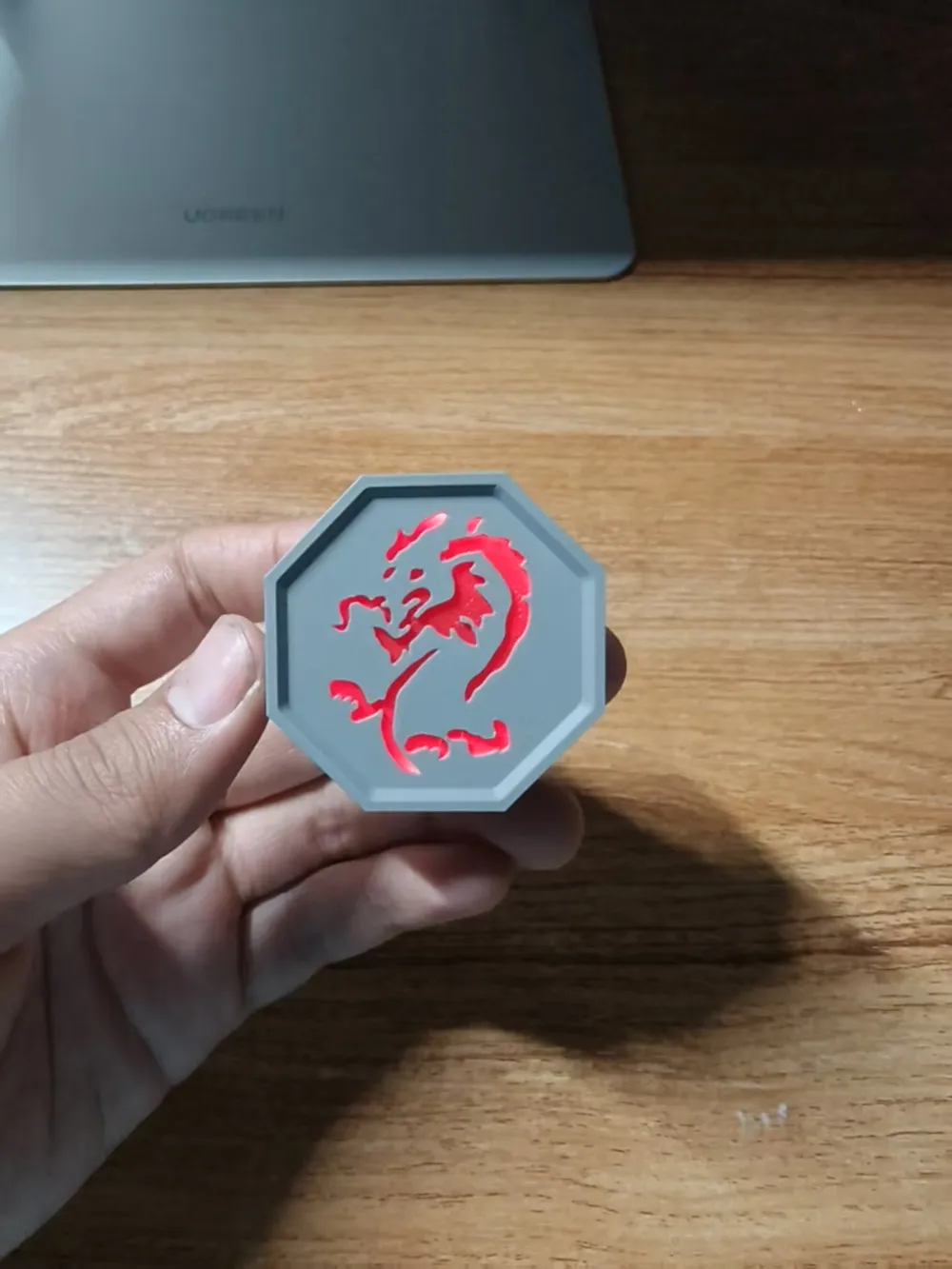

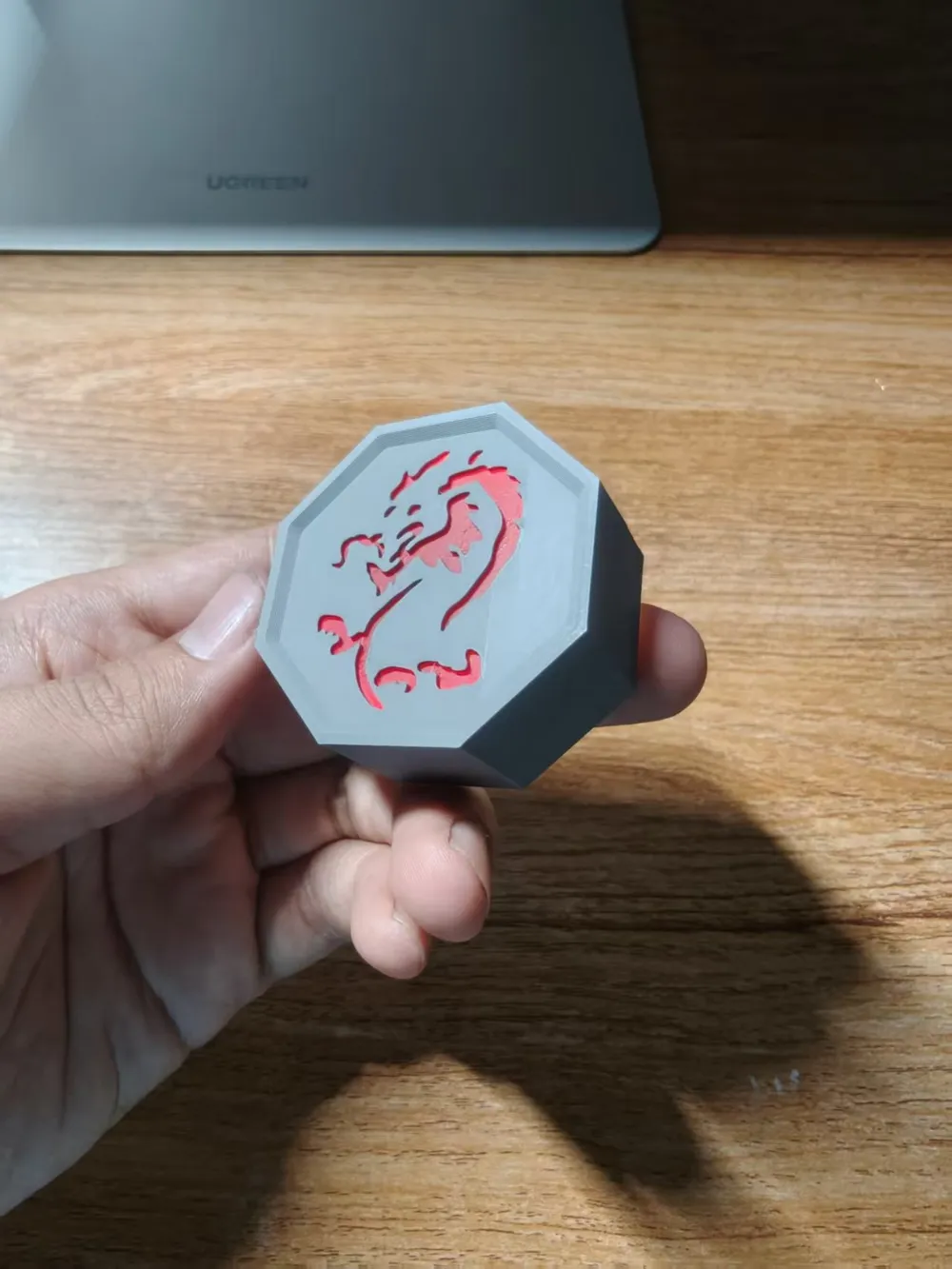

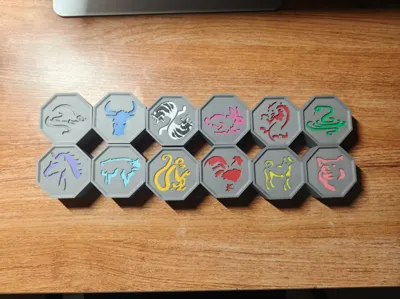

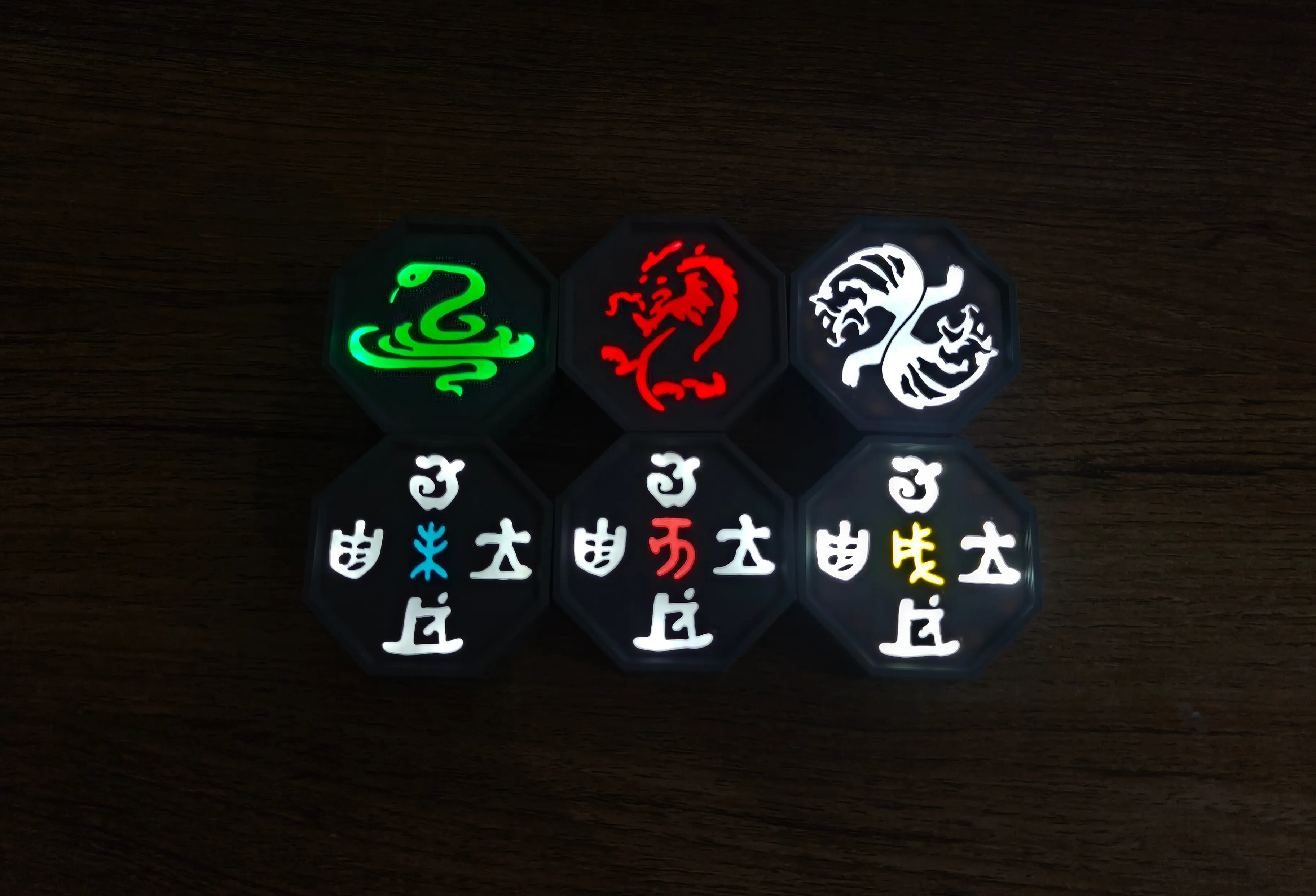

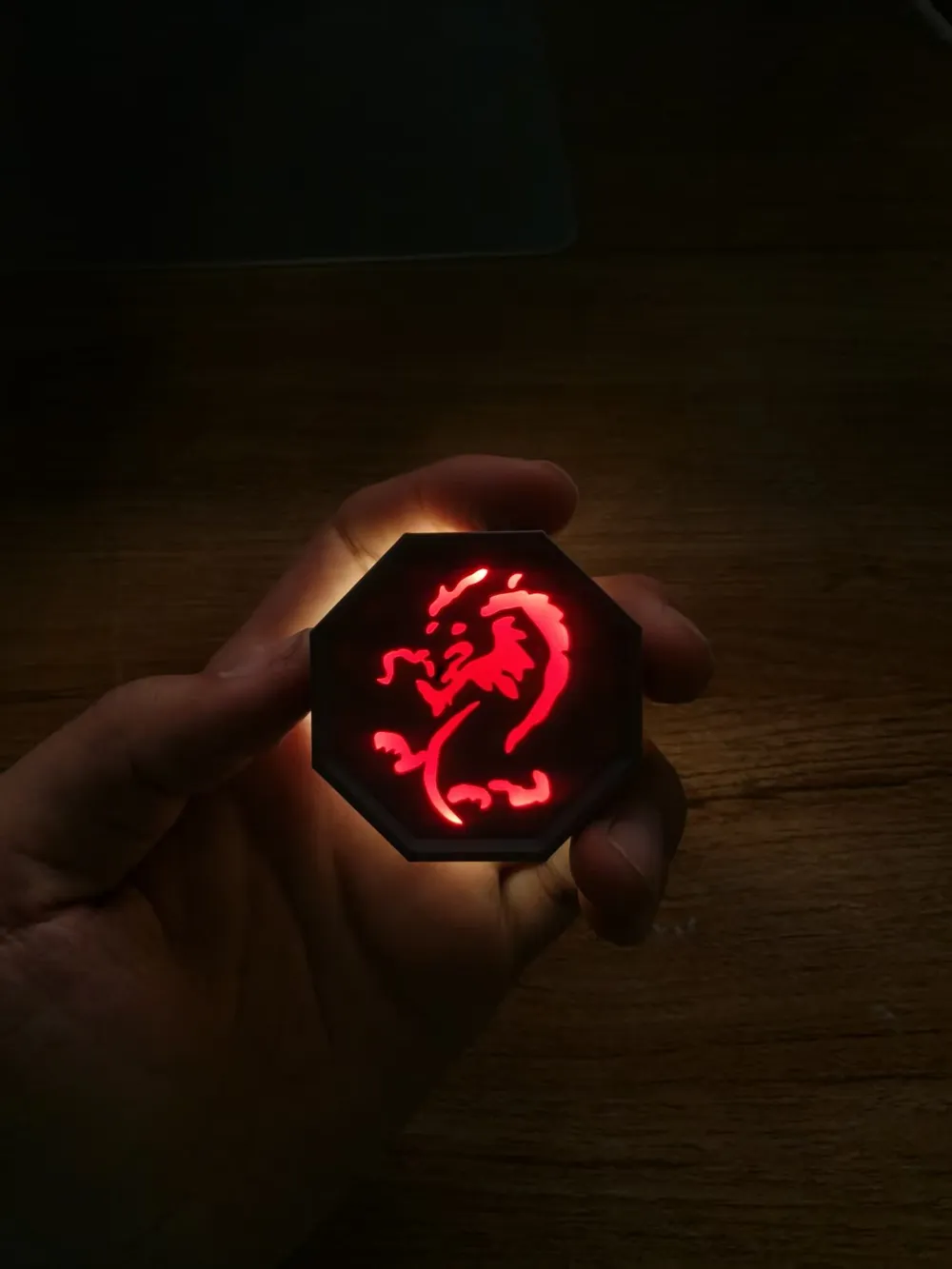

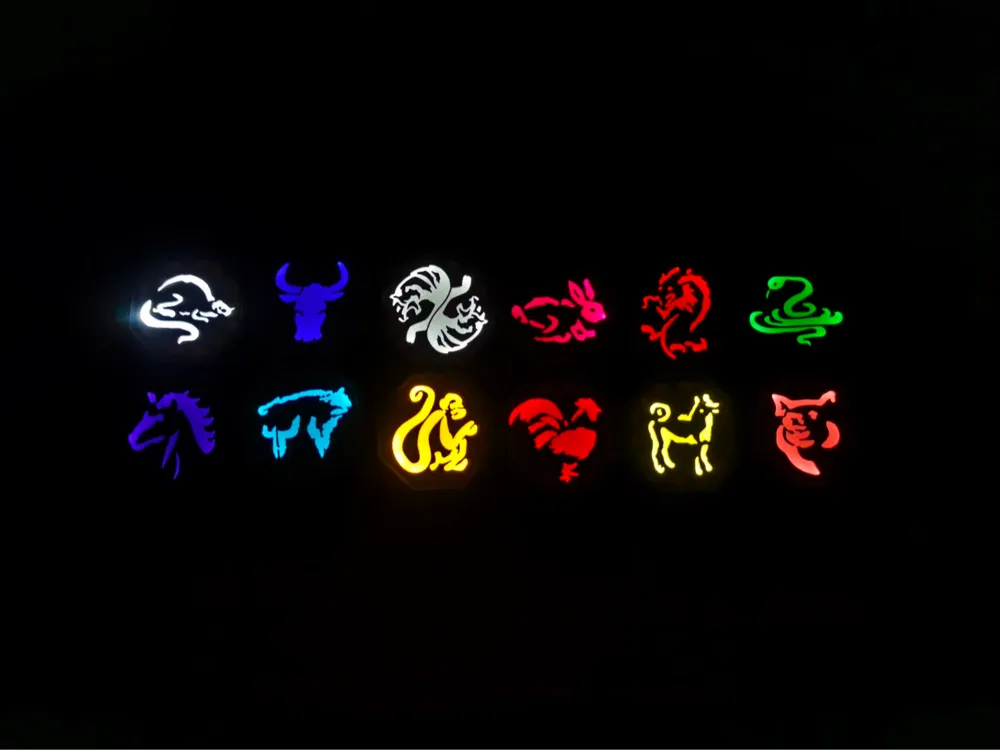

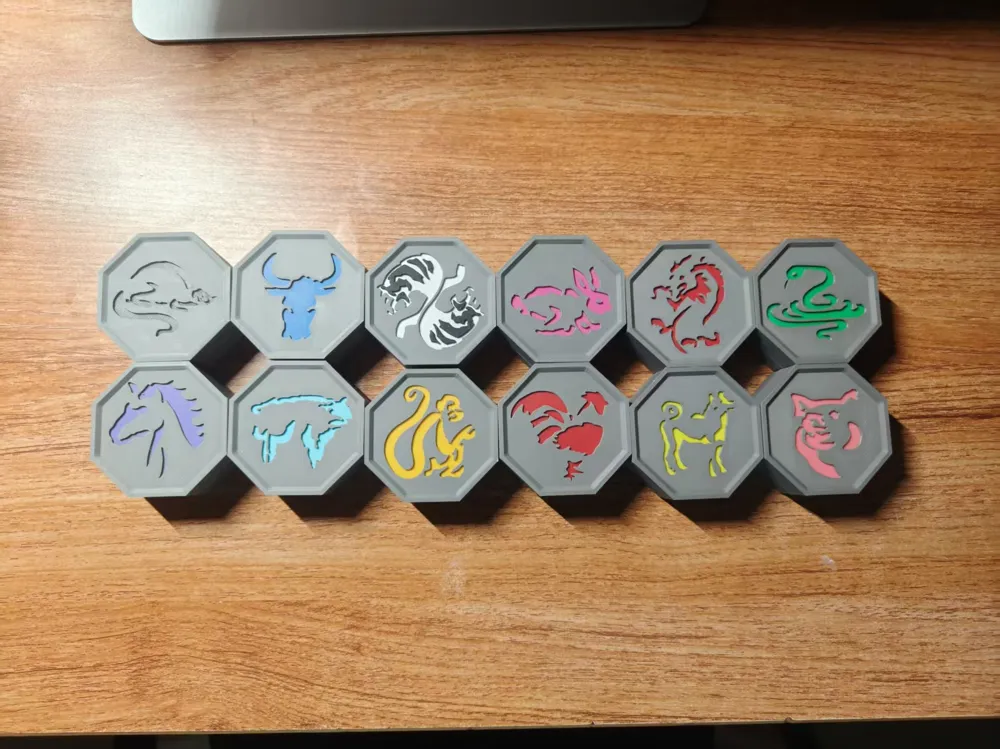

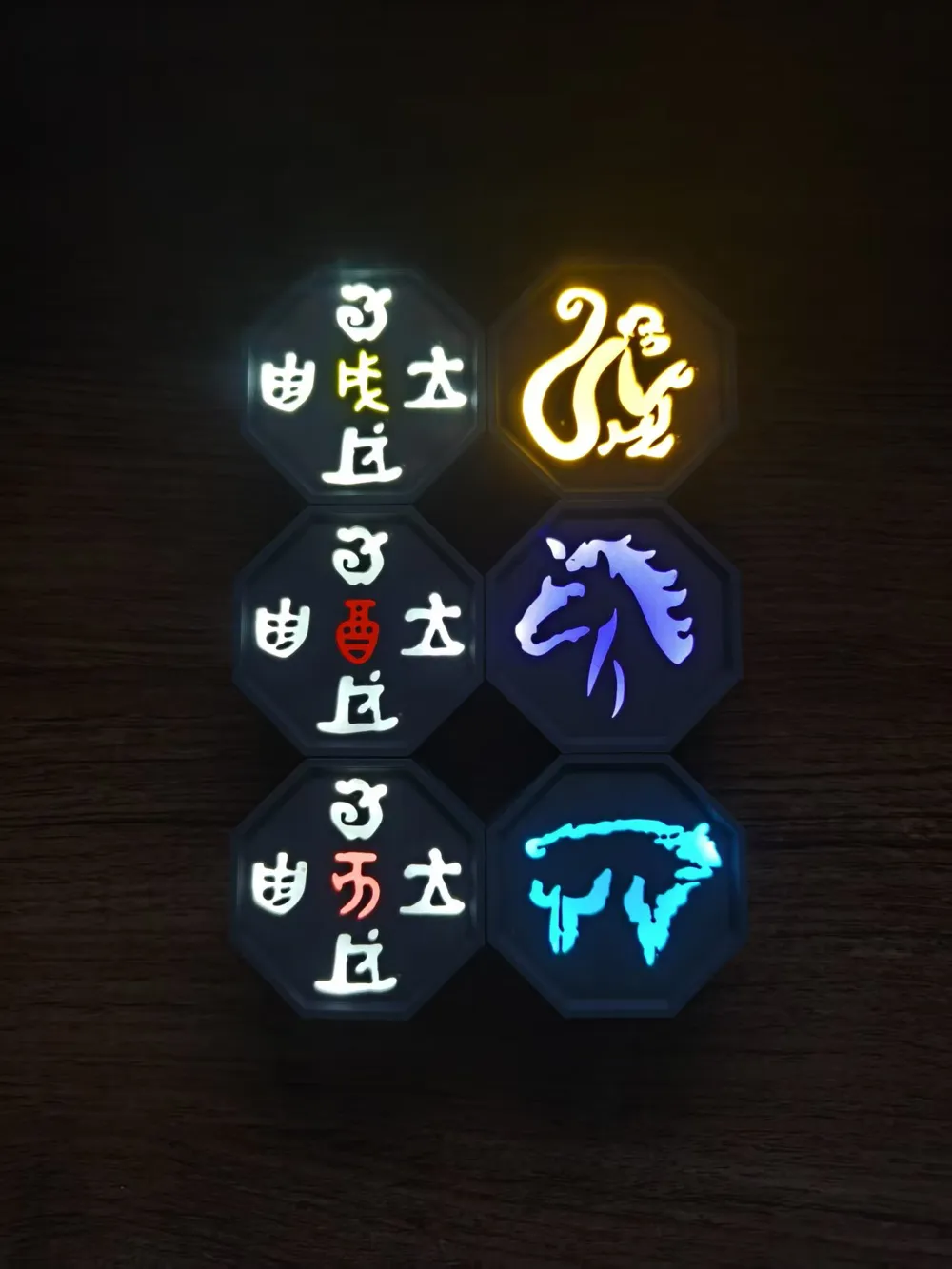

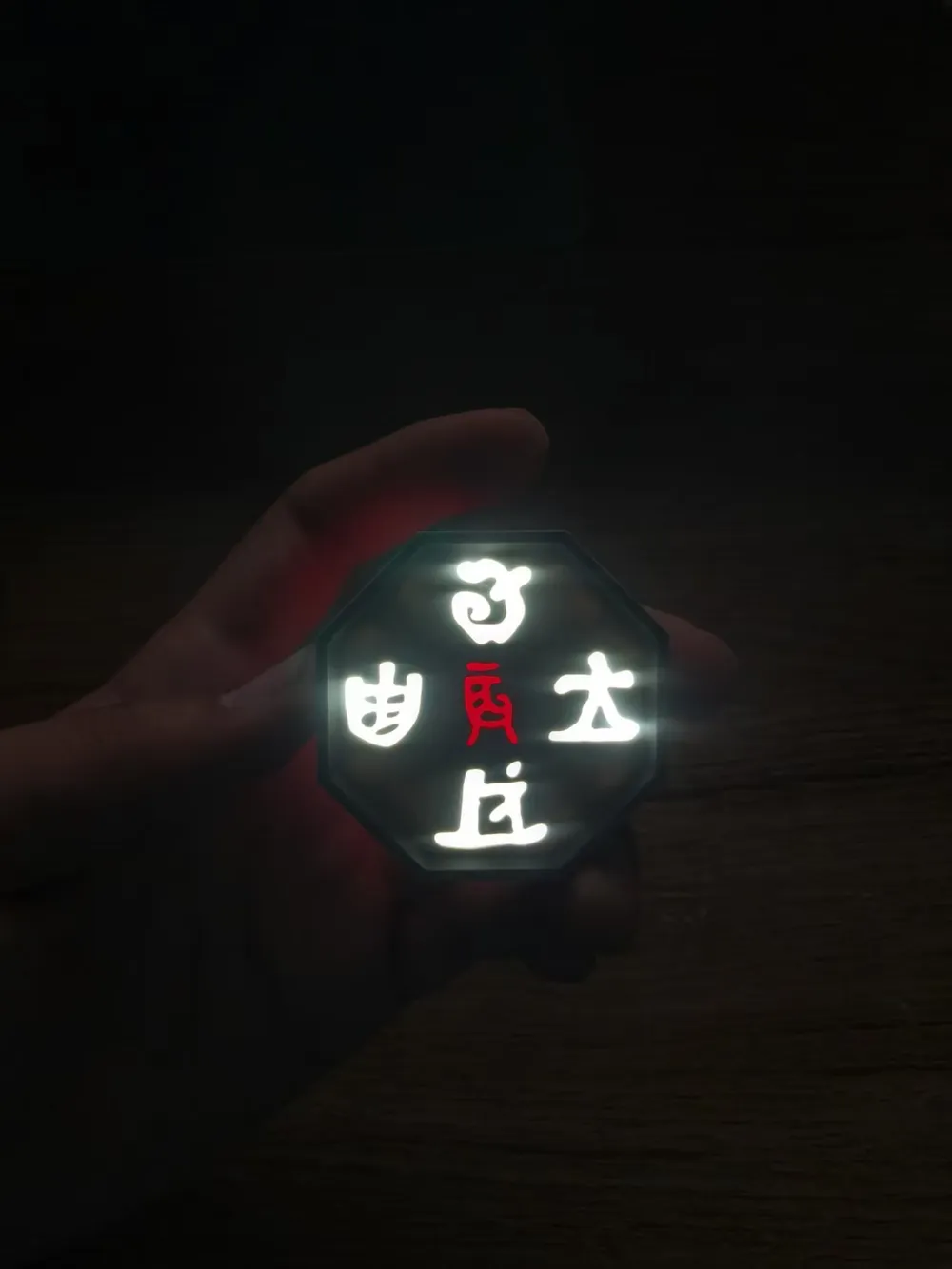

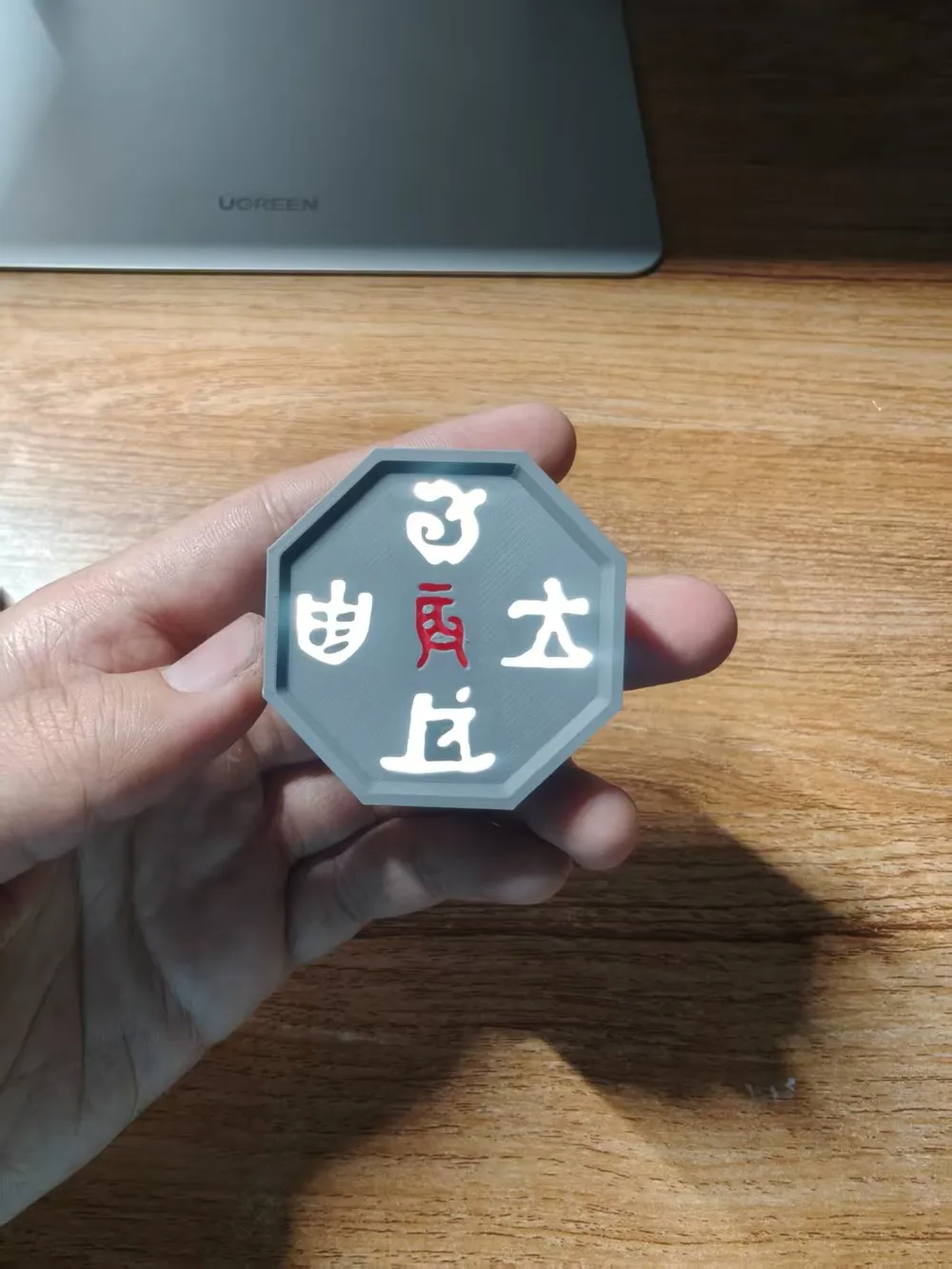

This time, I created a double-sided touch illuminated Chinese Zodiac charm. I came up with this idea last year while rewatching Jackie Chan Adventures, and recently, I took some time to bring it to life. I think the result is pretty good, so I'm sharing it with everyone.

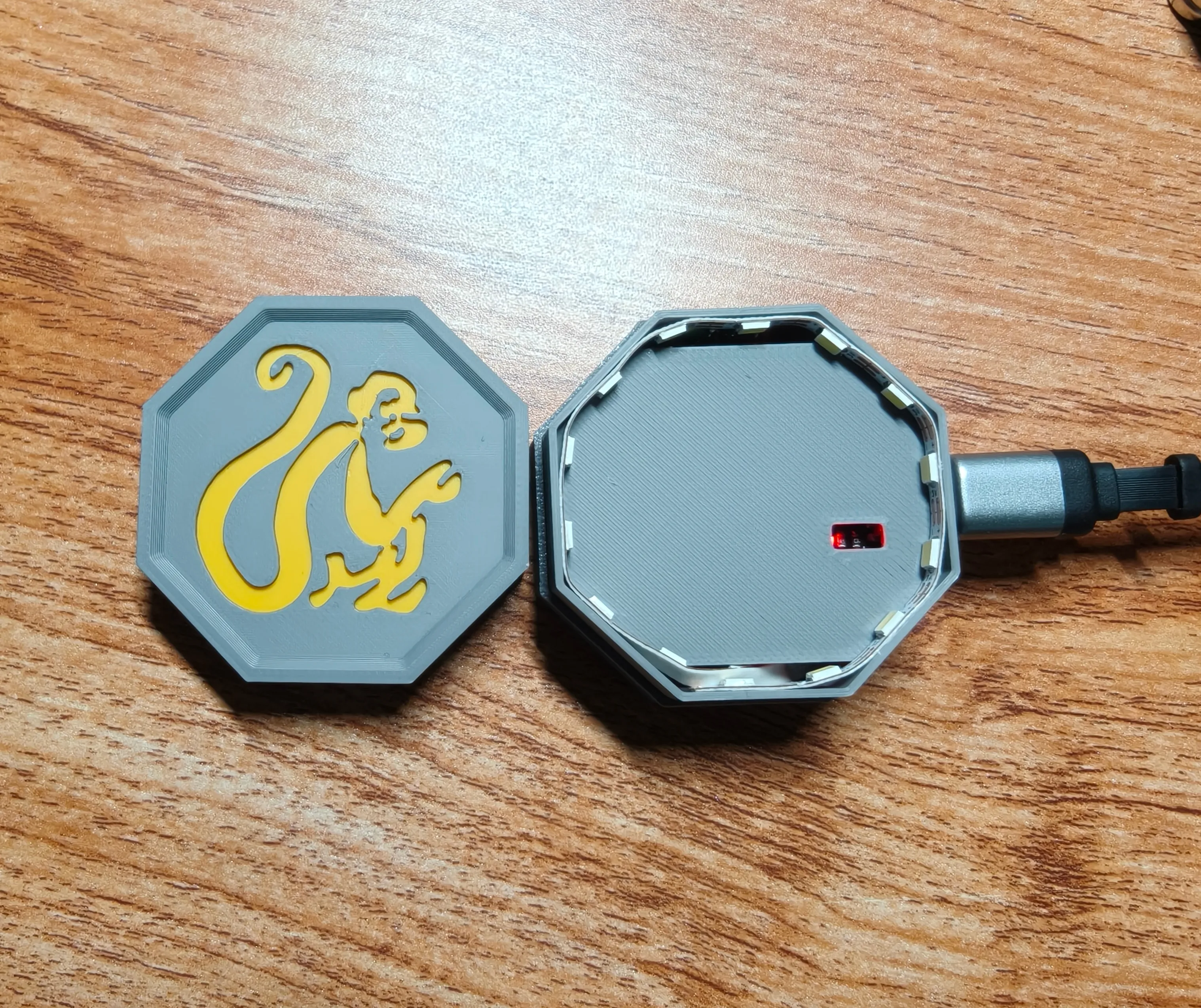

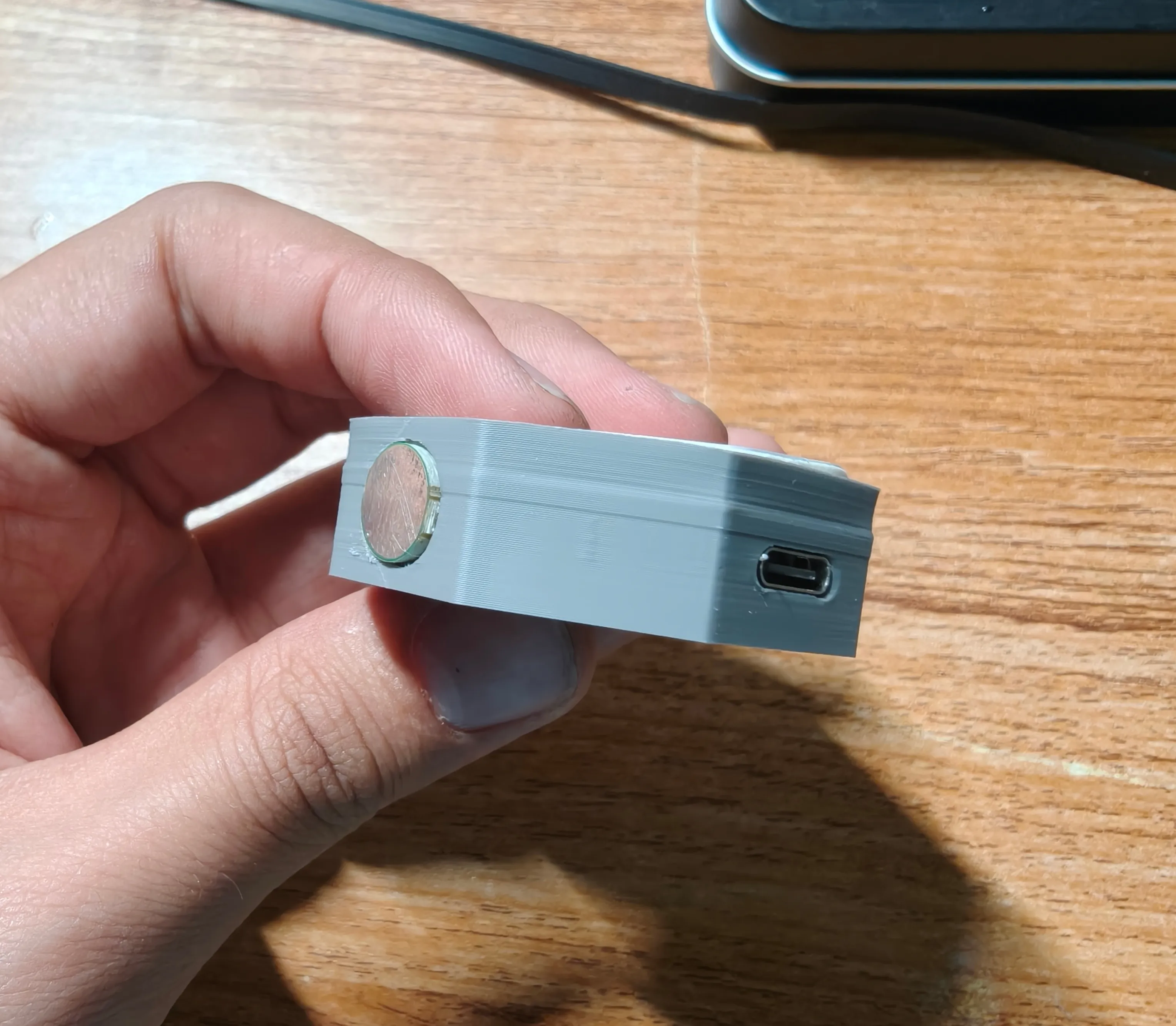

The charm's structure consists of upper and lower split sections. It has a built-in 100mAh 3.7V rechargeable lithium battery. The charging port is on the side when the top cover is open, and it is a Type-C port.

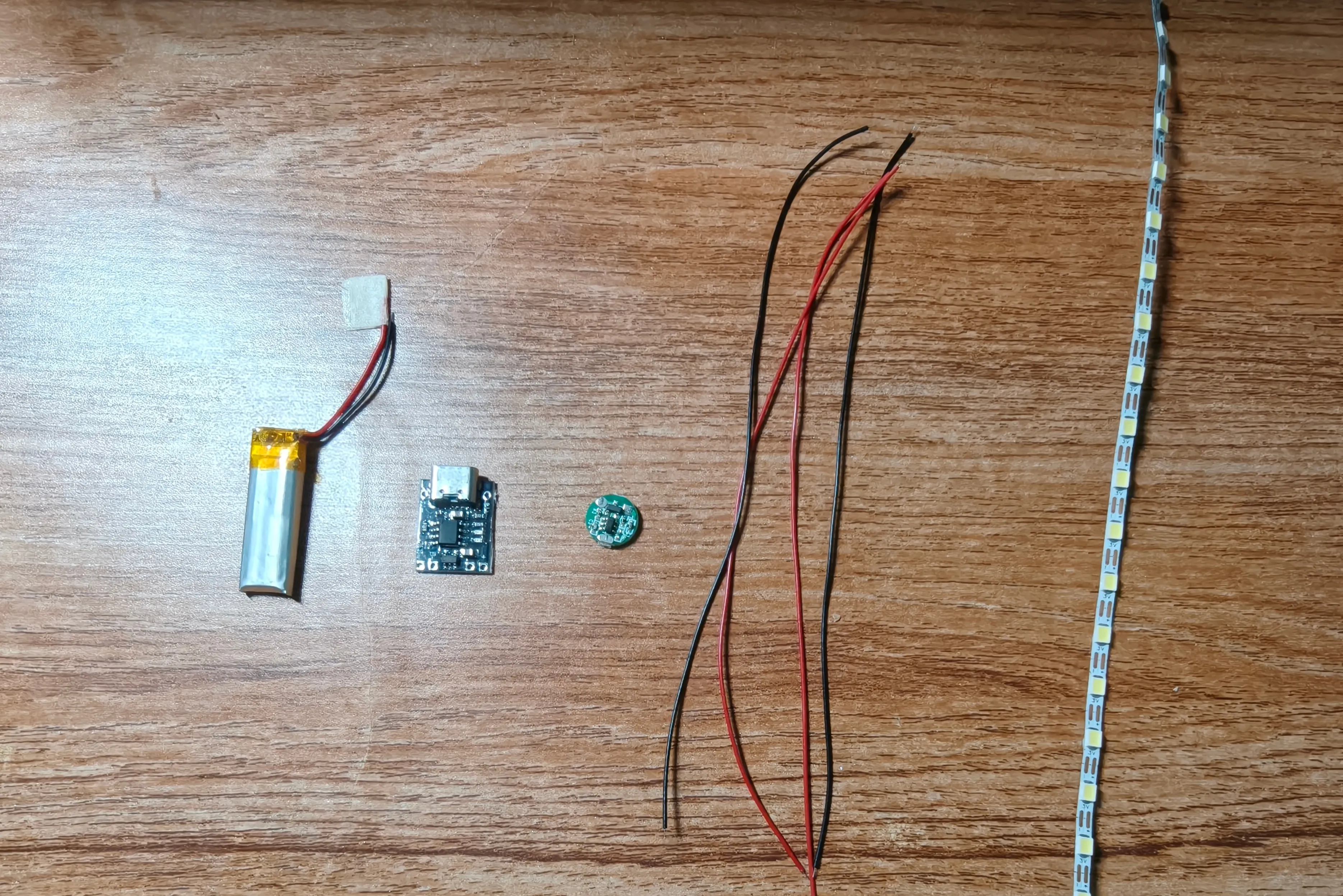

The required electronic components are shown in the figure below: a 3.7V lithium battery, a Type-C charging board, a touch switch, some wires, and a 28 cm long LED strip. The cost is approximately 15 yuan.

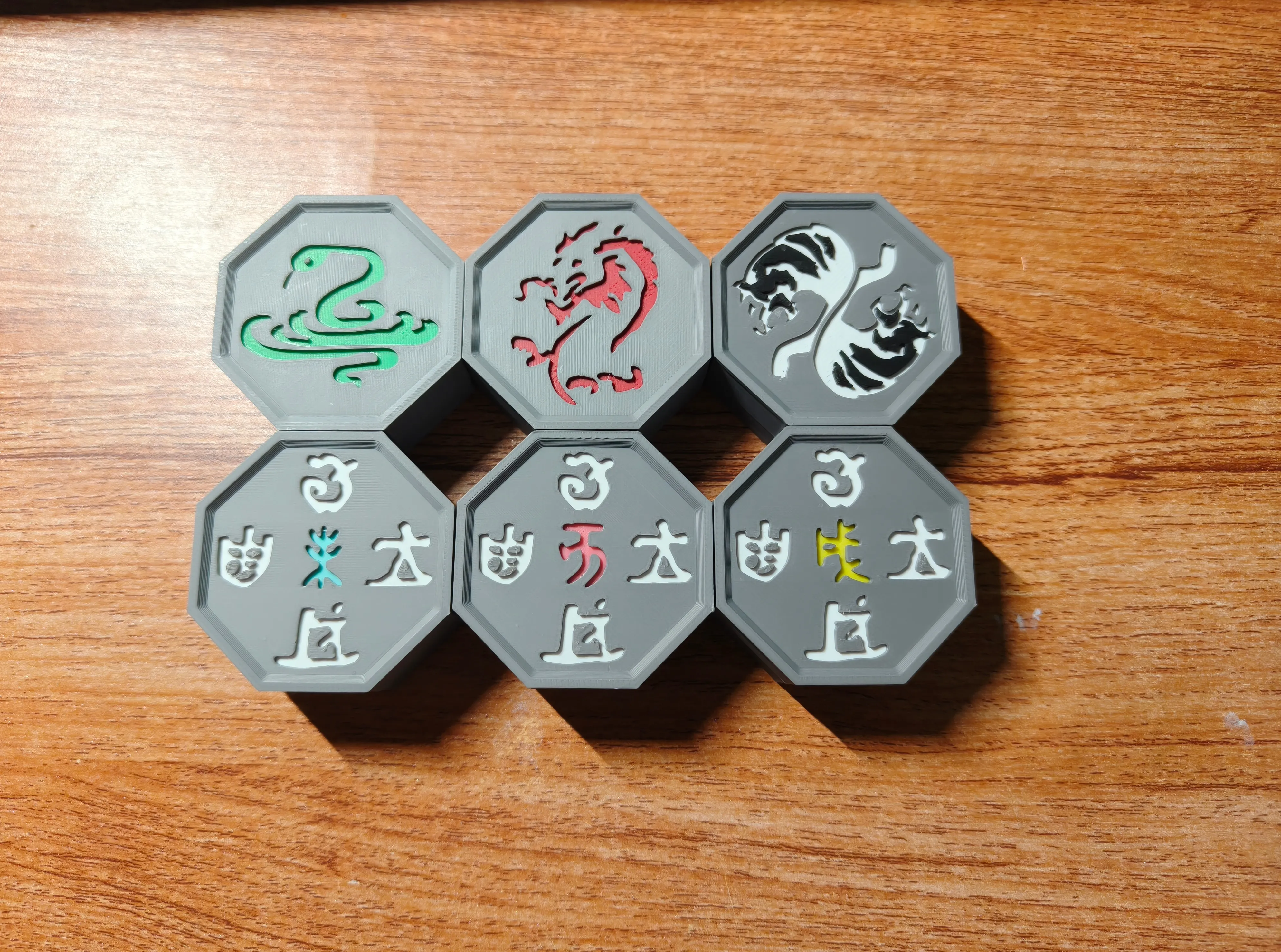

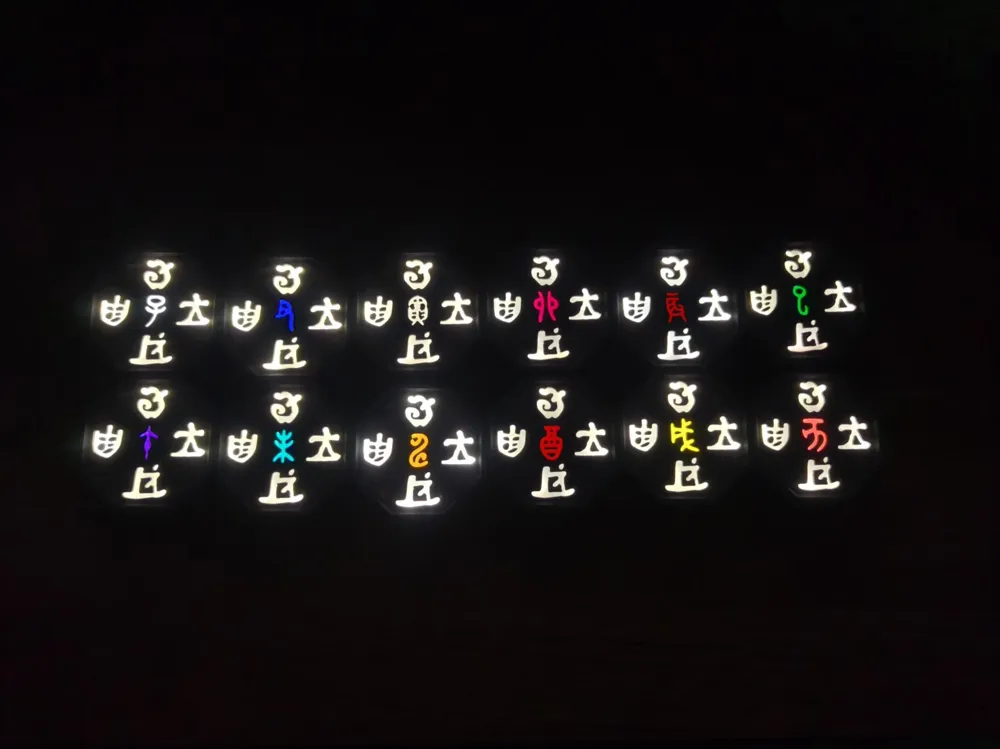

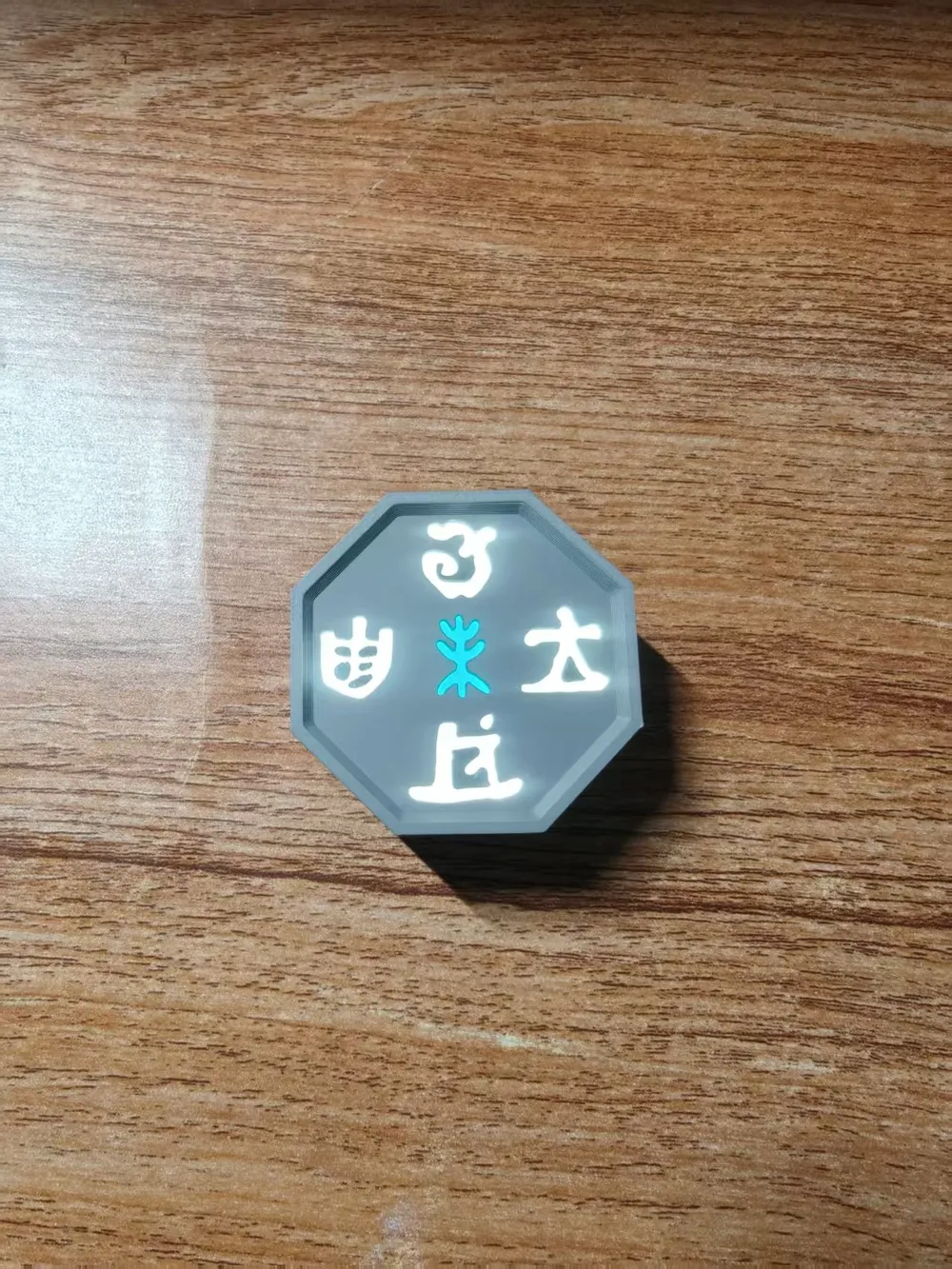

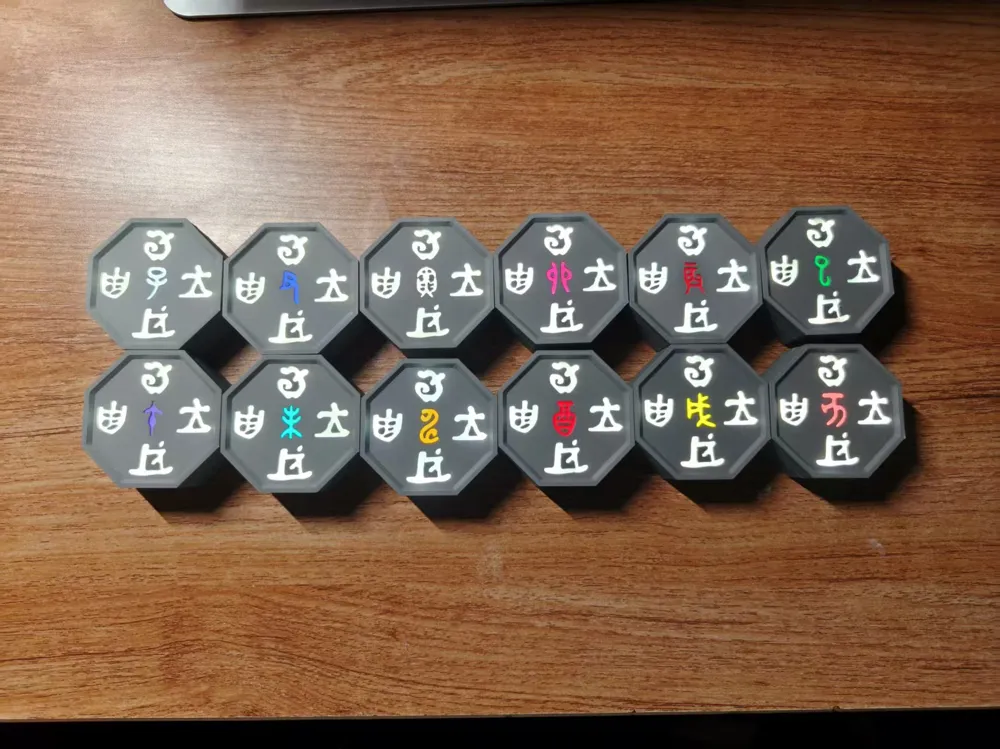

The material links are included in the assembly PDF. The printing process requires an AMS system. Two types of back covers are included in the slicing file. The original animation did not show the back of all the charms, so I had to roughly draw them based on online images. One type features hieroglyphs, while the other directly features Chinese characters for the Chinese Zodiac. You can choose the back cover according to your preference. Hope you all have fun!!
