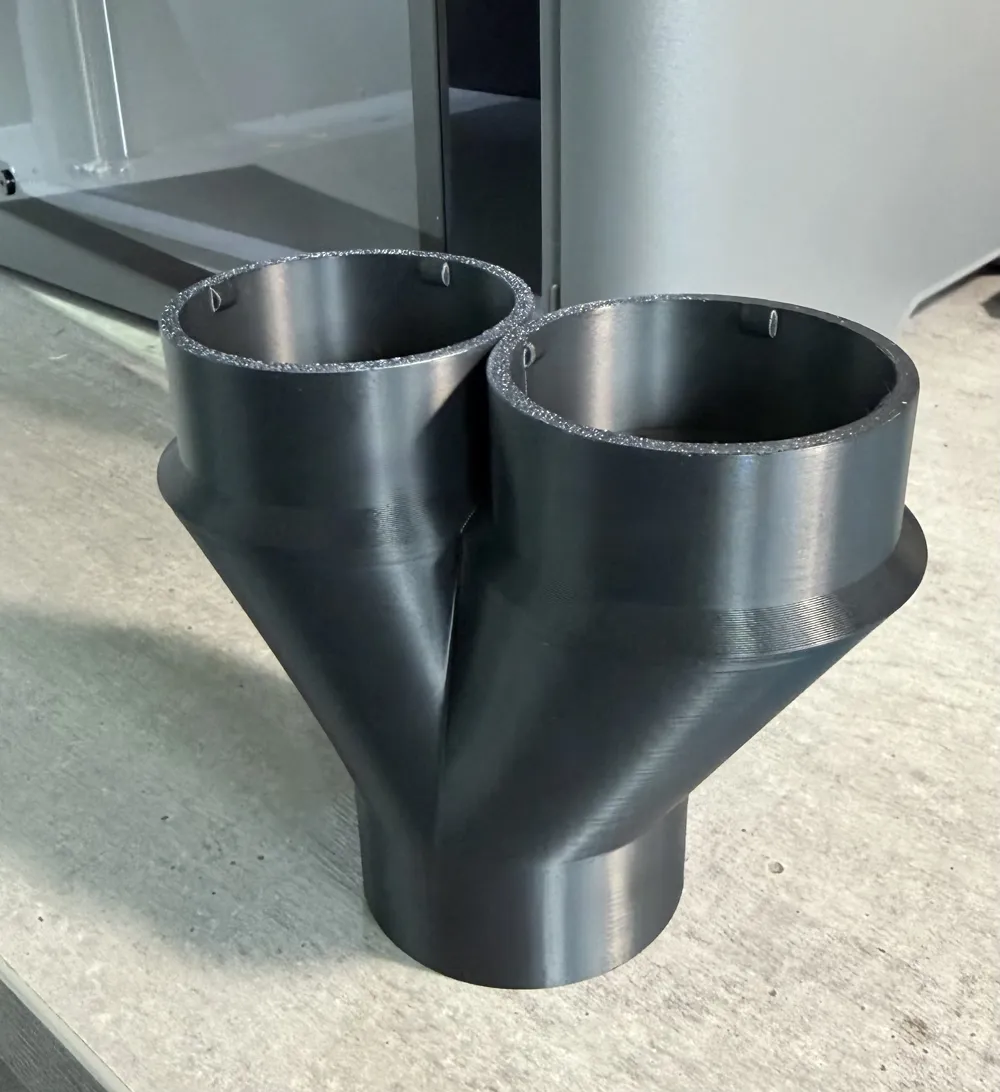

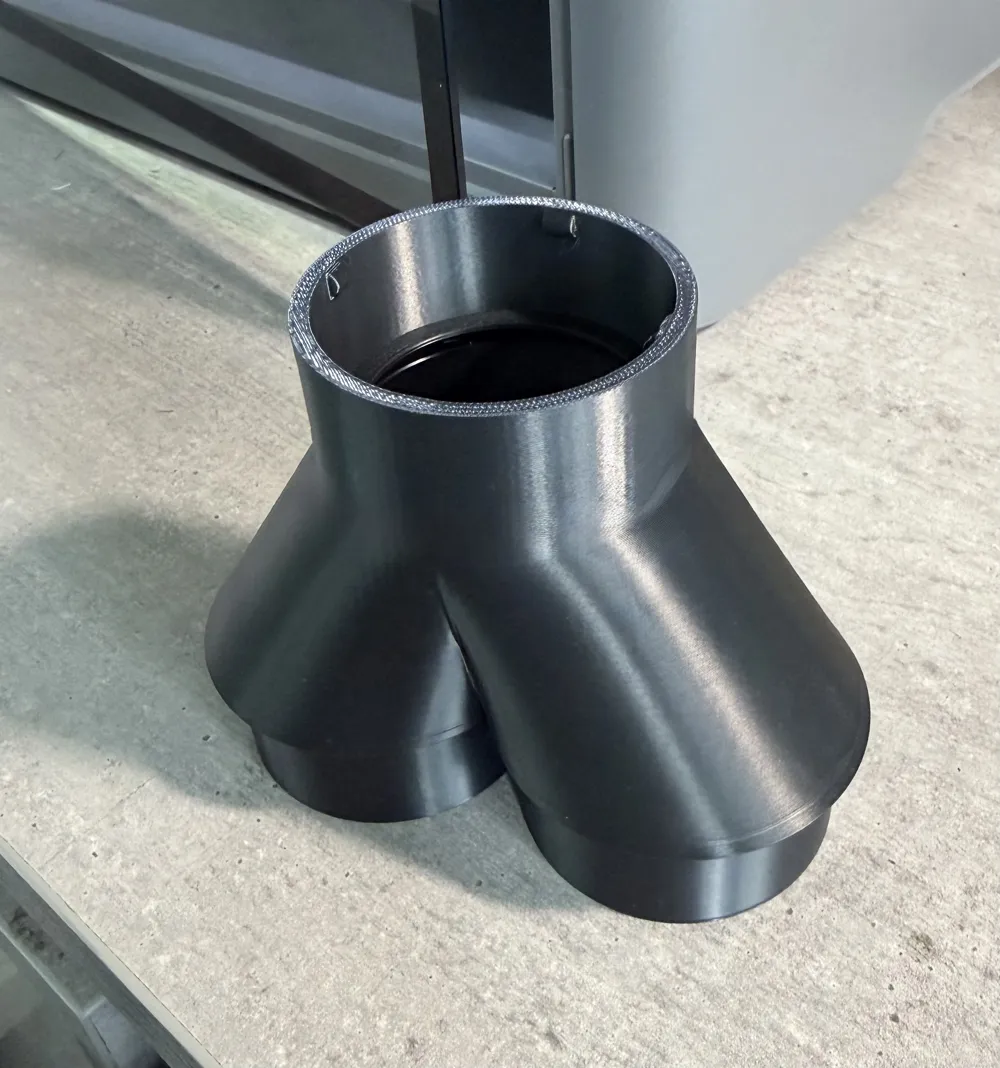

50 mm Cable Conduit Y-Connector with Locking Tabs

This Y-connector is designed for standard 50 mm outer diameter corrugated cable conduit commonly used for underground cable installations.

The connector allows you to combine two conduits into one or split one conduit into two, making it ideal for branching cable routes, garden installations, fiber runs, electrical conduit systems, and other underground cable projects.

A built-in locking tab system grips the corrugated conduit and helps prevent the tubes from sliding out after installation. No additional clamps or fasteners are required in most applications.

The design features smooth internal transitions to help guide cables through the junction while maintaining a compact footprint.

Features

• Fits standard 50 mm outer diameter corrugated conduit
• Works as both a 2-to-1 combiner and 1-to-2 splitter
• Integrated locking tabs to help retain the conduit
• Smooth internal geometry
• Suitable for underground cable duct systems
• No additional hardware required
• Designed for outdoor use when printed in appropriate materials

Printing

Printed successfully in ASA, which is highly recommended for outdoor installations due to its UV and weather resistance.

The model can also be printed in:

• ASA (recommended)
• PETG
• ABS
• PLA (indoor or temporary use)

Suggested Settings

• Layer Height: 0.20 mm
• Walls: 3
• Infill: 15%
• Supports: Not required
• Material: ASA recommended for outdoor installations

Important

⚠️ This connector is NOT watertight and is not intended to be used as a sealed fitting.

It is designed to mechanically join and branch corrugated cable conduit while helping to keep the conduits securely in place.

If a watertight installation is required, additional sealing methods must be used.

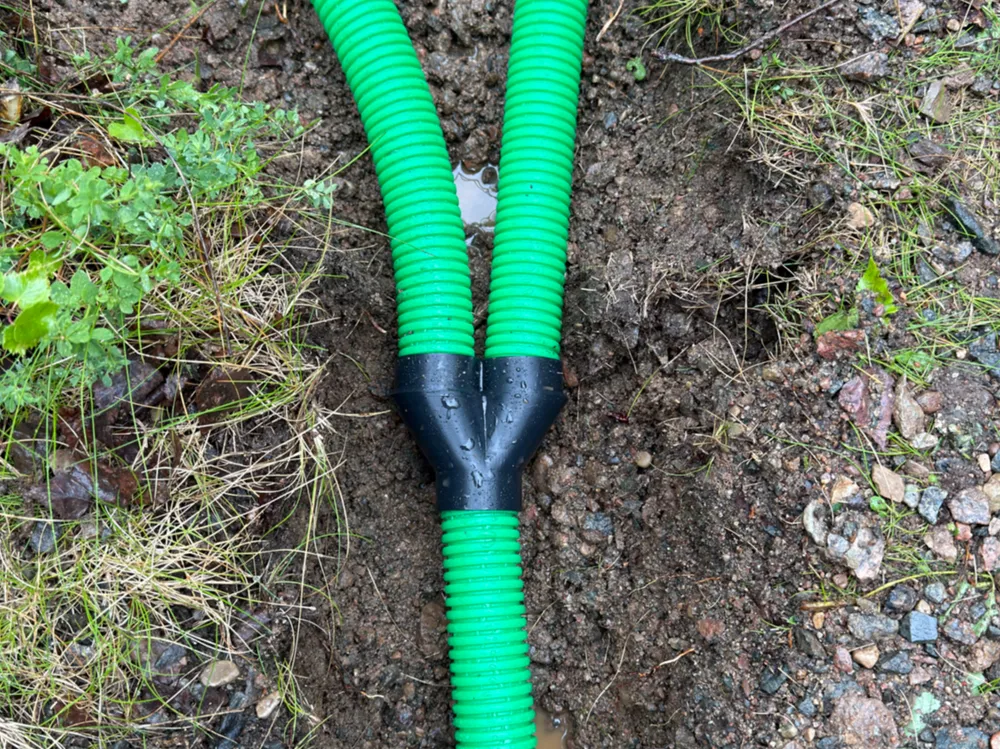

Recommended Applications

• Underground cable conduit systems
• Fiber optic installations
• Electrical cable routing
• Garden and landscape lighting
• Network cable protection
• Telecom infrastructure
• General conduit branching applications


  Swedish Description
• Y-koppling för 50 mm markrör / kabelskyddsrör. Kan användas för att förgrena ett rör till två eller sammanföra två rör till ett. Integrerade låsflikar hjälper till att hålla röret på plats. Ej vattentät.
