SnapRoute – Modular 2-Piece Snap Cable Duct System

SnapRoute – Modular 2-Piece Snap Cable Duct System

A modular cable duct in two part, designed to make cable routing simpler, tidier, and more modifiable.

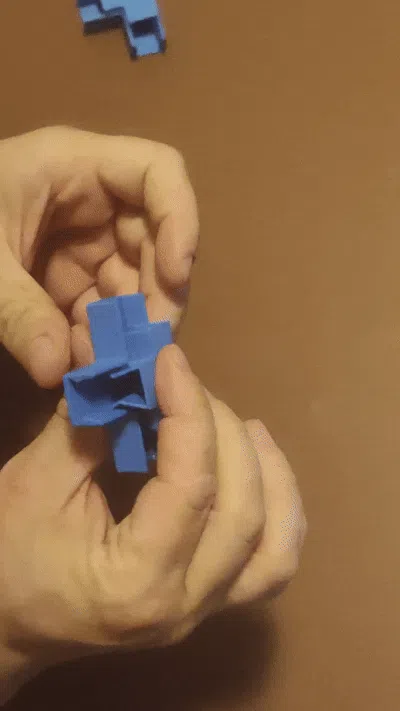

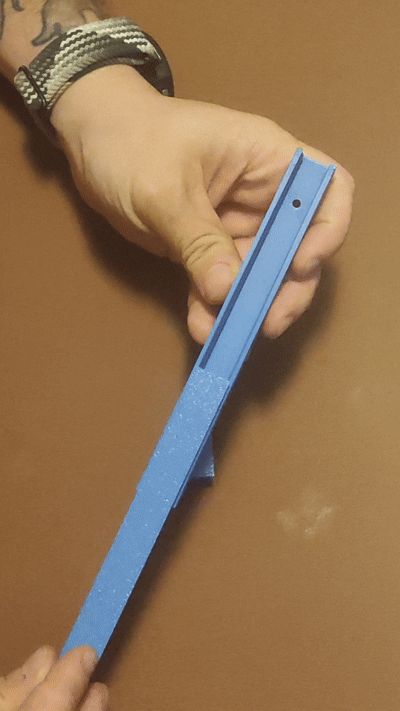

Unlike classic closed cable ducts, this version consists of a lower base and an upper cover: you can first fix the lower part to a wall, on a panel, under a desk or on a support, organize the cables as you prefer, and then close everything with the upper part.

The main advantage is that cables do not need to be threaded from start to finish: you can open the duct, add or remove cables even later, and close it again without disassembling the entire system.

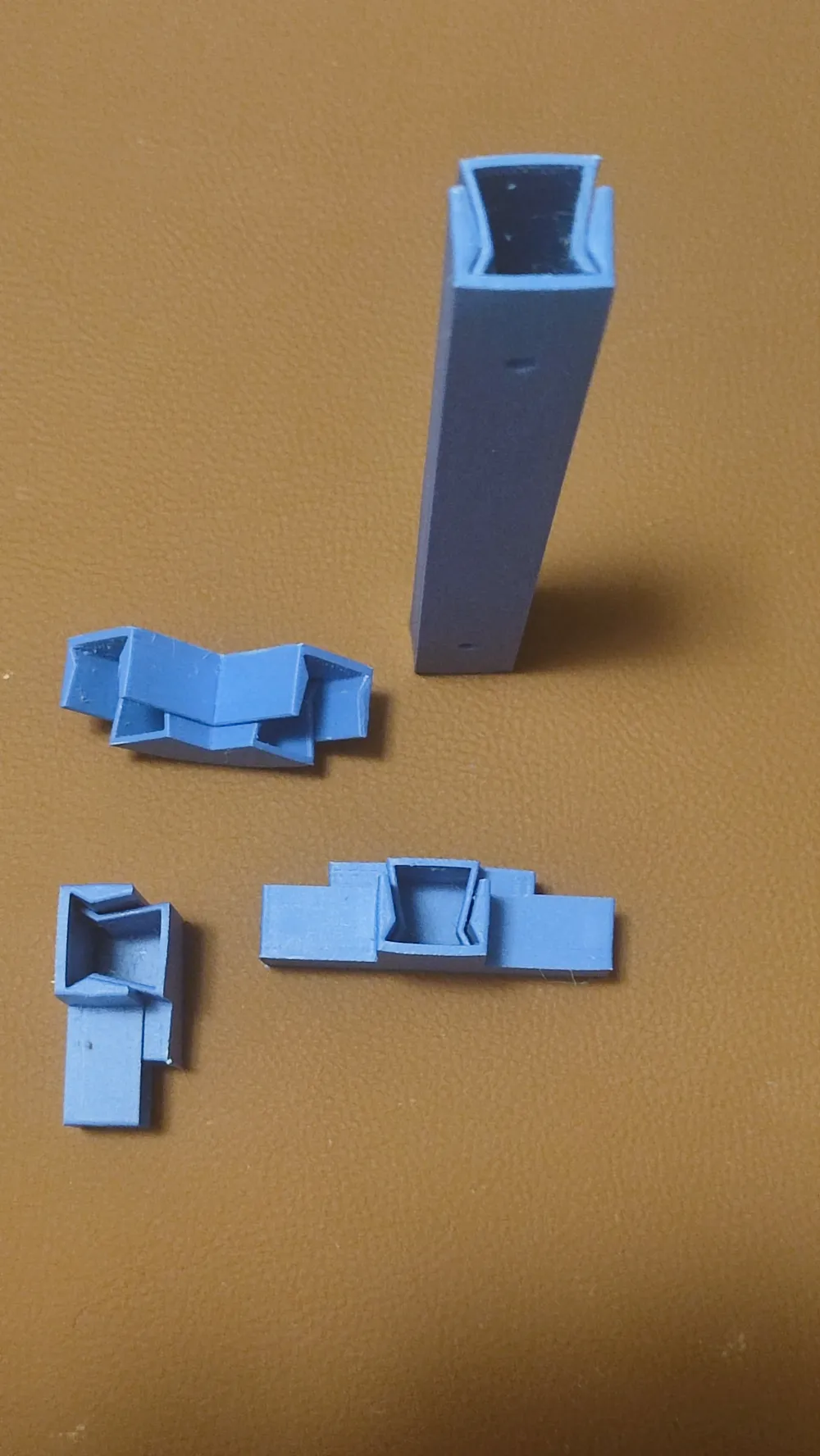

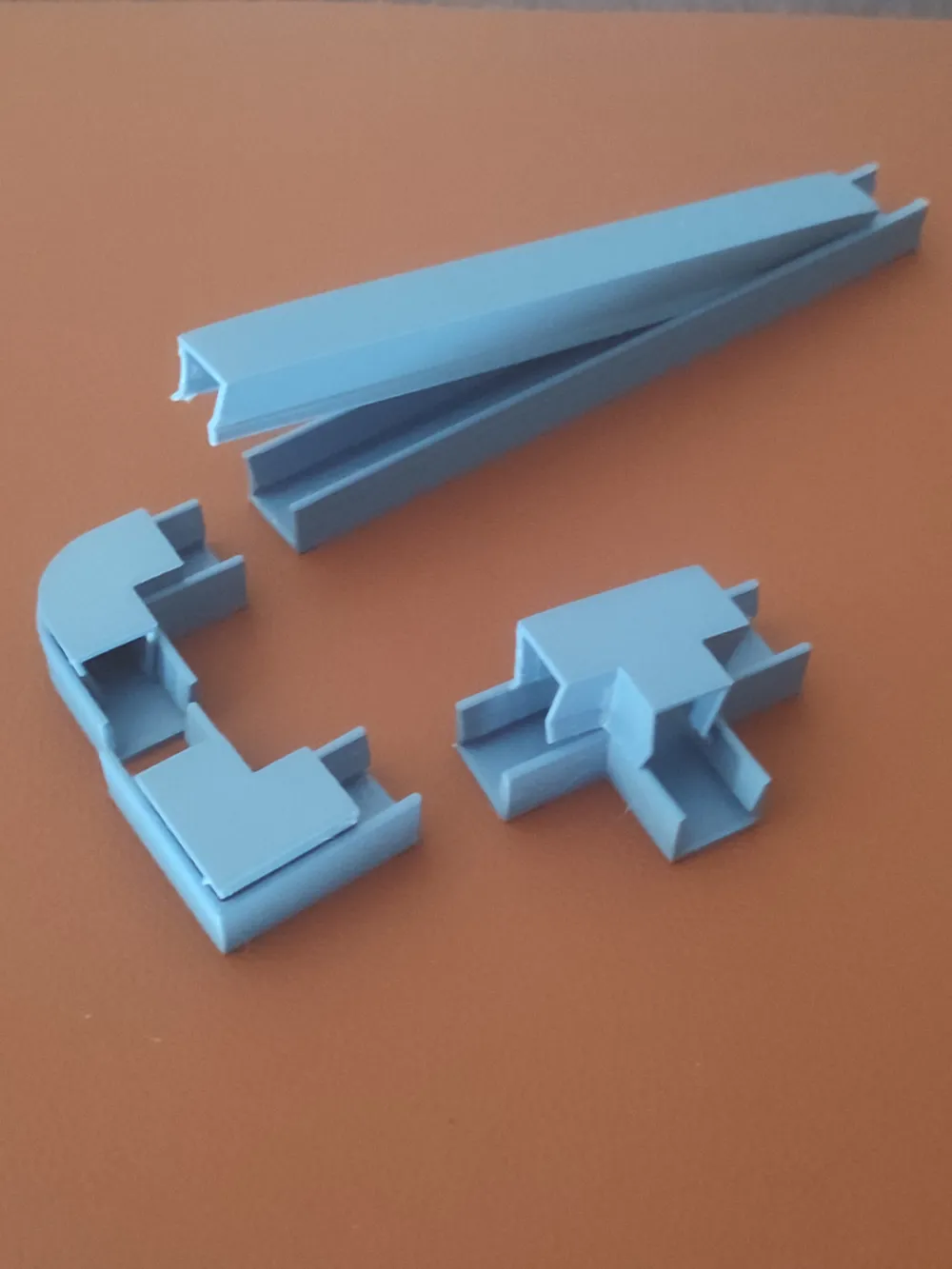

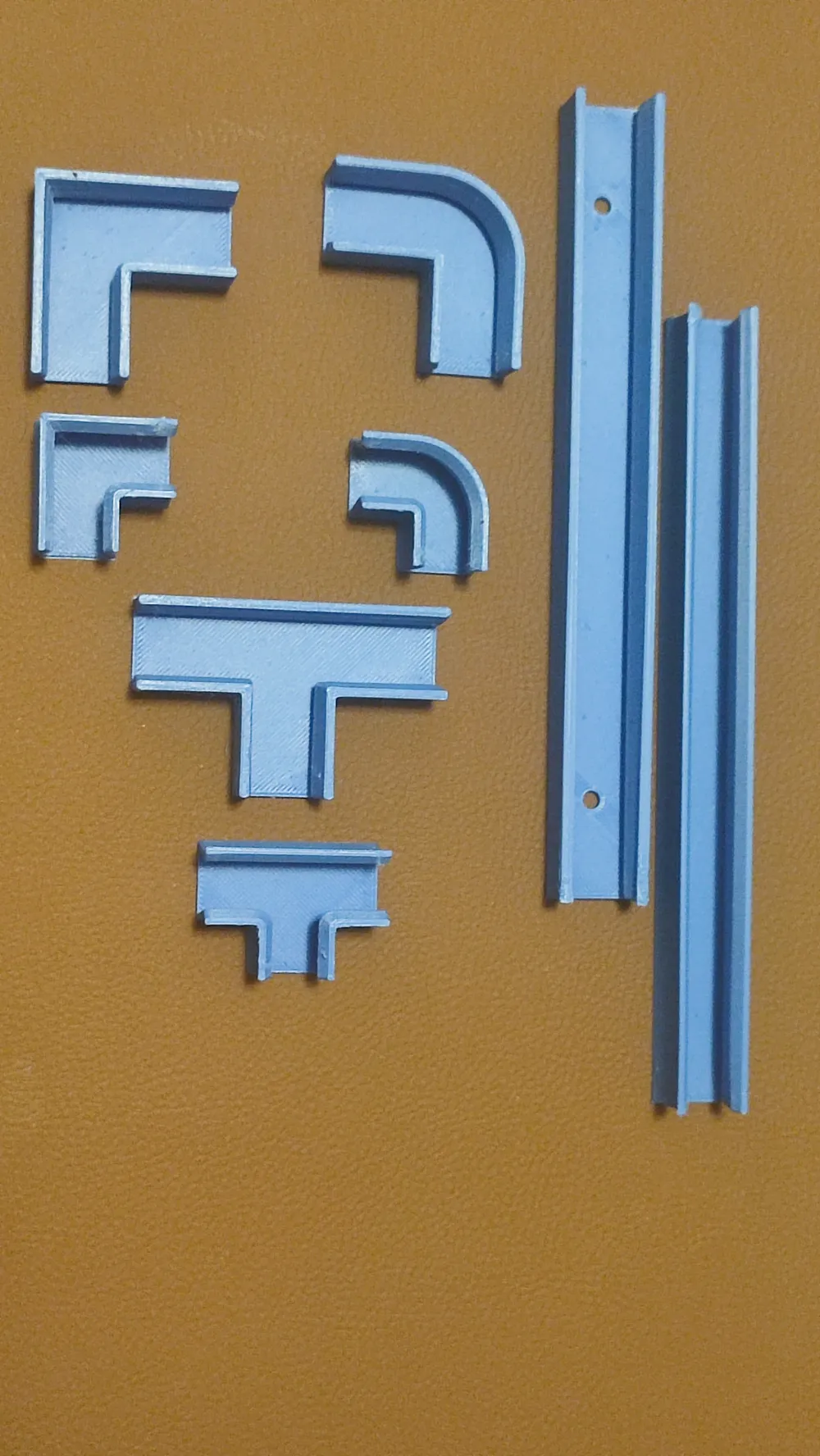

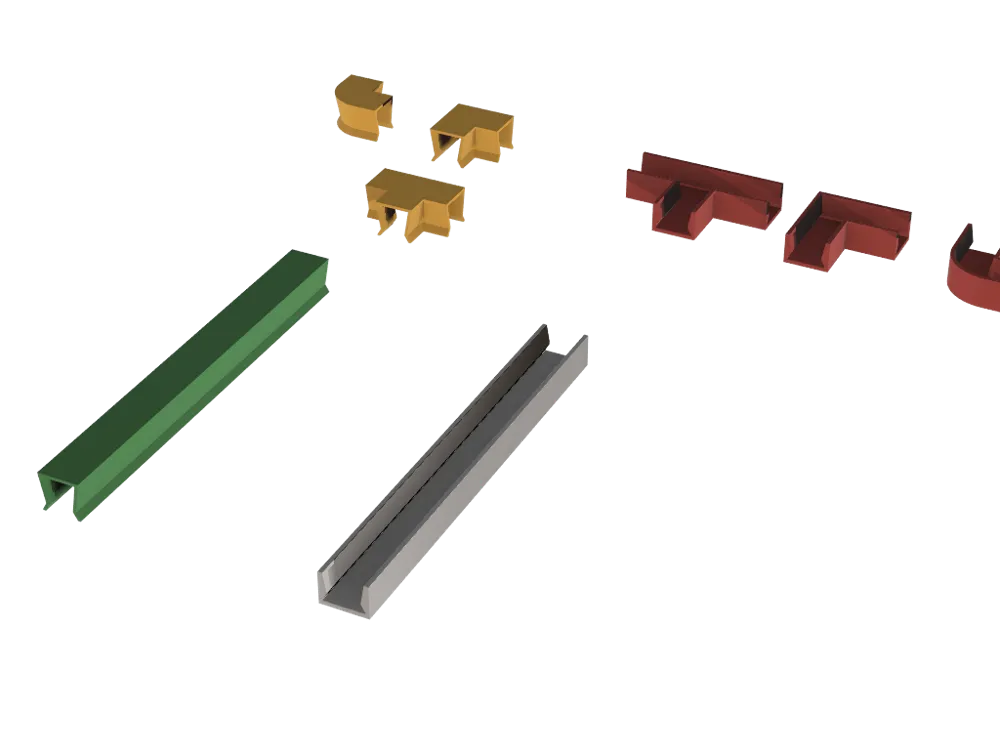

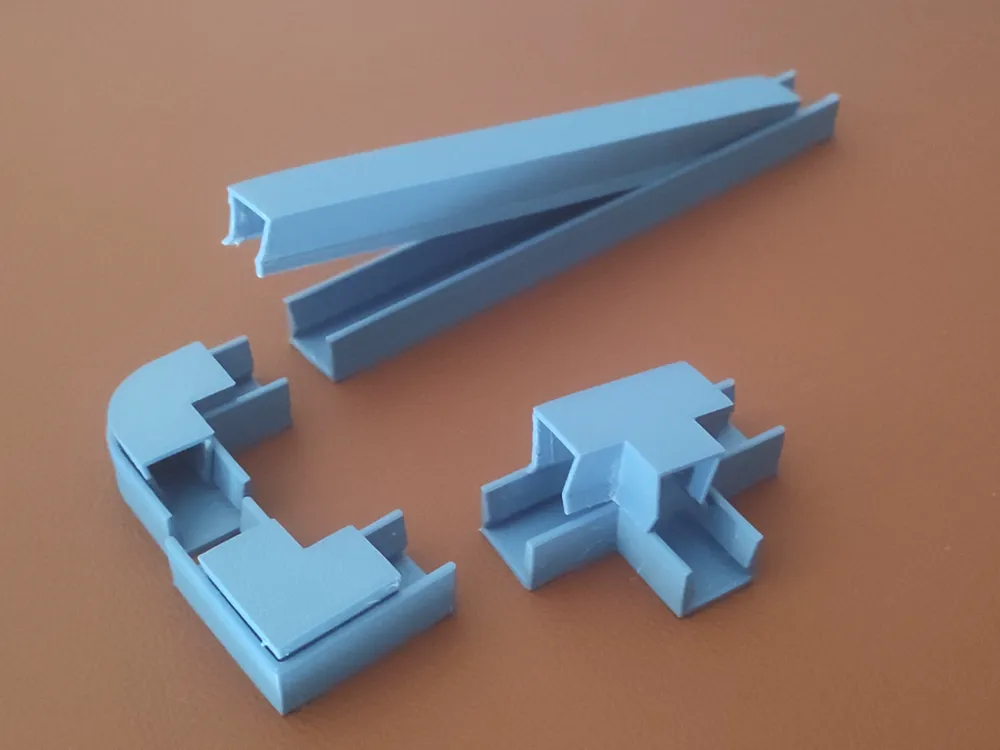

The system also includes various connection modules to create more flexible paths:

• Straight two part module
• T-joint
• Straight 90° bend
• Curved 90° bend

• Separate upper and lower parts to maintain the same modular logic



Designed for desks, PC workstations, small labs, 3D Printer, electronics, garages, technical panels, and general cable organization.

Main Features

✅ Modular design
✅ two part openable structure
✅ Easy addition or removal of cables over time
✅ No need to thread cables into the duct
✅ Straight modules, T, and 90° bends
✅ Ideal for DIY cable management
✅ Printable without supports
✅ Compatible with Bambu Lab A1 mini

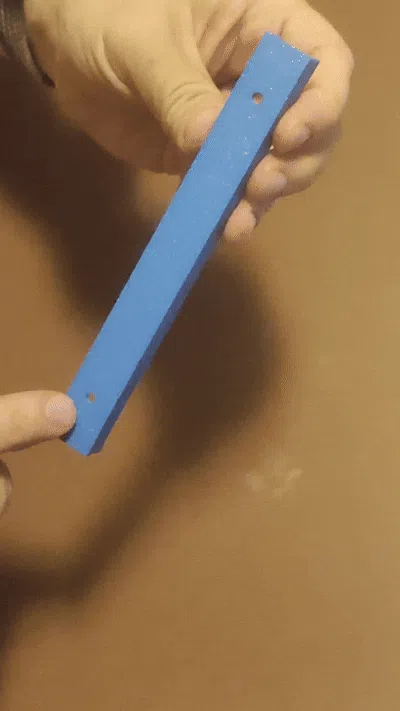

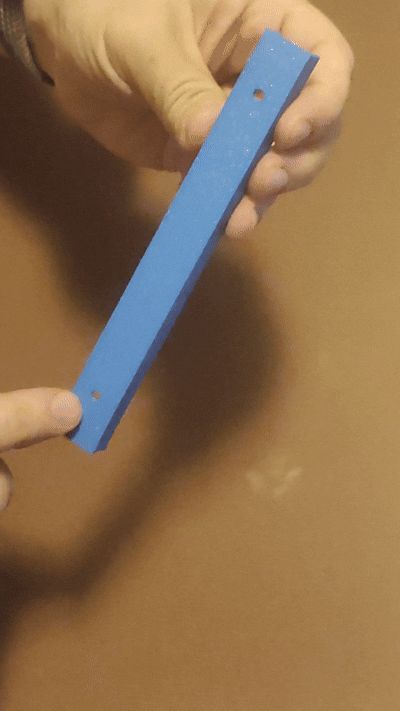

✅ Holes for mounting to the support

++A modular 2-piece cable duct system designed to organize cables without threading them through the entire channel. Fix the lower part, place your cables, then close it with the upper cover. Includes straight modules, T joints and 90° connectors.++

Print Profile

• Printer: Bambu Lab A1 mini
• Nozzle: 0.4 mm
• Material: PLA
• Layer height: 0.20 mm
• Infill: 10% Gyroid
• Walls: 3
• Supports: No
• Brim: Outer only, 4 mm
• Plate: Textured PEI Plate

The straight module is approximately 160 mm long.
