Flat Duct Adapter 220×90 to 2×110×55 Duct Adapter
Print Profile(1)
Description
DE – Beschreibung
Kurzbeschreibung
Funktionaler 3D‑Druck‑Adapter für Flachkanal: 220×90 mm Eingang auf 2× 110×55 mm Ausgänge. Zusätzlich mit Low‑Profile‑Verjüngung zur Reduzierung der Aufbauhöhe und schwimmender Lagerung, damit sich das T‑Stück bei der Montage leicht kippen/ausrichten lässt.
Features
- Übergang: 220×90 → 2×110×55 (Flachkanal)
- Aufbauhöhe reduziert durch flachen Übergang/Verjüngung (ideal bei Hindernissen, z. B. Beton)
- Leicht einstellbarer Winkel: „schwimmend gelagert“ für kleine Kippbewegungen zur Feinausrichtung
- Für Werkstatt/Haustechnik/Lüftungsführung in engen Bereichen
Print Settings (Empfehlung)
- Material: PETG empfohlen (robuster/temperaturfester), PLA nur zum Testen
- Nozzle: 0.4 mm (0.6 mm möglich)
- Layerhöhe: 0.20–0.28 mm
- Wände/Perimeter: 4 (bei Bedarf 5)
- Infill: 15–25% (Gyroid/Grid)
- Support: nur bei Bedarf (abhängig von deiner Ausrichtung/Überhängen)
- Tipp: „Support nur vom Druckbett“ + moderate Interface‑Abstände. In der 3MF sind Support‑Interface‑Abstände/Pattern bereits gesetzt (u. a. Interface Spacing 0,5 mm). lüftung2.3mf
- Druckausrichtung: größte plane Fläche aufs Bett; bei Warping Brim nutzen
Assembly / Montage
- Adapter in/auf die Flachkanäle stecken (je nach Kanalsystem).
- Für die schwimmende Lagerung: nicht „auf Spannung“ verkleben, damit die leichte Kippbewegung zur Ausrichtung erhalten bleibt.
- Optional abdichten/fixieren: Dichtband + Alu‑Klebeband / Dichtmasse (je nach Bedarf).
Notes / Safety
- Dichtigkeit hängt von Dichtband/Abklebung und deinem Kanalsystem ab.
- Für warme Abluft lieber PETG/ABS/ASA statt PLA.
- Maße können je nach Hersteller leicht variieren → erst Testfit.
EN – Description
Short description

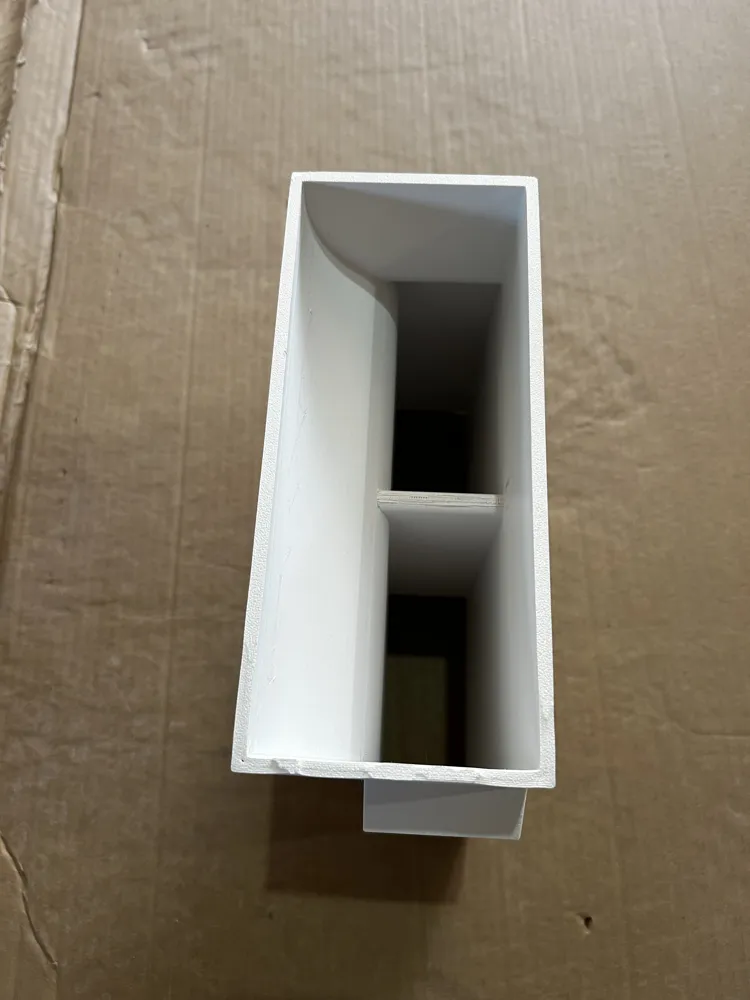

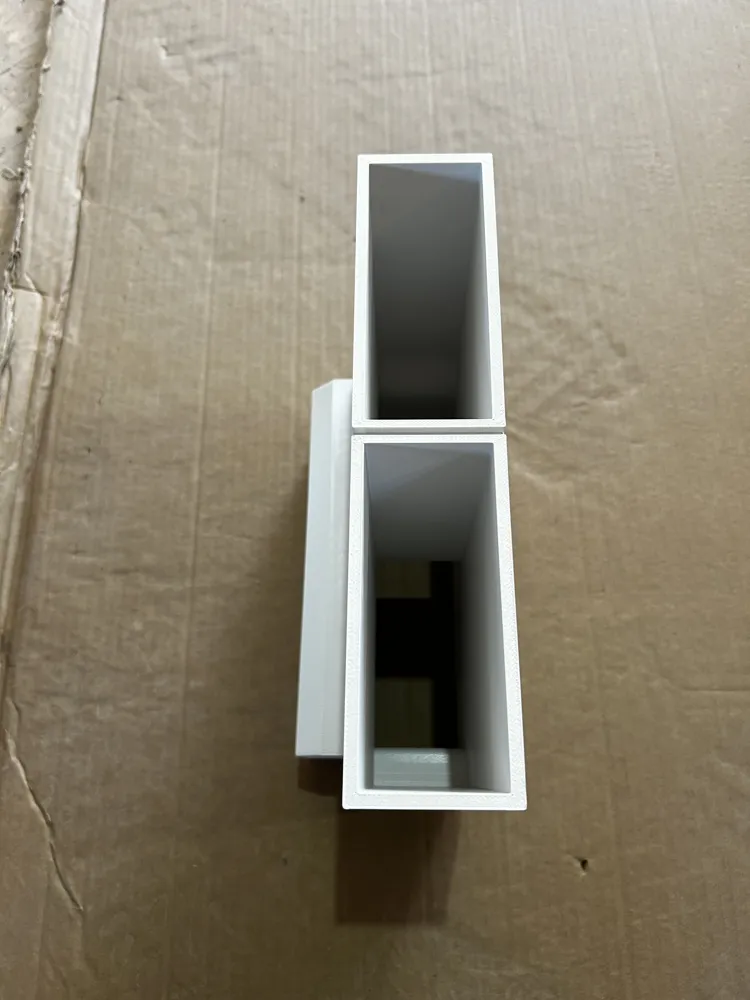

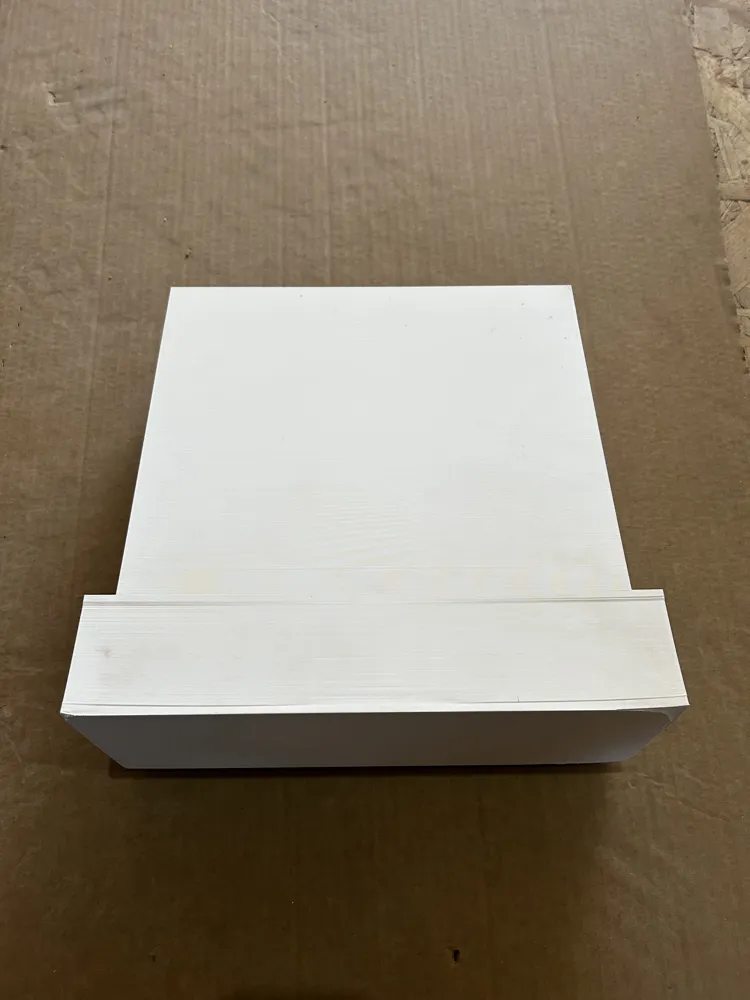

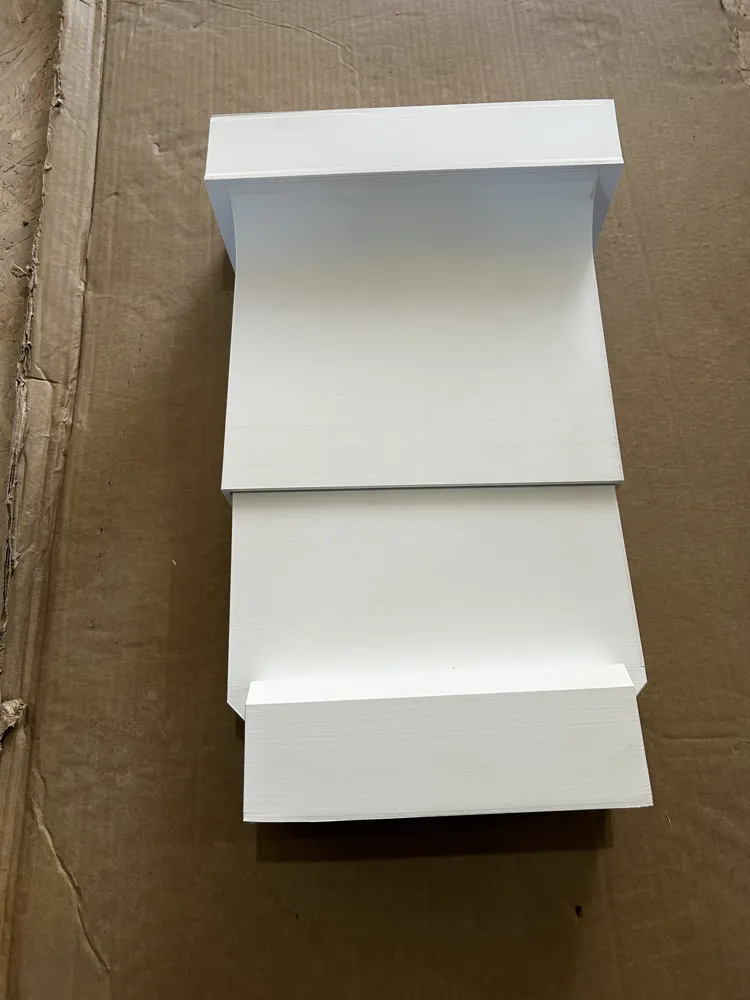

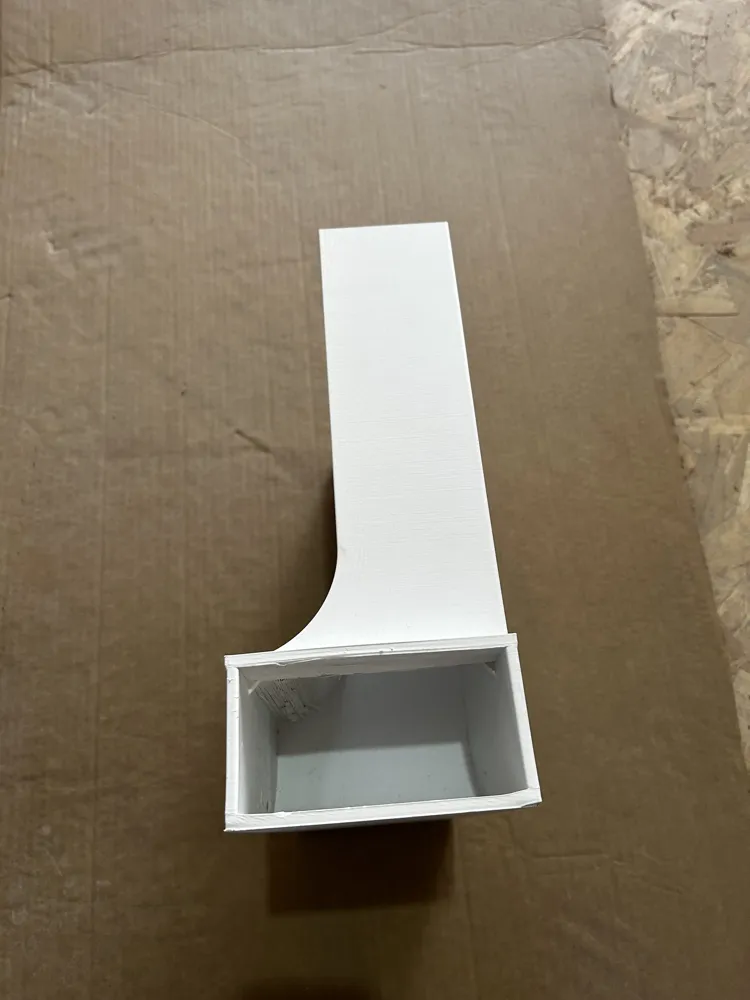

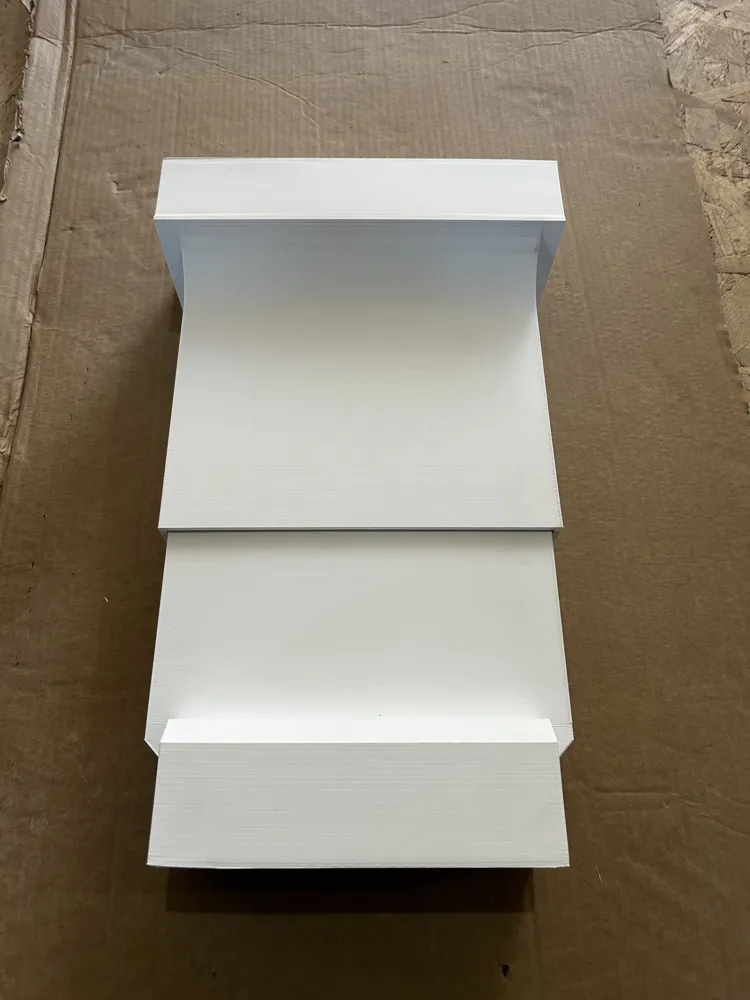

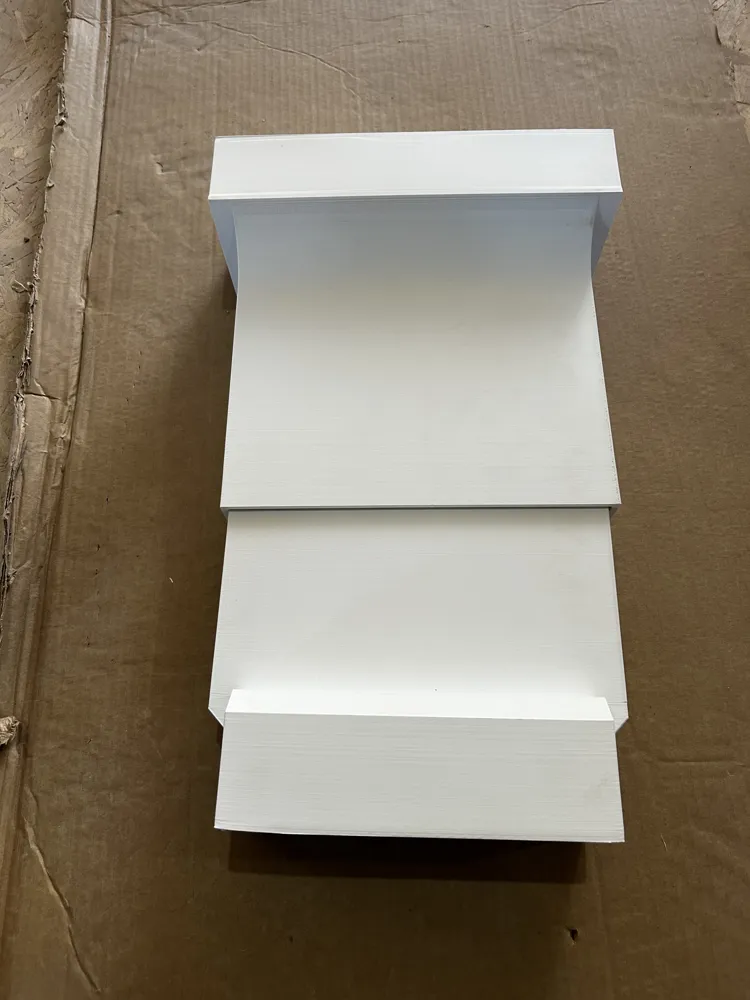

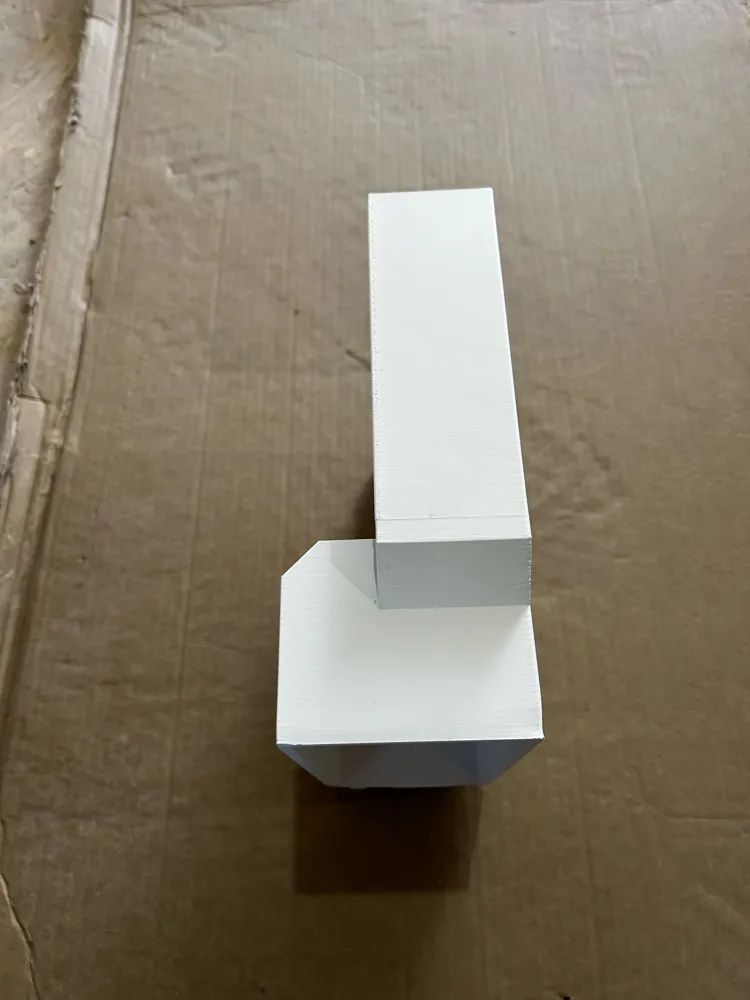

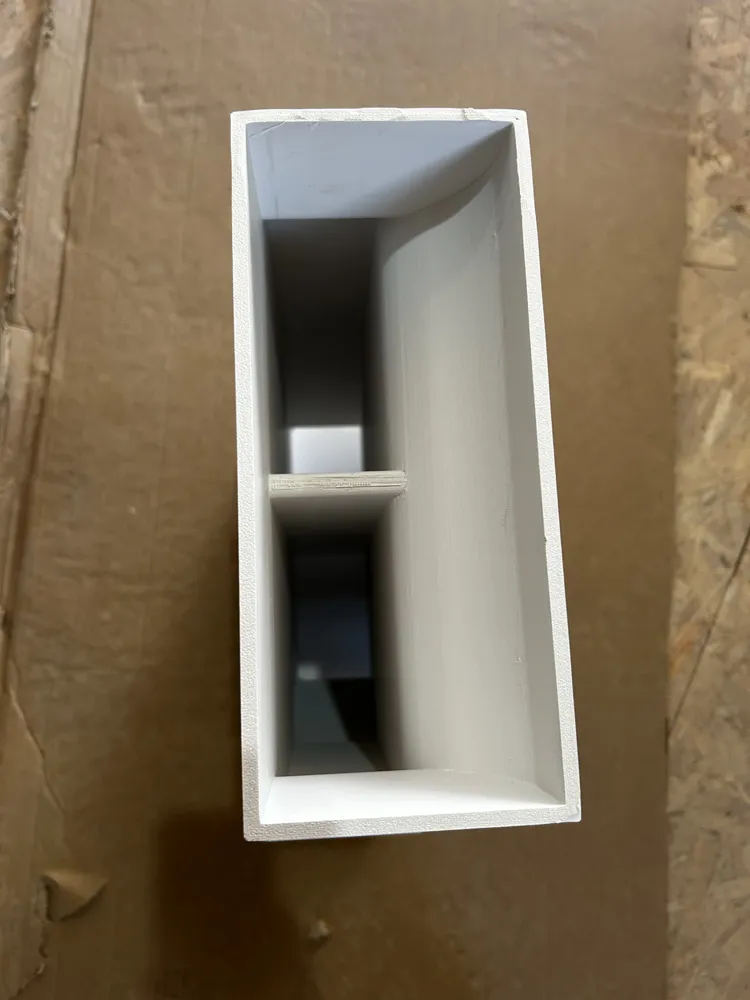

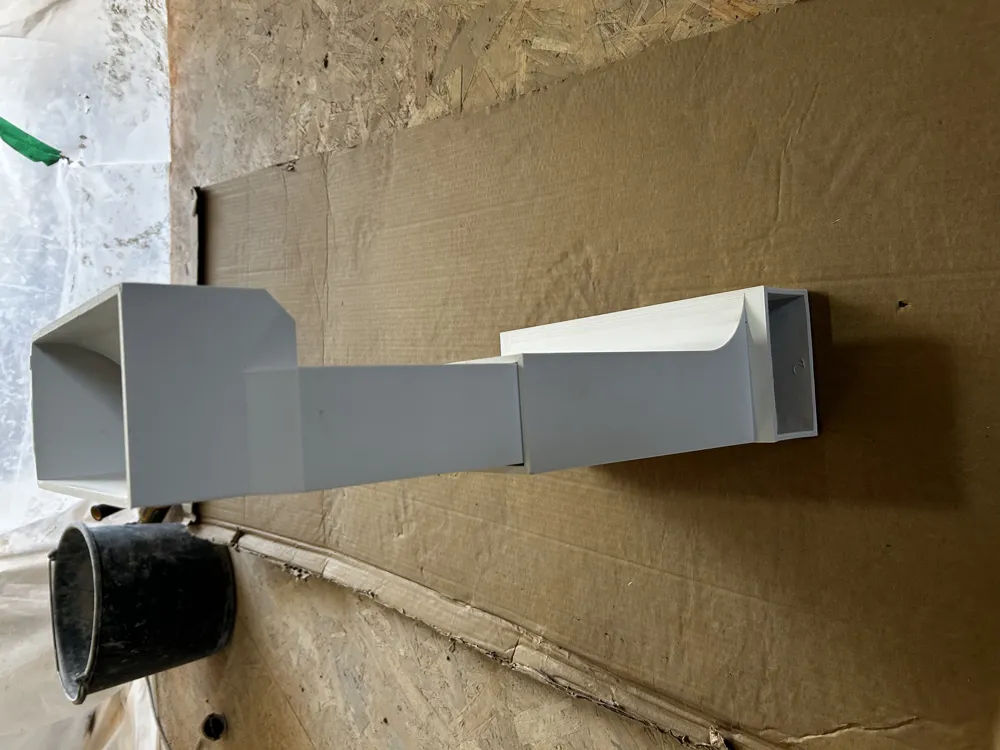

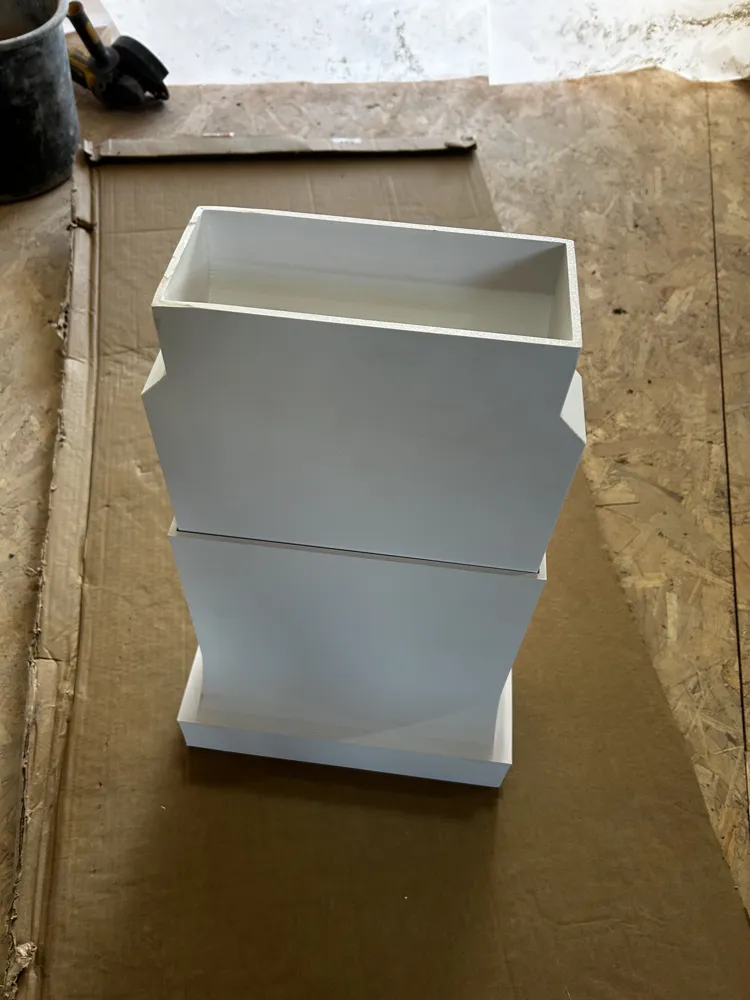

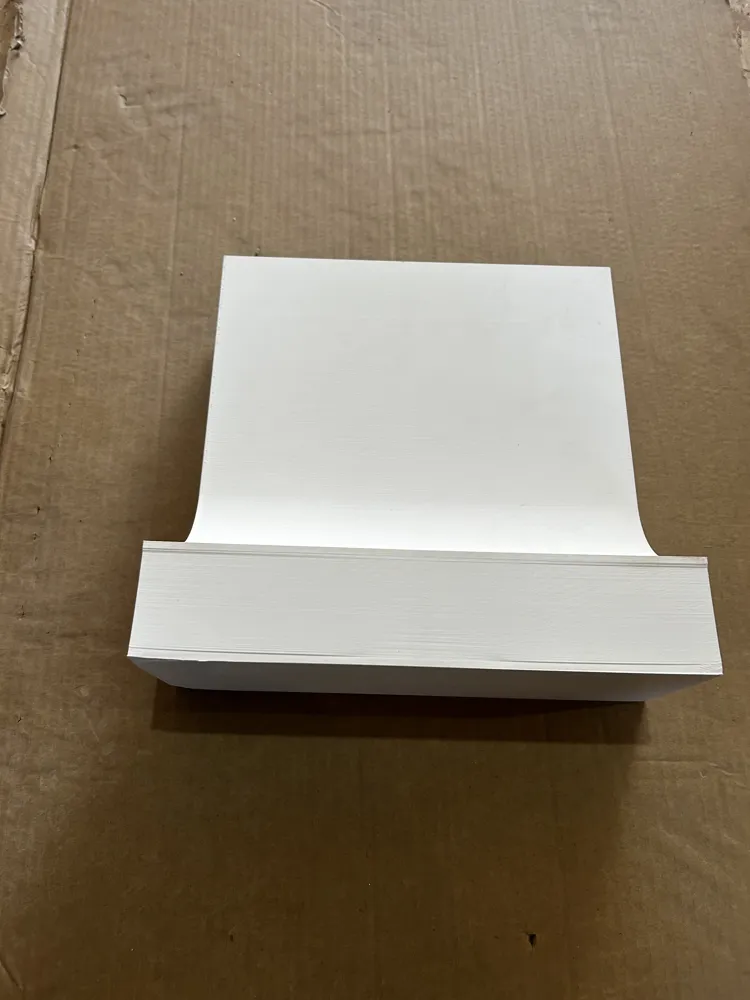

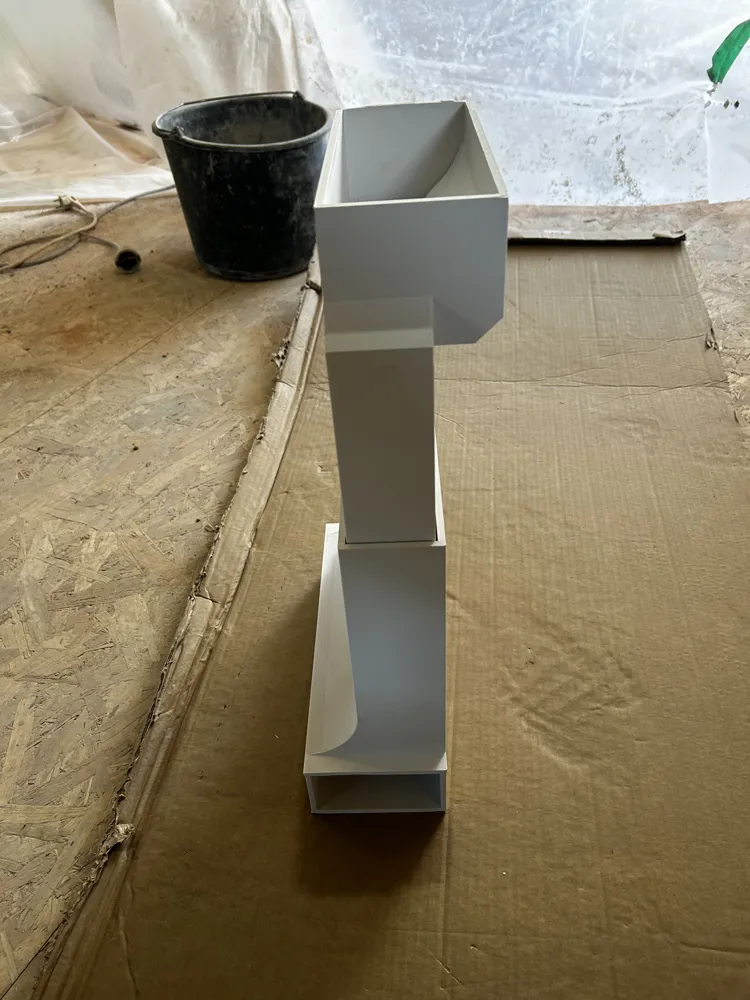

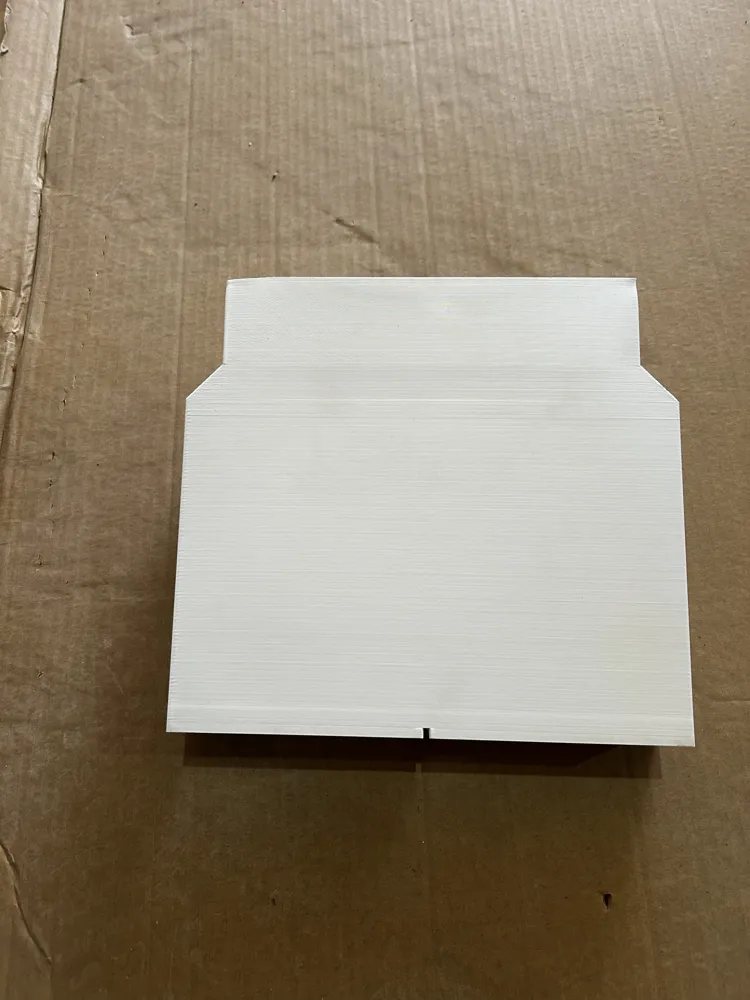

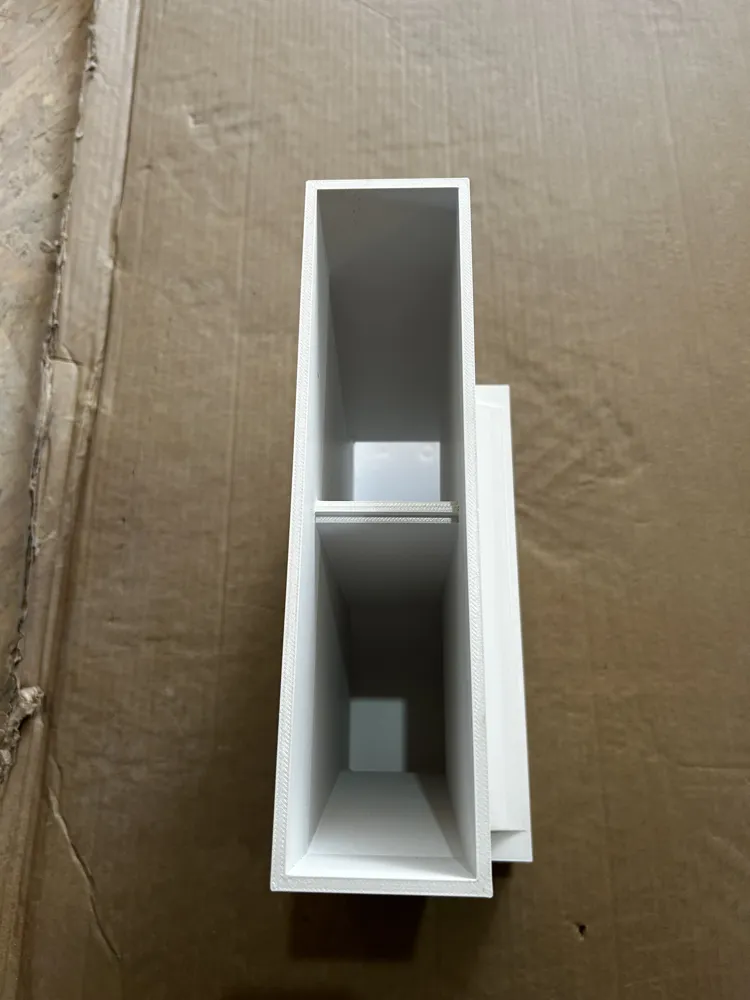

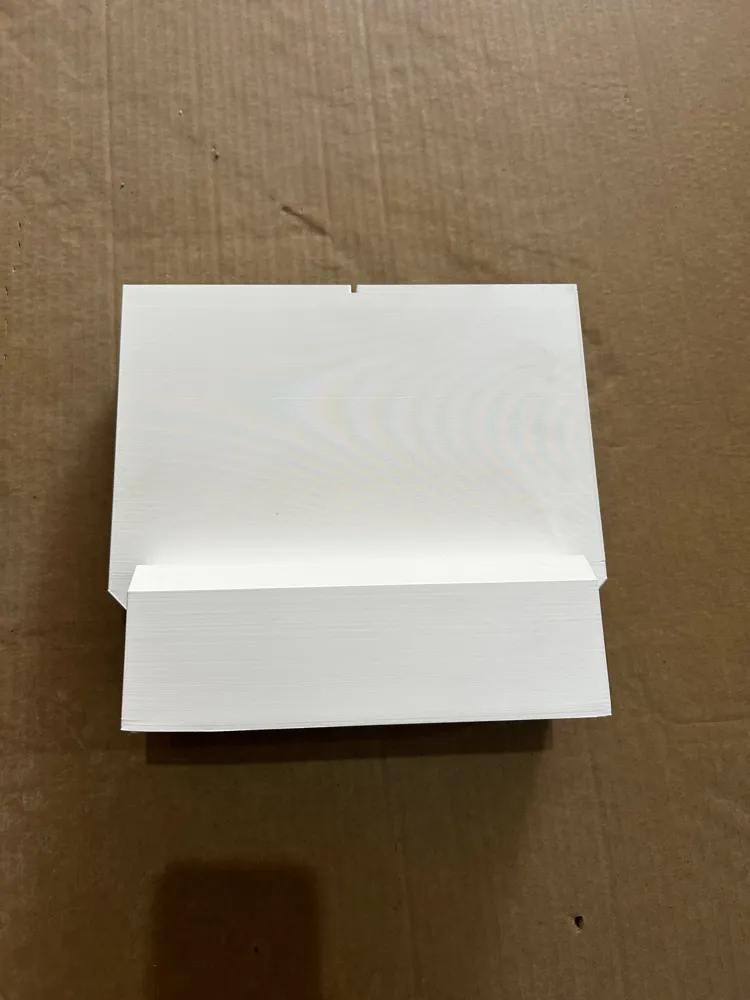

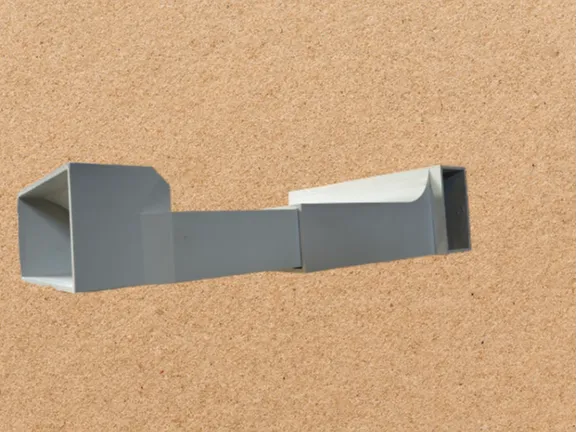

Functional 3D printed flat duct adapter: 220×90 mm inlet to dual 110×55 mm outlets. Includes a low-profile taper to reduce overall height and a floating fit so the T-piece can be slightly tilted for easy alignment during installation.
Features
- Transition: 220×90 → 2×110×55 flat duct
- Reduced height design for tight clearances / obstacle bridging
- Small angle adjustment thanks to the floating-mounted / “play” fit
- Great for workshop / home ventilation routing
Print Settings (recommended)
- Material: PETG recommended; PLA for test fitting
- Nozzle: 0.4 mm (0.6 mm optional)
- Layer height: 0.20–0.28 mm
- Walls: 4
- Infill: 15–25%
- Supports: only if needed, depending on orientation
- The provided 3MF already contains support interface parameters (e.g., interface spacing 0.5 mm). lüftung2.3mf
- Orientation: largest flat face on the bed; use a brim if needed
Assembly
- Push-fit into/on your ducts (system dependent).
- To keep the floating alignment, avoid bonding the joint under tension.
- Optional sealing: gasket tape + aluminum tape / sealant.
Notes / Safety
- Airtightness depends on sealing.
- For warm air, prefer PETG/ABS/ASA.
- Double-check dimensions; brands can vary slightly.
CN – Description
Short description
Functional 3D printed flat duct adapter: 220×90 mm inlet, diverging to 2× 110×55 mm. Features a low-profile taper to reduce installation height, and a floating fit for slight tilting and fine adjustment during installation.
Features
- 220×90 → 2×110×55 flat duct transition
- Low clearance/reduced height design, suitable for overcoming obstacles
- Adjustable angle: floating fit, for easy on-site alignment
- Suitable for home/workshop ventilation ducting
Print Settings (recommended)
- Material: PETG recommended; PLA for test fitting
- Nozzle: 0.4 mm (0.6 mm optional)
- Layer height: 0.20–0.28 mm
- Walls: 4
- Infill: 15–25%
- Supports: only if needed; the 3MF already contains some support interface parameters (e.g., interface spacing 0.5 mm). lüftung2.3mf
- Orientation: largest flat face on the bed; use a brim if needed
Assembly
- Push-fit into/on your ducts (system dependent).
- To keep the floating alignment, avoid bonding the joint under tension.
- Optional sealing: gasket tape + aluminum tape / sealant.
Notes / Safety
- Airtightness depends on sealing.
- For warm air, prefer PETG/ABS/ASA.
- Double-check dimensions; brands can vary slightly.
