Edifier R1280DB Speaker Stand – 15° Downward Tilt

Description

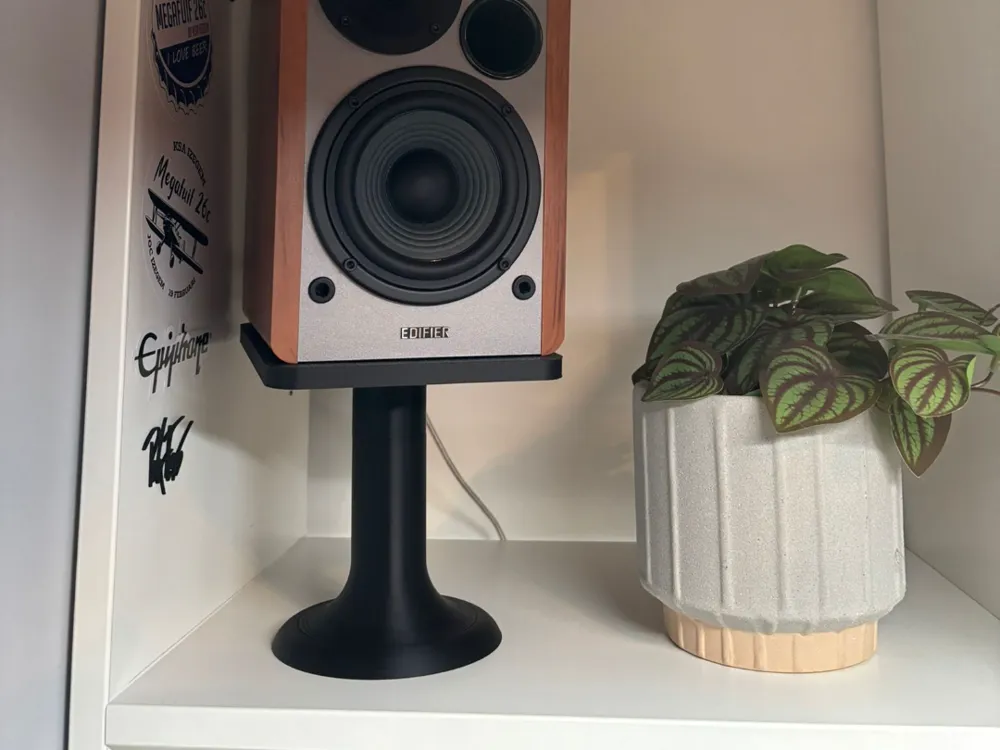

This is a speaker stand designed for the Edifier R1280DB.

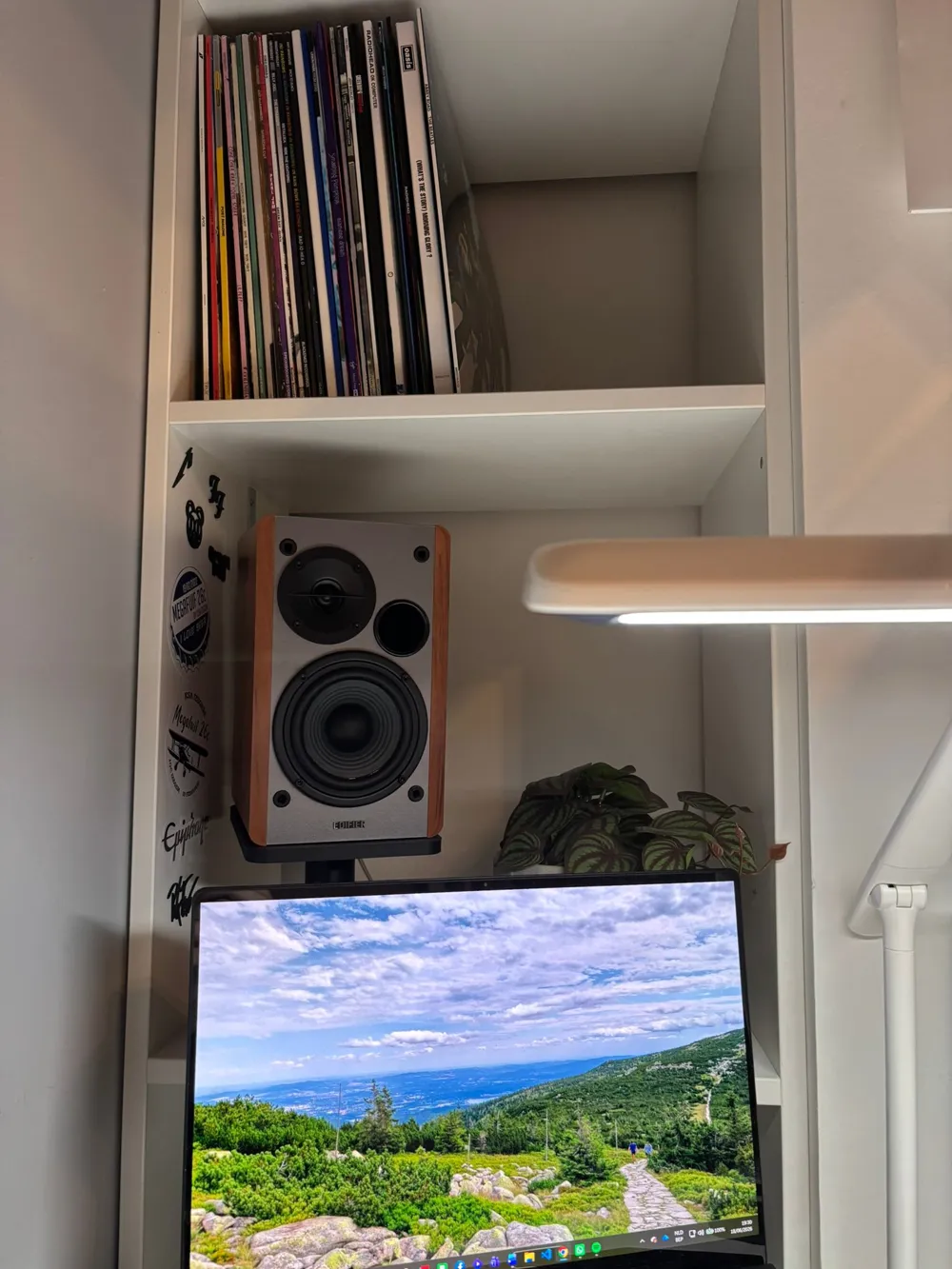

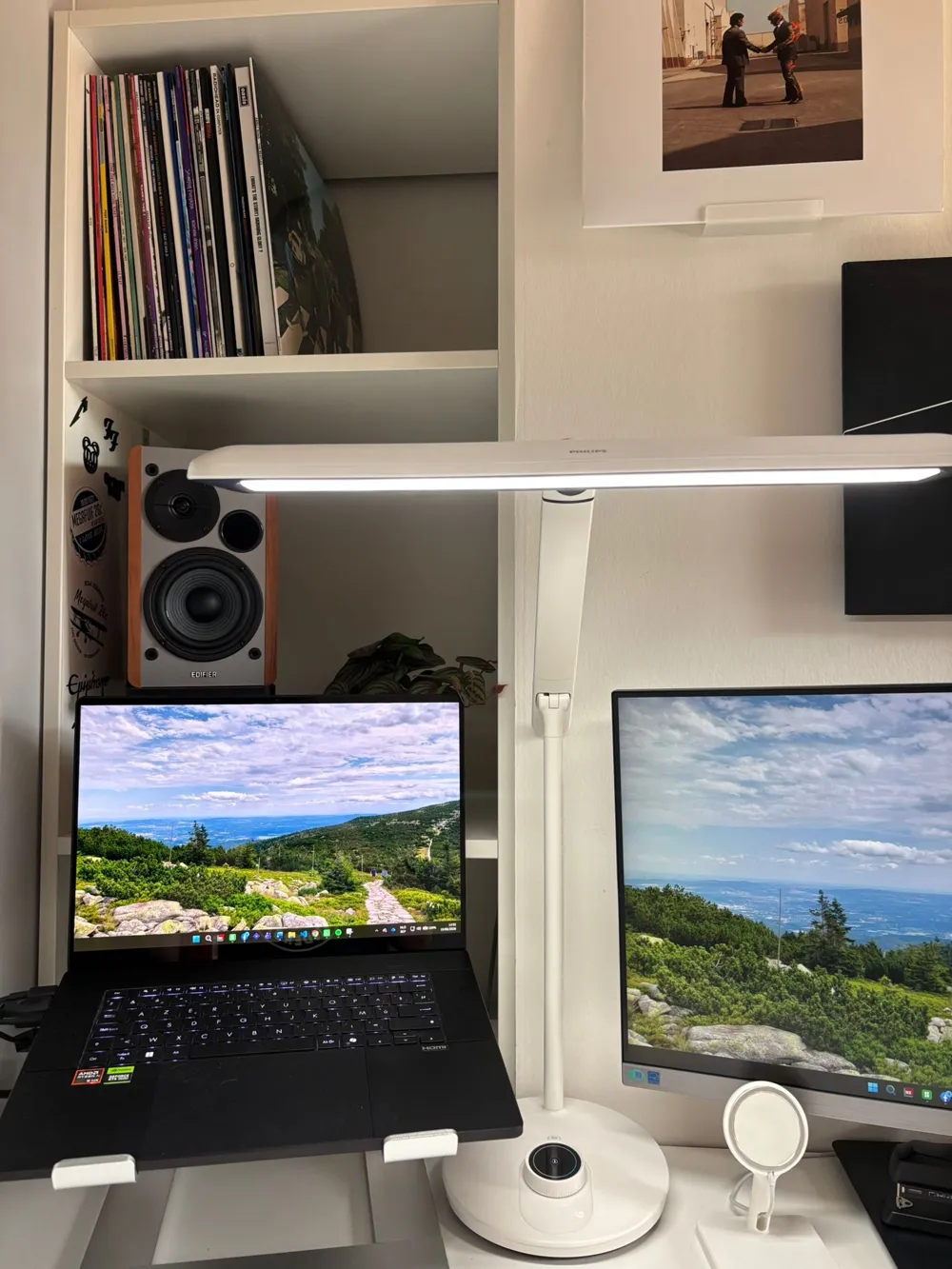

The stand raises the speaker by 140 mm (5.5 inches) and tilts it 15° downward. I designed it for situations where the speakers are placed above head level, allowing the sound to be directed more toward the listening position.

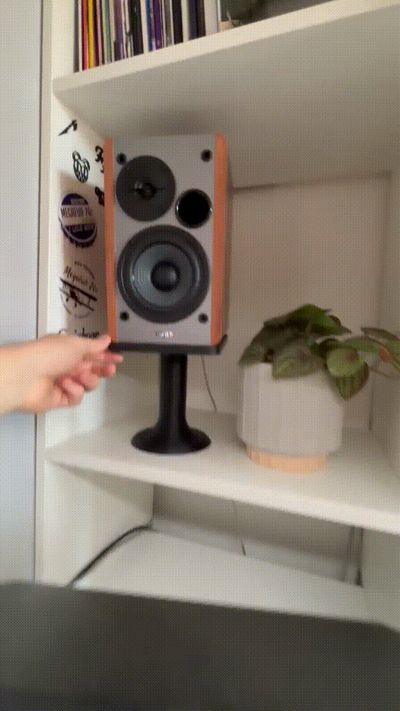

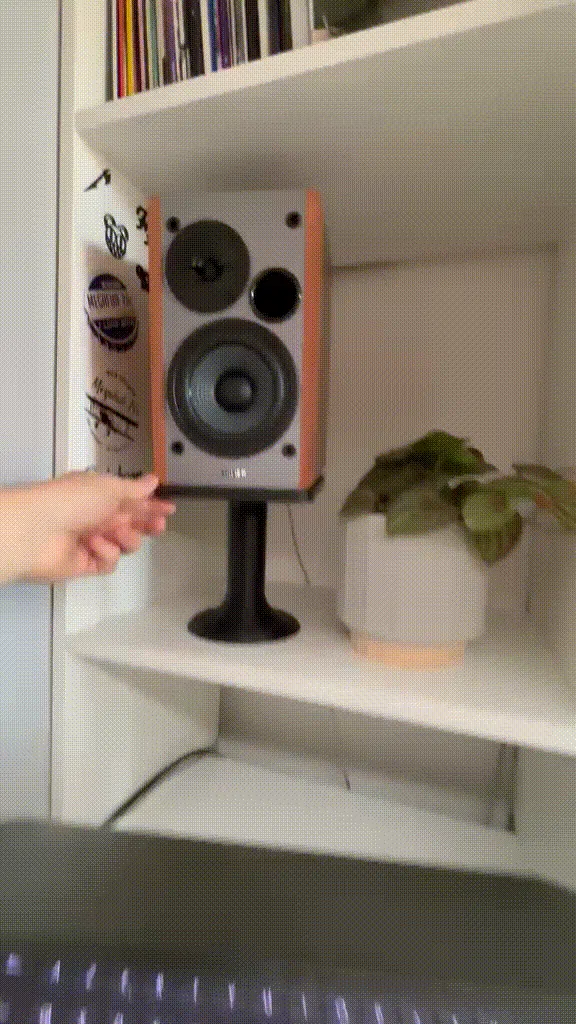

The model consists of two separate parts. Because the upper part can rotate on the base, you can easily adjust the direction of the speaker to suit your setup.

To help keep the speaker in place, the stand includes small locating notches. These prevent the speaker from slowly moving due to vibrations while playing music.

Printing

I printed my own pair in Bambu Lab Matte Black PLA on a Bambu Lab A1 Mini.

They have been supporting my speakers continuously for more than 6 months, and so far I have not noticed any issues with stability, strength, or deformation.

Notes

• Designed for the Edifier R1280DB
• 140 mm (5.5") height
• 15° downward tilt
• Two-piece design with adjustable rotation
• Locating notches to reduce movement from vibrations
• Printed successfully in PLA

Feel free to remix or adapt the design for other speaker models if the dimensions are suitable.
