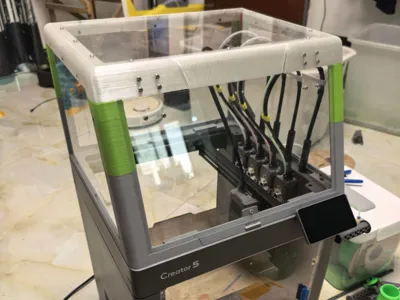

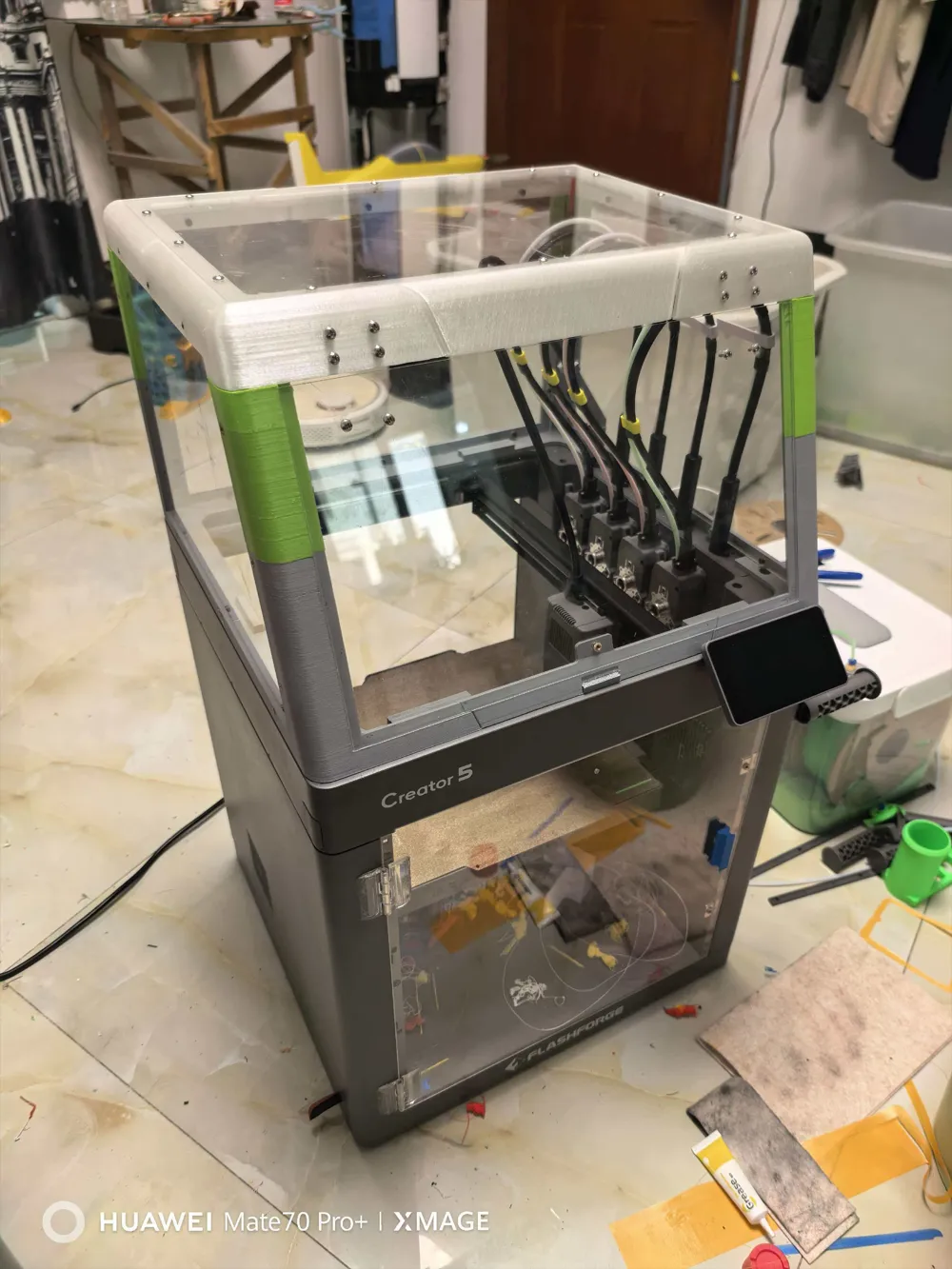

Flashforge Creator 5 Enclosure Modification Instructions

The Flashforge Creator 5 Standard Edition has an open body without a constant temperature enclosed chamber, which leads to numerous printing and usage defects, hence the need for an enclosure modification

1. The enclosed chamber can lock in the internal temperature, stabilize the printing environment, solve problems such as warping, delamination, and cracking of engineering filaments like ABS, ASA, and nylon, and also eliminate airflow interference, improving the accuracy and printing success rate of PLA and PETG prints
2. It isolates dust and lint, protects the four-nozzle precision switching structure, guide rails, and electronic components, reduces nozzle clogging and positioning offset failures, lowers equipment maintenance frequency, and extends the overall service life of the machine
3. The enclosure can effectively soundproof and reduce noise, suitable for overnight unattended printing in home and office environments Paired with activated carbon + HEPA filtration devices, it can block plastic odors and harmful particulates generated during printing, ensuring the health of operators
4. It physically isolates the high-temperature heated bed, nozzle, and high-speed moving print head, preventing children and pets from accidentally touching and getting burned or colliding with the equipment, enhancing usage safety

5. It low-cost replicates the original Creator 5 Pro's constant temperature enclosed chamber function, enabling stable printing of engineering materials without replacing the entire machine, making the modification highly cost-effective

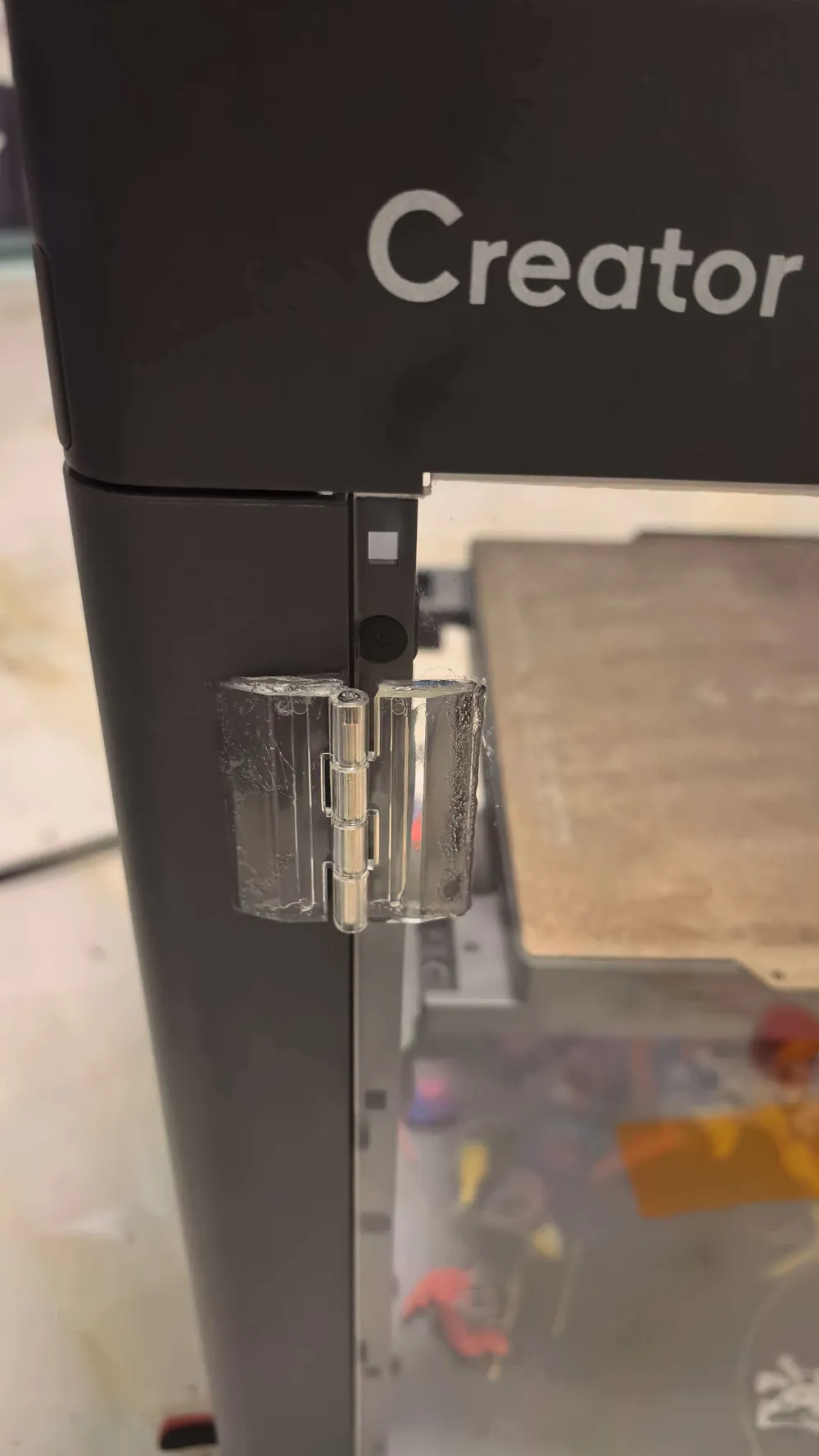

  The accessories used for this enclosure include 57 M3X4X5 heat set inserts, it is recommended to buy a few more, 2 self-adhesive acrylic hinges, you decide on the size It is best to use larger ones, mine are 50mm long 2 perforated magnets 10x20x5mm

2 magnets 20x6x3mm, 60 M3X8 304 stainless steel Phillips flat head screws

For print files, please download the 3mf file For acrylic panel cutting drawings, please choose to download the STL/CAD file
