Description

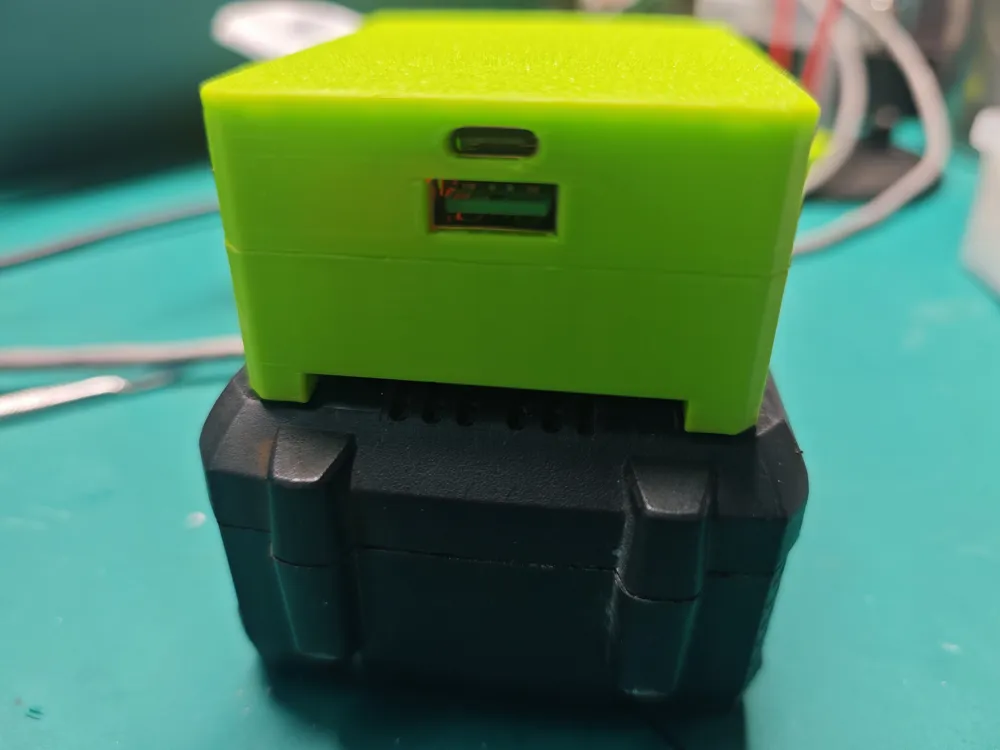

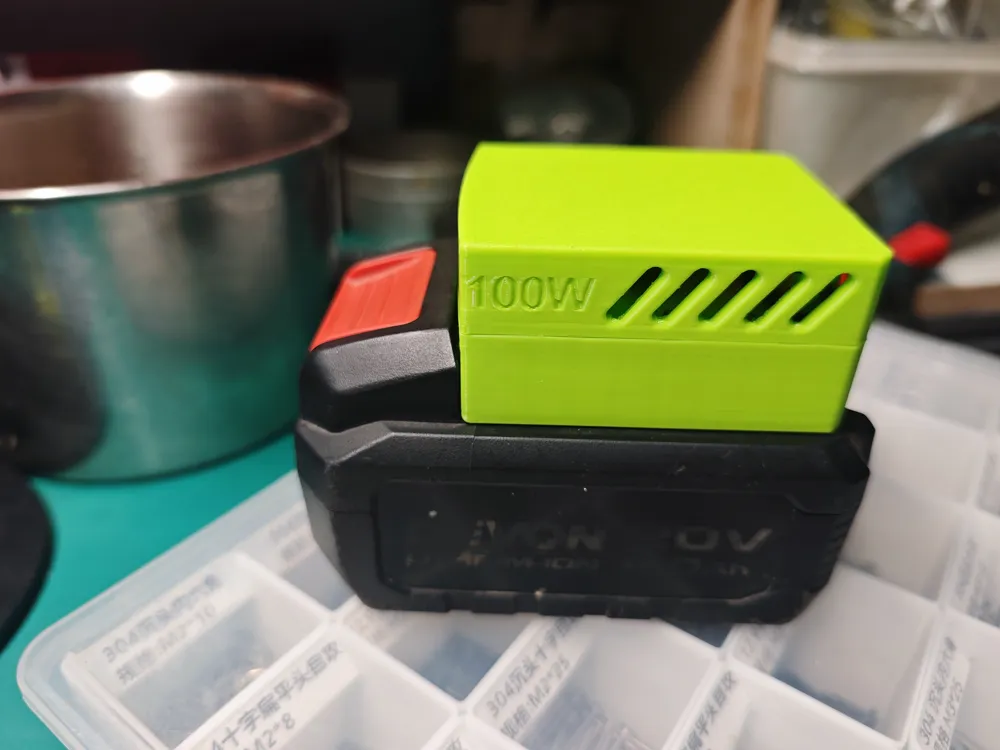

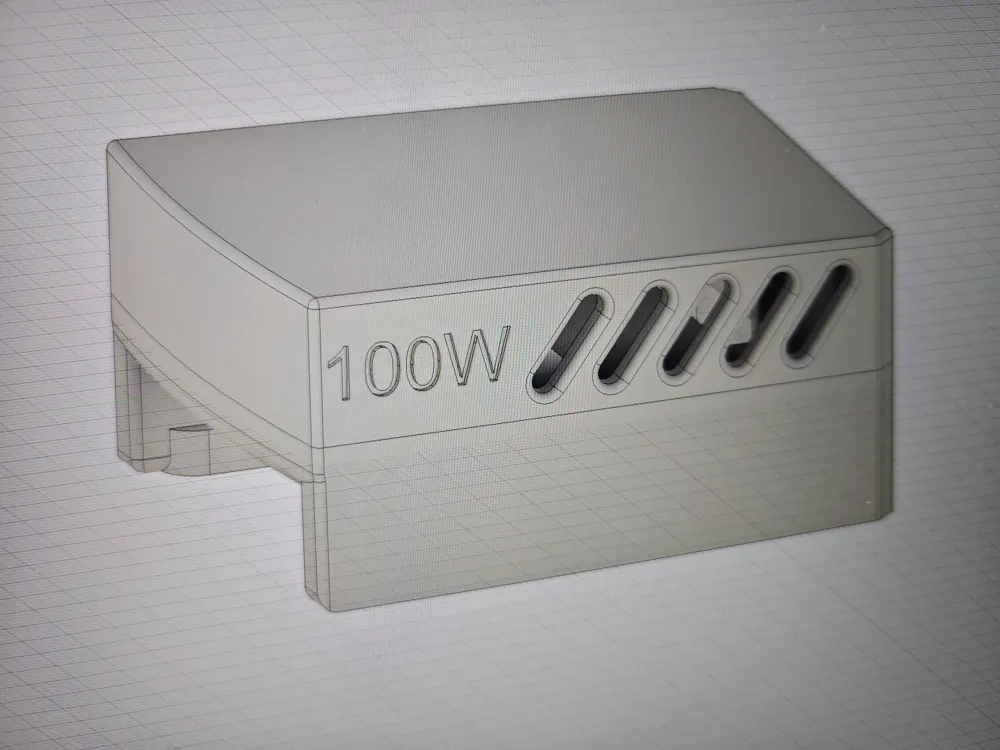

Converting Dayou tool batteries into mobile phone power banks. The modification is very simple, using the sw3518 fast charging module, up to 100W

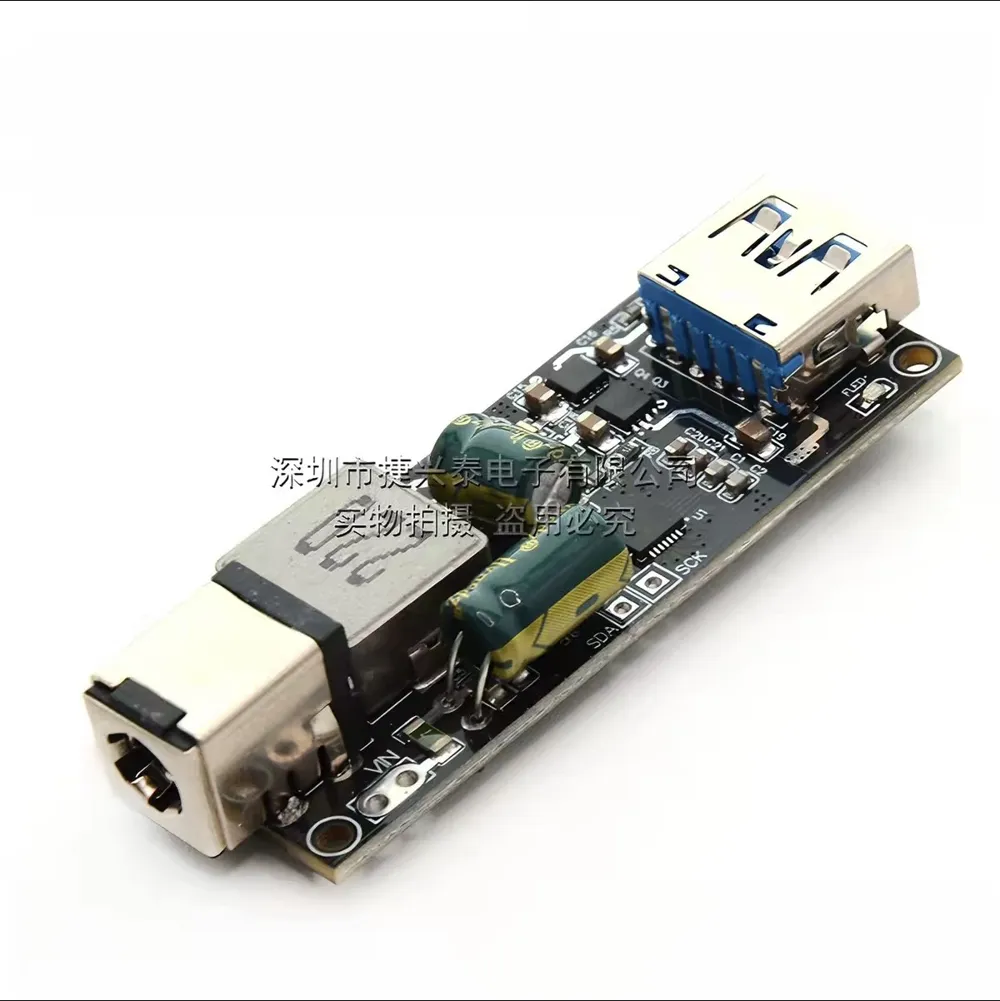

Accessories: sw3518 fast charging module. This module charges up to 100W
【Taobao】7-day no-reason return https://e.tb.cn/h.RKVfO54euYxMNxZ?tk=Ctntg6RENJG HU006 「SW3518 100W full-protocol high-power fast charging module supports Huawei SCPFCP Apple QC4.0 PD3.0」
Click the link to open directly, or search on Taobao to open directly
2*5 self-tapping screws *4
3*12 self-tapping screws *4

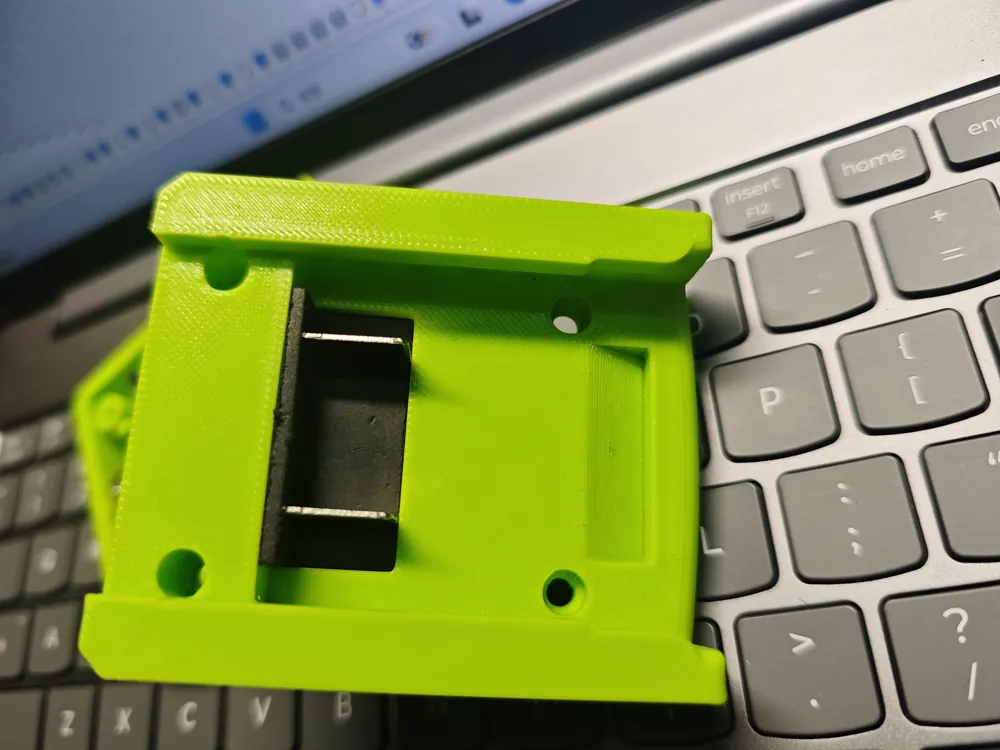

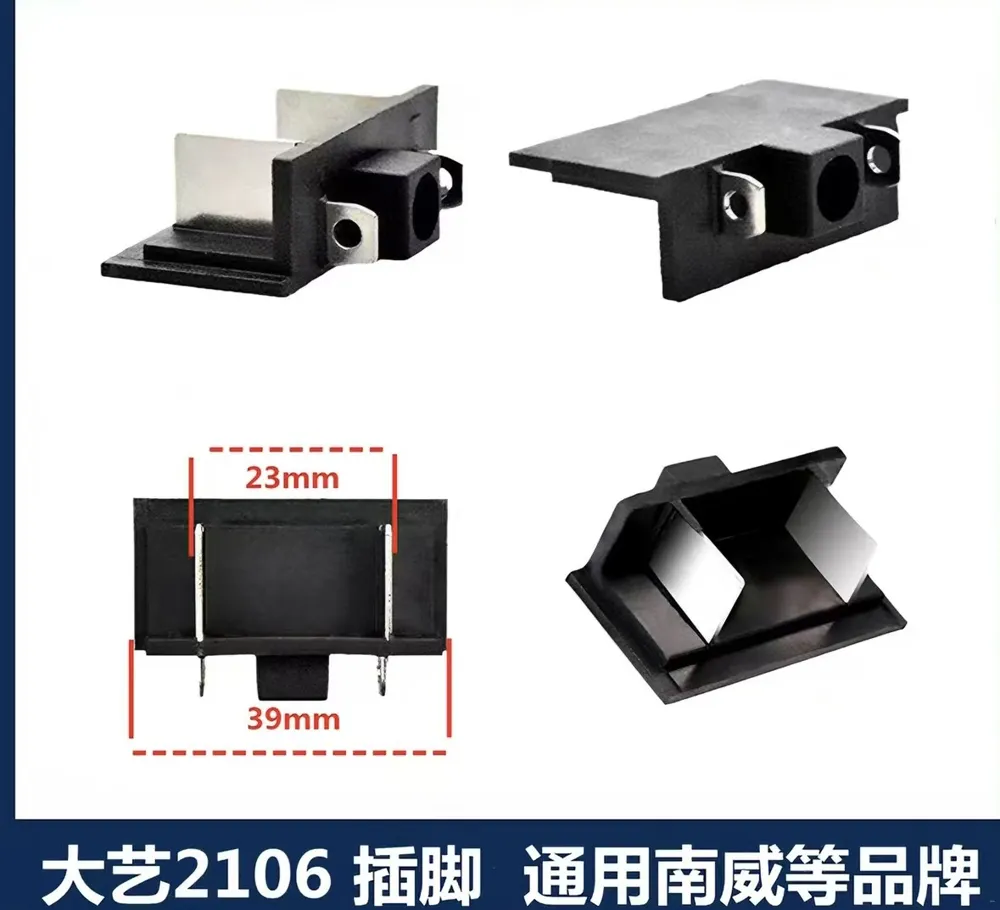

Dayi-style power socket, compatible with Dayou
【Taobao】7-day no-reason return https://e.tb.cn/h.Rq2YuCaNFlaDtdp?tk=rcMQg68Y4gU HU071 「Power tool plug wrench impact drill hammer drill angle grinder battery connector plug interface Dayi-style universal」
Click the link to open directly, or search on Taobao to open directly

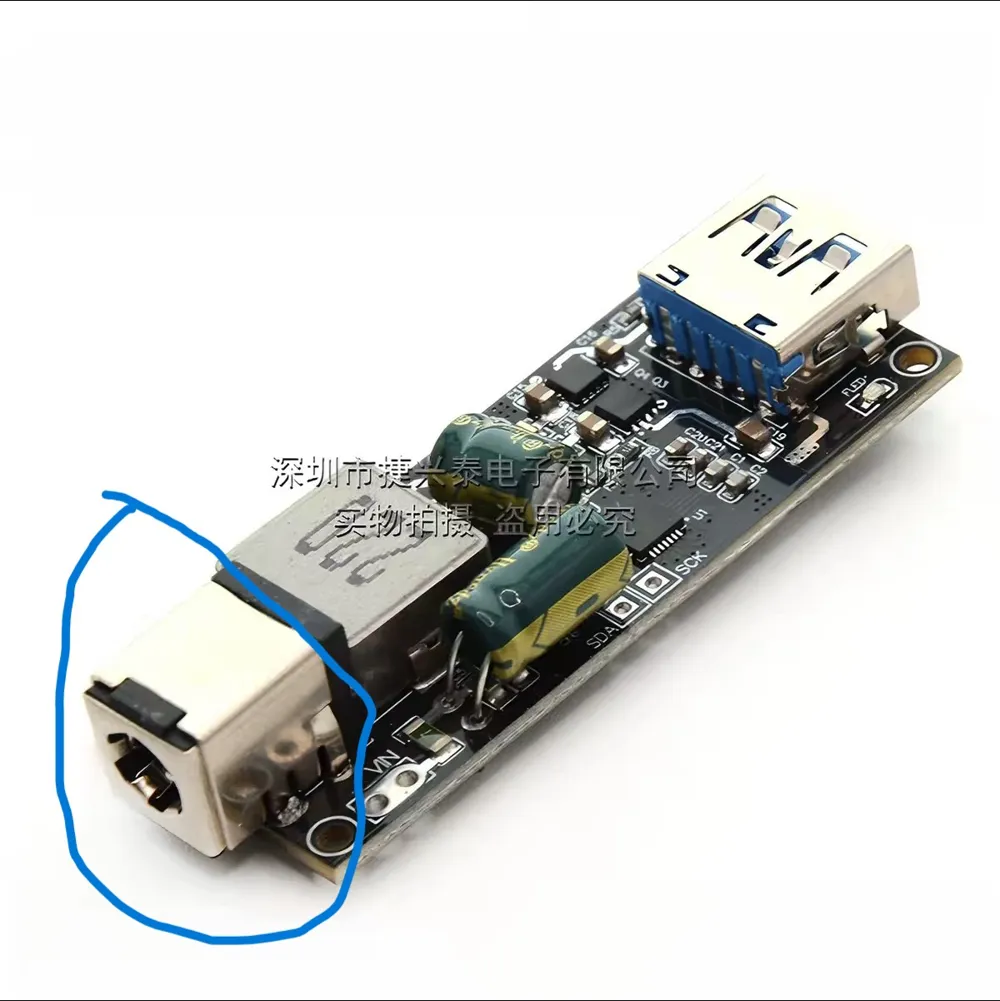

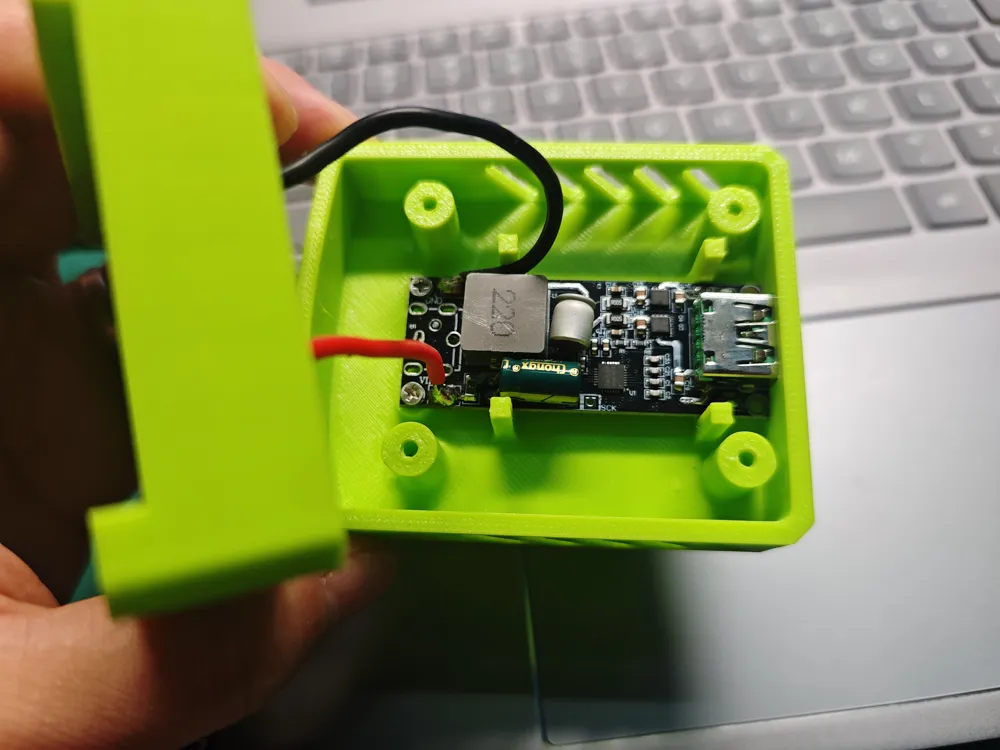

Modification notes: Please refer to the last picture. To make the box smaller, you need to remove the DC head. The wiring is very simple: GND connects to the battery negative terminal, and VIN connects to the battery positive terminal.
It took effort to make this. I hope everyone likes it. Please use your unused boost coupons to give one, sending love 💗💗💗
