Smart Tag / AirTag support for E-Bike

ABOUT COMMERCIAL USE

I'm happy to share my designs but please note that them are for personal use only. This means you can print them for your own pleasure but I have NOT provided any commercial license to anyone to sell either digital or physical copies of my designs (e.g.: you cannot sell 3D-prints of this design). I will not hesitate to report to Etsy or other sites admin if I find them being sold there for profit.

This is an holder I designed specifically for the “UGreen Fine Track G Smart Finder for Android” I designed for my E-Bike: an “Argento Bimax XL”. Since the Ugreen Fine Track smart tag is pretty big, the pocket could be good for various kinds of tags, so you can put in Smart tags or AirTags having following maximum dimensions: 37x36x10 mm and good for bikes tubes/shafts having a diameter of 35mm

This is the one I bought (following are sponsored link only for italian users):

• UGreen Fine Track ONLY ANDROID
• UGreen Fine Track ONLY IOS
• UGreen Fine Track DUO (works for both Android and IOS)

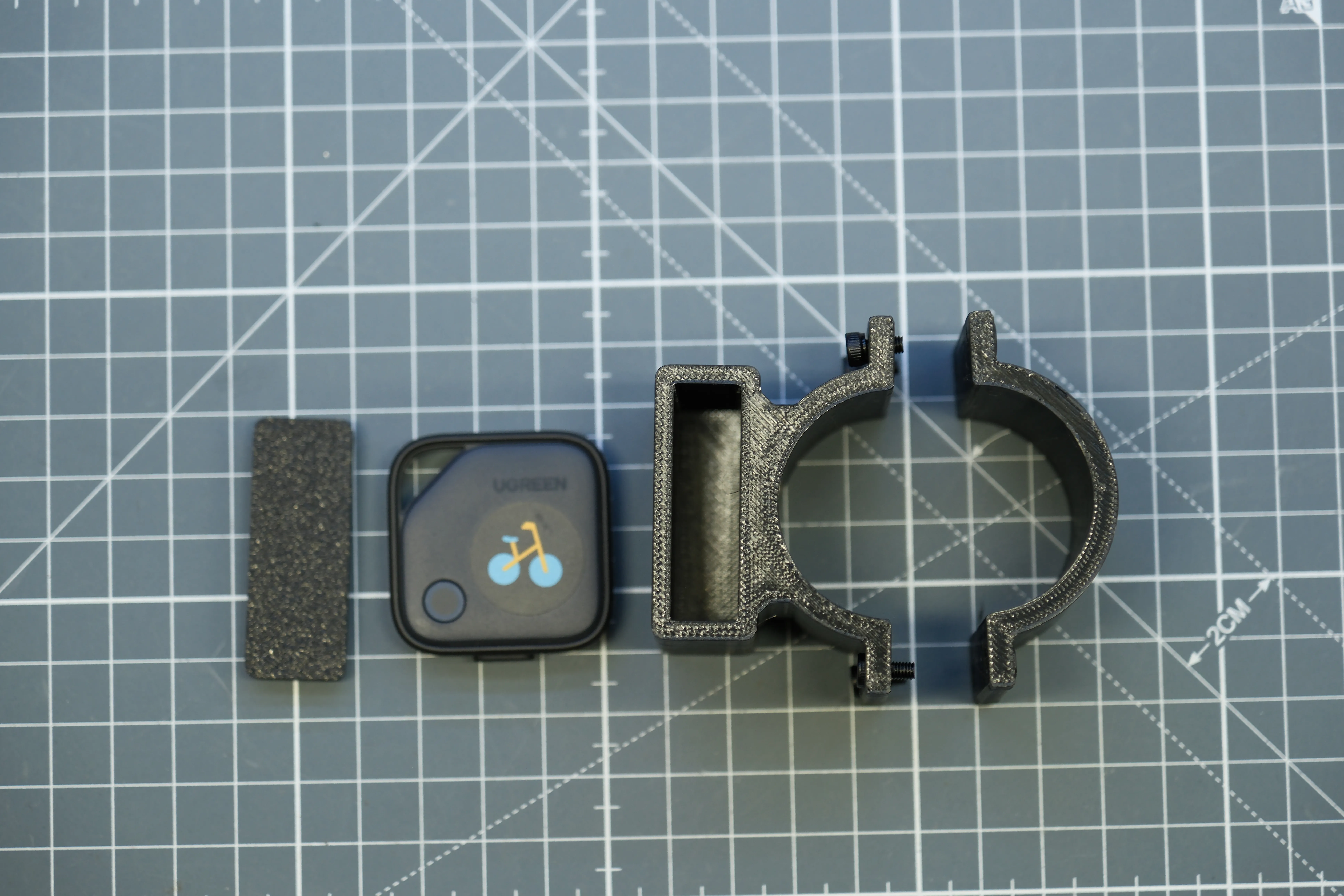

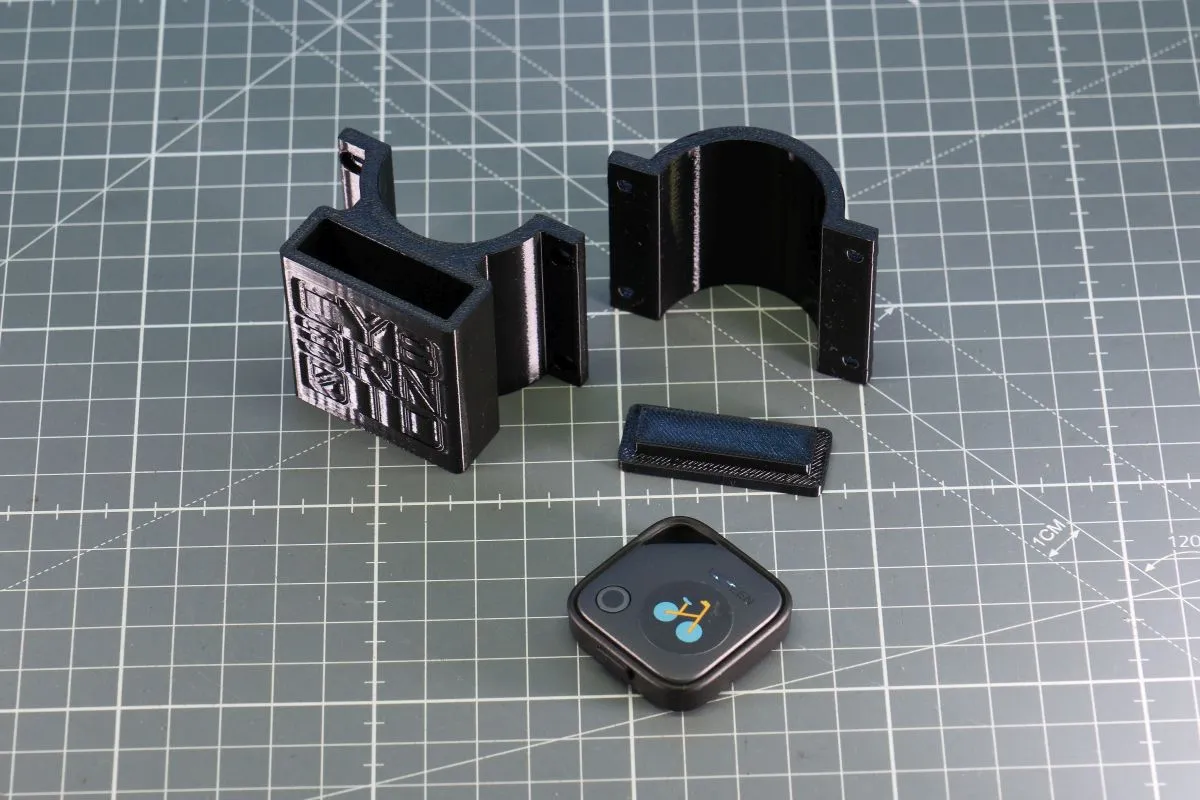

Holder is made of 3 parts: the pocket (where tags must be inserted), the lid (for closing the pocket) and the bracket:

You'll need also:

• 4 Black M3 Nuts (to be inserted in the bracket)
• 4 Black M3 Screws

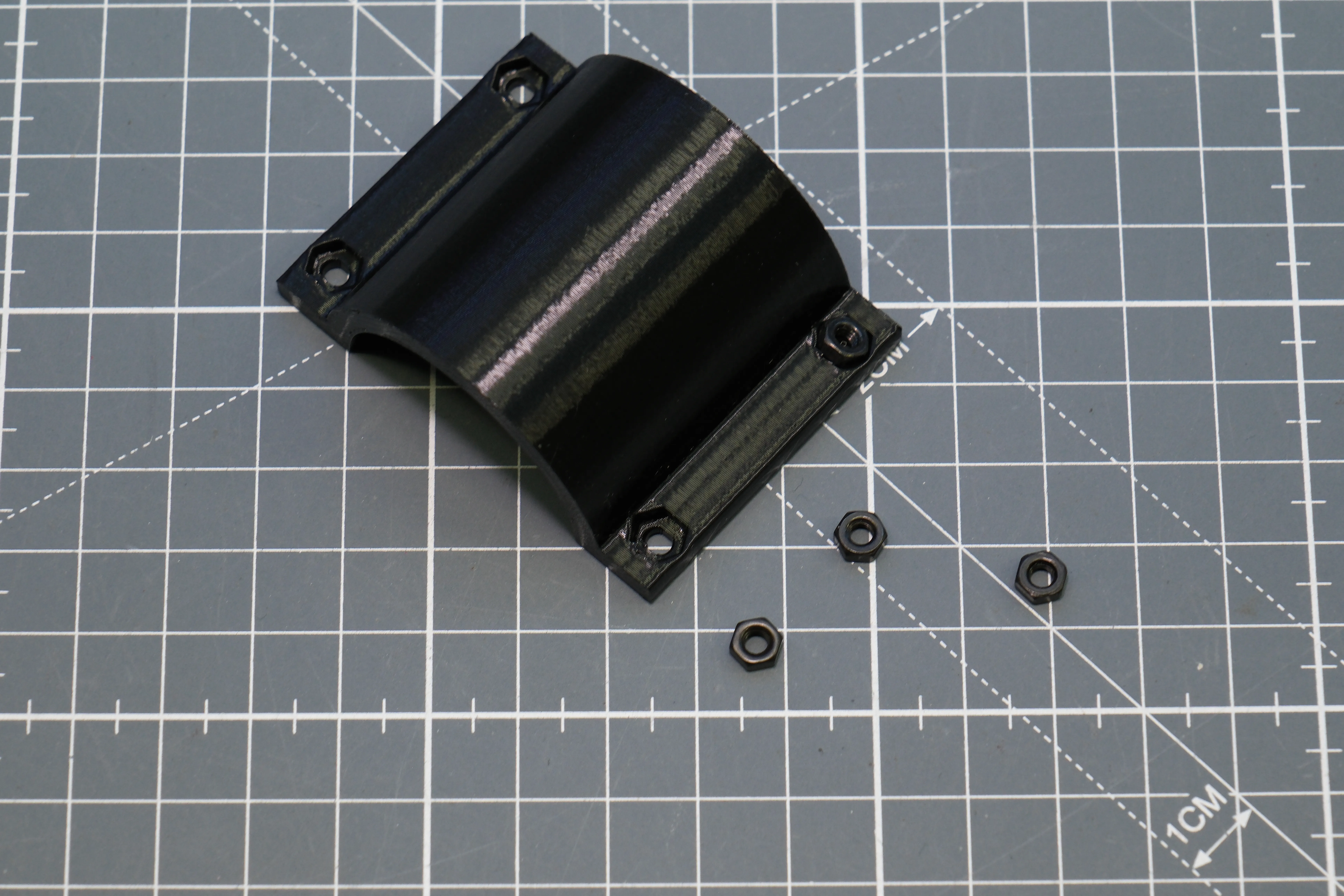

Insert the Nuts in the Bracket:

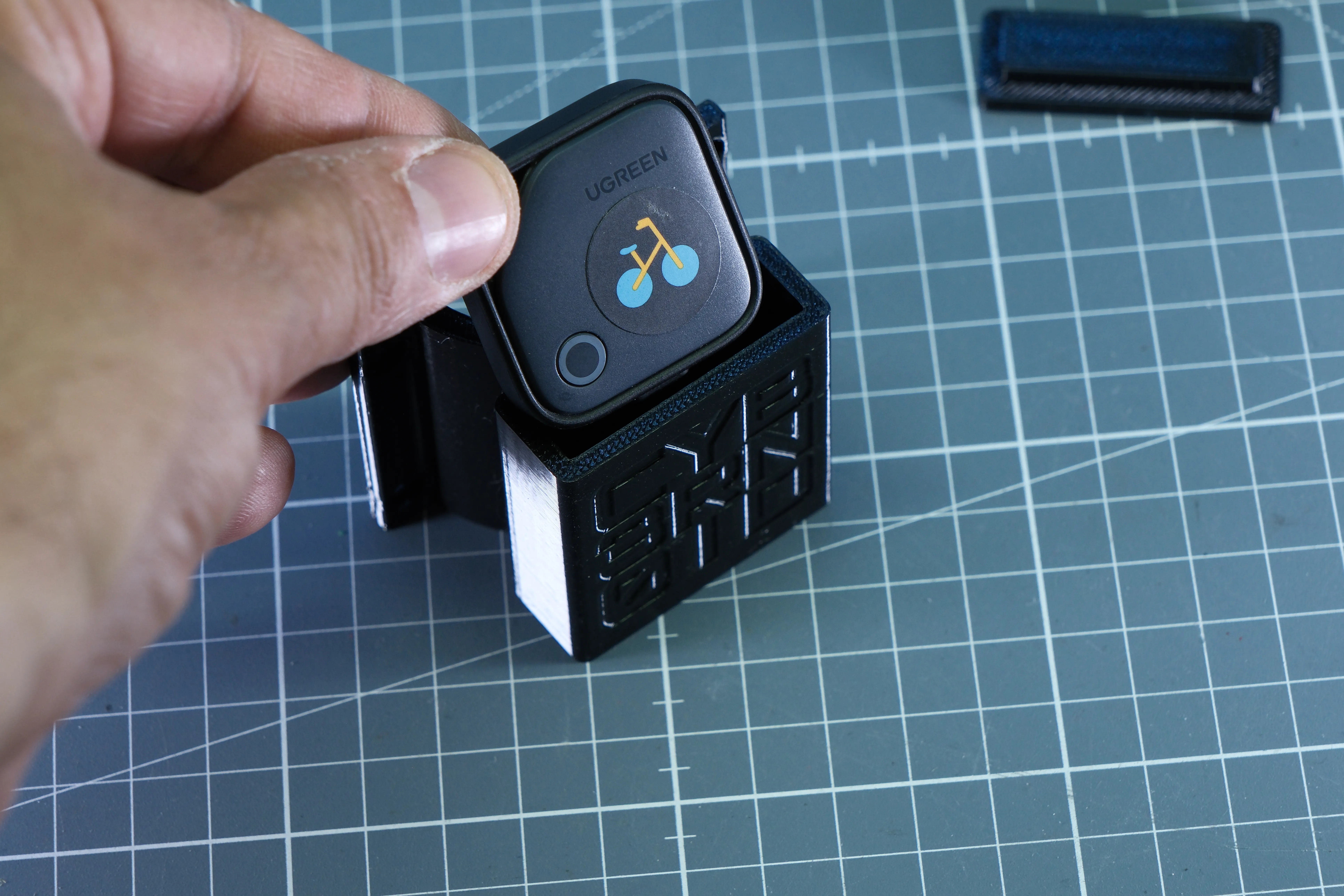

Insert the Smart Tag / AirTag in the pocket:

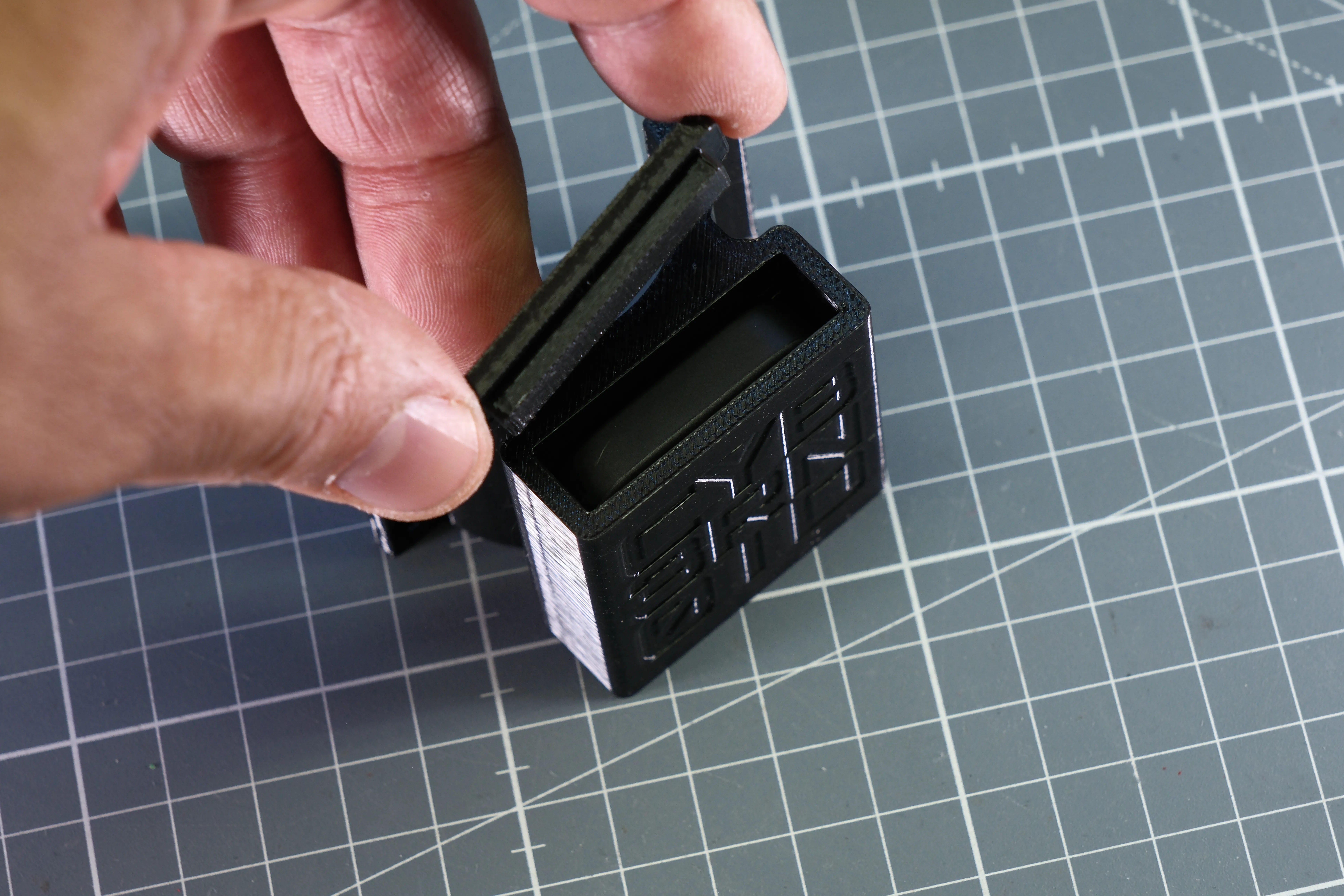

Close the pocket using the lid:

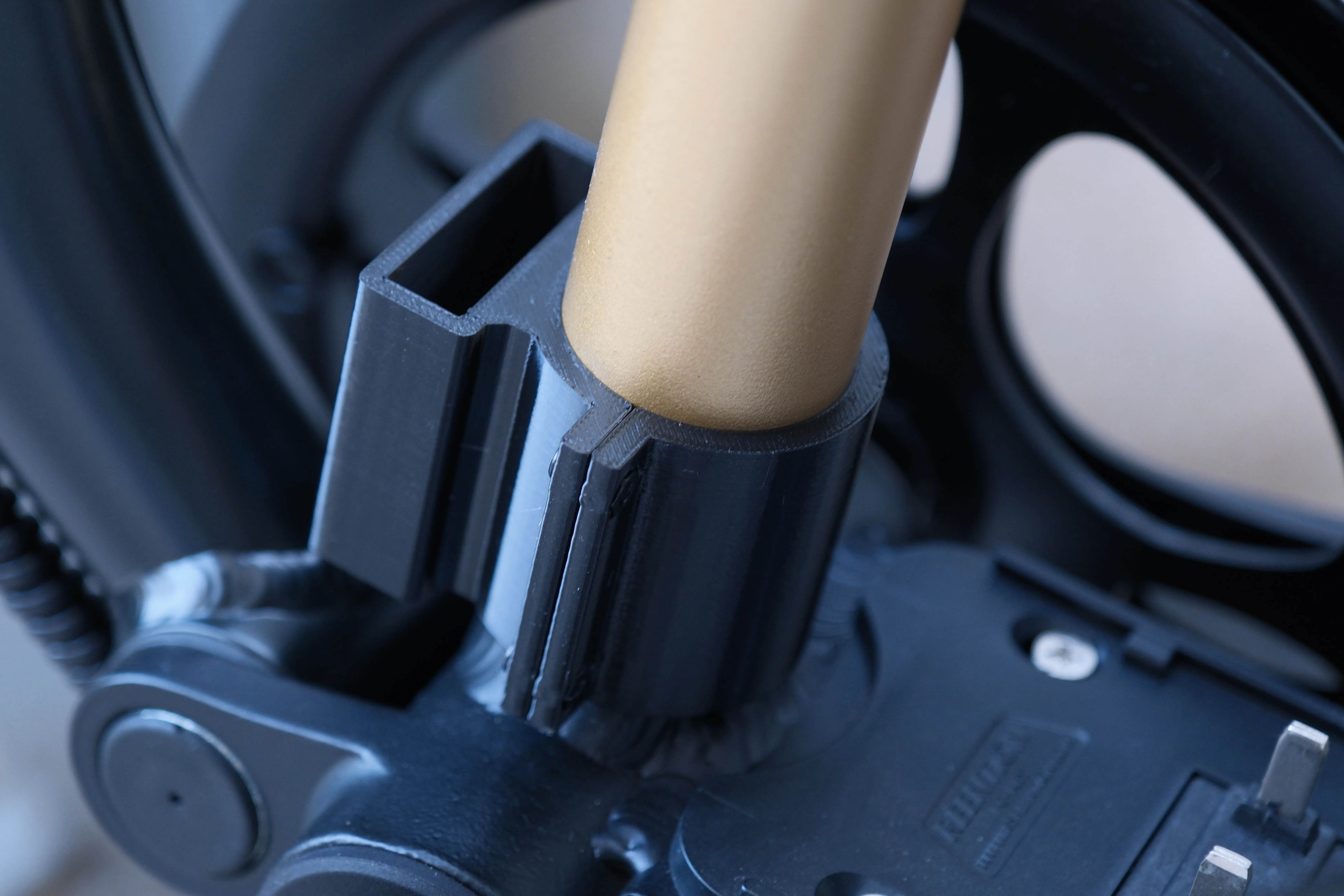

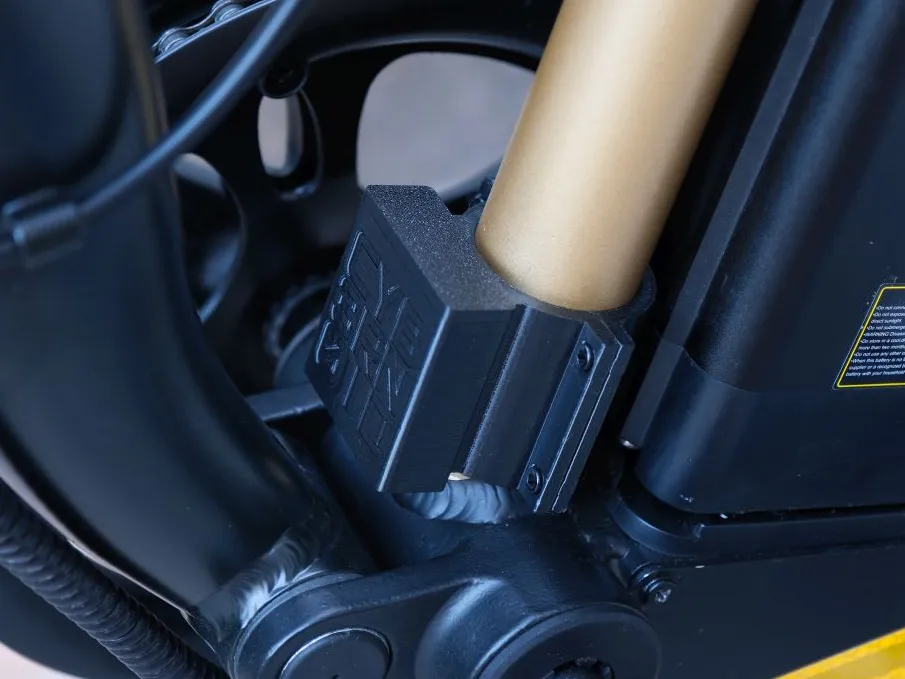

Attach the pocket on a 35mm shaft/tube with the bracket. For installing it, you must remove battery first:

PROBLEMS WITH THIS DESIGN?

If you had a problem with this design or you need some edits for fit your own needs, first than leave a bad review please let me know what is your problem/need. You can leave a comment (I prefer this since anyone can benefit from it) or send me a direct message. I can make edits to my designs or change printing profiles for fit your own needs. Please note I can actually understand Italian and English language, so please don't write in another language since I can have problems with automatic translation.
