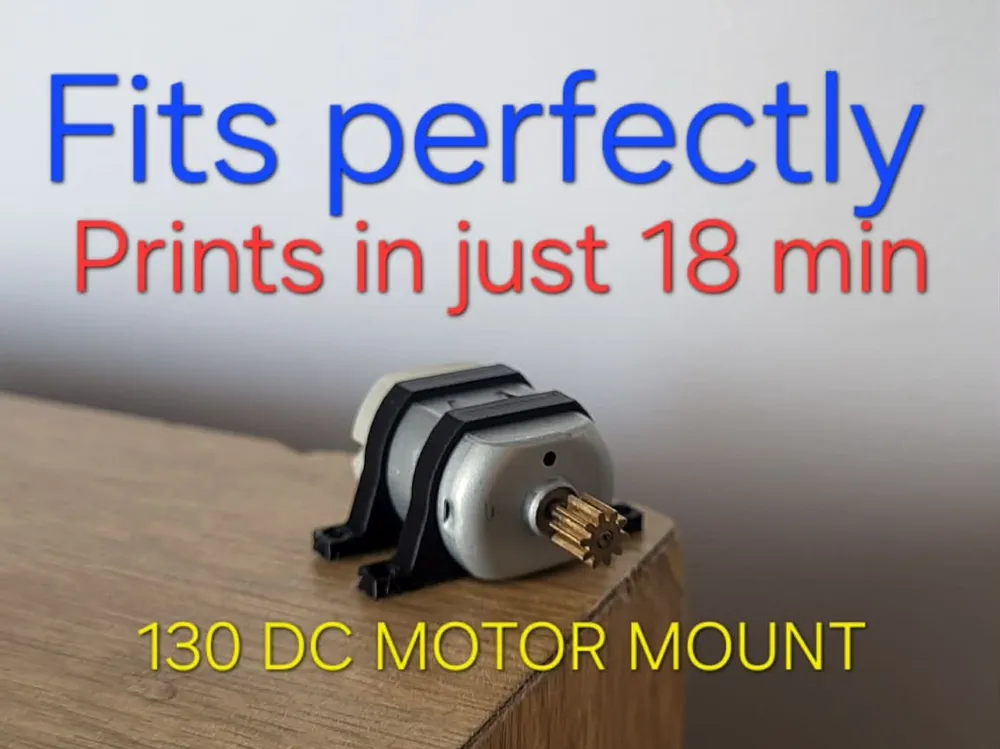

Precision 130 DC Motor Mount (20mm x 15mm)

Precision 130 DC Motor Mount / Holder (20mm x 15mm)

A simple, robust, and low-profile mounting bracket specifically designed for standard class 130 DC motors (commonly used in RC toys, mini 4WD cars, and small robotics).

This mount features an open-ended design, meaning the length of the motor does not matter. It is perfectly tailored to clamp motors with the standard flat-sided profile:

• Width (Diameter): ~20 mm
• Height: ~15 mm

Features:

• Perfect Snap Fit: Engineered precisely for the flat-sided 130 motor casing to prevent spinning or sliding.
• Easy Mounting: Includes 2 integrated screw holes (Ø 2.5 mm) for secure installation.
• Low Profile: Keeps the motor axis as close to the chassis as possible.
• Easy Mounting: Includes 4 integrated screw holes for secure installation.
• Print-Friendly: 100% support-free design.

Recommended Print Settings:

• Material: PLA+, PETG, or ABS/ASA.
• Infill: 20–30% (Gyroid or Grid).
• Walls/Perimeters: 3 for optimal structural strength around the mounting tabs.
