P2S Inclined Base and Riser (6 Degrees)
Print Profile(1)
Description

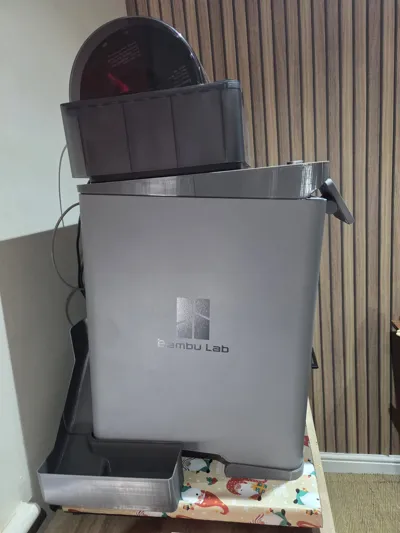

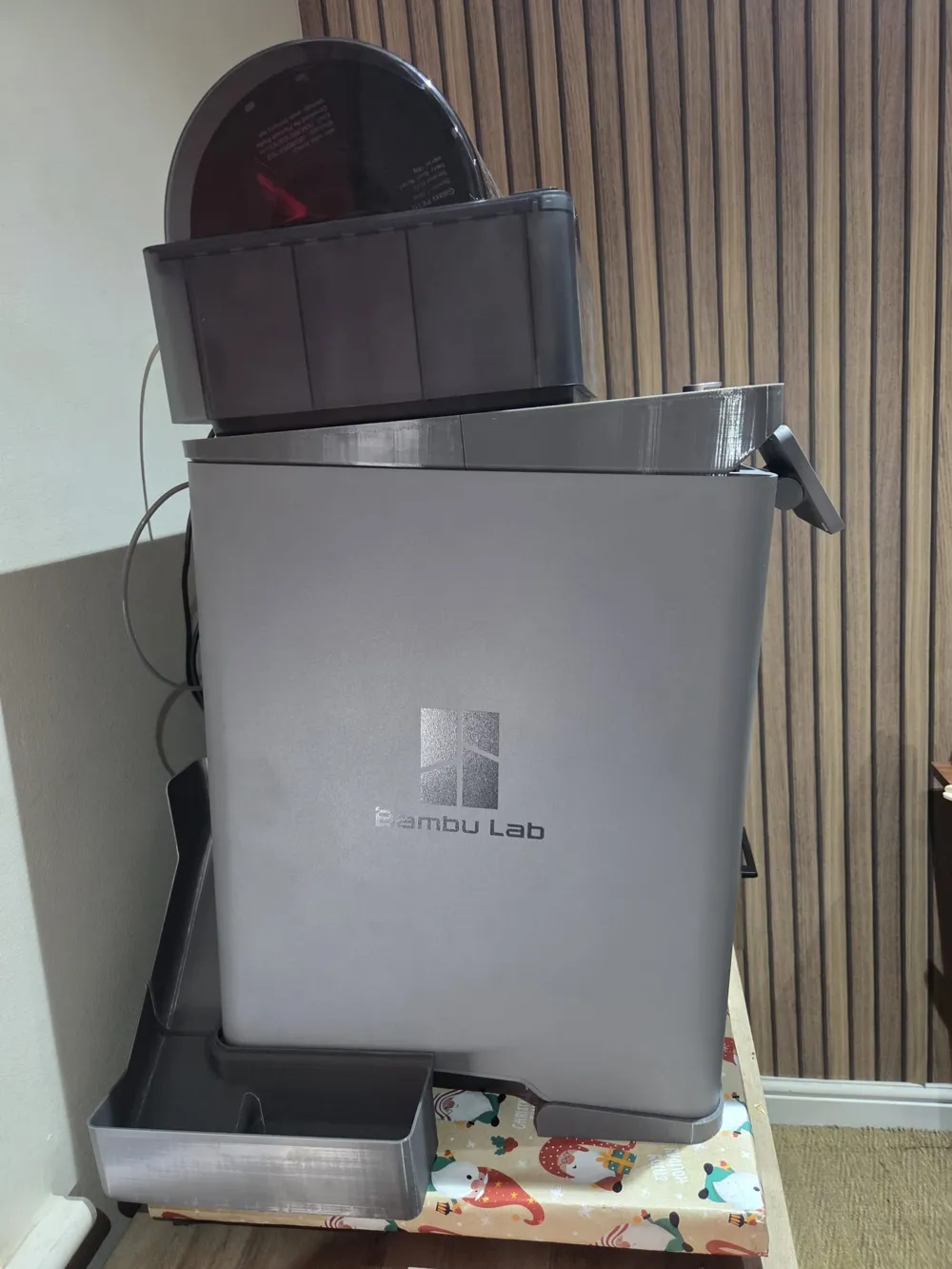

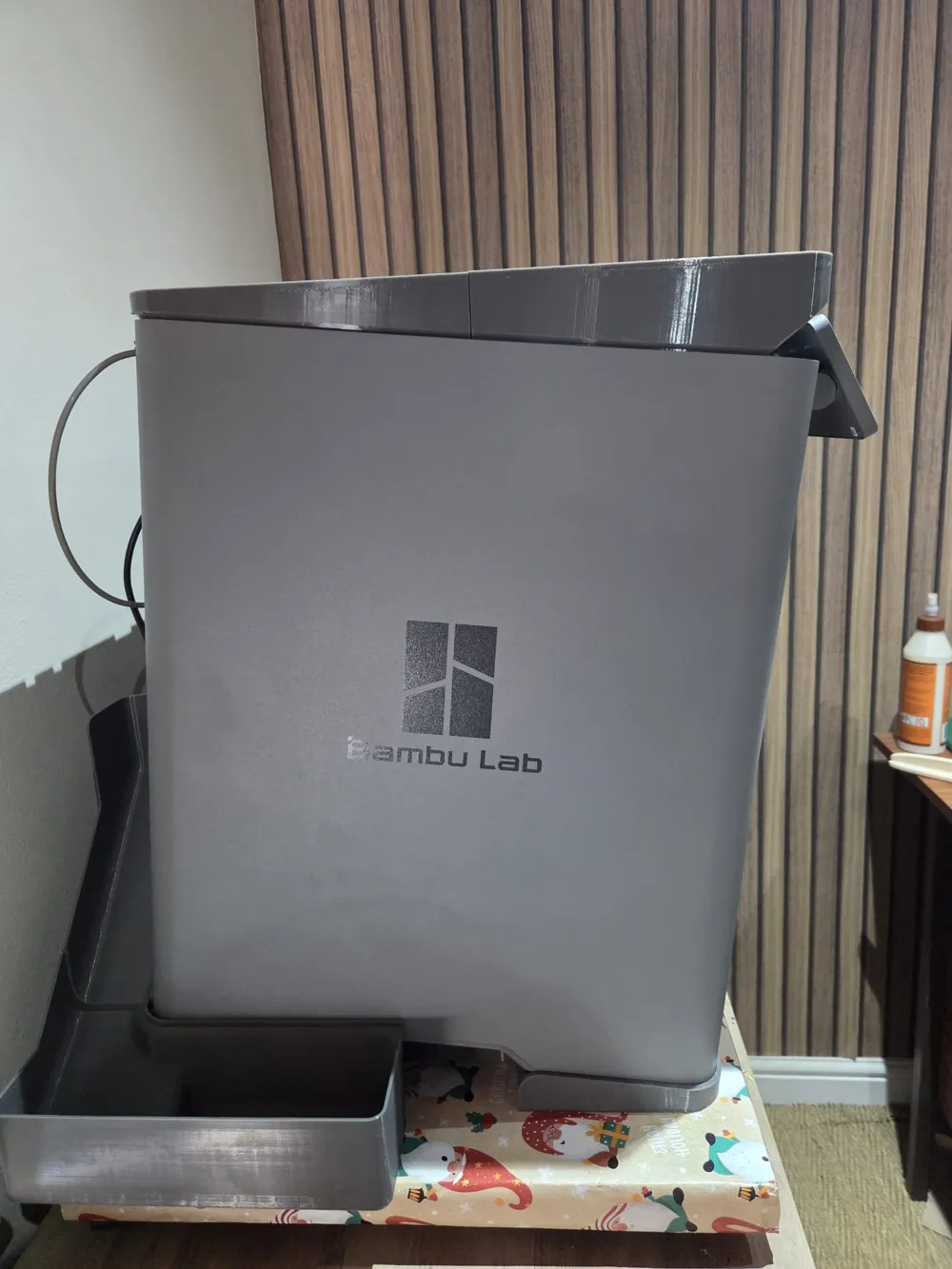

This is a 6° inclined base and riser system designed for the Bambu Lab P2S.

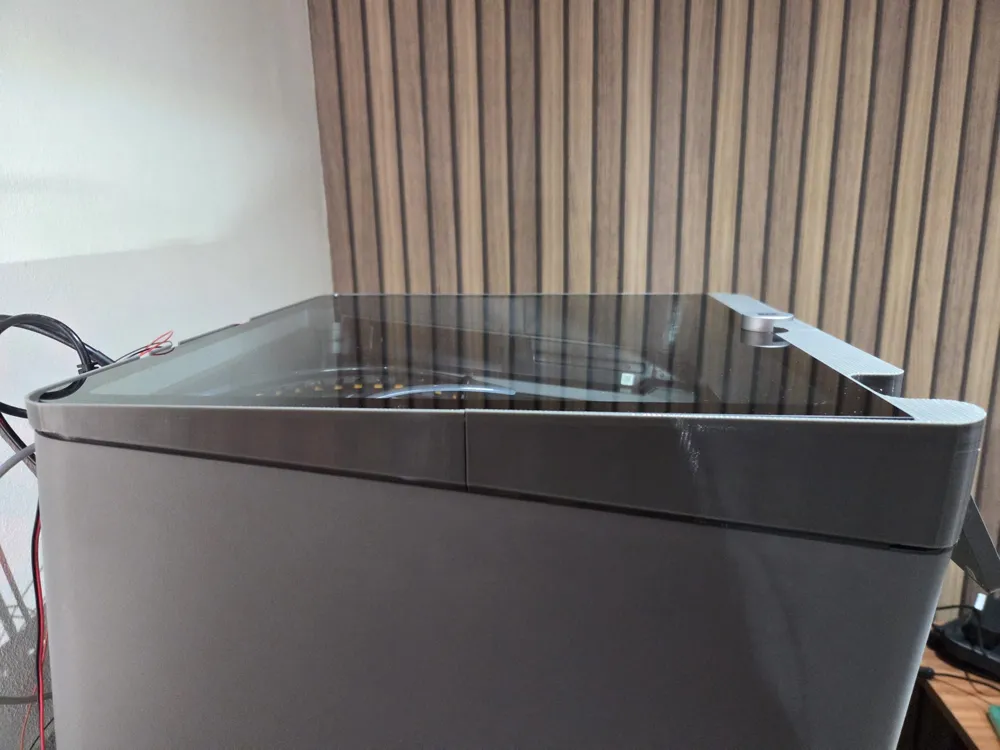

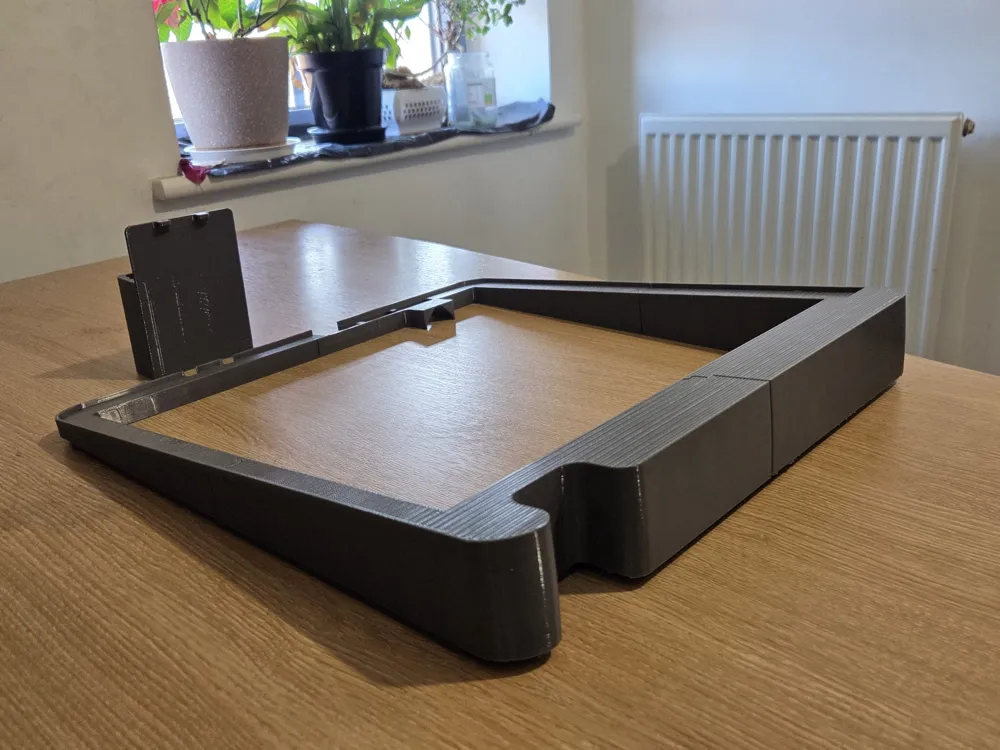

The lower base tilts the printer by 6° relative to the horizontal. This can help automatic ejection setups by allowing released prints to move away from the build plate more easily. The upper riser corrects the top surface back to horizontal, so the AMS can remain level on top of the printer. This also allows users to use other compatible riser systems while keeping the printer body angled.

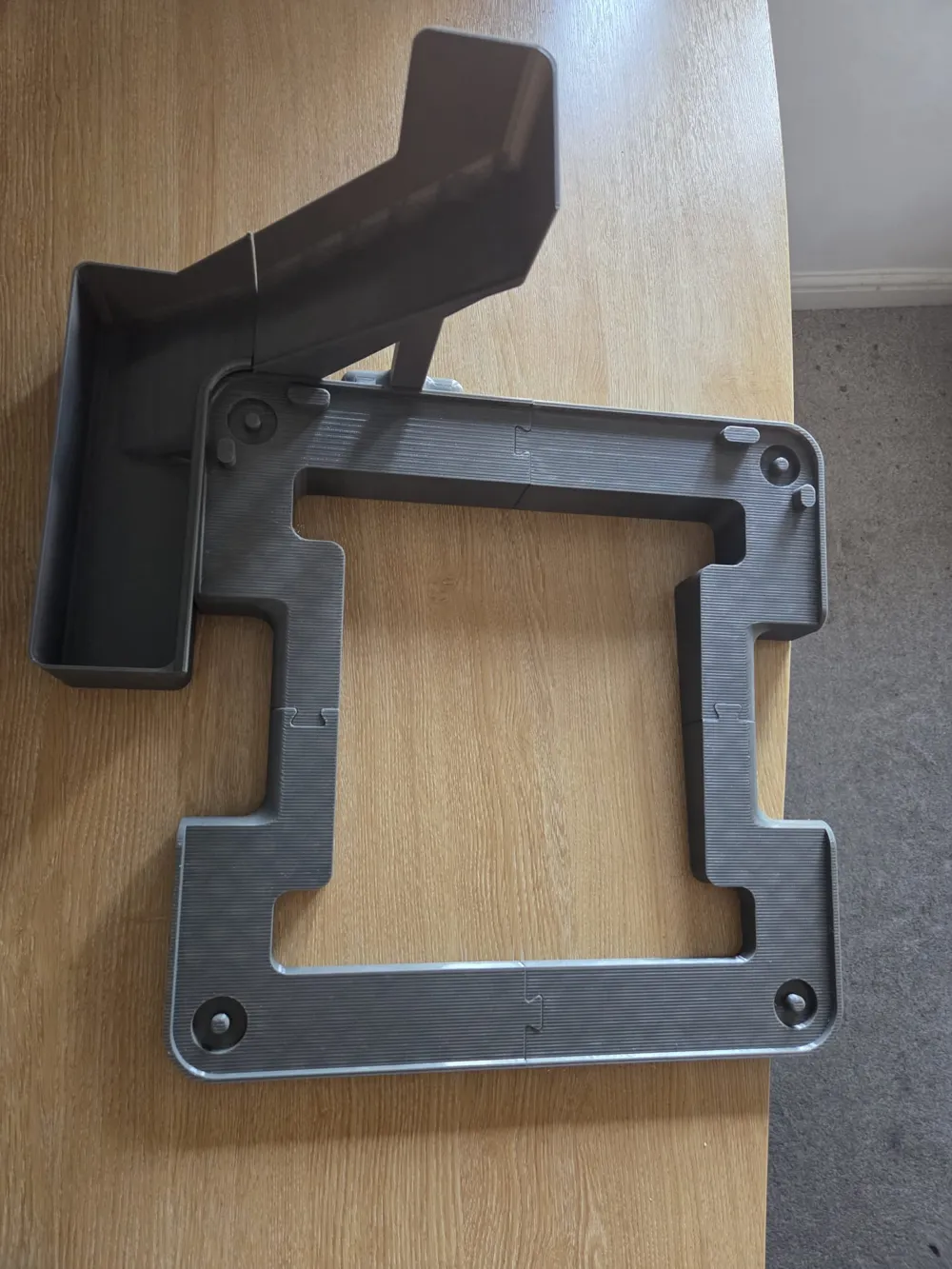

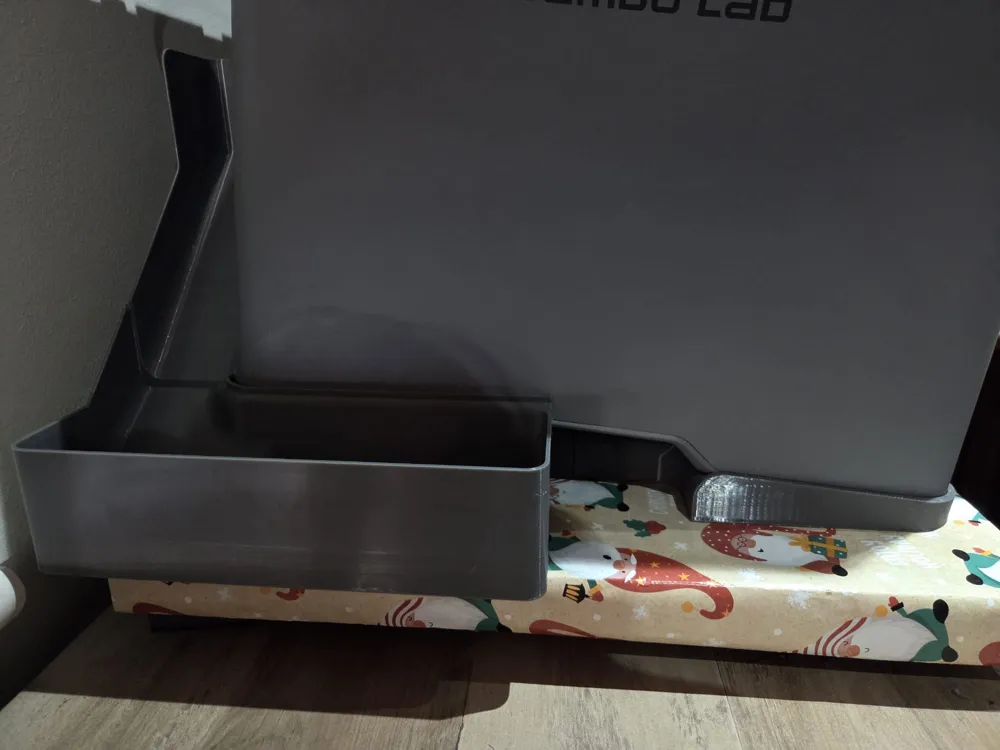

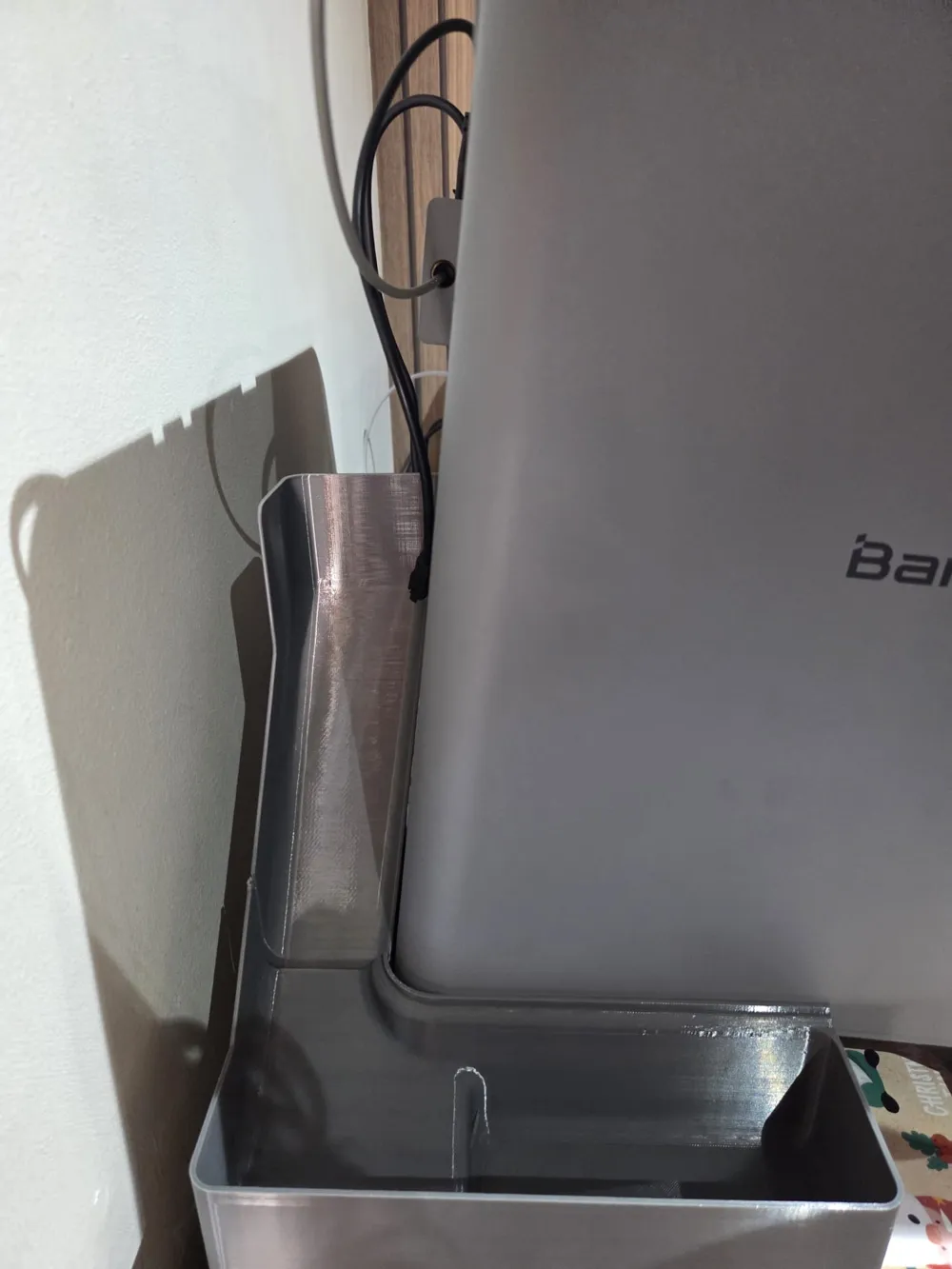

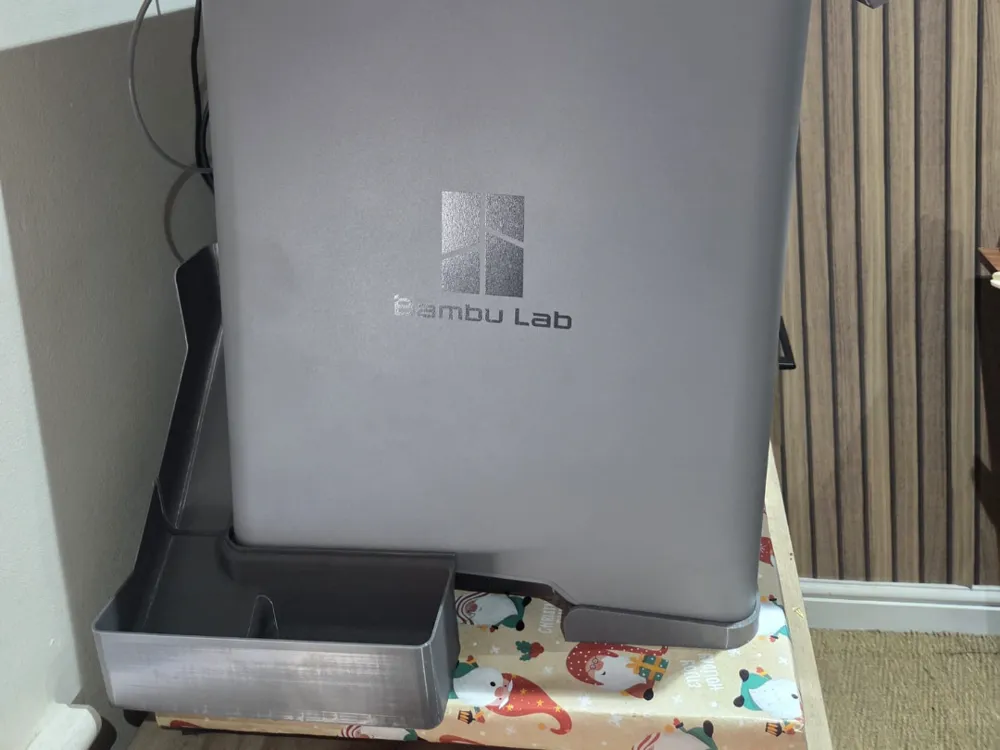

The design includes a PCB holder for mounting small control electronics neatly outside the setup. An optional poop bucket design is also included for users who need extra clearance near the purge area or want to create their own actuator-based ejection mechanism.
This upload also includes an attachment template and a technical drawing. These are provided so users can design their own custom brackets, actuator mounts, or automation attachments based on the available mounting interface.
This is a general-purpose inclined riser system for P2S automation experiments.
Please check printer stability, cable clearance, AMS stability, bed movement, poop chute clearance, and any actuator movement before use. Test any automatic ejection setup carefully before leaving the printer unattended.
Other angle versions will be released in the future.
