Pet Bowl Generator

(Sorry for the AI thumbnail, but it's better than anything else I could have created)

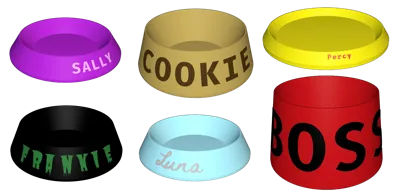

🐾 Check out my fully customisable pet bowl!

Adjust the bowl dimensions, thickness, smoothness, and name to create the perfect bowl for any pet.

Parameters

Most parameters are self explanatory, but for some I include example pictures for inspiration. They are all 3D renders.

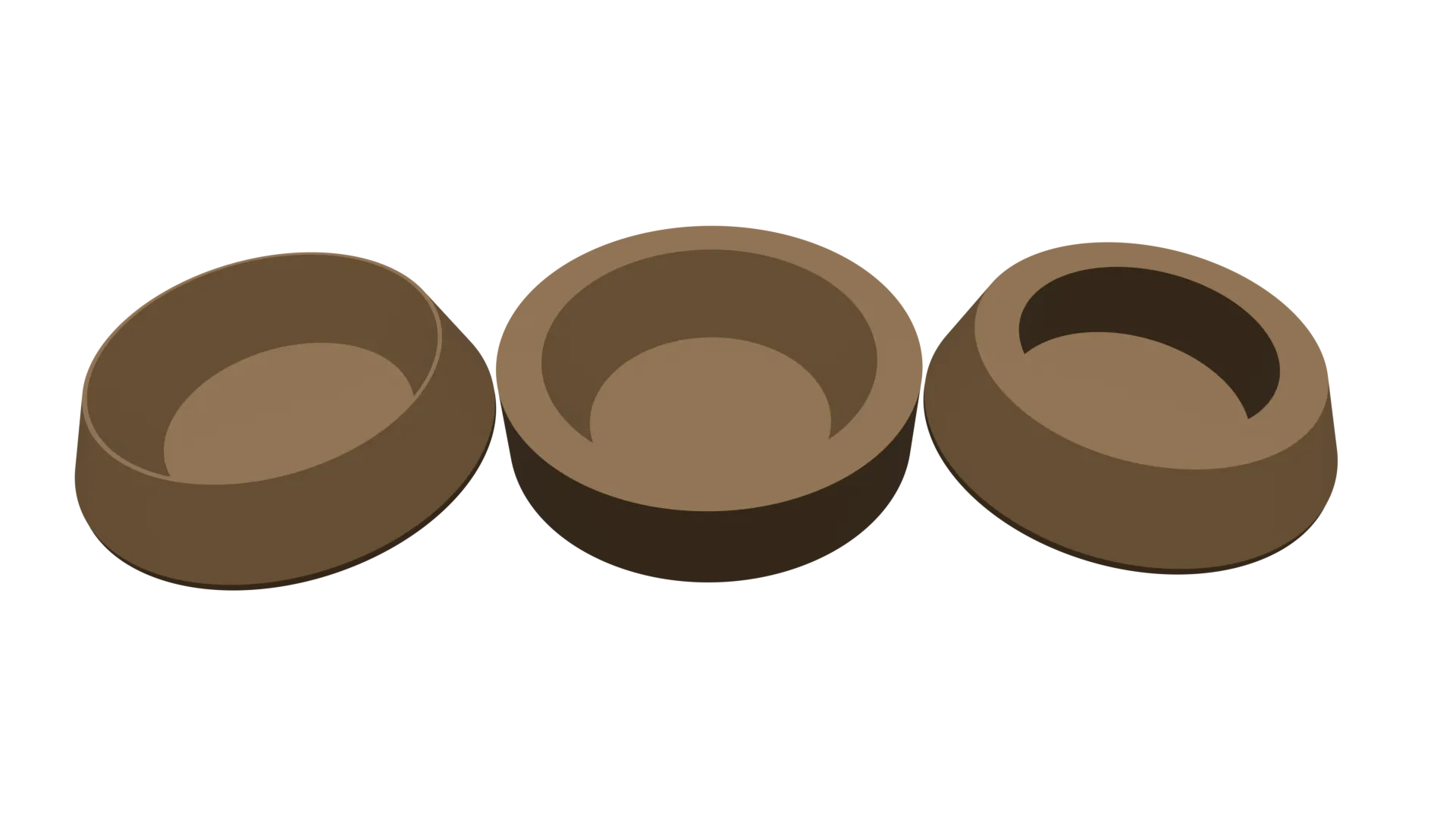

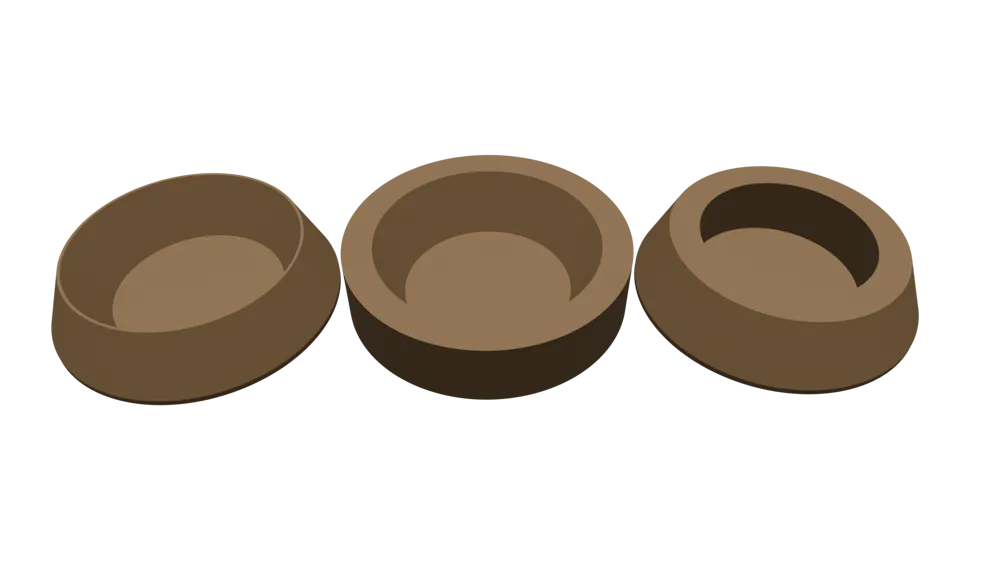

You can change the the general shape of the bowl by tweaking outer_bottom_diameter, inner_bottom_diameter, outer_top_diameter and inner_top_diameter.

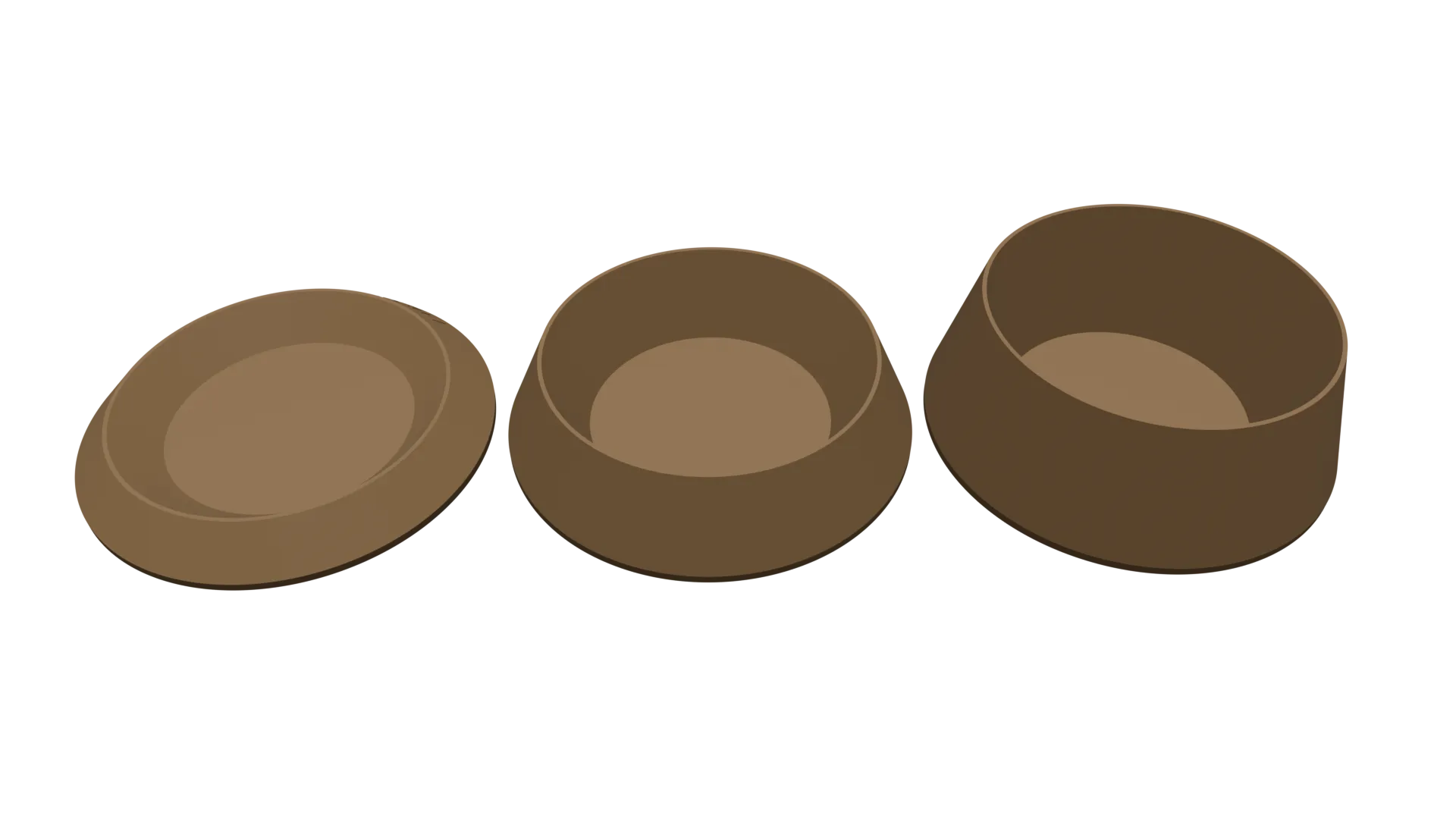

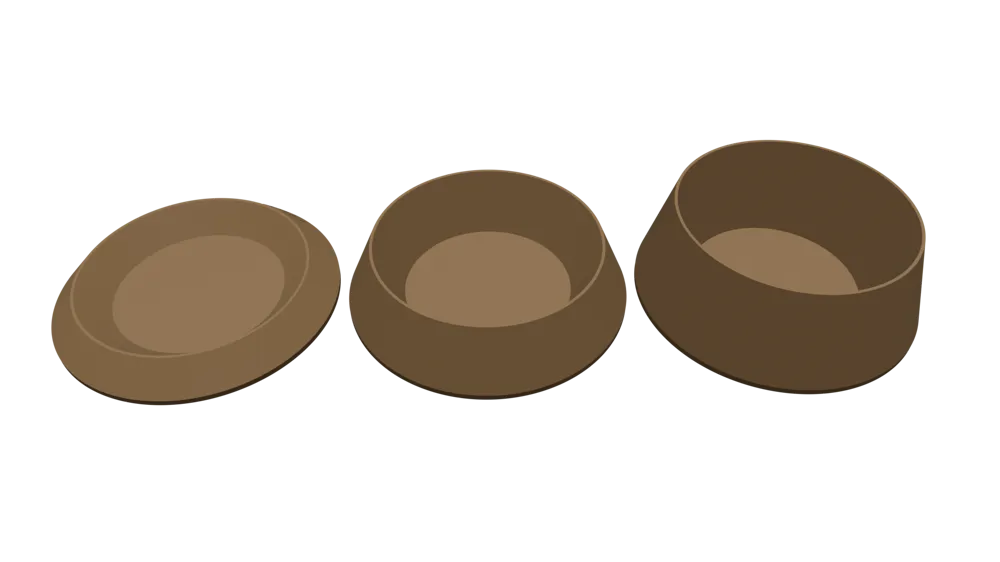

You can change the height of the bowl.

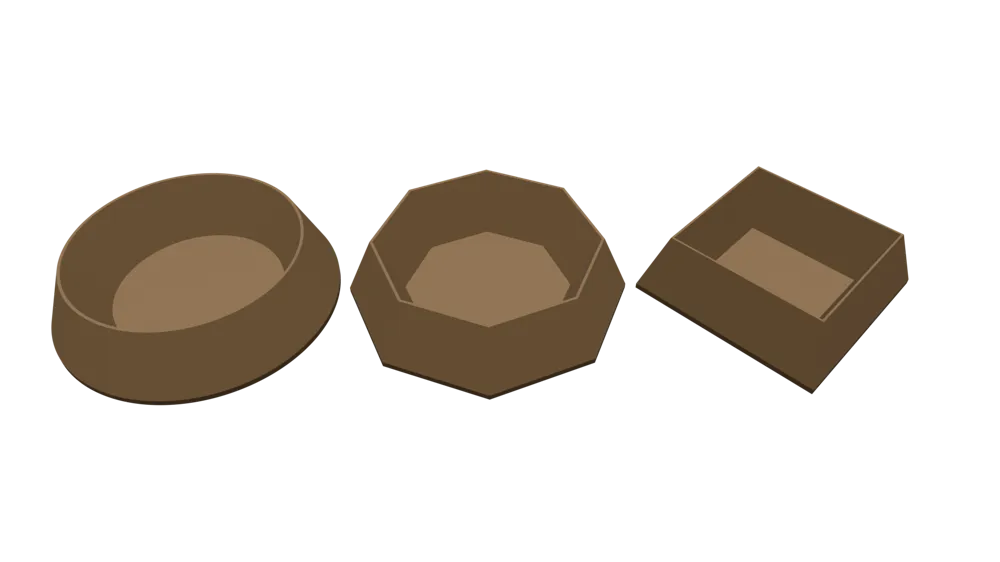

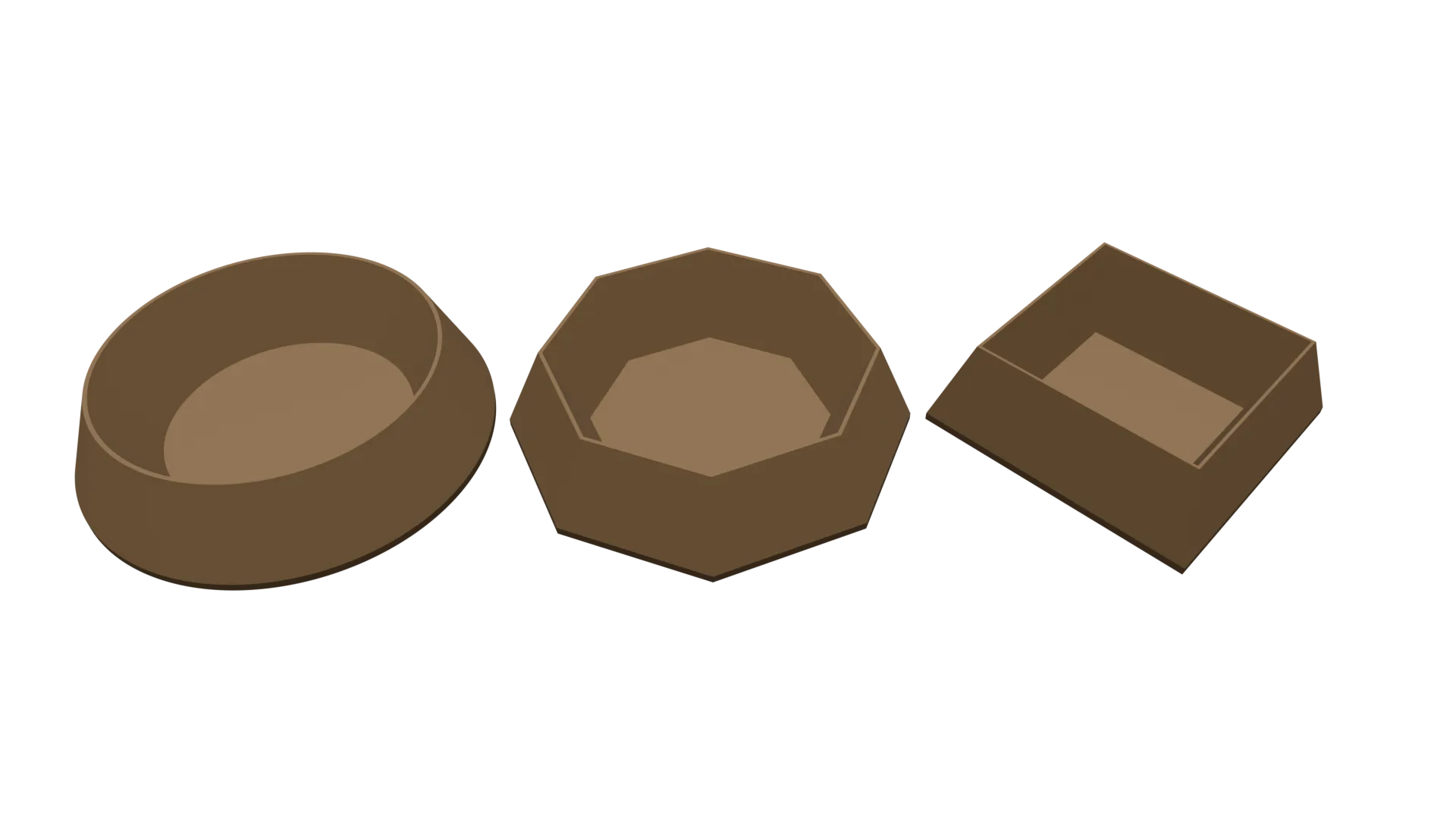

You can change the the general shape of the bowl by tweaking smoothness. It basically controls the number of sides the bowl has. More sides → more like a circle. I recommend 512 as a default, for a nice and smooth circular finish. Please note that adding names is only going to work well with circular bowls. (smoothness > 32)

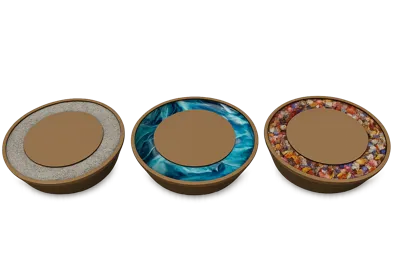

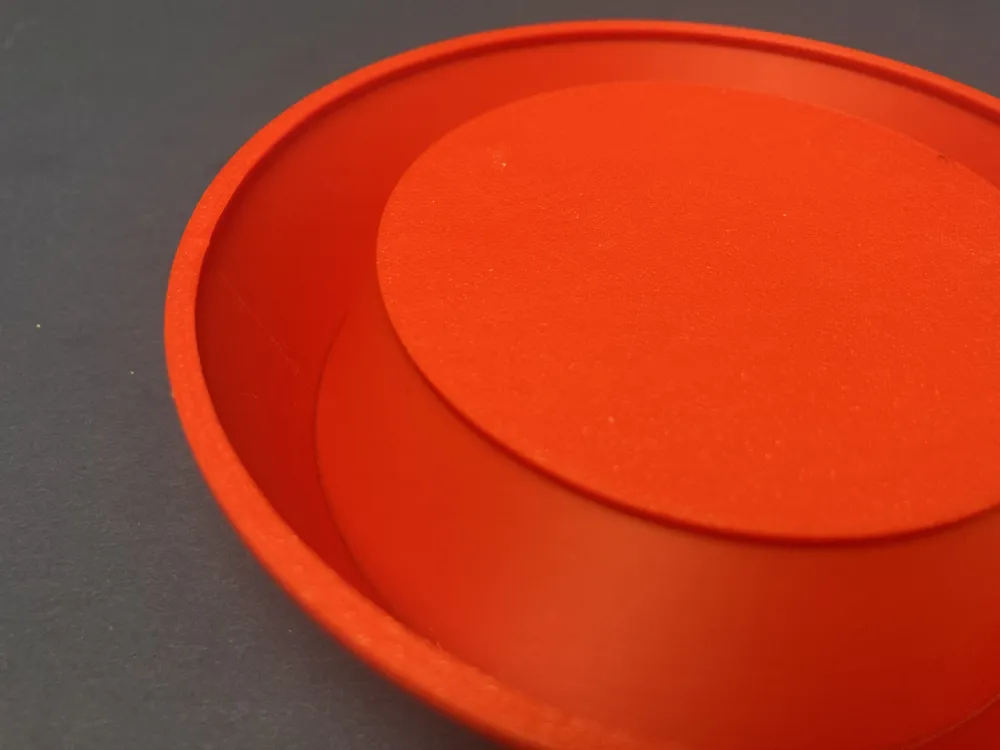

The bottom of the bowl is made hollow, with a small edge at the bottom, so if you decide to fill it with concrete, epoxy, filament poop or whatever to give extra weight, the filling will not fall out of the bottom. (Sorry for my poor photoshop skills)

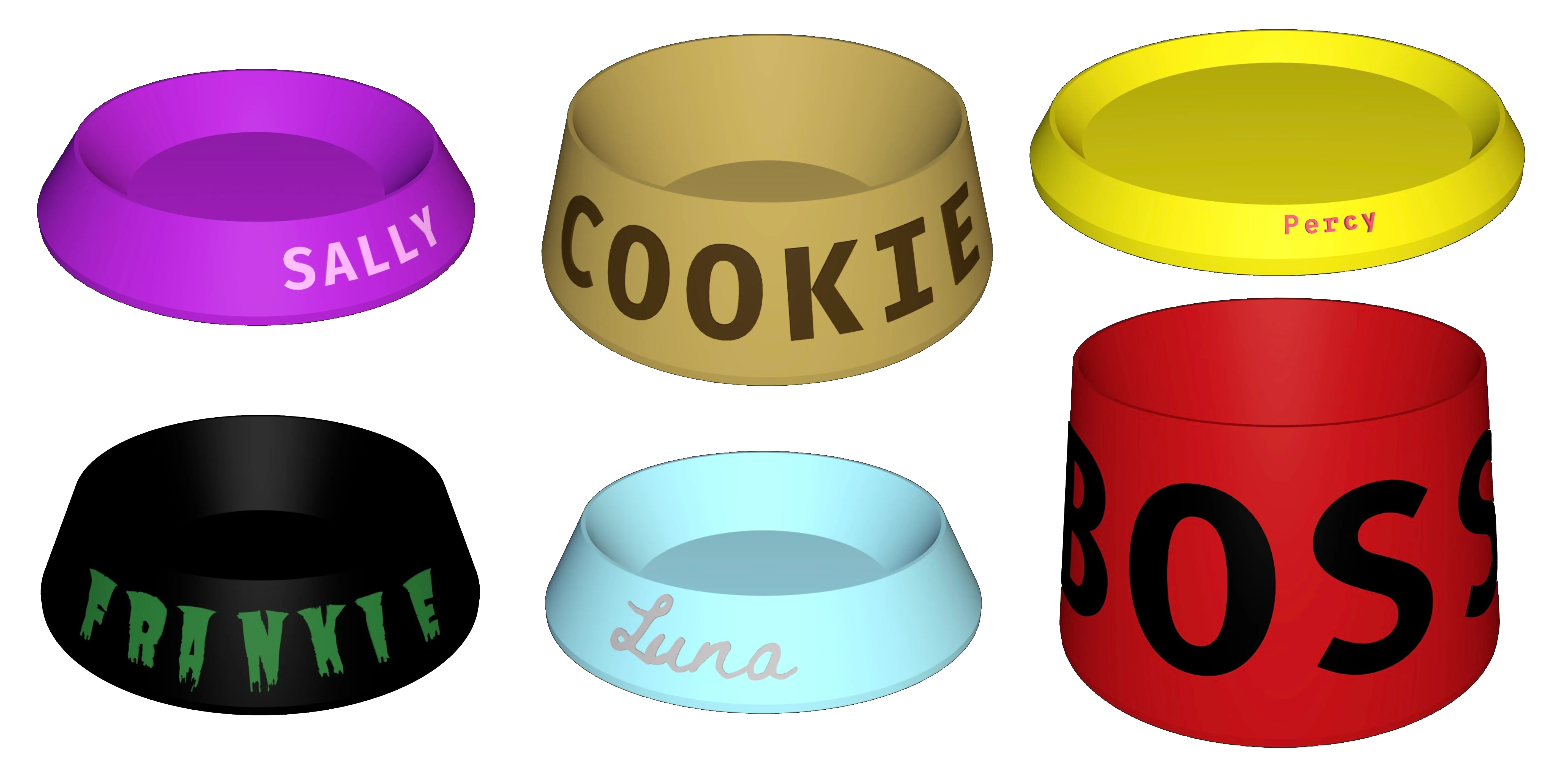

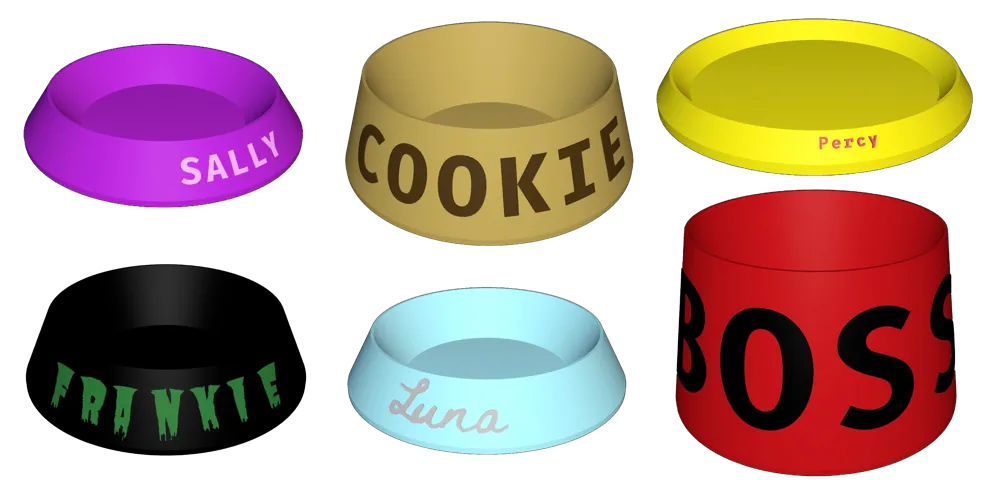

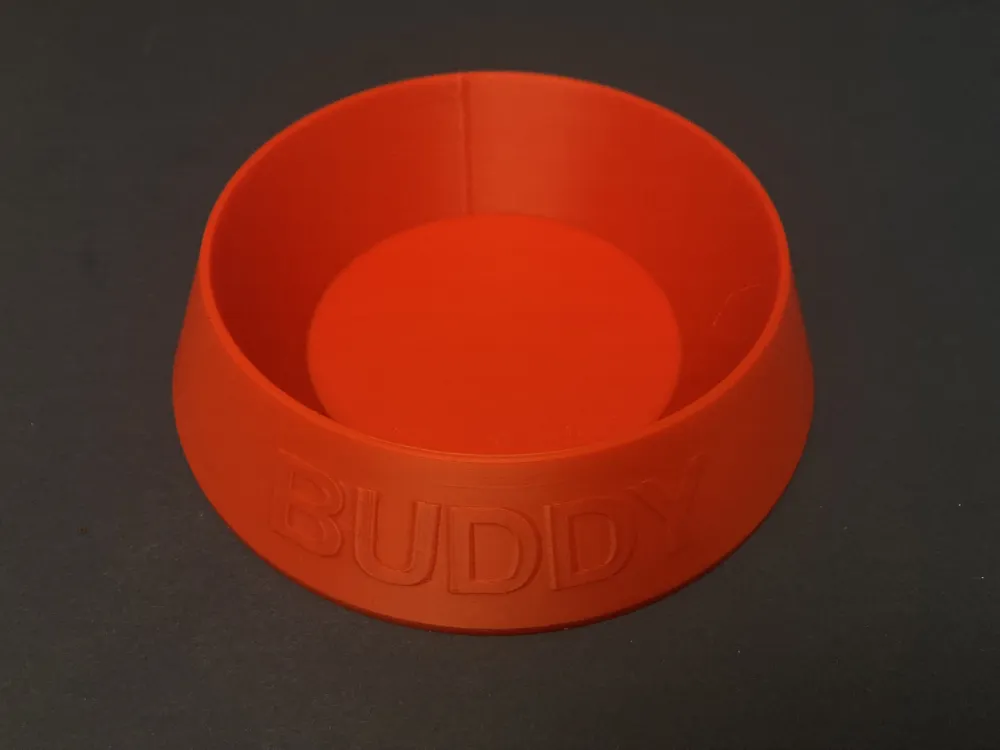

Names can be added with a variety of colors and styles. I'd recommend experimenting with different fonts, as not all names look good with all fonts. Generally I've observed that monospaced fonts look best, in terms of letter spacing.

Notes

• coloring in the generator is just so you see what would the model look like, you would need to color in bambustudio with your actual filaments (easy)
• no support needed
• can be done with AMS, but single color or dual nozzle is preferrable
• recommended to put seam lines at the back of the bowl in bambustudio
