Type 86 Integrated Quick-Off Panel - Accessory-Free Single-Color Print Version
Print Profile(1)
Description
Hello!

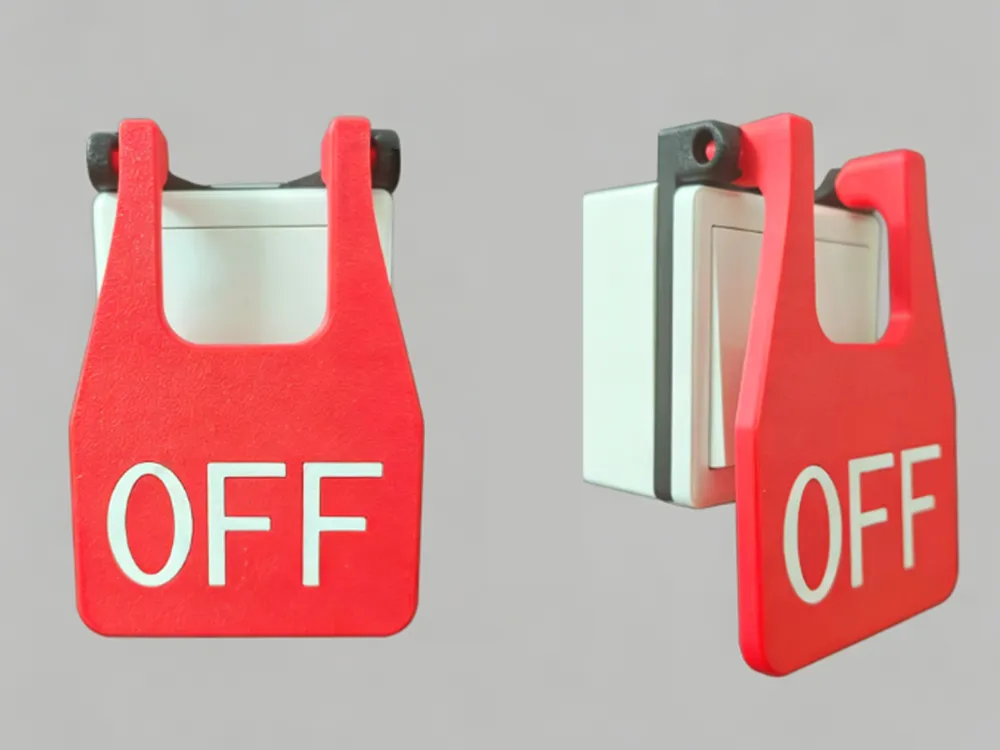

This model I created has been released on Maker World. It is suitable for standard Type 86 switch panels and perfectly fits wall-mounted hidden boxes and front-mounted power strips.
Unfortunately, there are currently no integrated quick-off solutions for this common size available on the site, so I have created the corresponding files for you.
The files can be used directly. No hardware accessories are needed, no multi-color requirements; single-color printing is sufficient. Personally, I believe the view color provides the best match.
Printing suggestions: It is recommended to use a 0.4mm print head to achieve finer panel surface texture and screw hole precision, ensuring a flush fit after installation.

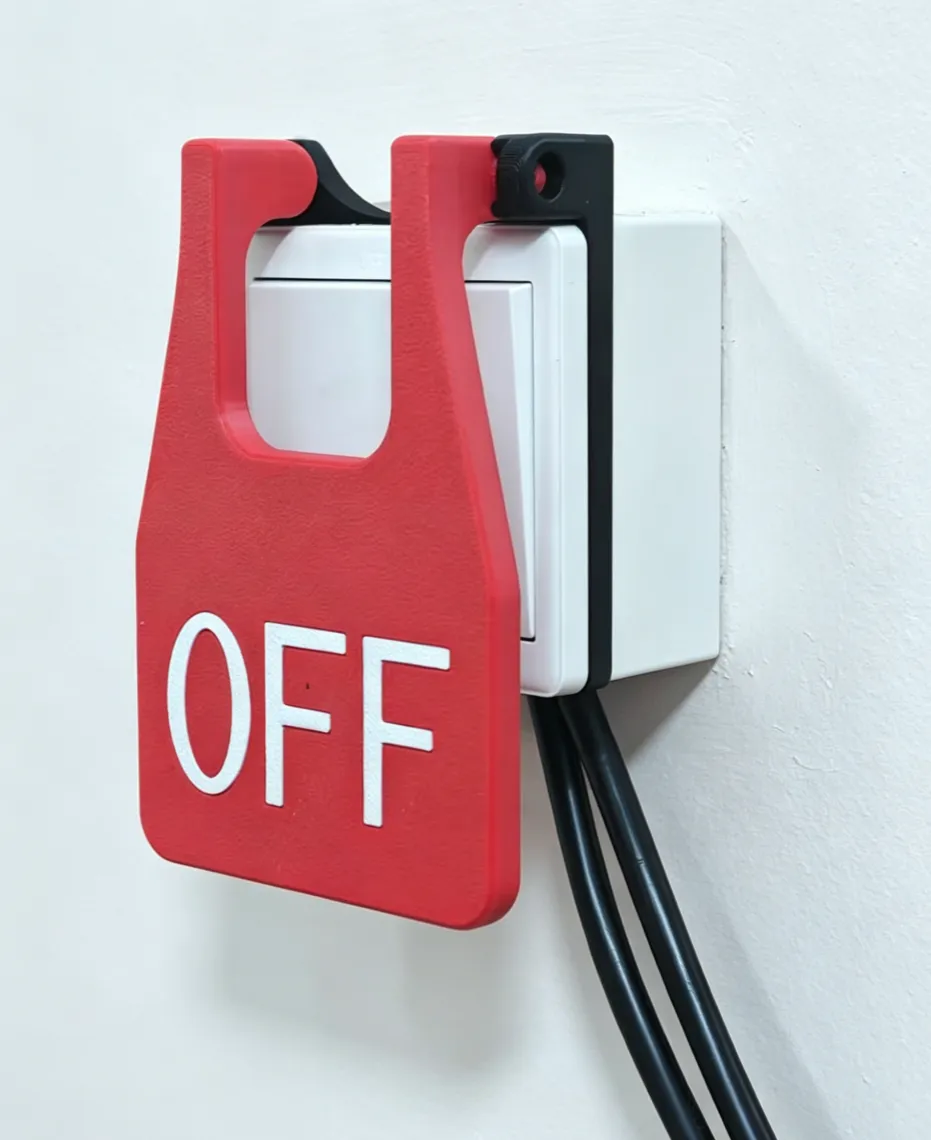

It is adaptable to various scenarios. You can fix it to a wall for use as a master control switch; alternatively, it can be installed in front of a power strip to achieve one-button quick power-off in office workstations or home environments, facilitating centralized management of all electrical equipment.
For installation, you only need to confirm the hole positions against the following basic dimensions:
Basic Installation Dimensions
- Panel Shape: 86mm × 86mm Square
- Fixed Screw Hole Center Distance: 60mm (compatible with standard Type 86 back box hole positions)
