ESP32 CYD 2.8" Case with GPS Module
Print Profile(0)
Description

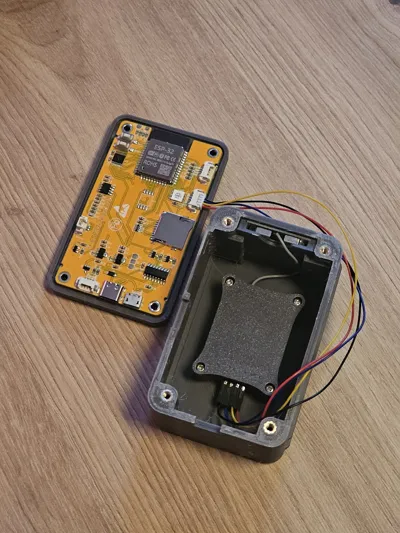

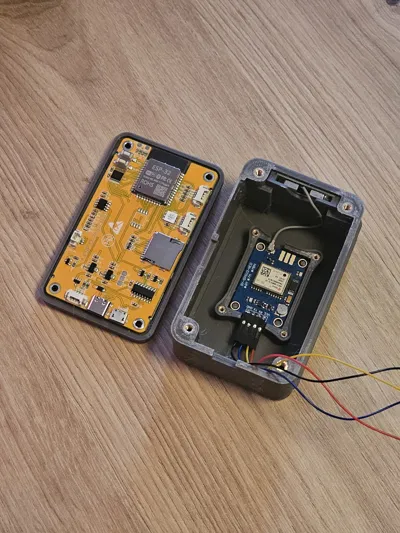

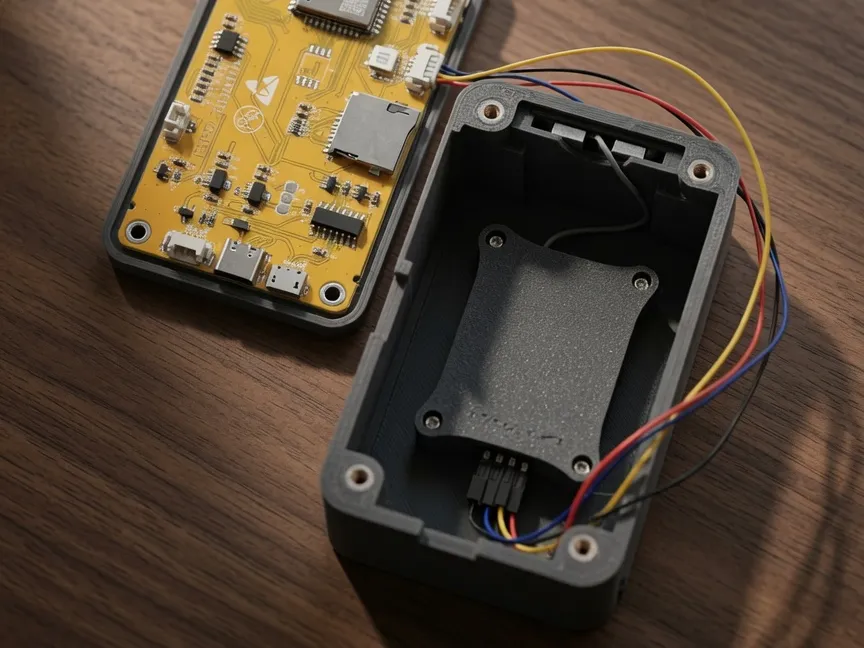

Enclosure for the ESP32-2432S028 (Cheap Yellow Display 2.8")
with a GPS module (NEO-6M / NEO-8M) and a dedicated ceramic antenna bay.

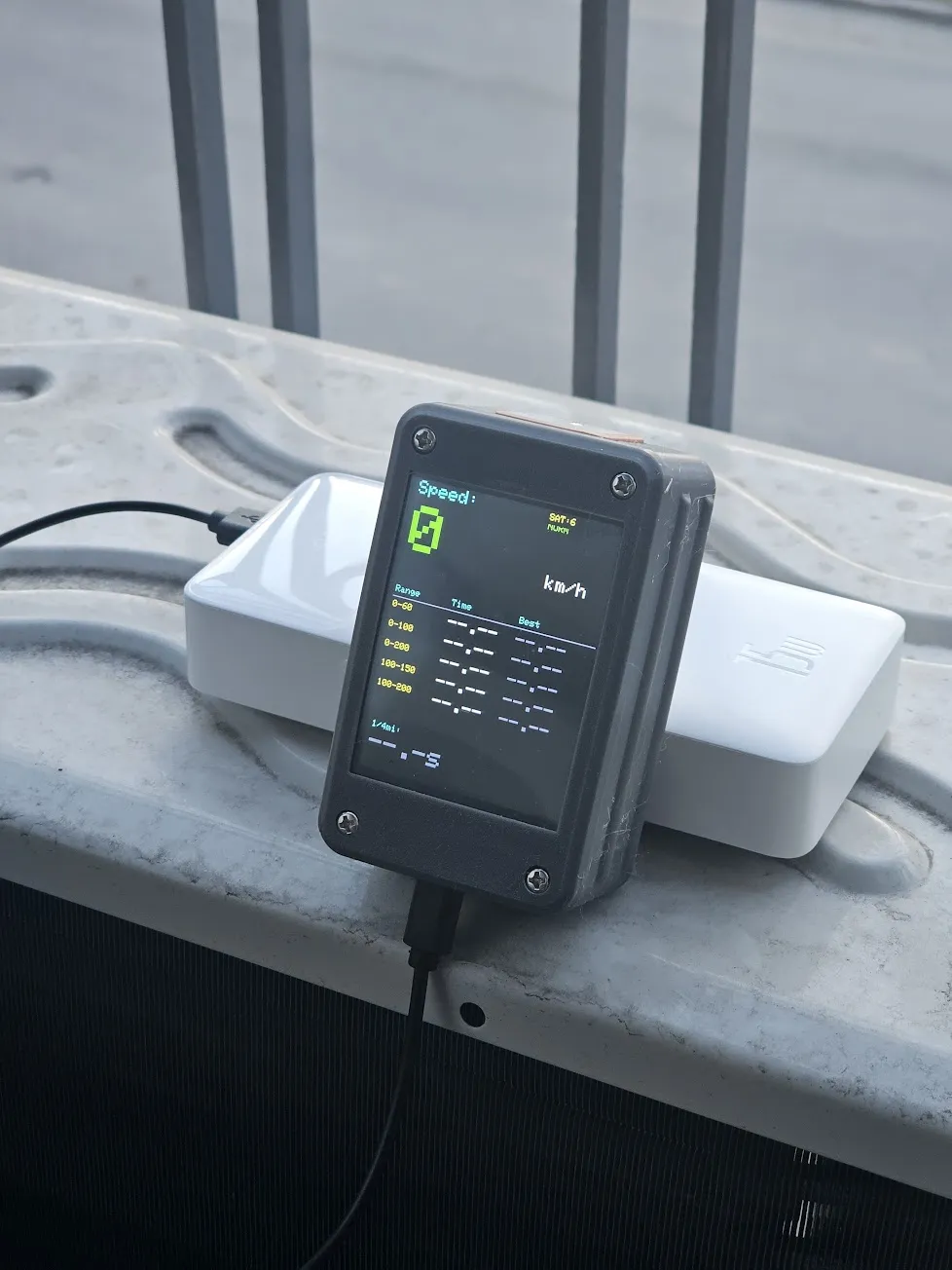

Includes cutouts for USB, GPIO, and microSD access. Ideal for GPS clocks, speed displays, outdoor trackers, and similar projects.

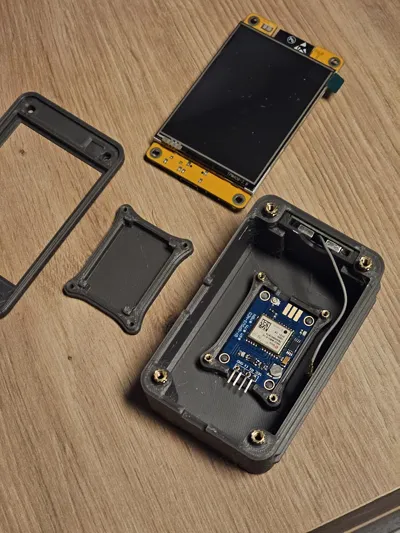

Insert the antenna, then slide the retaining bracket into place to secure it firmly.
Hardware Required:
For module mounting:
- 4 × M2 heat-set inserts
- 4 × M2 screws
For the top cover:
- 4 × M3 heat-set inserts
- 4 × M3 screws
