Adjustable Leveling Freely Customizable Universal Riser Monitor Laptop Riser Universal Base
Print Profile(4)
Description

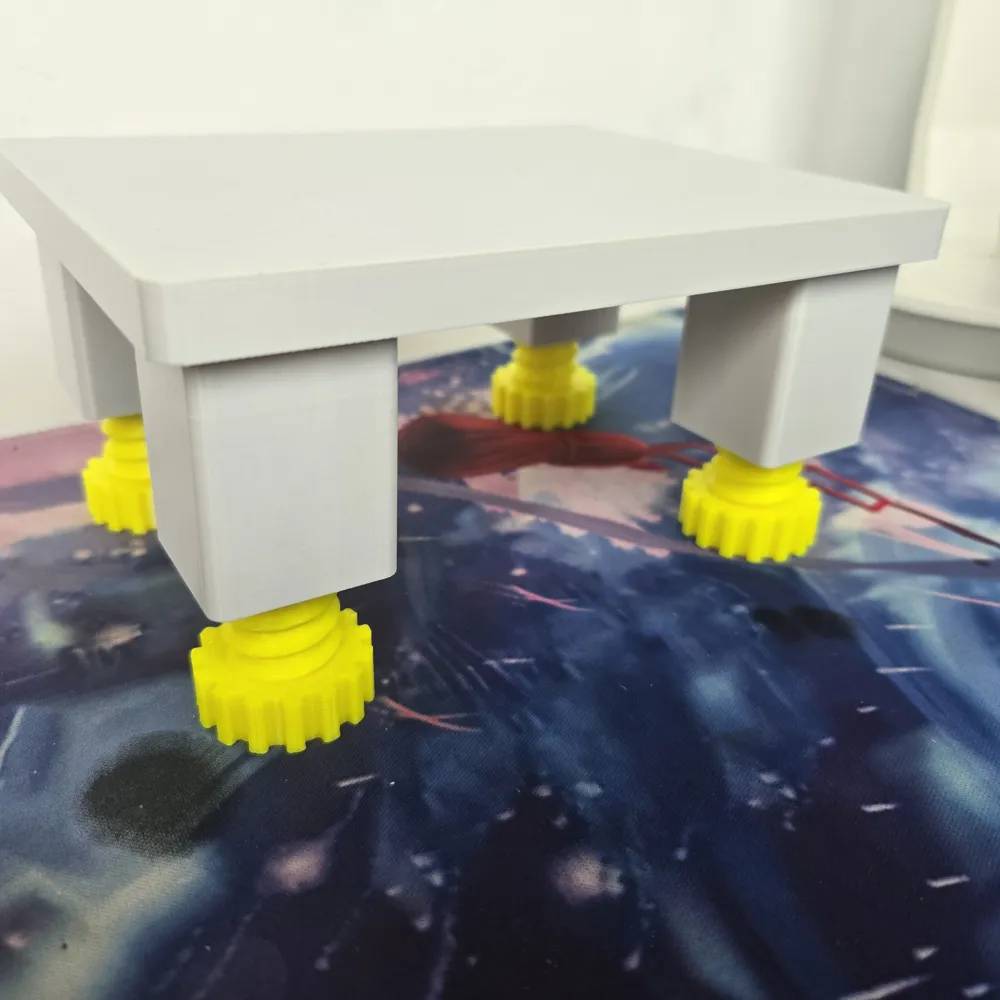

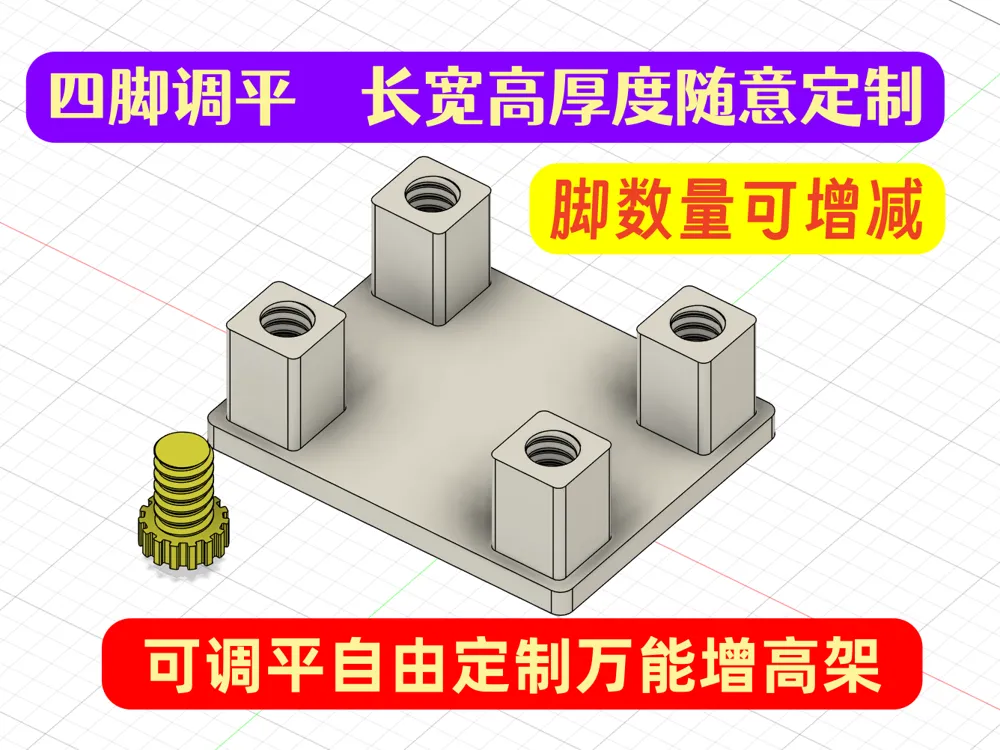

A few days ago, I designed a customizable universal riser, which was quite popular. This made me think, what if some friends need to use it on an uneven surface? Or need greater load-bearing capacity? To allow everyone to use a riser that better suits their needs, and to enable easy printing from a mobile phone, I then designed this universal riser with adjustable feet, which is also freely customizable. You can generate the desired length, width, height, and thickness by simply modifying the dimensions. You can even customize the number of feet; for example, if some friends use it as a computer riser or for a laptop, they can increase the number of feet for greater stability. When used on an uneven desk, it can be leveled by adjusting the screws. Of course, if you don't need to adjust it, you don't have to print the leveling screws.

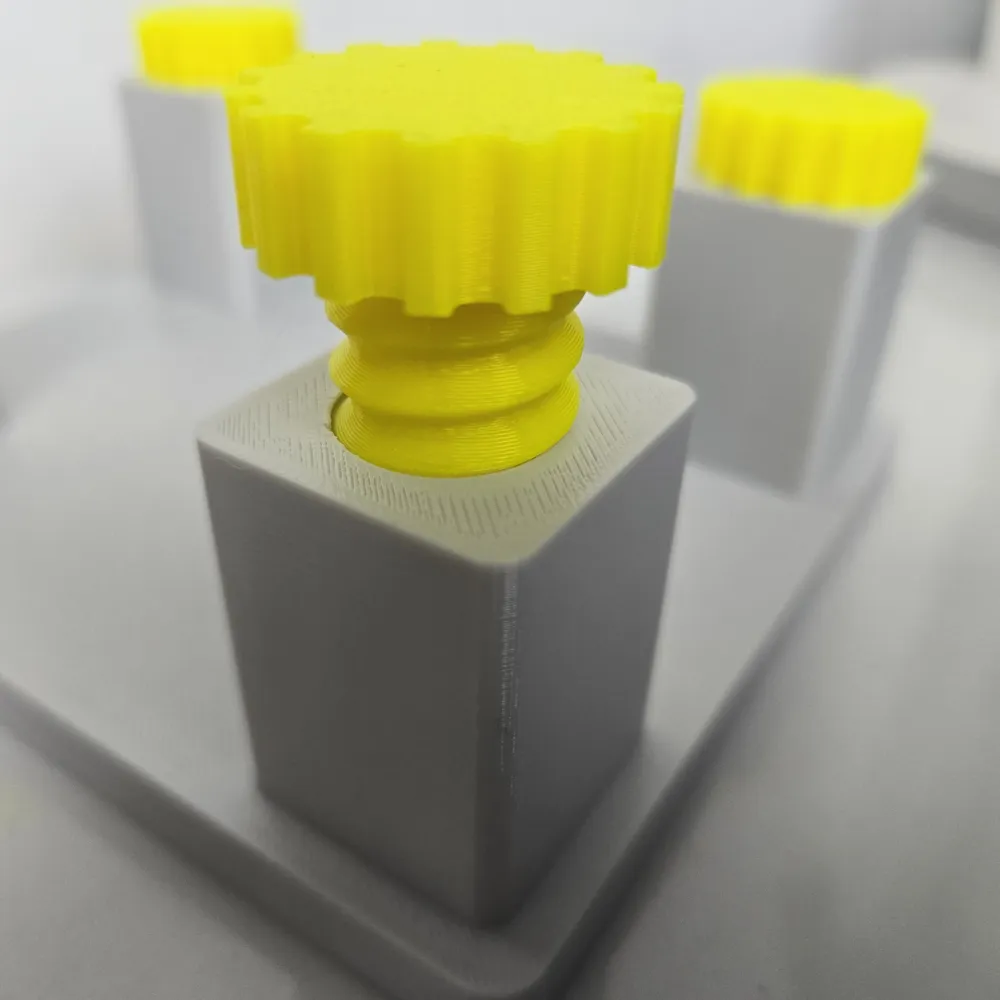

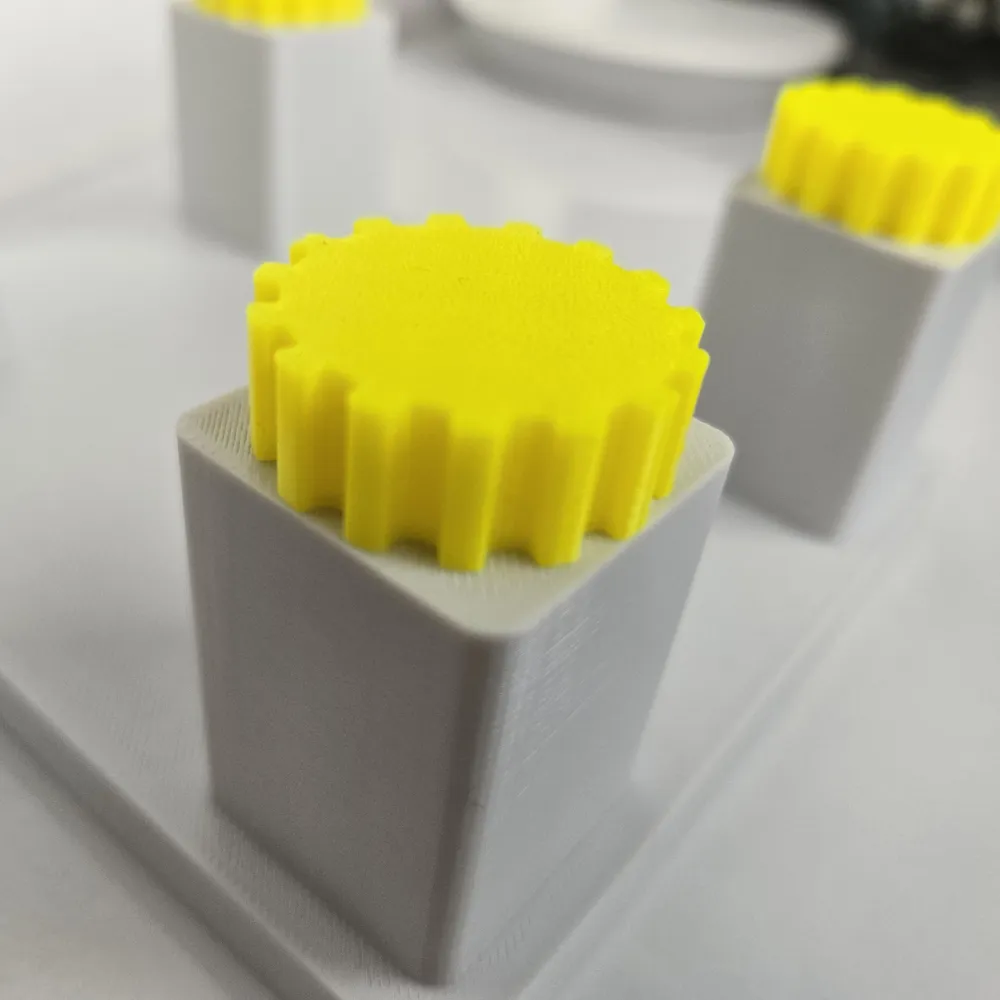

Customization method: Click the green customize button, and modify the length, width, thickness, fillet radius, and total height according to your needs (the adjusting screw height of 30mm and nut of 10mm are fixed, so the height can only be increased based on this). The default number of feet is 4. If you customize a large size or need better load-bearing capacity, you can modify and increase the number of feet for both length and width (be careful not to add too many, which could lead to crowding). All customization instructions are provided; just follow them! (No matter what size you customize, the adjusting screw dimensions remain unchanged, so friends who customize can print the adjusting screws for the feet separately from the profiles I uploaded, adding or removing as needed)!
If you don't want the hassle, I also provide three sizes that you can print directly!
If you want one without adjusting screws, you can choose not to print the adjusting screws or print my other version of the model: https://makerworld.com.cn/zh/models/2616100-ke-ding-zhi-mo-neng-zeng-gao-jia-can-shu-hua-di-zu#profileId-3016592
