Window latch compatible with Citroën Ami
Print Profile(1)
Description

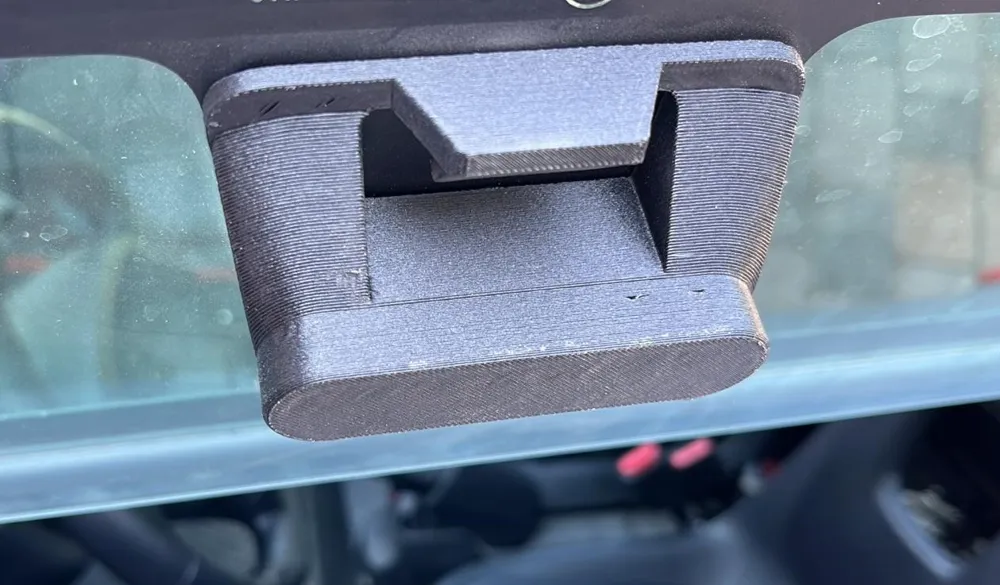

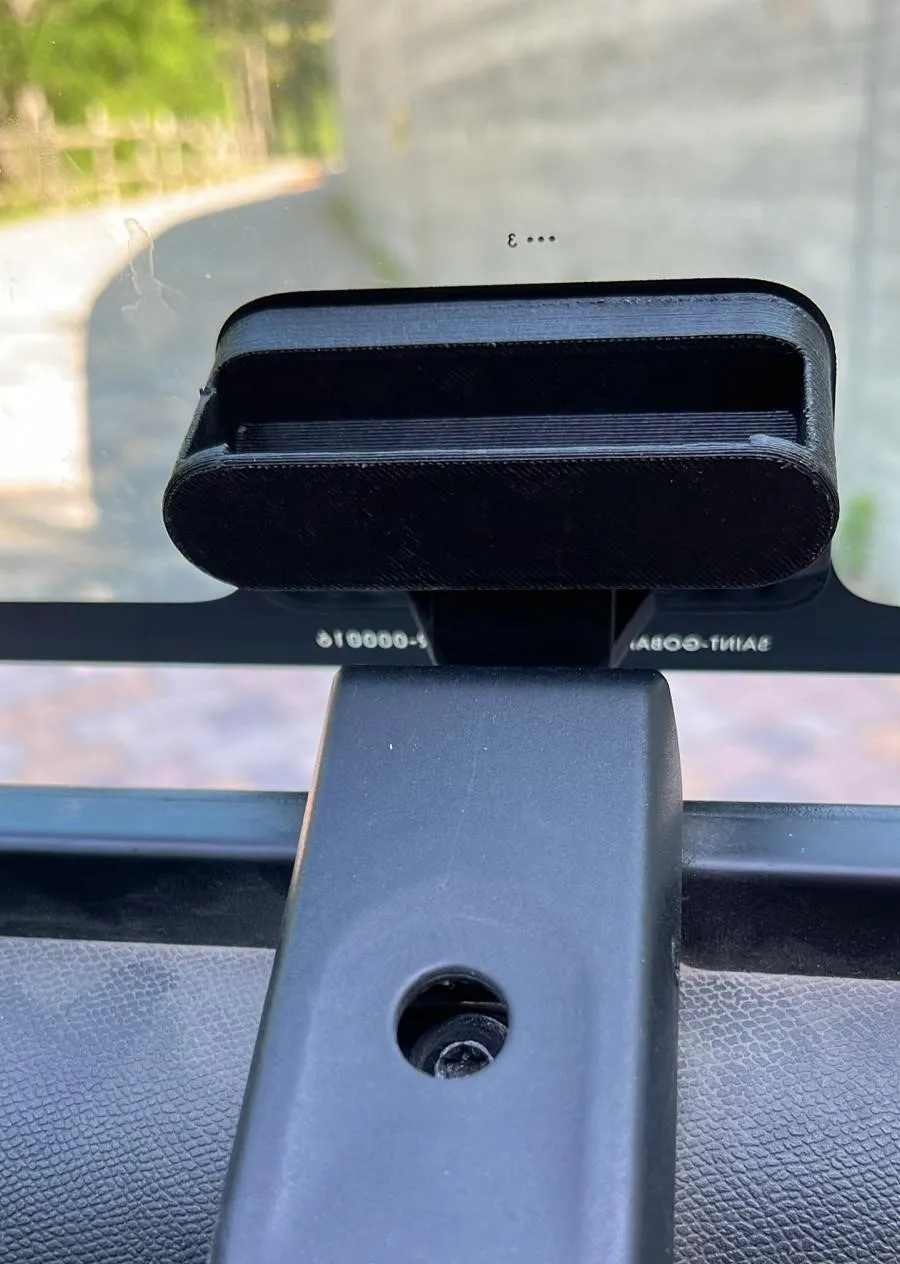

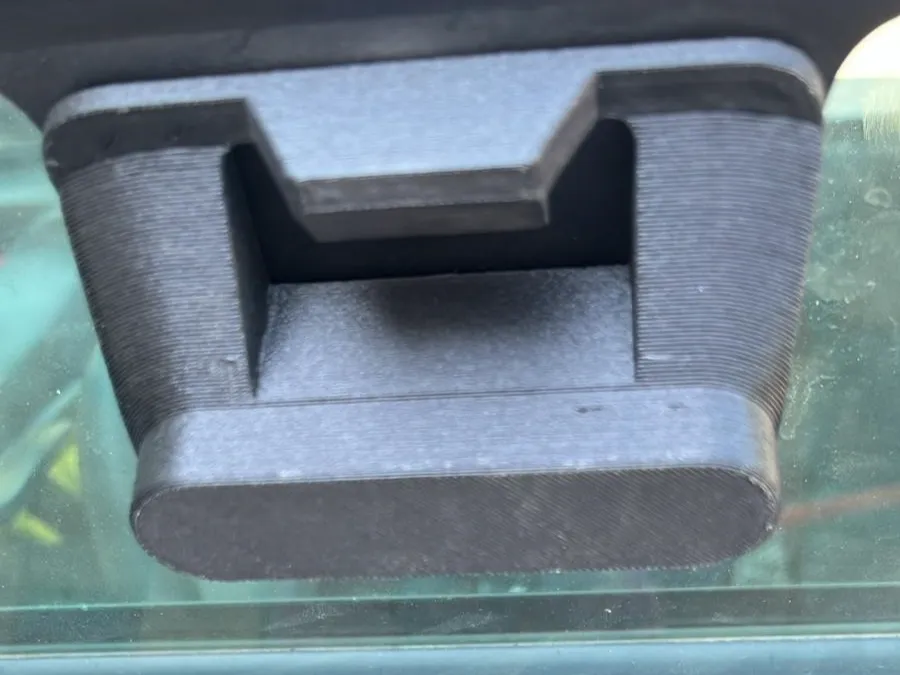

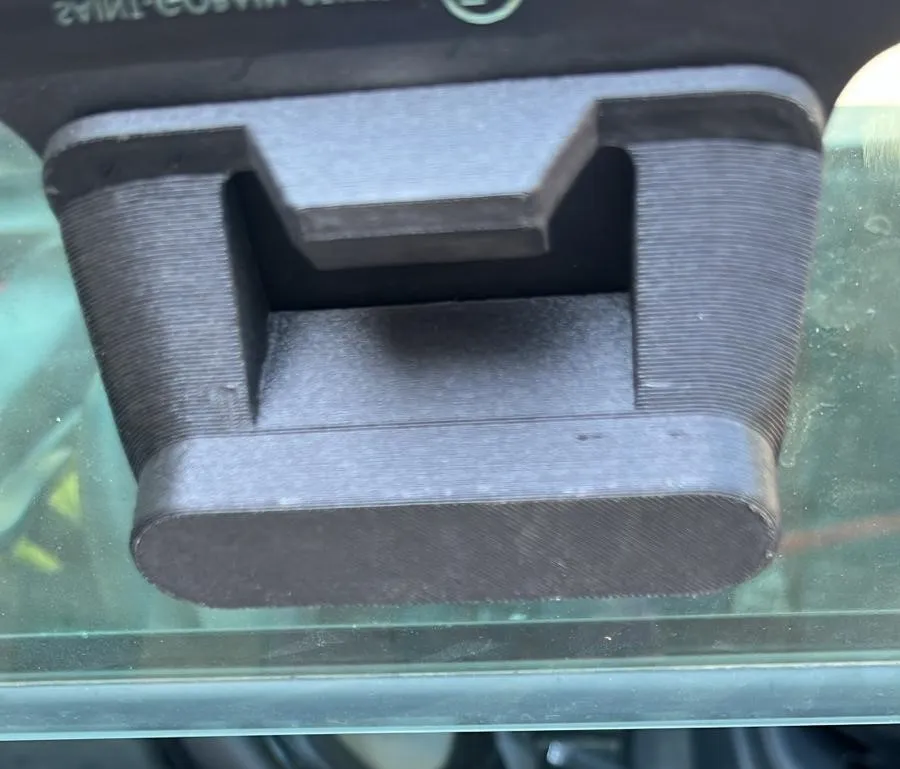

Window latch compatible with Citroën Ami.
Model redesigned from scratch based on the dimensions of the original component.
Window holder / window latch compatible with Citroën Ami.
Citroën is a registered trademark of its respective owners.
This is an independent model designed to be compatible with the vehicle.
I strongly recommend printing in PETG
0.2mm layer
6 walls
Top and bottom layers 6
Infill at least 20%

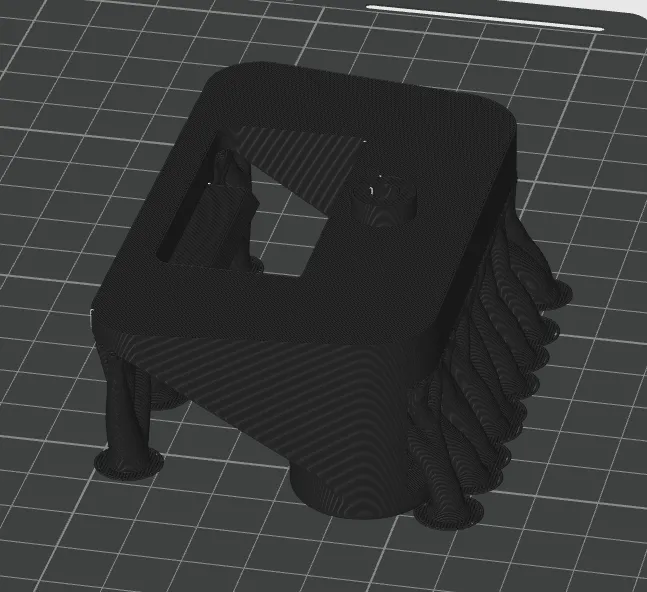

Tree supports only from the plate
Shaped seat for a 4mm nut which aids positioning.
Use double-sided adhesive in addition for securing to the glass.
