WD easystore desktop external USB drive shelf for a 10-inch network mini rack mount bracket (minilab)
I designed this around a 14TB easystore hard drive. That size capacity is discontinued, but the dimensions look to be the same of the 8TB, 18TB, and 20TB versions available. It's a pretty exact fit, so use care when placing the drive into the shelf.

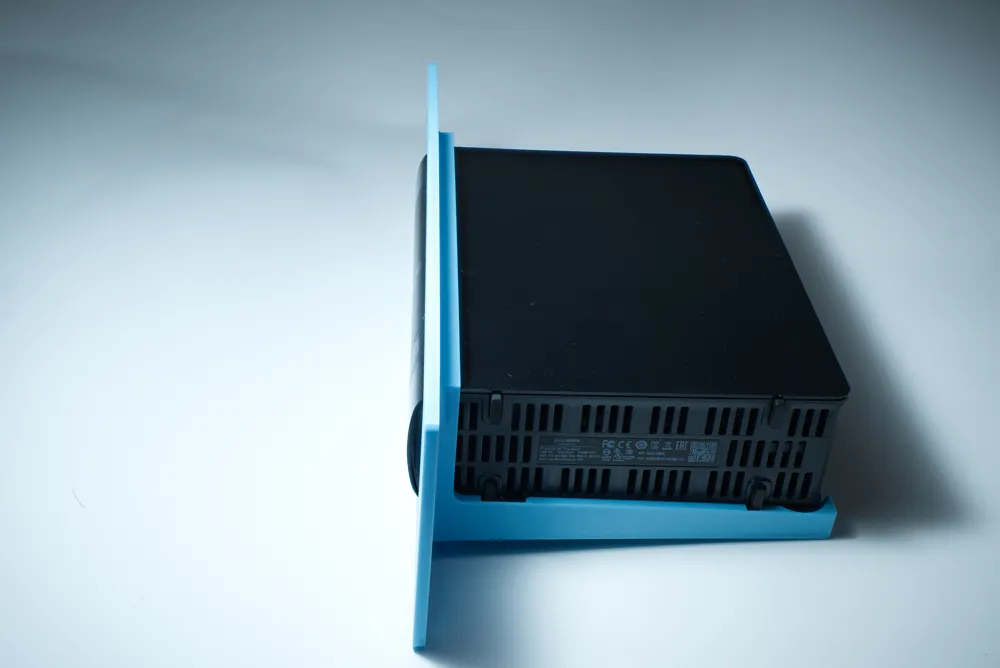

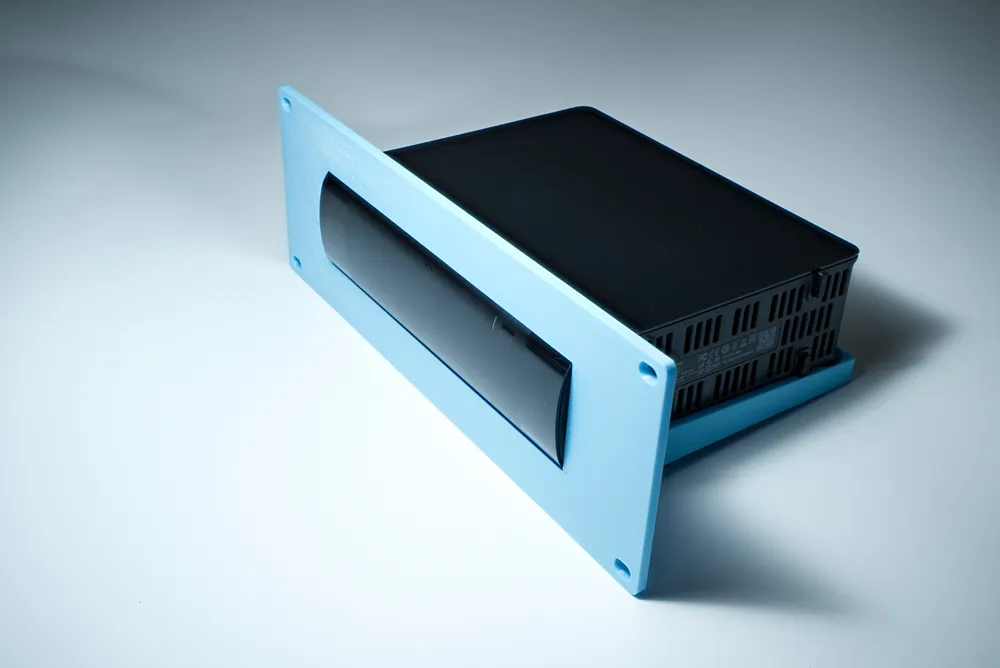

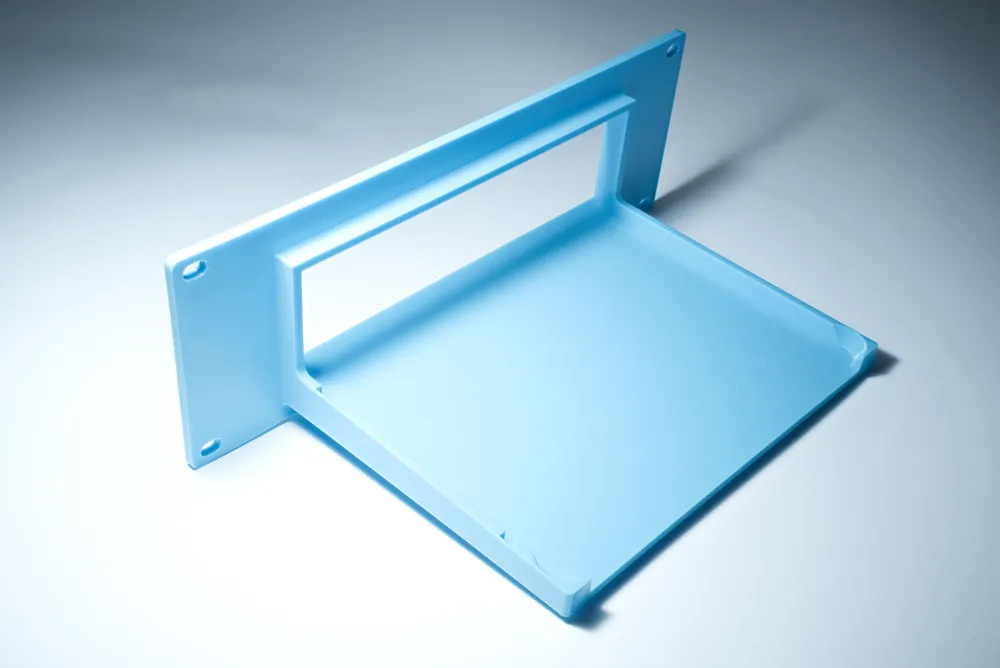

Drive enclosure sits against a curve at the front of the shelf. The rear of the shelf holds the drive in place so it won't be sliding around.

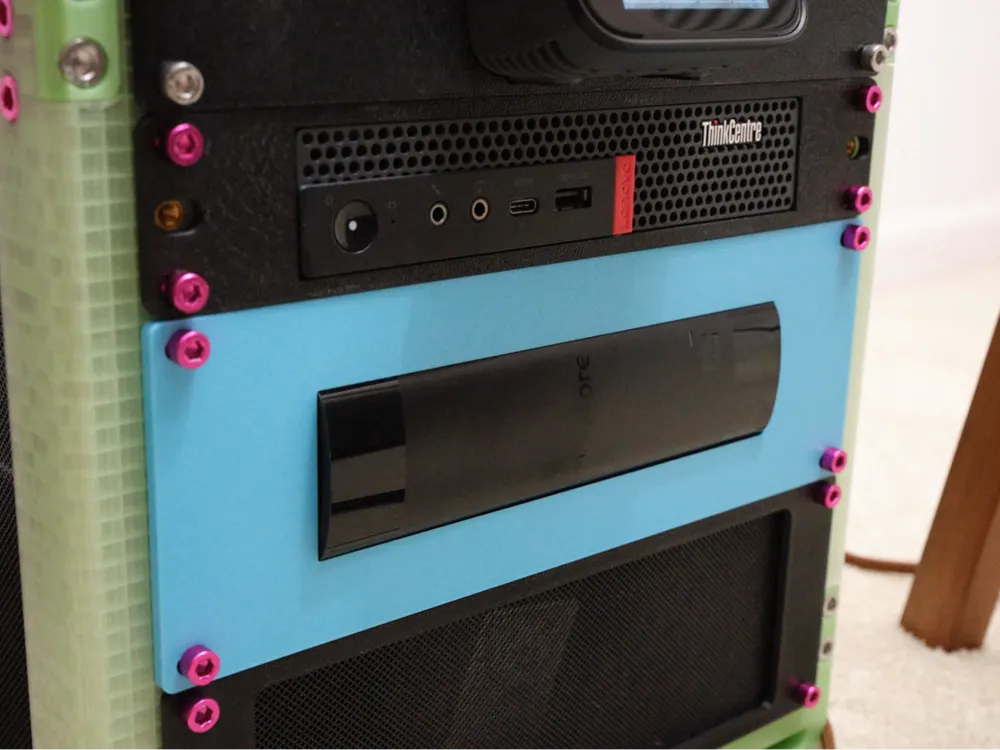

Tested on the KWS rack, but is a standard minirack size and should fit other 10-inch racks.
I printed it with PETG.
2U height.
