Exhaust adapter for 70mm-150mm AC hose

Exhaust adapter for 70 mm-150 mm air conditioning hose

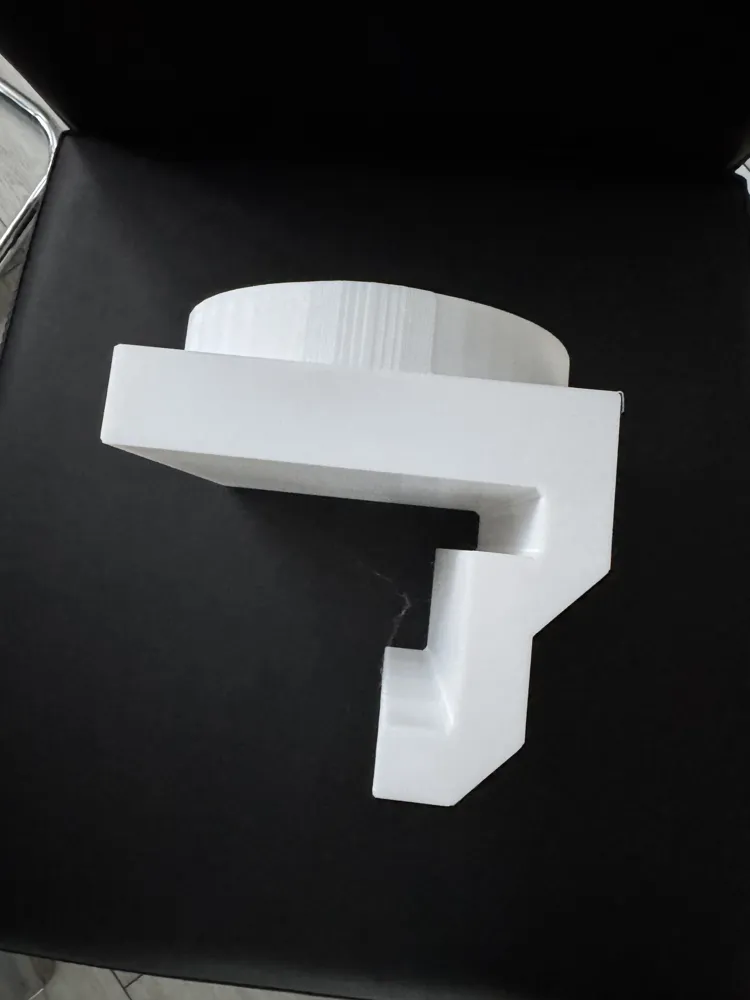

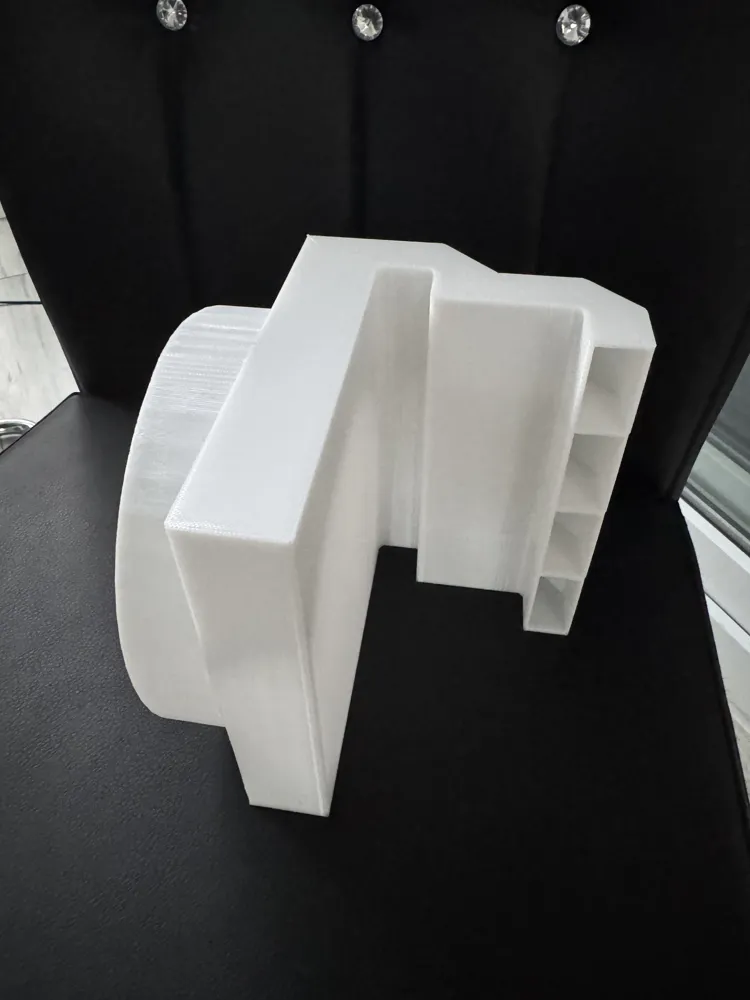

This exhaust adapter was specifically developed for connecting a 150 mm exhaust hose to an air conditioner, ventilation system, or an individual wall, window, or housing duct. The design allows for a stable and precise connection between the hose and the intended connection surface

Features

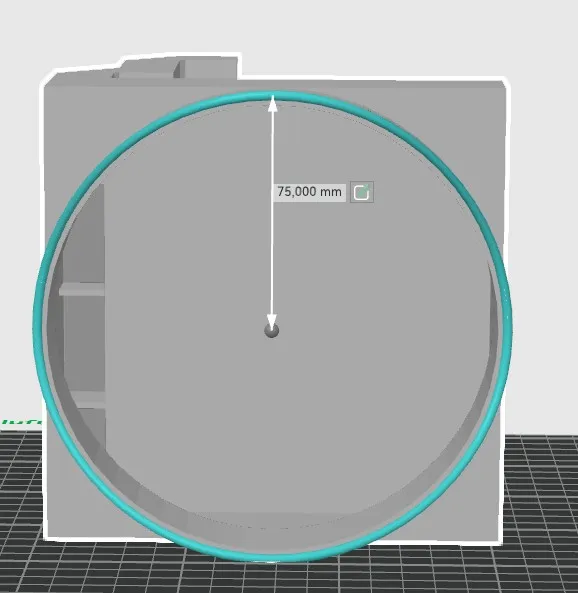

• Suitable for 150 mm exhaust hoses
• Robust and stable construction
• Compact design with integrated connection geometry
• Ideal for mobile air conditioners, ventilation systems, or DIY projects
• Suitable for indoor use
• Optimized for 3D printing without extensive post-processing

Print recommendations

• Material: PETG recommended (more heat resistant and durable than PLA)
• Layer height: 0.2 mm
• Wall thickness: at least 3–4 perimeters
• Infill: 20–40 %
• Support: Required depending on print orientation
• Print bed: Place adapter with the largest flat surface on the print bed

Notes

Before printing, the dimensions should be compared with the existing exhaust hose and the connection point. Minor dimensional deviations may occur depending on the printer and material. For a particularly secure fit, a gasket or sealing tape can be used if necessary

Areas of application

• Mobile air conditioners
• Exhaust and ventilation systems
• Workshop extractions
• Server and technical cabinets
• Individual ventilation and DIY projects

This adapter offers a practical solution to securely and cleanly connect a 150 mm exhaust hose to an existing opening or a special connection and can be easily adapted to individual requirements if necessary

add to the text: please check the

Exhaust Adapter for 150 mm Air Conditioning Hose – 3D Print File

This exhaust adapter was specifically developed for connecting a 150 mm exhaust hose to an air conditioner, ventilation system, or an individual wall, window, or housing duct. The design allows for a stable and precise connection between the hose and the intended connection surface

Important note before printing

Please first create the provided test print and check for accuracy. Depending on the printer, material, and print settings, dimensional deviations may occur. Only after successfully checking the test print is it recommended to print the complete model

Features

• Suitable for 150 mm exhaust hoses
• Robust and stable construction
• Compact design with integrated connection geometry
• Ideal for mobile air conditioners, ventilation systems, or DIY projects
• Suitable for indoor use
• Optimized for 3D printing with minimal post-processing

Print recommendations

• Material: PETG recommended (more heat resistant and durable than PLA)
• Layer height: 0.2 mm
• Wall thickness: at least 3–4 perimeters
• Infill: 20–40 %
• Support: Required depending on print orientation
• Print bed: Place with the largest flat surface on the print bed

Notes

Before printing, the dimensions should be compared with the existing exhaust hose and the connection point. For a particularly secure fit, a gasket or sealing tape can be used if necessary

License and Terms of Use

This 3D model is intended exclusively for private use

Not permitted are:

• The sale of digital files
• The transfer or distribution of the files
• The sale of printed copies
• Commercial use in any form
• The use of the design for commercial or industrial purposes

By downloading or using this model, you accept these terms of use

Areas of application

• Mobile air conditioners
• Exhaust and ventilation systems
• Workshop extractions
• Server and technical cabinets
• Individual ventilation and DIY projects

This adapter offers a practical solution to securely and cleanly connect a 150 mm exhaust hose to an existing opening or a special connection and can be adapted to individual requirements if necessary
