Description
Connect hexagon base tiles and freely combine posts of different heights with display discs to build your own custom display layout — a modular stand.

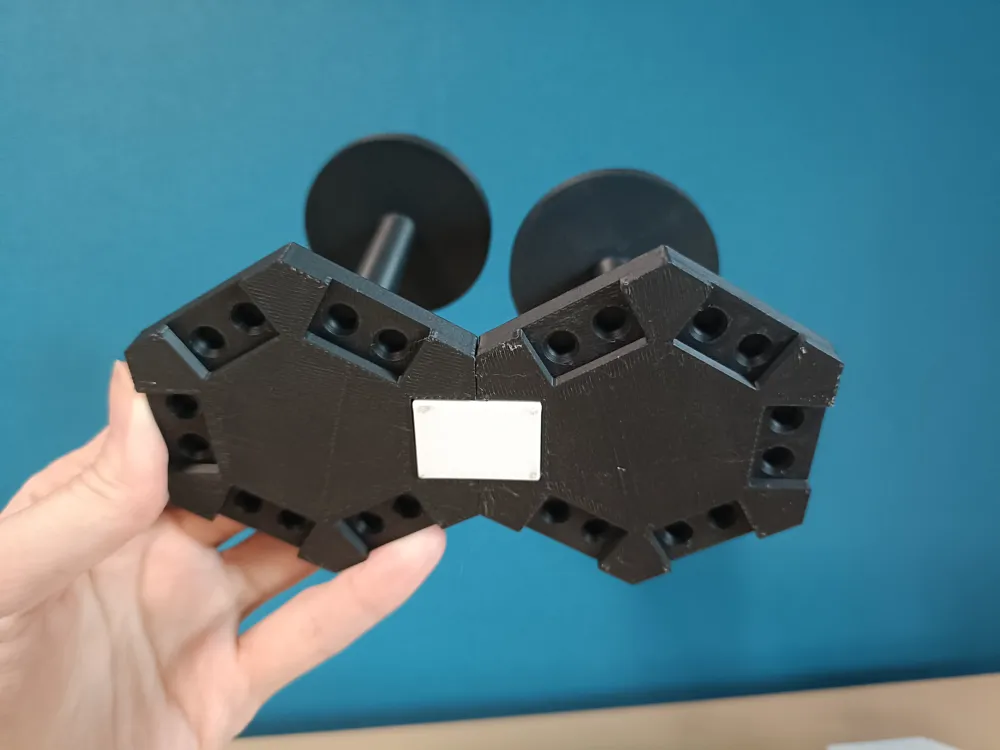

Tiles link together via a clip on the underside, so you can connect as many as you like to expand the base. Posts come in 5 height options — print whichever ones you want, in any quantity, and arrange them freely for a staggered display of figures, perfume bottles, succulents, and more. There are no fixed rules for height or layout; the number of pieces you print and how you arrange them gives you countless display options.
No glue is required for basic assembly — everything fits together as printed. If you're displaying something heavy, or just want extra peace of mind, feel free to use glue for added stability.
Dimensions
- Hex tile: 65mm flat-to-flat
- Disc: 58mm diameter

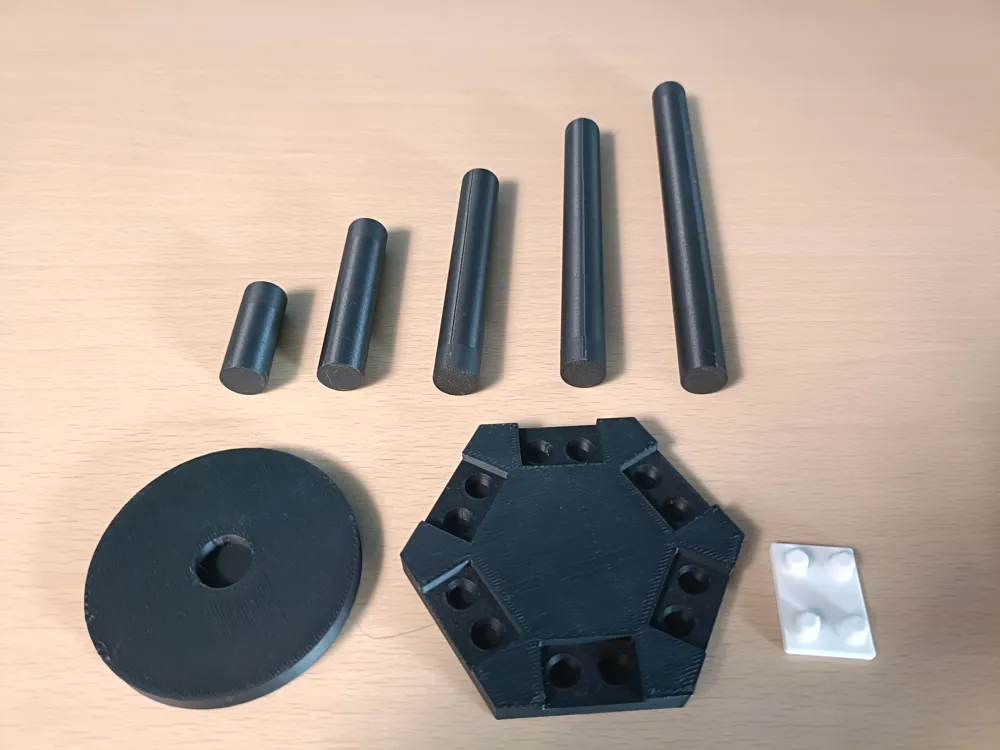

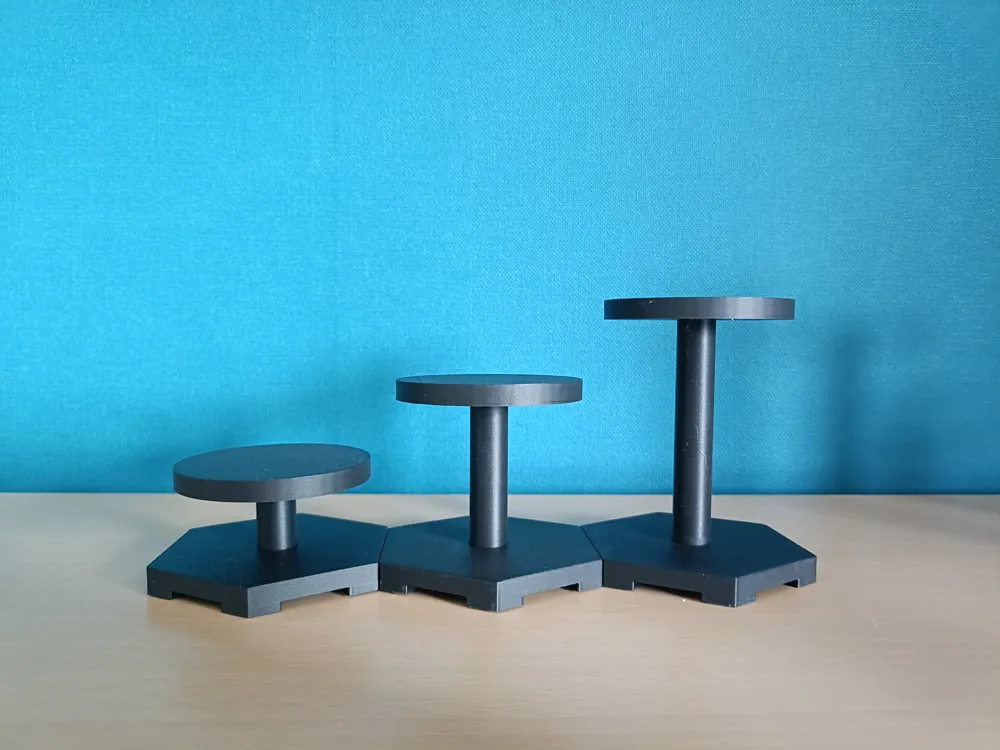

- Post heights (exposed): 20 / 45 / 70 / 95 / 120mm
- Total assembled height: 34 / 59 / 84 / 109 / 134mm
Example uses

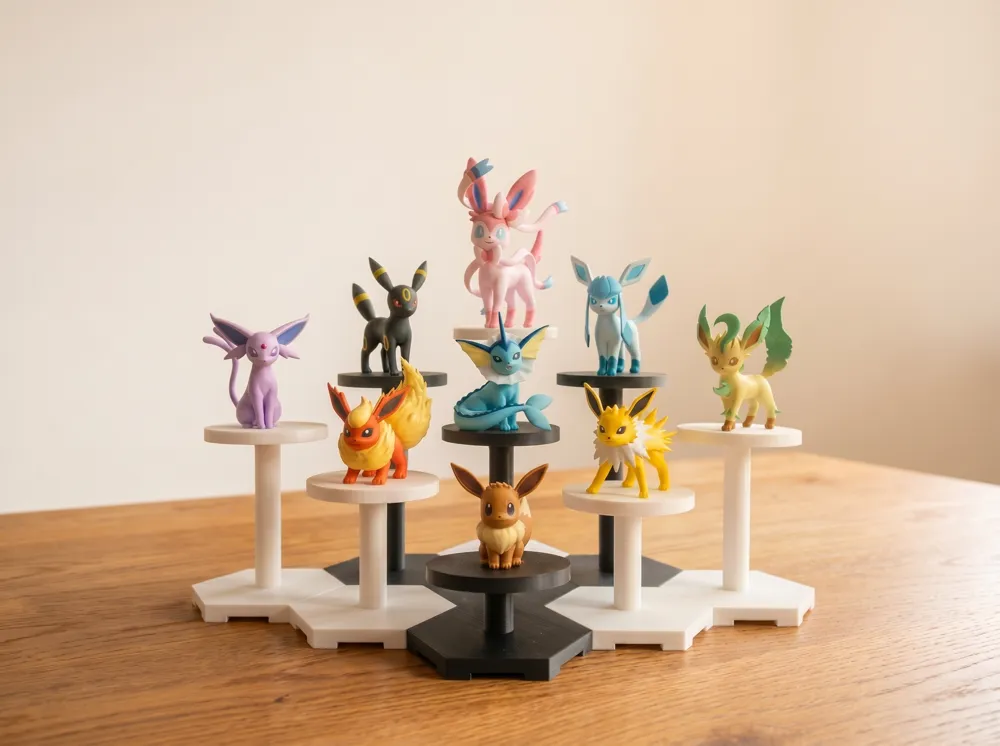

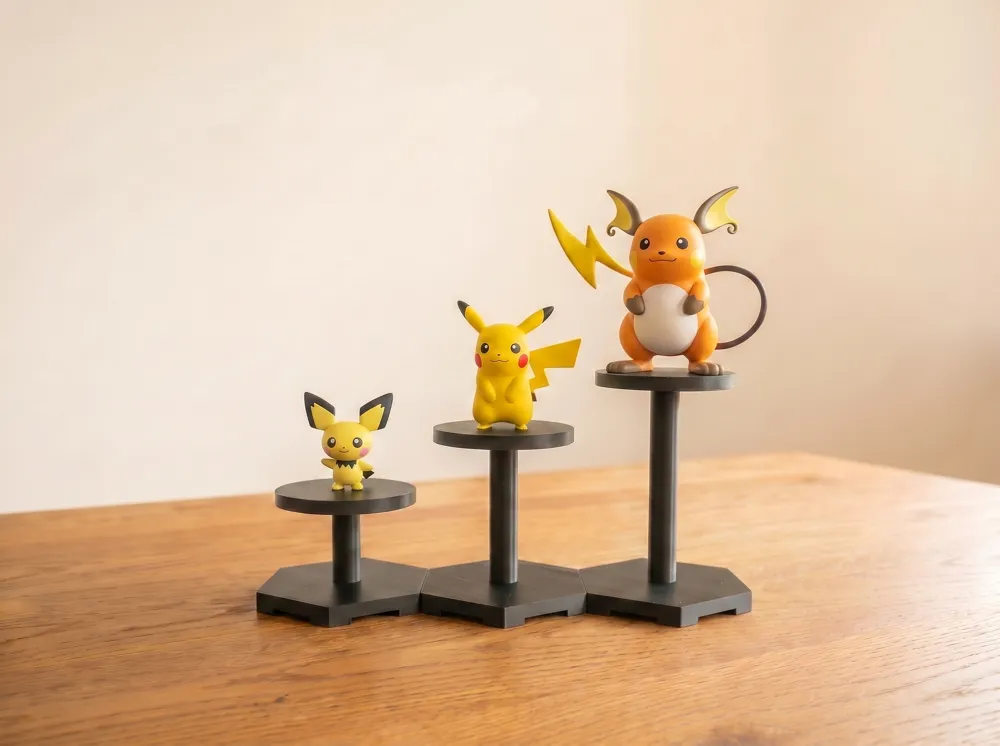

- Staggered display for figure collections

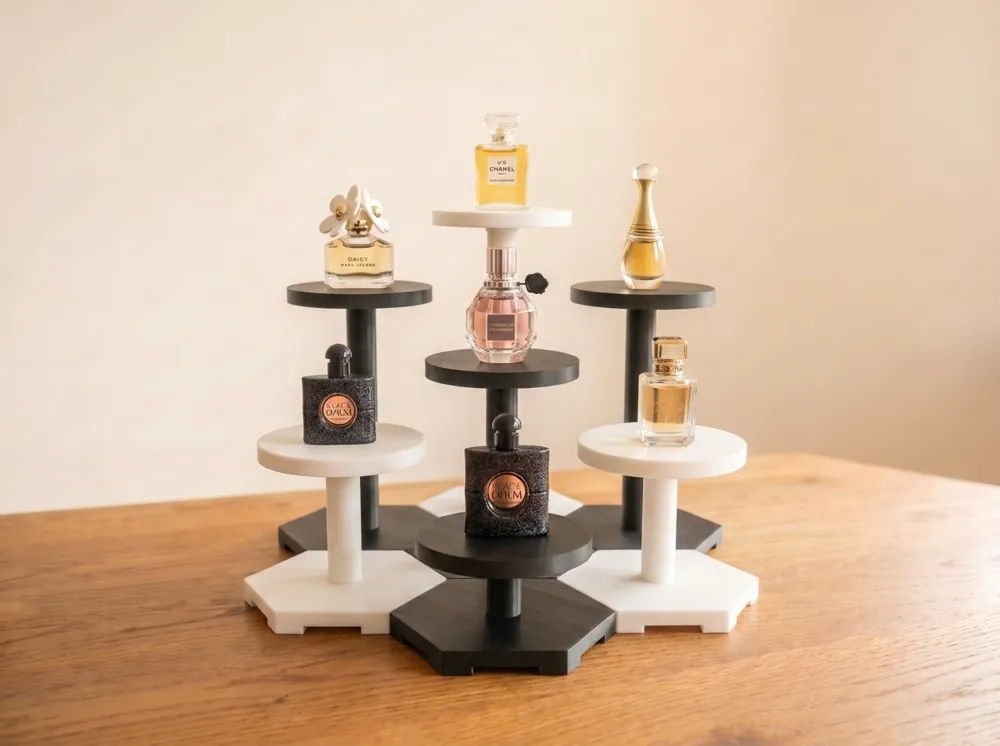

- Mini display stand for perfume bottles and small items

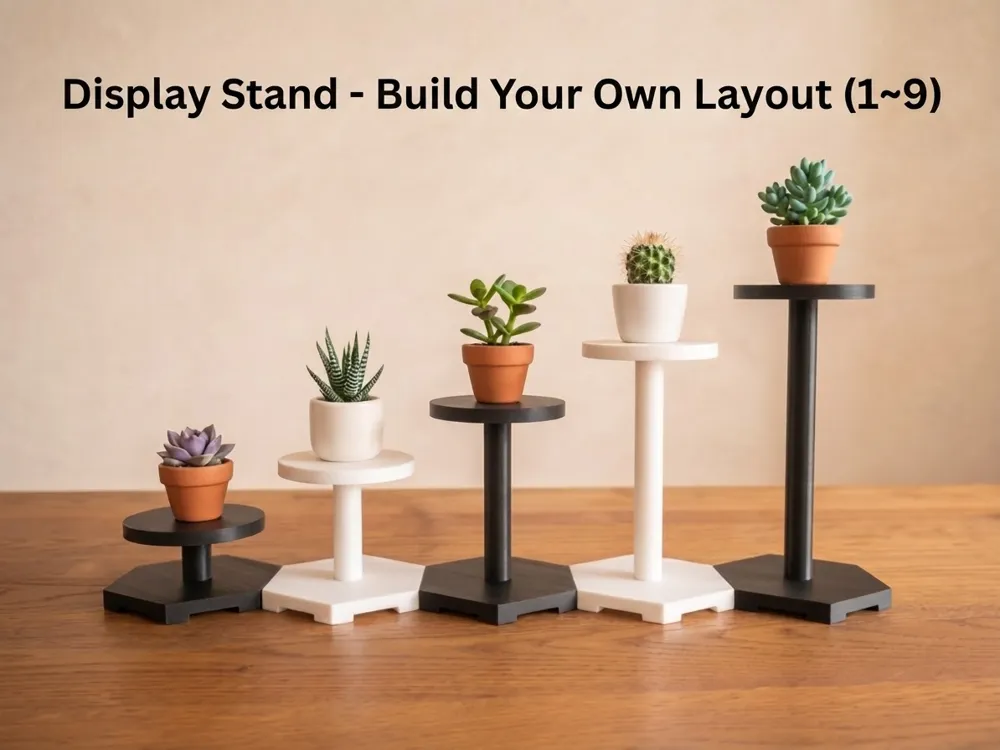

- Succulents
- Stand for houseplants
Print extra tiles, posts, or discs anytime to expand the layout as your collection grows.

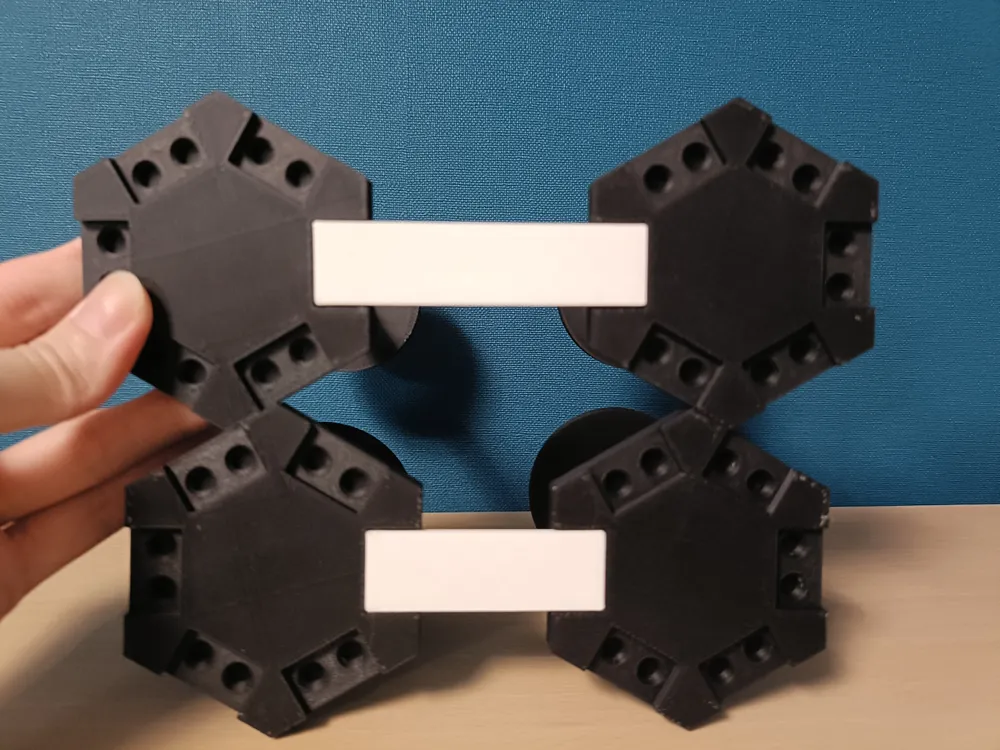

Spacer clips are also available to create roughly a 3 cm or 5 cm gap between blocks, for when you want them spread further apart.
