Clock bracket for Samsung G95 Monitor

Print Profile(1)

All
P1S
X2D
P1P
H2D
H2C
P2S
A1
X1
X1E
H2S
X1 Carbon
A2L
A1 mini
H2D Pro

0.2mm layer, 6 walls, 15% infill
0.2mm layer, 6 walls, 15% infill
Designer
43 min
1 plate

Open in Bambu Studio
Boost
0
0
0
0
0
0
Released

Description

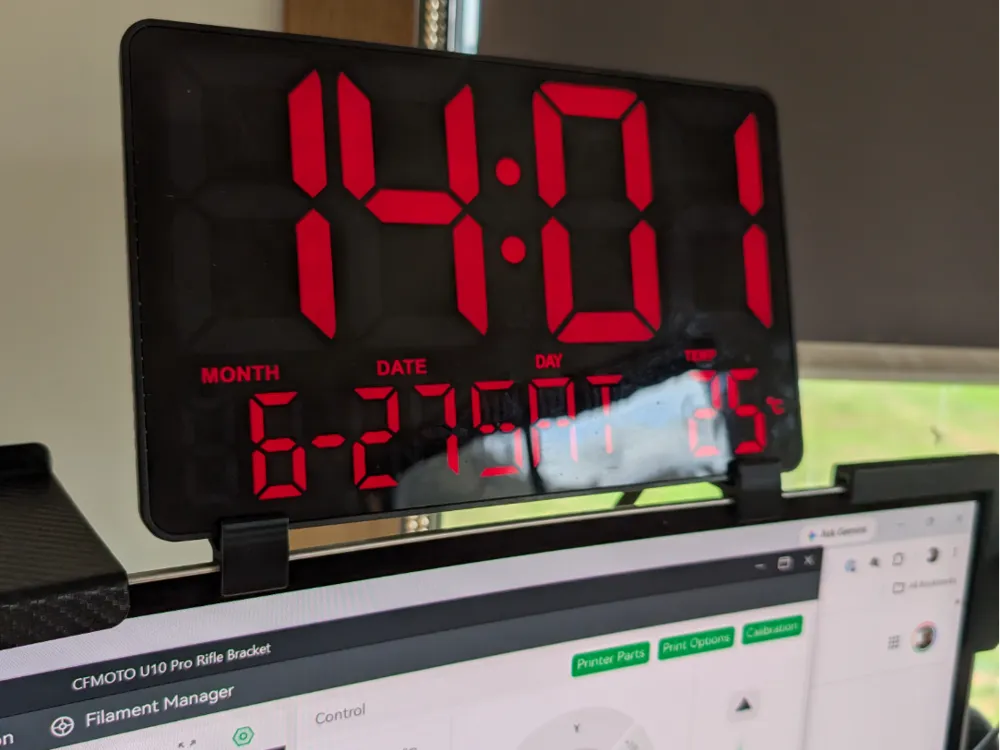

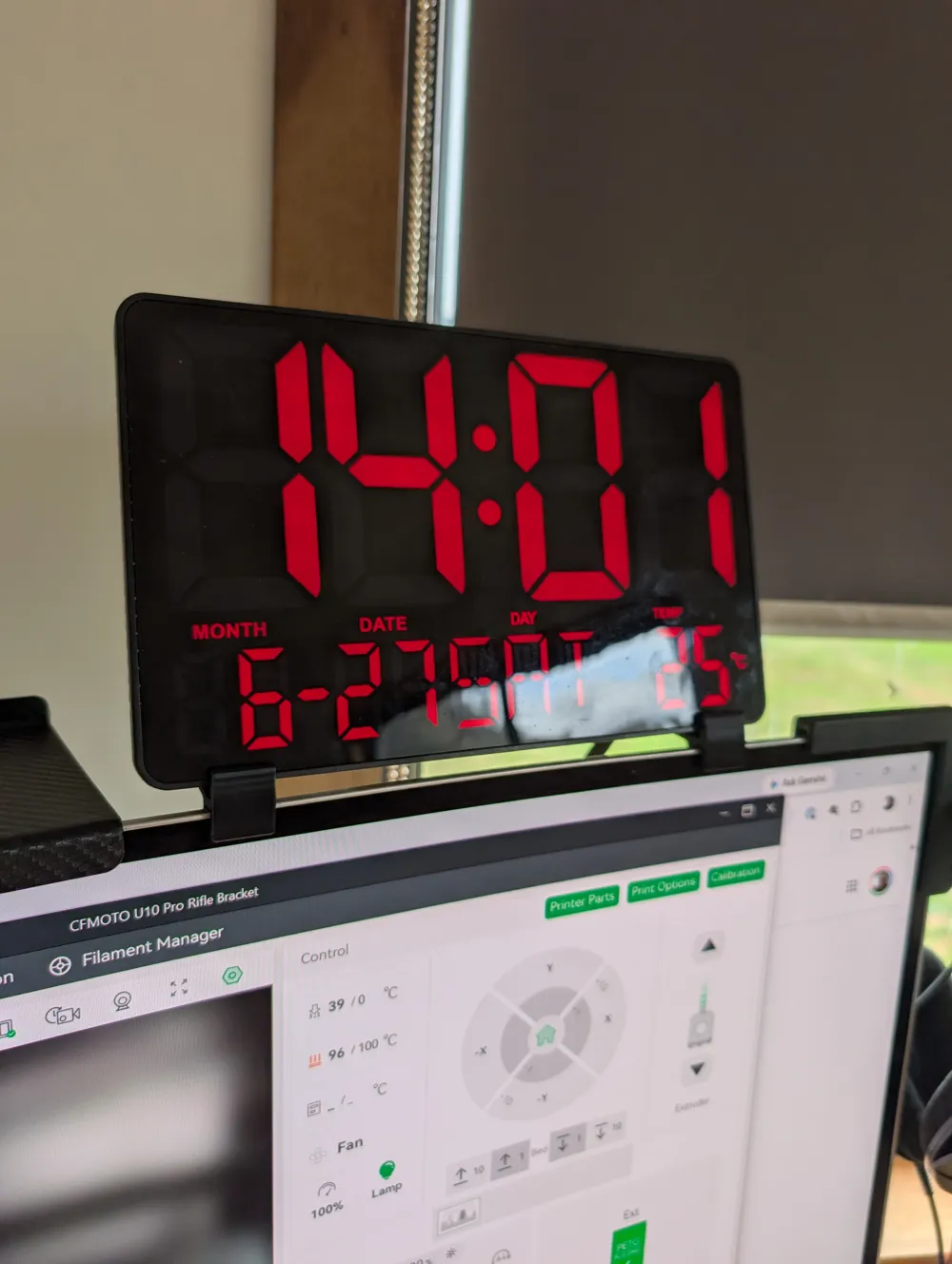

Holds my clock on top of my monitor at enough angle to not fall over and out when there is a shake. the position on the rim matters, you need to play. the monitor has different tolerances at different positions but it sits fairly good anywhere. Print two of them things and put your ali express clock on them. Check the measures in the original onshape link, as some clocks may differ. I have it leaning back at 20 degrees approximatly. my clock as 20mm thickness, and a filleted back. https://cad.onshape.com/documents/15803907c031c01645133872/w/62ff919ae65a8aa6f5dad0ed/e/d6c844574c43a43cd851cf1b?renderMode=0&uiState=6a3f4ce7cc872b5ee4b212fa
