T12 Portable Soldering Iron Holder - Adjustable Opening Design
Design Concept

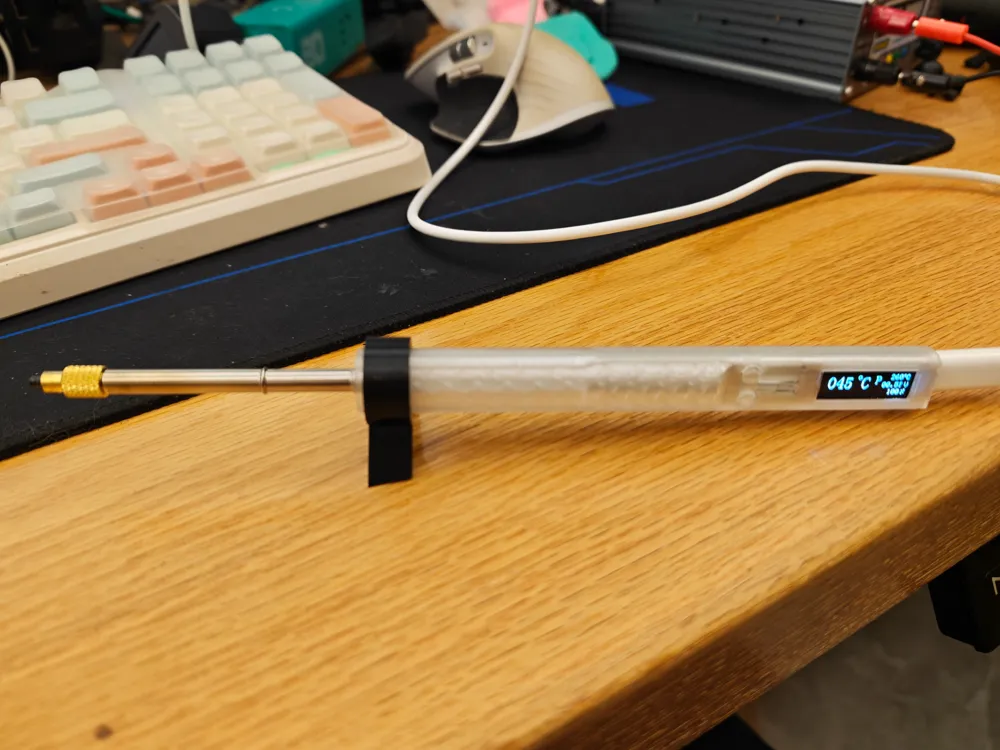

This holder is specifically designed for the T12 portable soldering iron, providing stable support for safely resting the soldering iron during welding work. It features a simple and practical design, easy to print and assemble.
Key Features

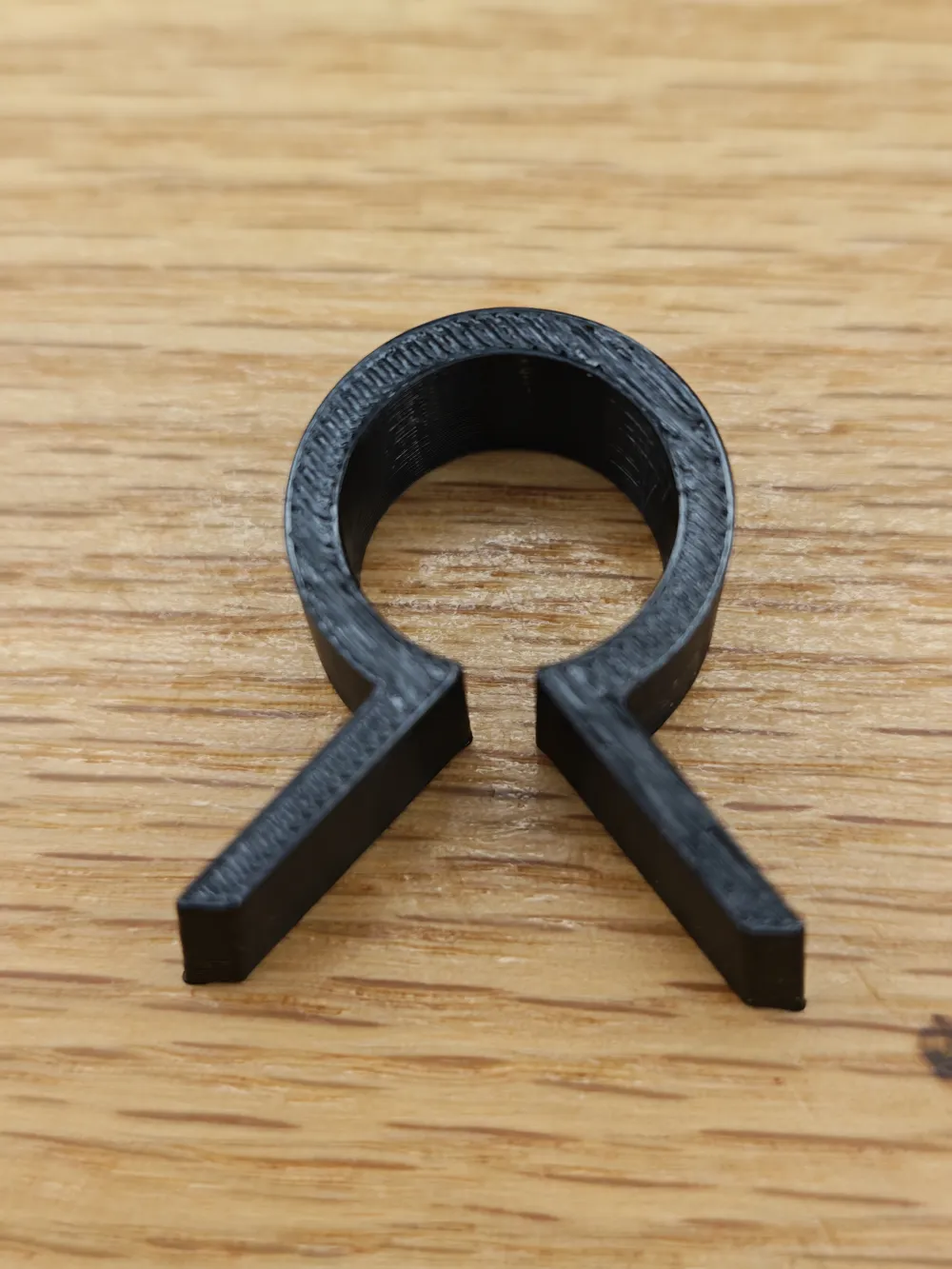

- Adjustable Opening: The opening diameter is approximately 15mm and can be freely adjusted in slicing software to fit different soldering iron sizes
- Portable Design: Compact structure, suitable for desktop use and easy to carry

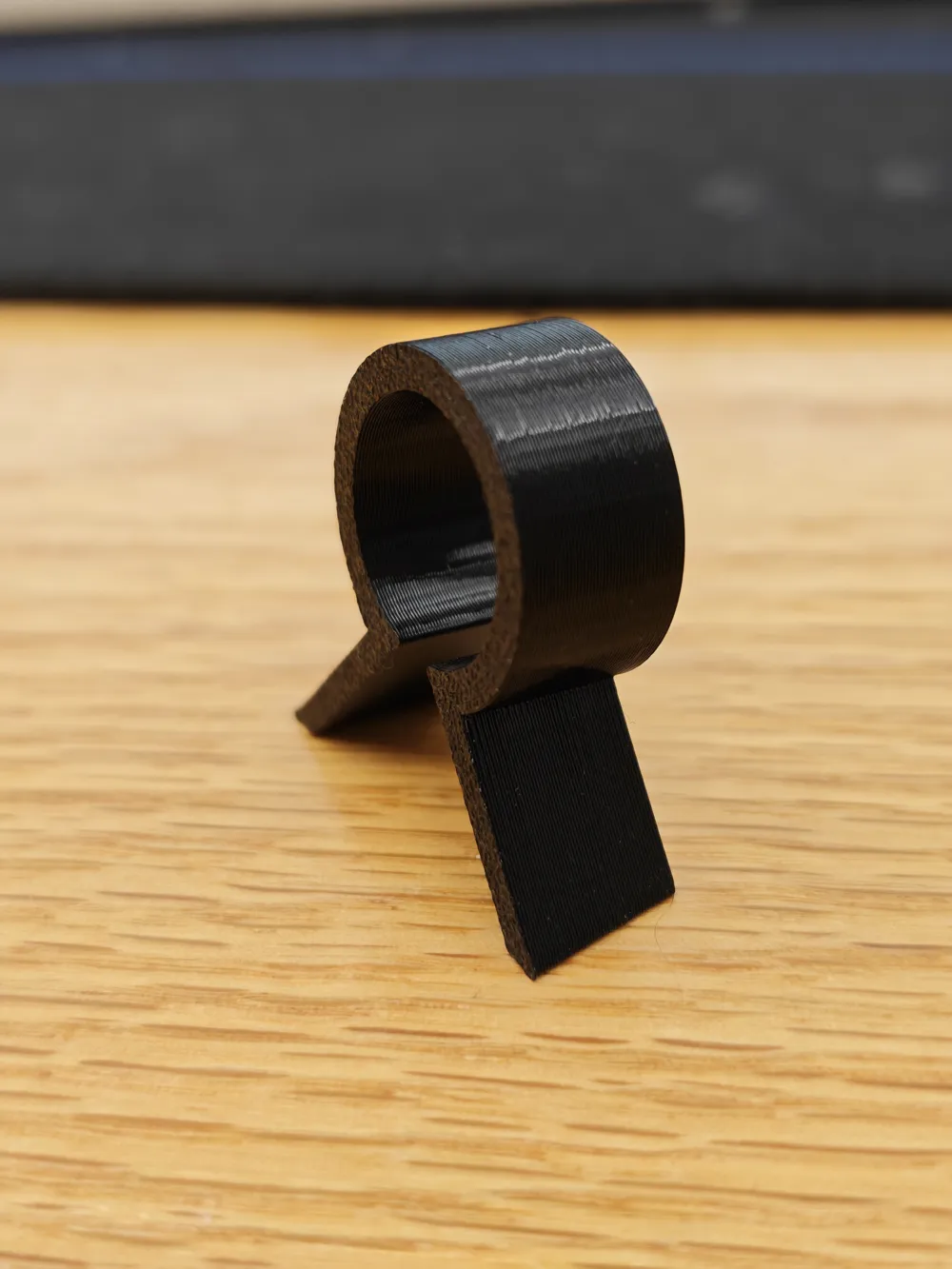

- Stable Support: Wide base ensures stability, preventing tipping
- Easy to print: No support structure needed, short printing time
- Material Compatibility: Supports various materials such as PLA, PETG, ABS
Dimensions
- Inner Diameter of Opening: 15mm (default, adjustable in slicing software)
Recommended Printing Parameters
- Layer Height: 0.2mm (balances print quality and speed)
- Infill Density: 20-30% (ensures sufficient strength)
- Wall Thickness: 3 layers (approx. 1.2mm)
- Top/Bottom Layers: 4 layers
- Print Speed: 50-60mm/s
- Supports: No support structure needed
Material Selection
- PLA: Easy to print, suitable for general use, but with average heat resistance (approx. 60°C)
- PETG: Better heat resistance (approx. 80°C), suitable for frequent use
ABS: Best heat resistance (approx. 100°C), but requires an enclosed environment for printing
