Enclosure for Adafruit Feather RP2040
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
24 min
1 plate
Open in Bambu Studio
Boost
3
6
0
1
3
3
Released
Bill of Materials
List other parts
- 1.4mm*4 bolts x 4:
- Adafruit Feather RP2040 board x 1:
- 250mAH Li-po battery of dimensions 3X20X31 MM x 1: tucked under the board between the header pins
- Toggle Switch of dimension 9(W)X13(L)X10.5(D) MM x 1:
Description

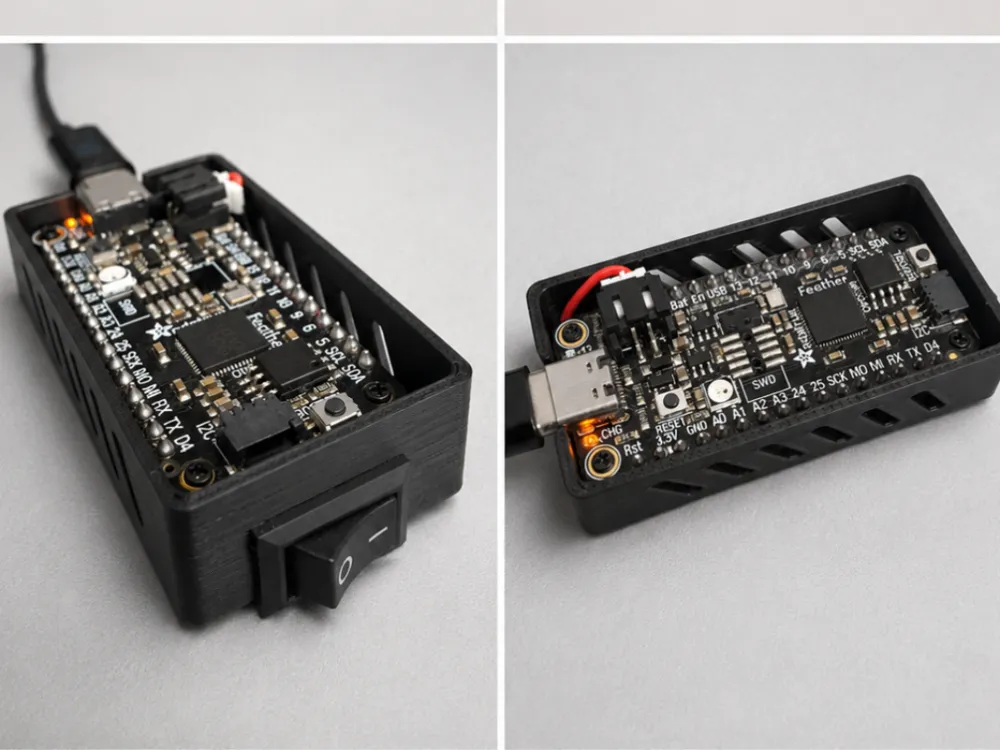

As i was learning to code RP2040, i designed this enclosure to have following options:
1. USB Type C port should be accessible.

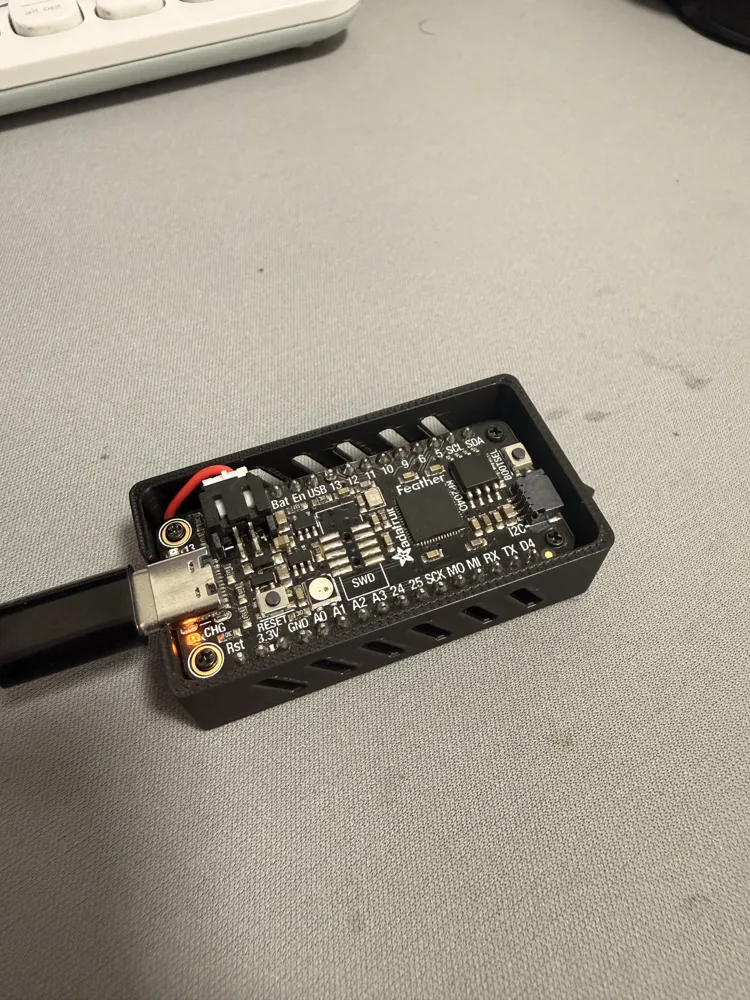

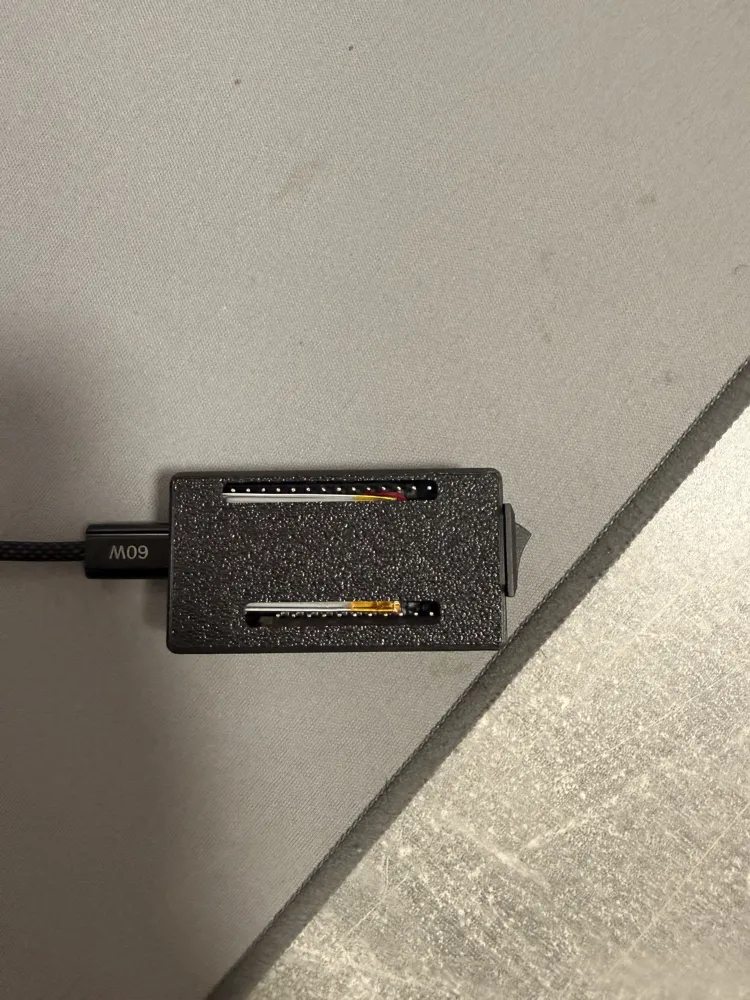

2. There should be space for header pins and those should be accessible from other side

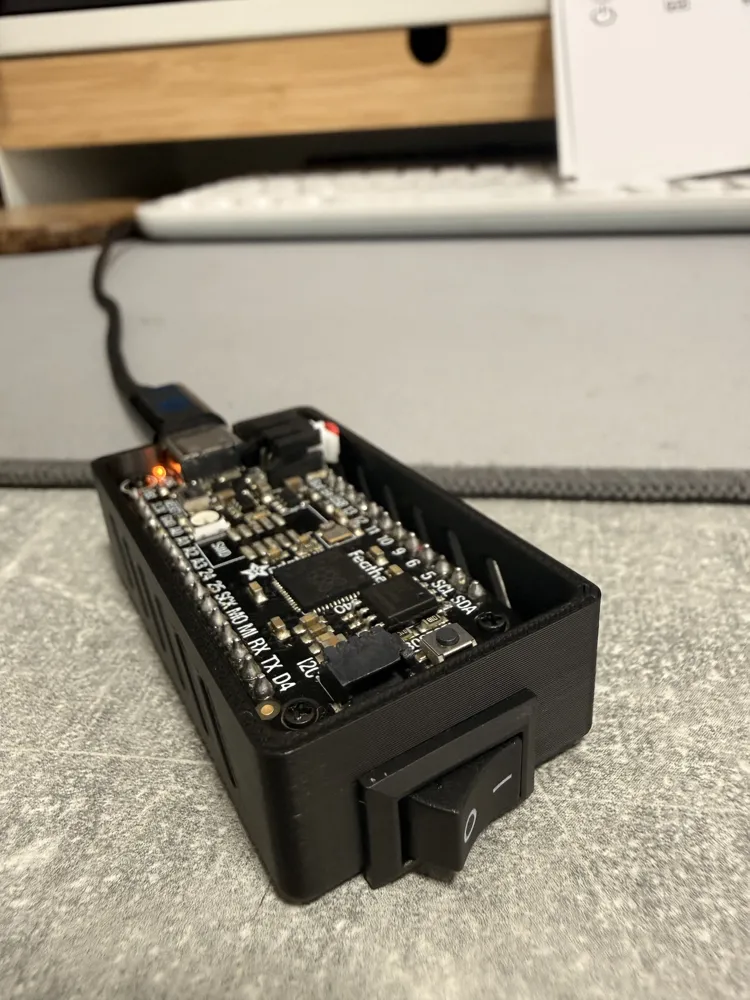

3. Option to add On-Off Switch
4. Little space for a small battery
