Dual AMS Stacker | Linkage-Driven

Features:

• Fully 3D printed – No screws, No glue, No additional hardware required.
• Linkage-driven design – Two AMS units move simultaneously with a single action.
• Wide compatibility – Fits both 256mm and 320mm build plate printers (X1/P1/A1 and H2 series).
• Support-free printing – No even any supports or raft needed, print and assemble right away.
• Pegboard ready - Supports SKÅDIS pegboards and can be adapted to other side-panel storage way depends on your imagination.

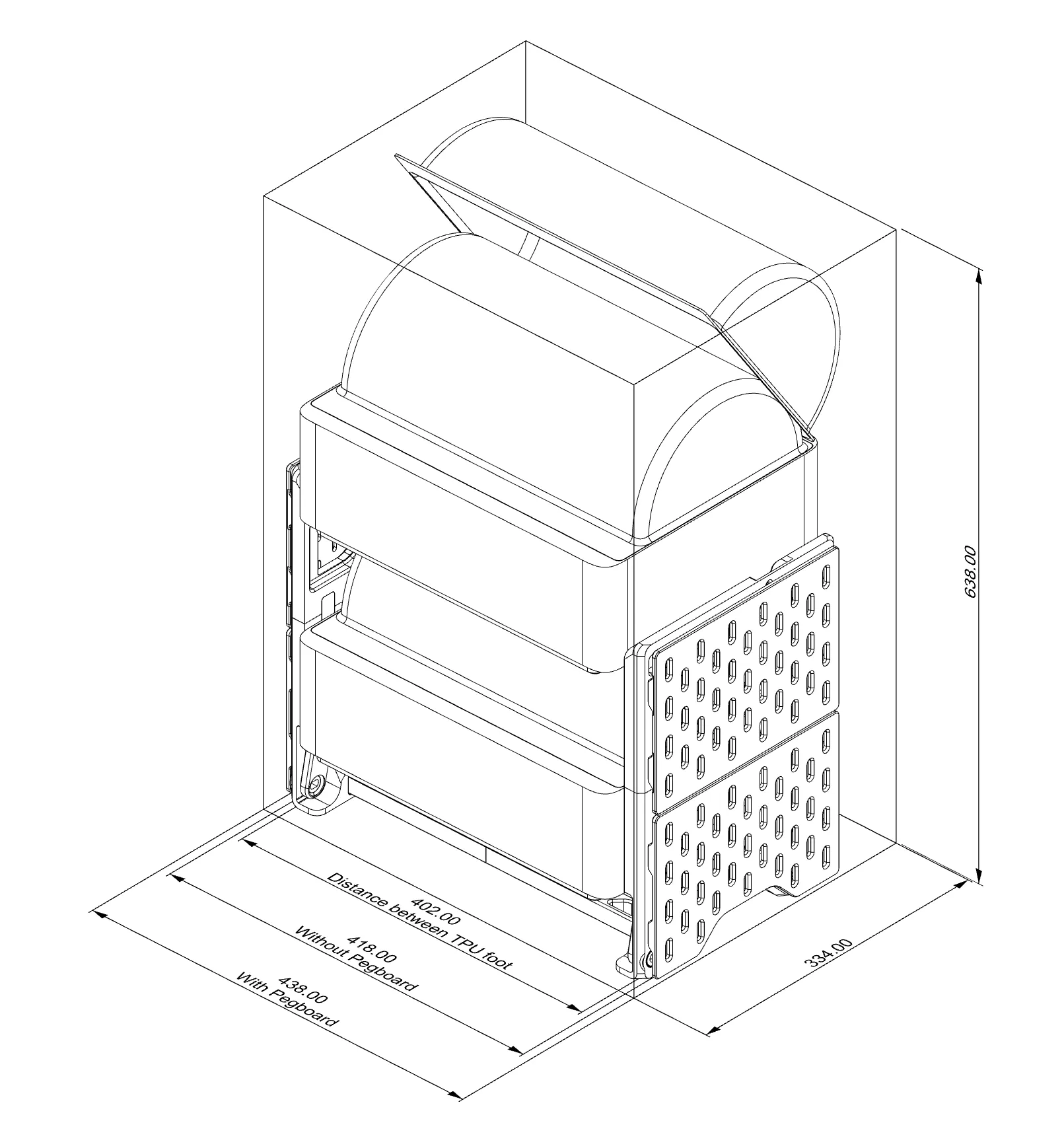

Diamentions

X:402mm (Distance between TPU foot)
X:418mm (Without Pegboard)
X:438mm (With Pegboard)
Y:334mm (With back clearance for cap and PTFE tube)
Z:638mm (Minimum height for taking out of filament on the upper AMS)


Minimum Print for Basic Function

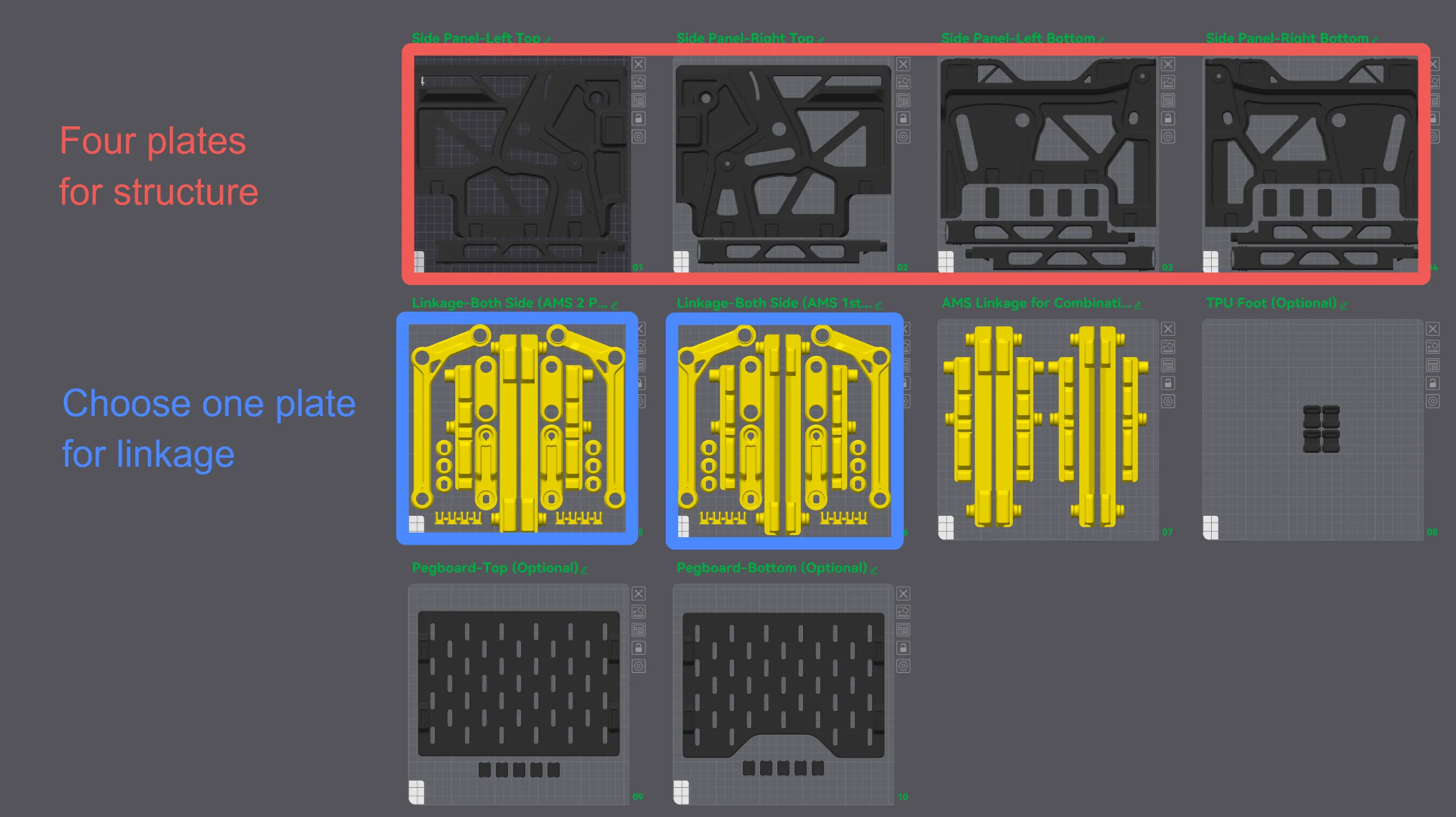

To achieve the basic functionality, you only need to print the side panel and the linkage system.

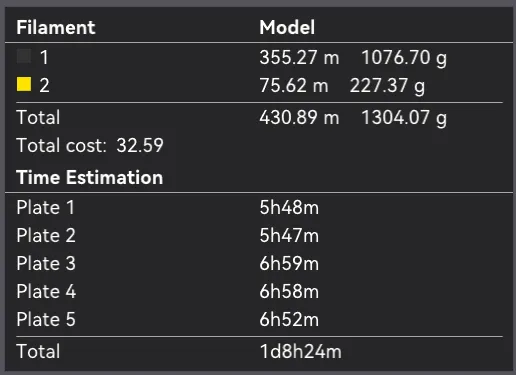

• Build plates: 5
• Print time: 1 day, 8 hours, 25 minutes
• Filament: About 1305 g total (1077g for the structure, 227g for the linkage)

Assembly Guide:

Attention!

The linkage features a self‑locking design that keeps the upper AMS stays in position regardless of different loads on two AMS.
Operation:

• Lift the upper AMS to open the stack.
• Push the lower AMS inwards to fold it back.

Coming Soon

• Build Plate storage under the Stacker.
• Base for placing on the top of X/P printers.
• Cap holder for Bottom AMS.
