RALENO PLV-S116 Square Grid / Eggcrate
Print Profile(1)
Description
Lightweight Square Grid / Eggcrate Attachment for the RALENO PLV-S116 LED Video Light.
This version is an alternative grid variant to the honeycomb version and uses a classic square grid, similar to those known from softbox grids. The attachment helps to reduce light spill and direct the LED light more precisely.

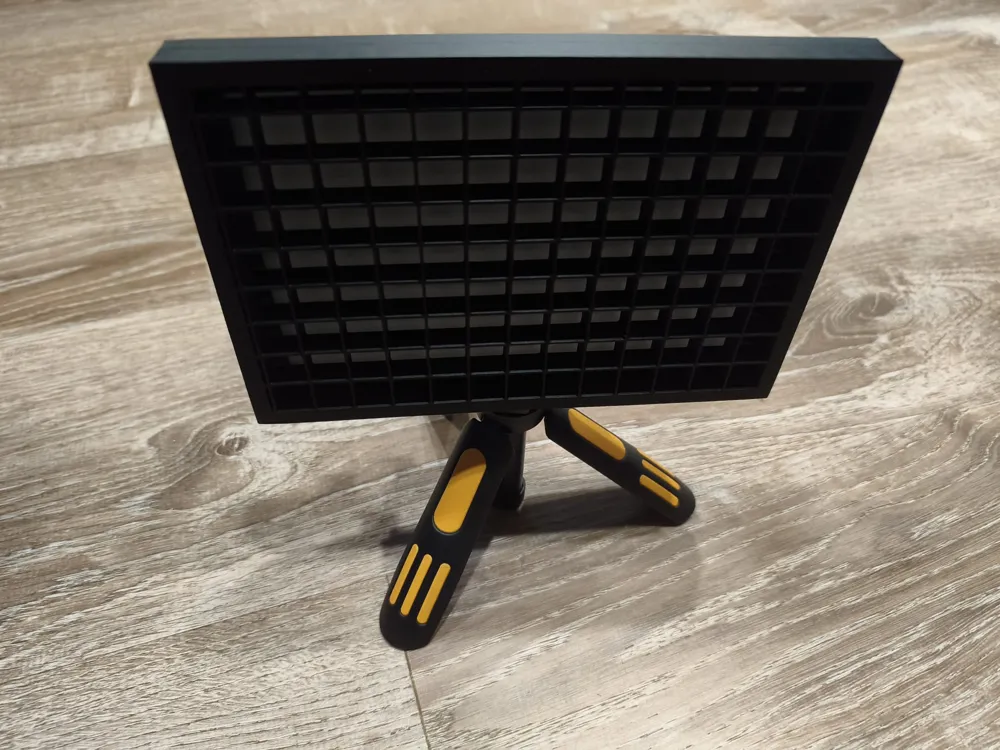

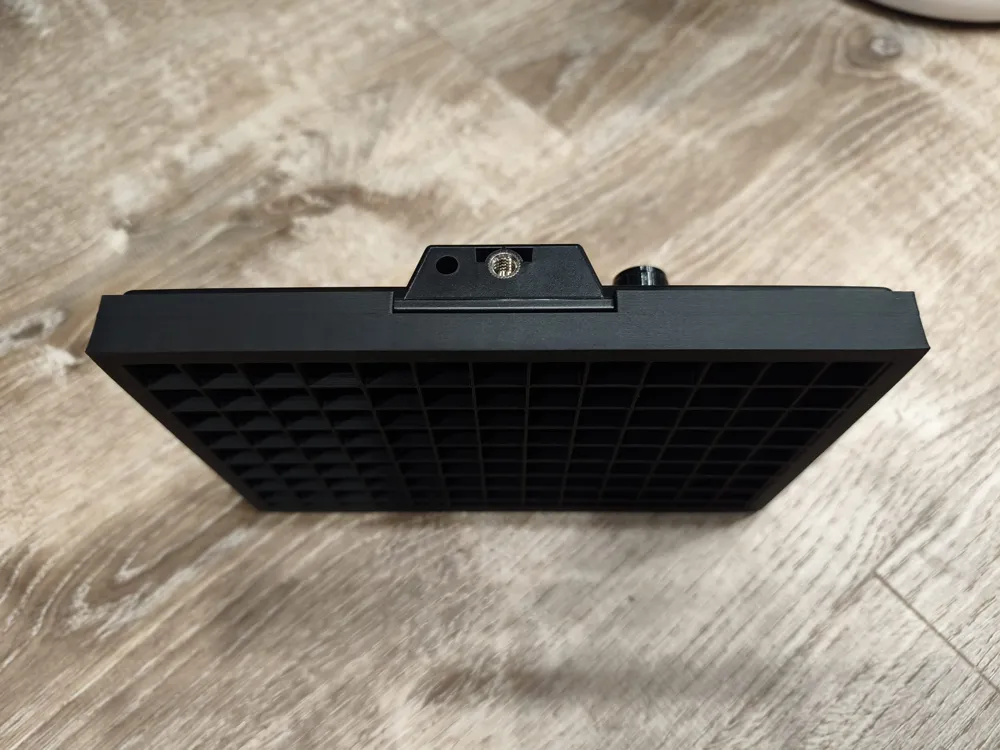

The model was specifically designed for the RALENO PLV-S116 and is attached to the light from below. The central tripod cutout allows for attachment even when the light is already mounted on a tripod, ball head, or quick release plate.
The print was tested in PLA as a prototype and fits my RALENO PLV-S116 perfectly. For final use, I recommend PETG or ASA, as these materials are more temperature resistant.
This is a self-designed 3D-printable accessory and not an official RALENO product.
Fast print profile for the RALENO PLV-S116 Square Grid / Eggcrate
Recommended print settings:
0.4 mm nozzle
0.24 – 0.28 mm layer height
2 walls
0 – 10% infill
no supports

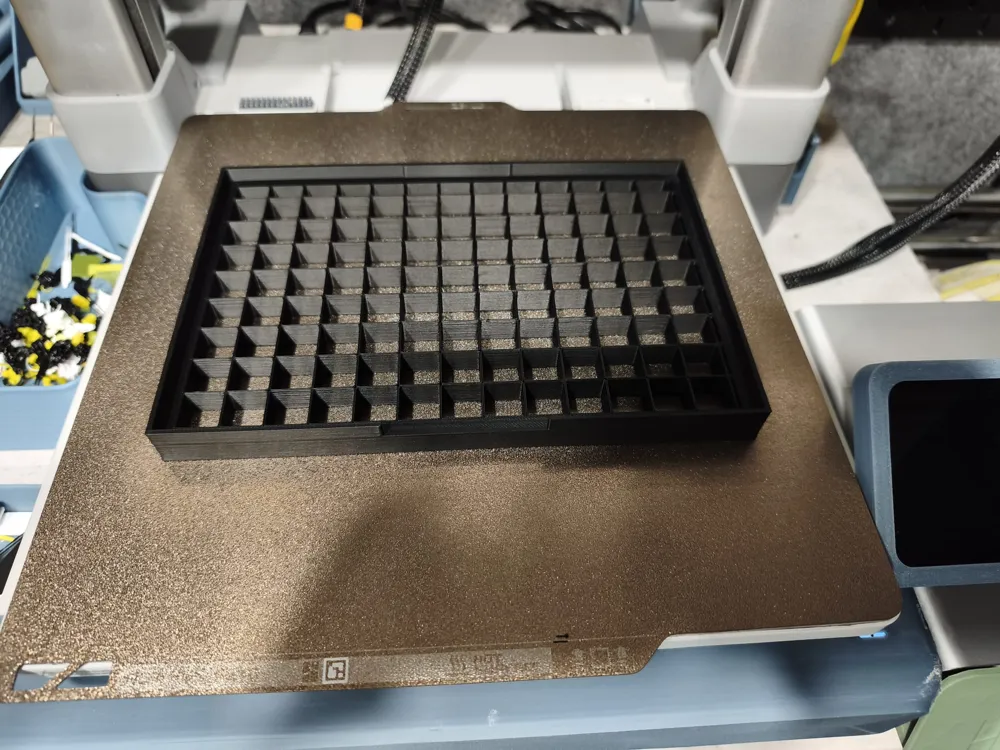

Grid side down on the print bed
Textured PEI plate recommended
Material:
PLA is suitable for a prototype.
For final use, PETG or ASA are recommended, as these materials are more heat resistant.
The model is designed for short print time, low material consumption, and easy assembly.
