Sihoo B100 Chair Headrest Extender
Print Profile(1)
Description
The Sihoo B100 chair offers excellent value for money. It's high quality, comfortable, aesthetically pleasing, and affordably priced.

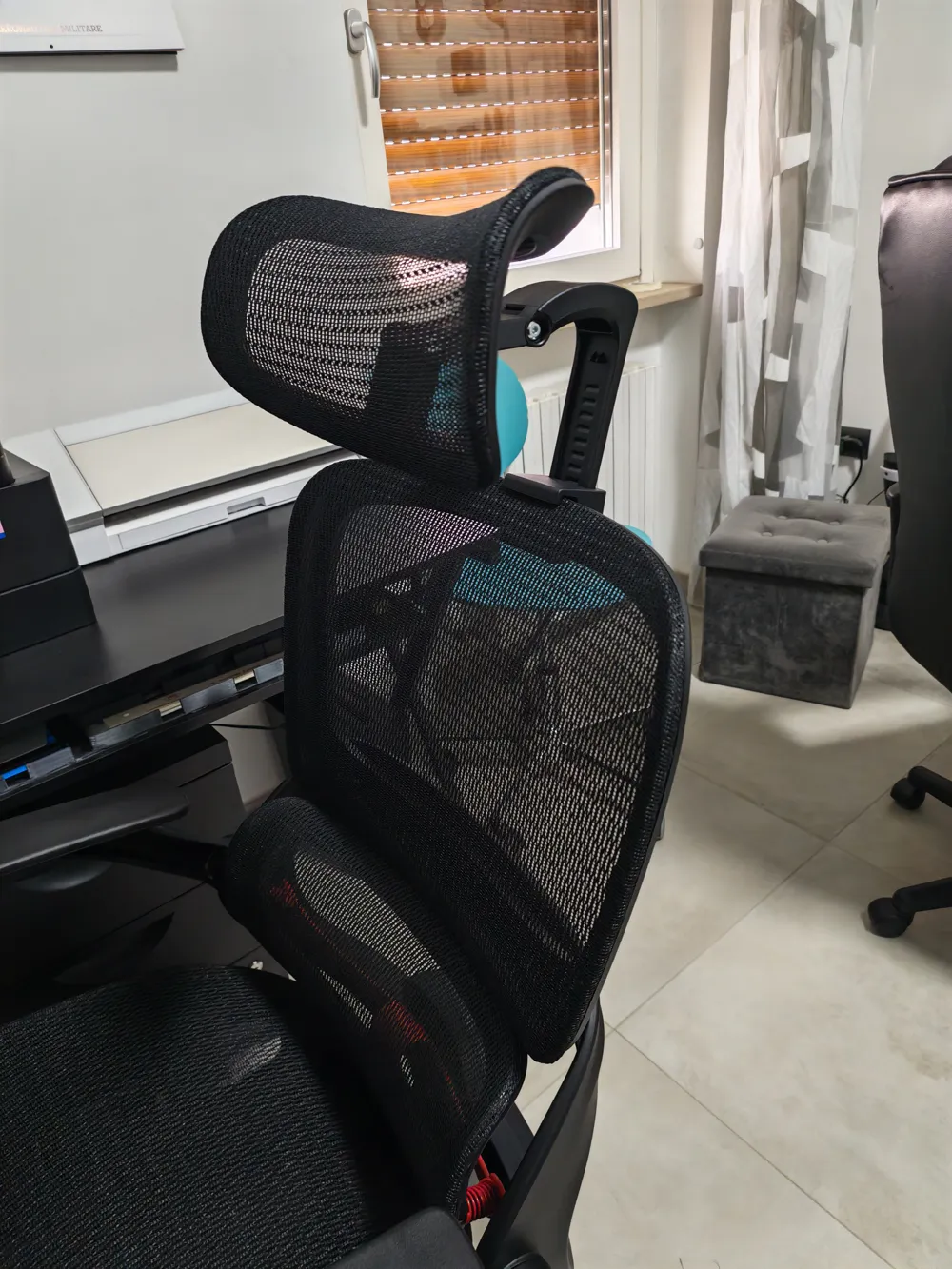

But the headrest is very poorly designed. It's practically useless!!

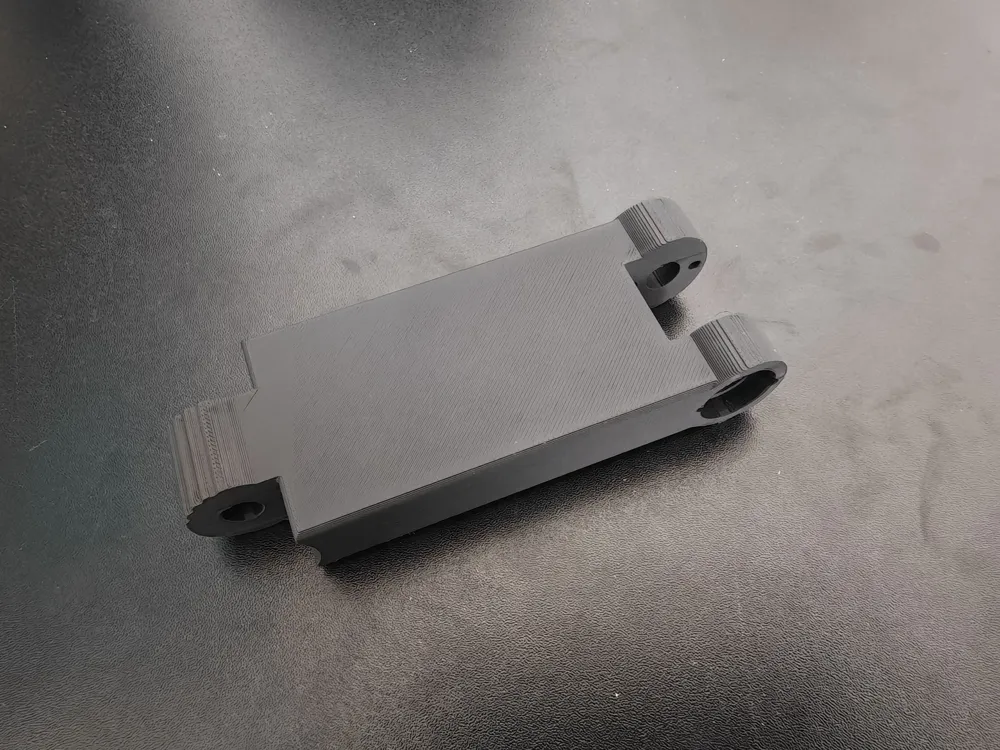

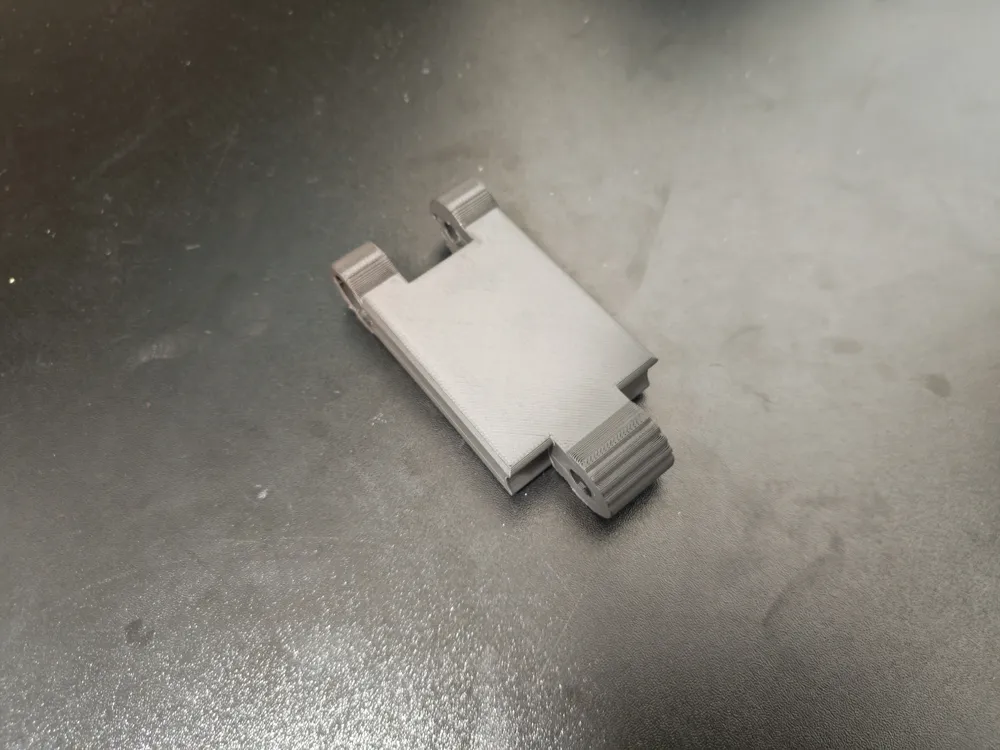

This extender, honestly, took much more time and print trials than I expected, due to the small tolerances that allow not only the interlocking but also the slowing of movements. But I am very satisfied with the result.

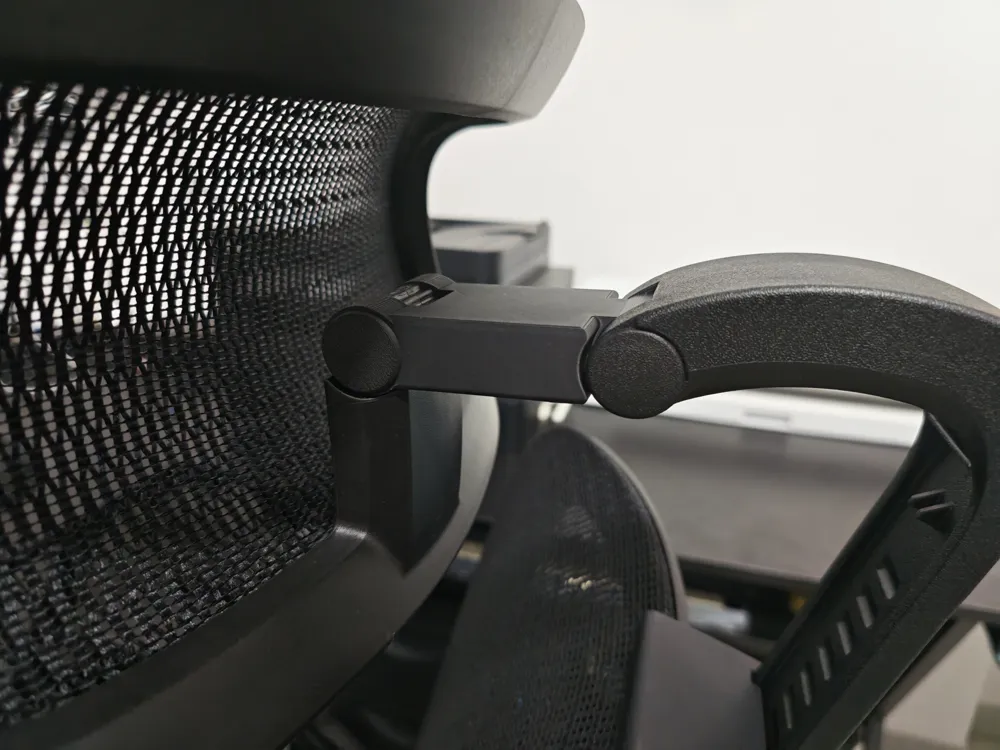

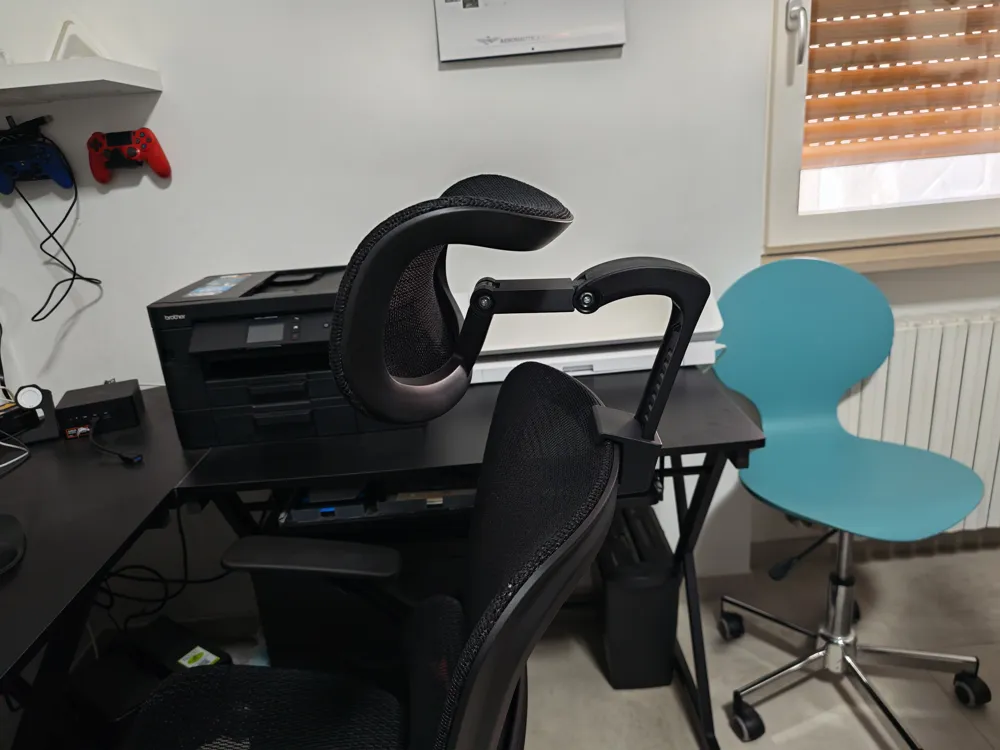

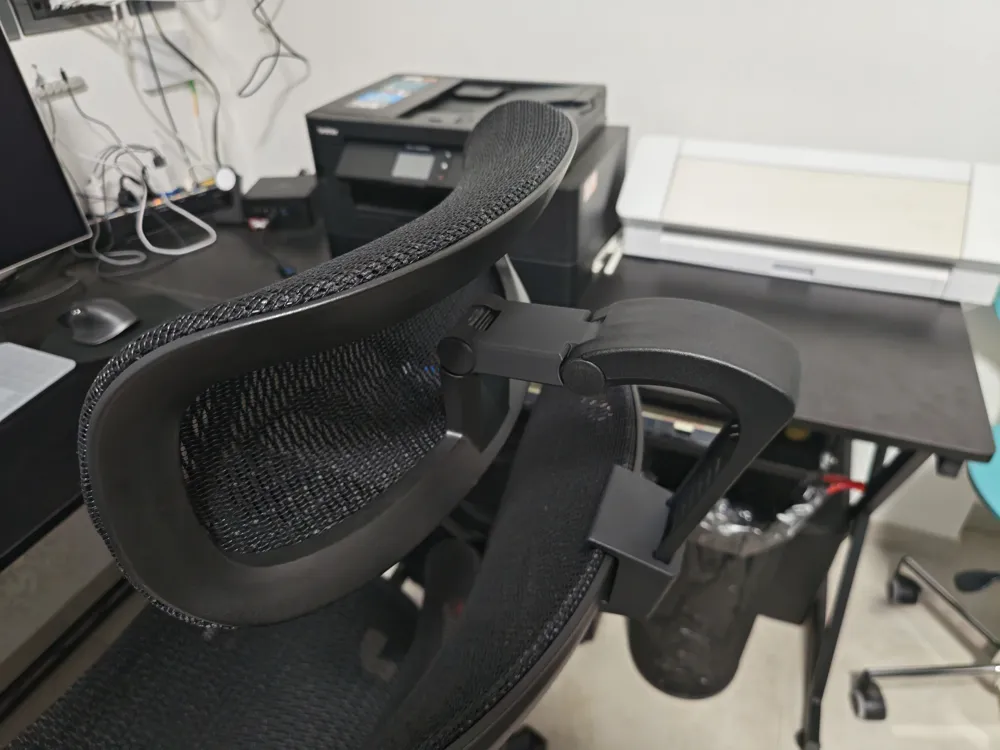

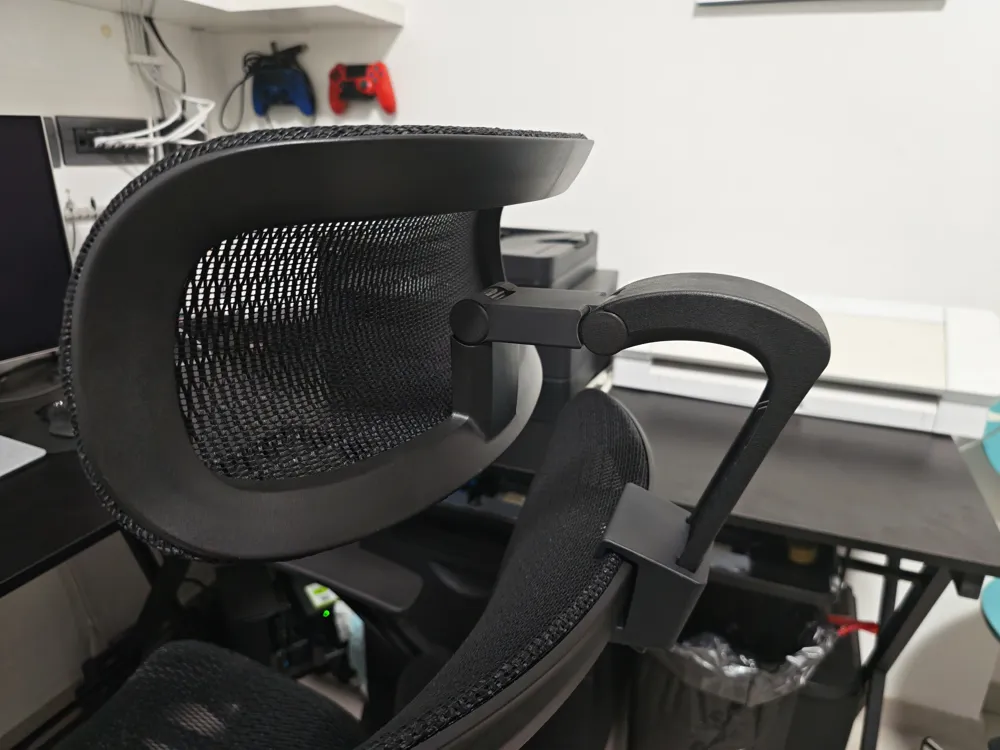

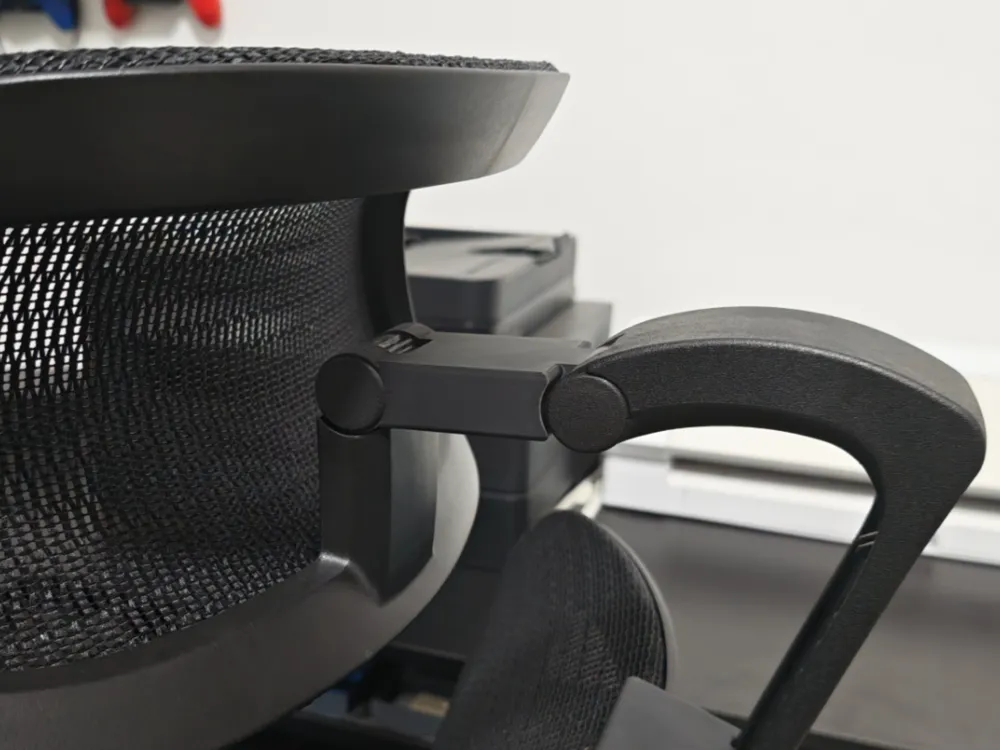

It allows the headrest to be moved closer by 5, 6.5, or 9 cm. I believe most people will find the 5 cm one suitable. But it's a subjective thing.

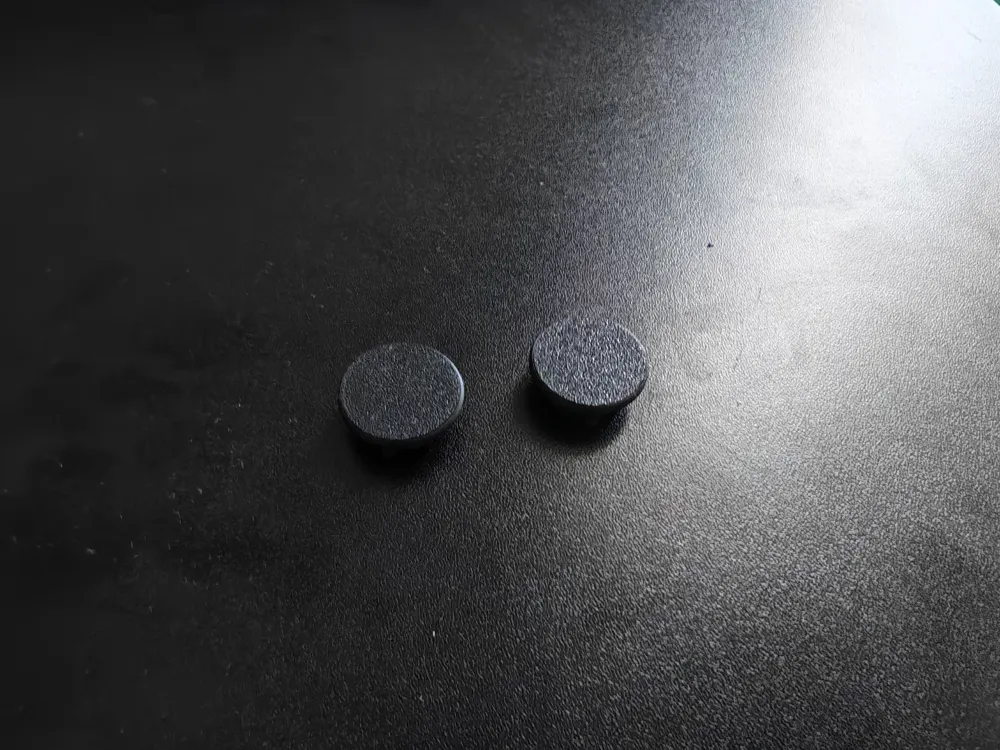

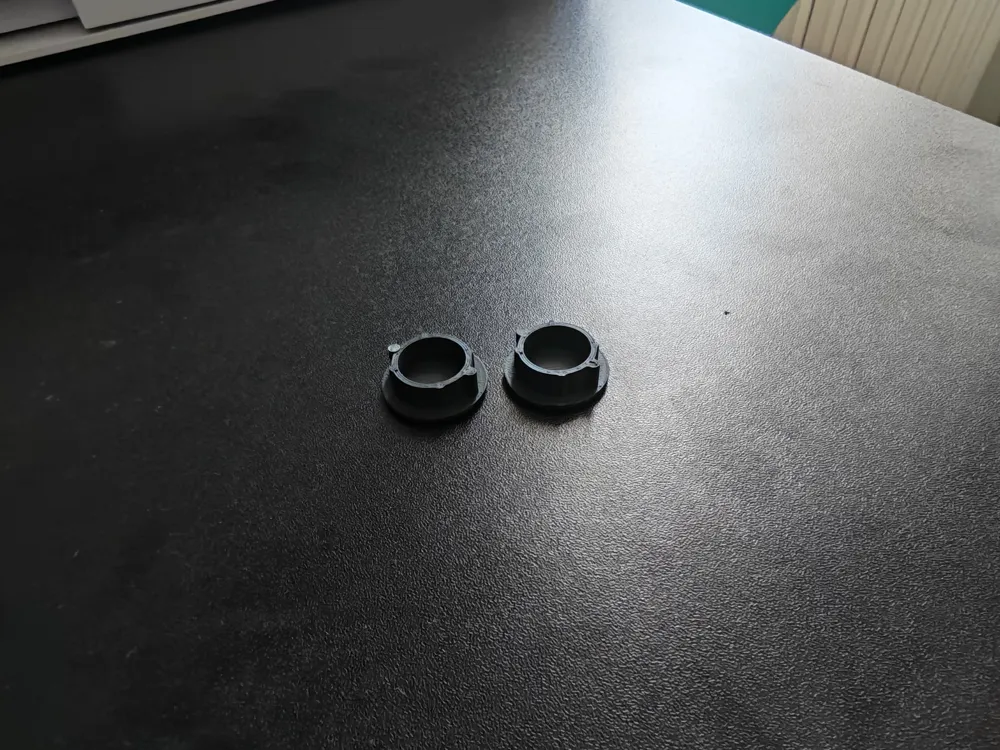

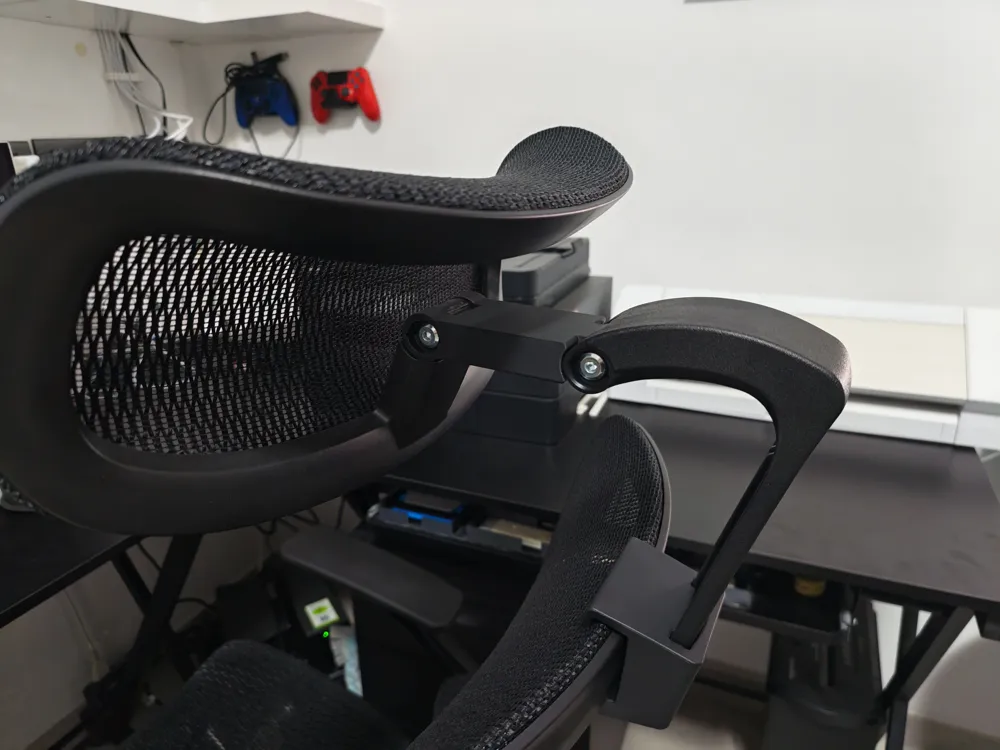

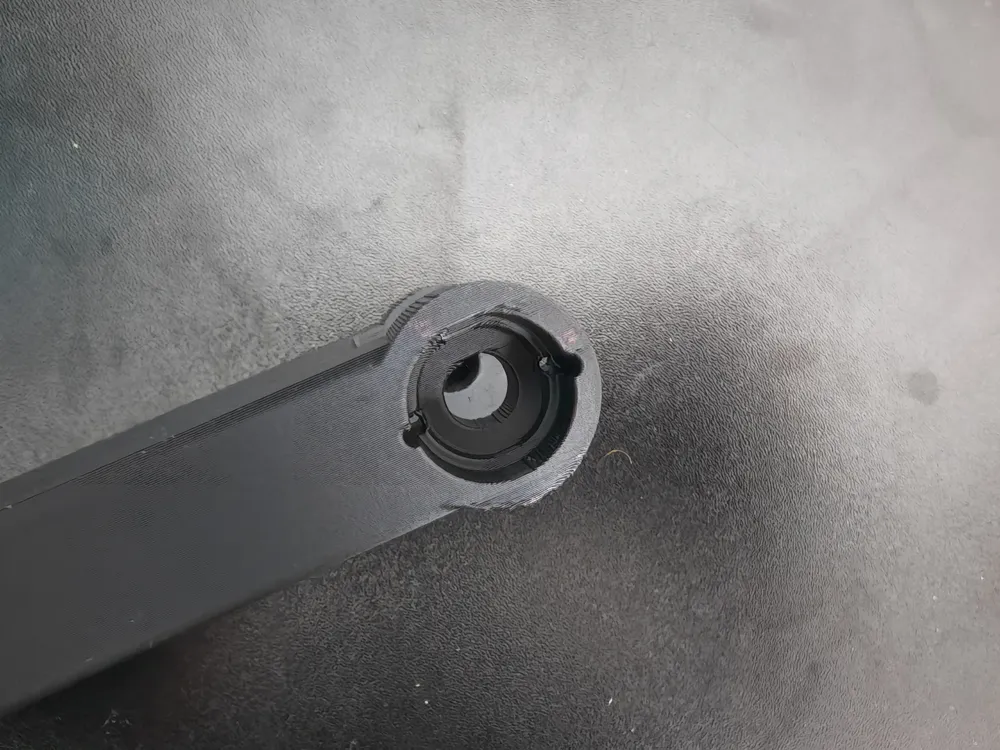

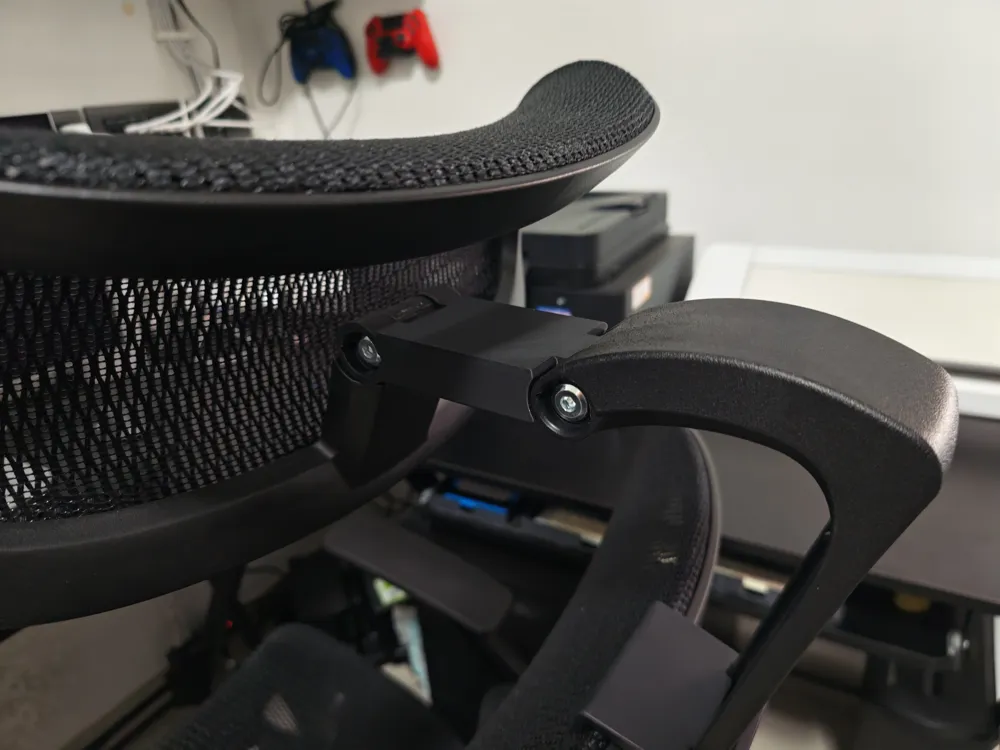

The additional pin found in the original hardware must be used. The 2 original screw covers and the 2 from this print are used.

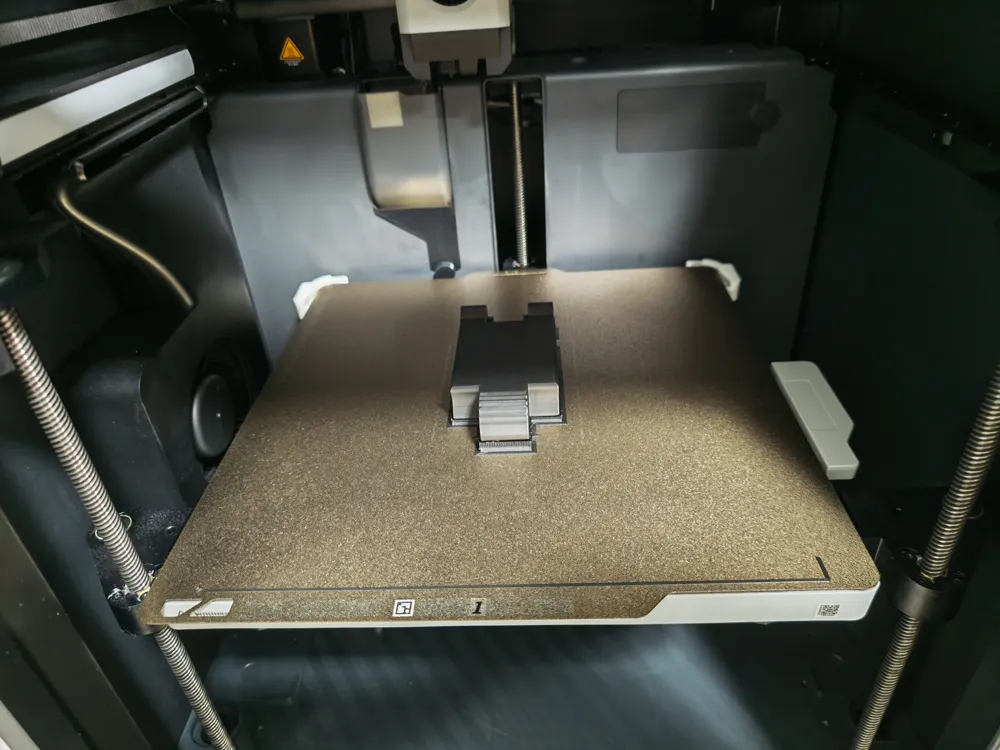

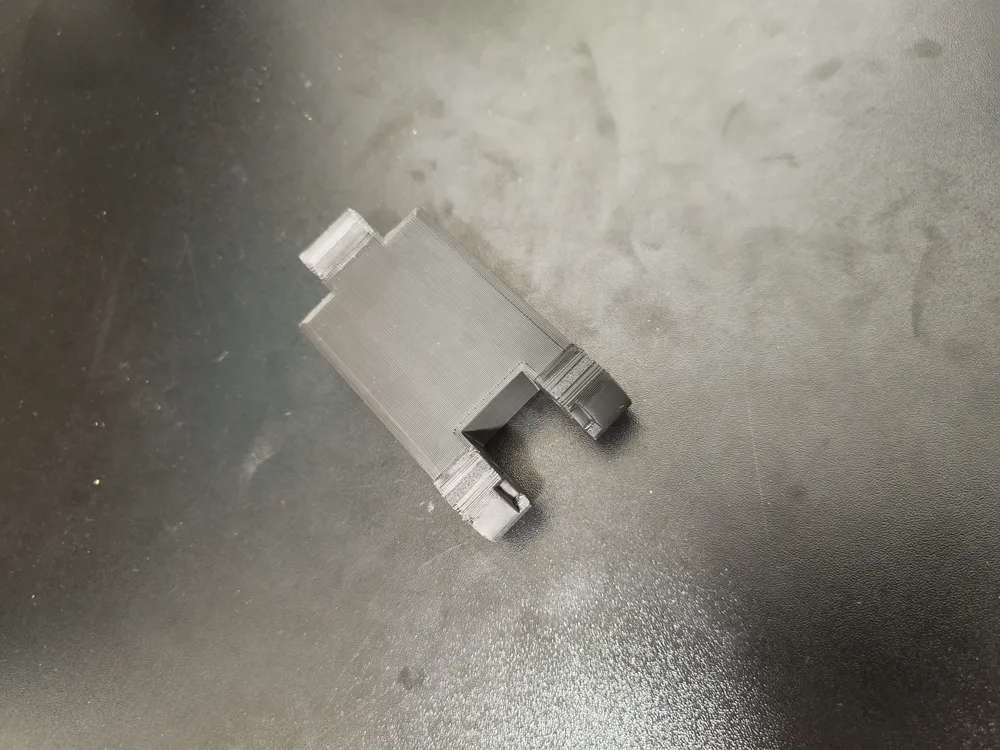

The bottom surface is not visible. But if you want it to be perfectly smooth, you can use Bambu support filament or PETG, to reduce the support gap to 0 mm.
It's designed for the Sihoo B100, also called Lite. I don't know if it's also compatible with the Pro. I also don't know if the Pro has the same problem.
PLA works very well and is more than strong enough.
