Cable Gland Thread Enlarging Adapters M16 - M40
Print Profile(1)
Description
Via this link you can view all my different electrical designs Click Here!
Boost Me (for free)
If you feel like this model helped you out, consider boosting me for free. Thank you.

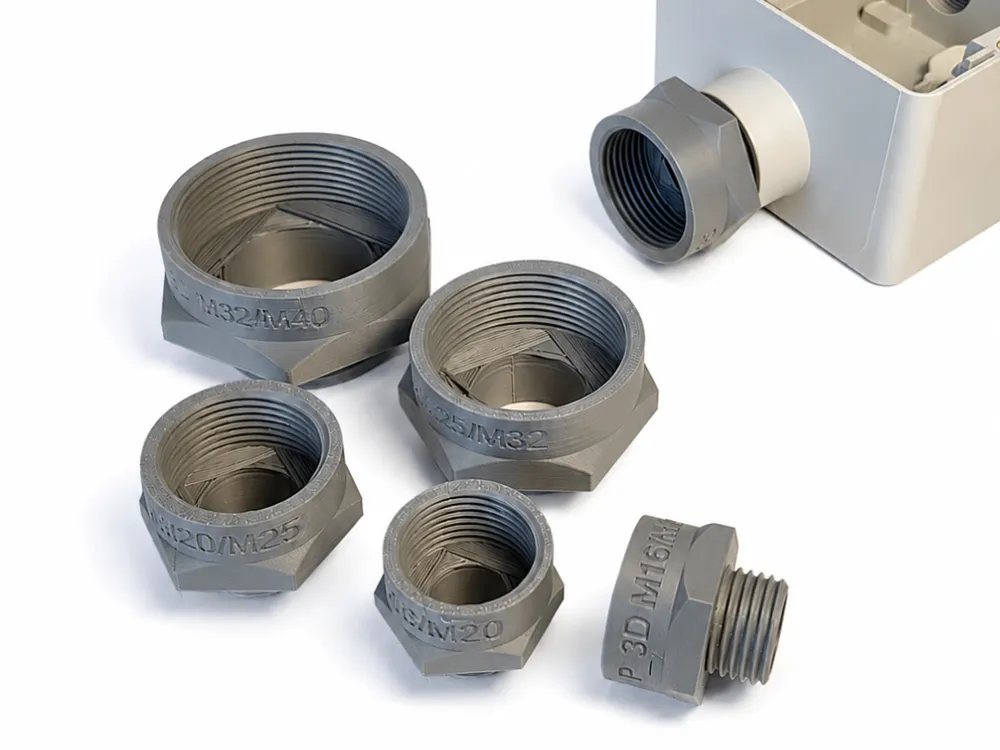

A set of metric cable gland enlarging adapters inspired by OBO style fittings. These adapters allow you to increase the thread size while maintaining a clean and professional installation without the need of drilling and optionally tapping a bigger hole. Another use case of these is when bringing in an armored cable. These are thicker and usually don't fit a M20 gland. In this case a M20 to M25 can be used with a cable that is stripped just past the M25 gland.
Included sizes:
- M16 → M20
- M20 → M25
- M25 → M32
- M32 → M40
- Ask me for more sizes!
Designed for 3D printing without supports. Perfect for electrical enclosures, junction boxes and DIY projects.
