air conditioner, VMC, or other exhaust reducer
Print Profile(1)
Description

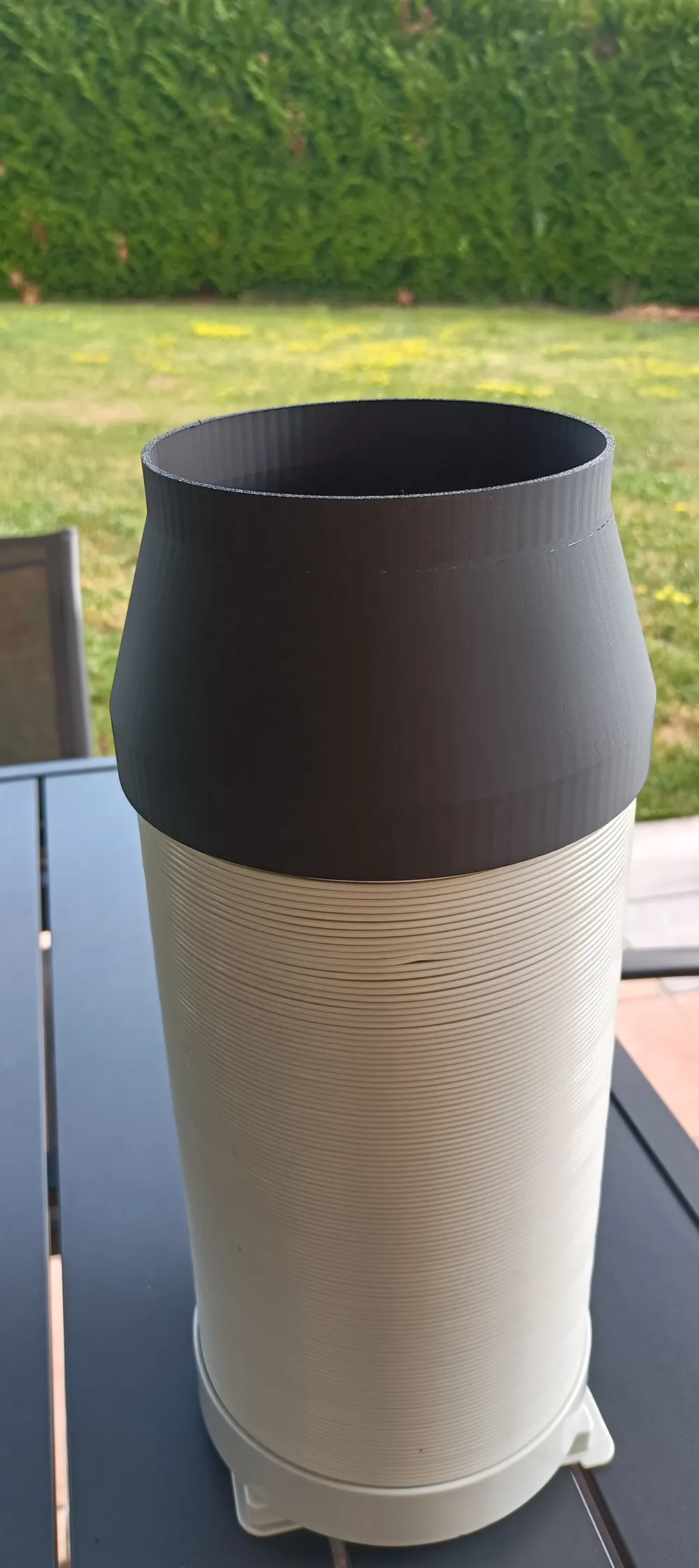

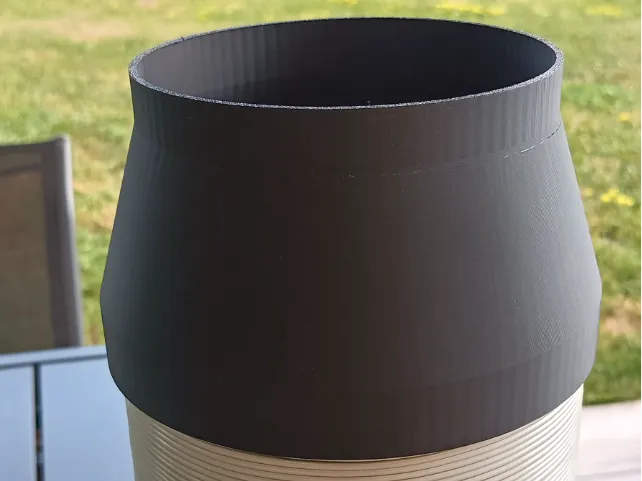

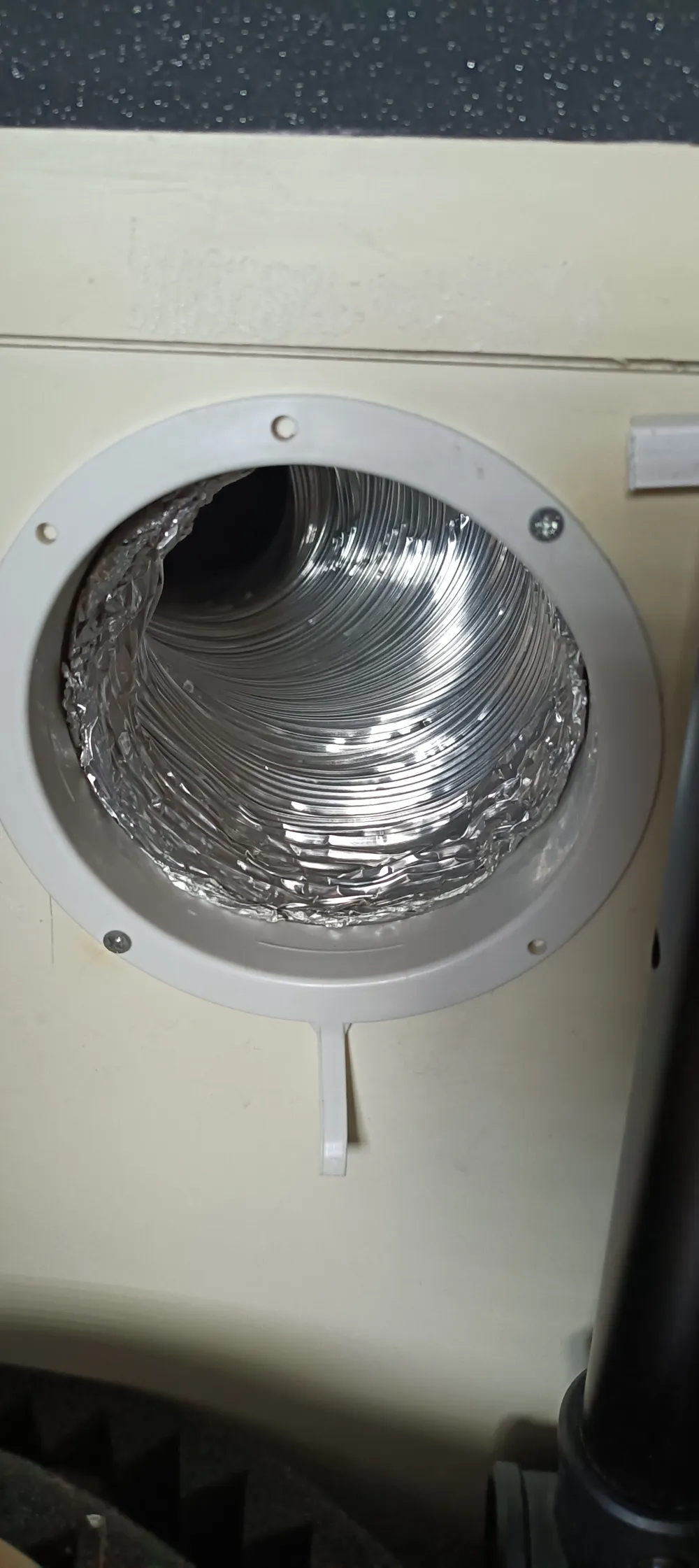

I made this reducer tube to be able to put my portable air conditioner in my office. I have a VMC outlet in my office designed for it, but my AC's exhaust hose was too big. So I made one.
The VMC side diameter is 124.3 mm external with a 1cm offset to fit it well.
the AC hose side diameter is 151 mm internal!

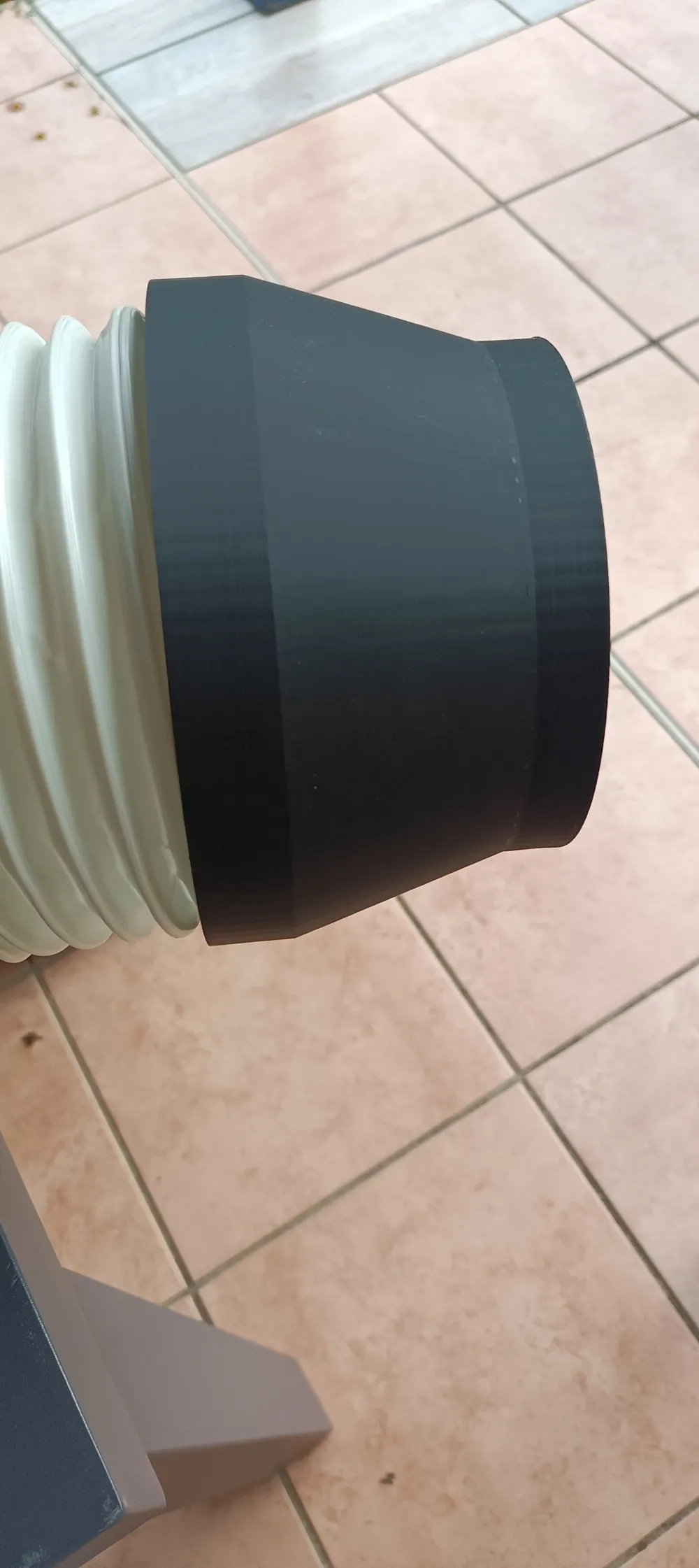

I added notches inside the AC hose side so that the hose holds well and doesn't come out!
To do this, simply screw it clockwise.

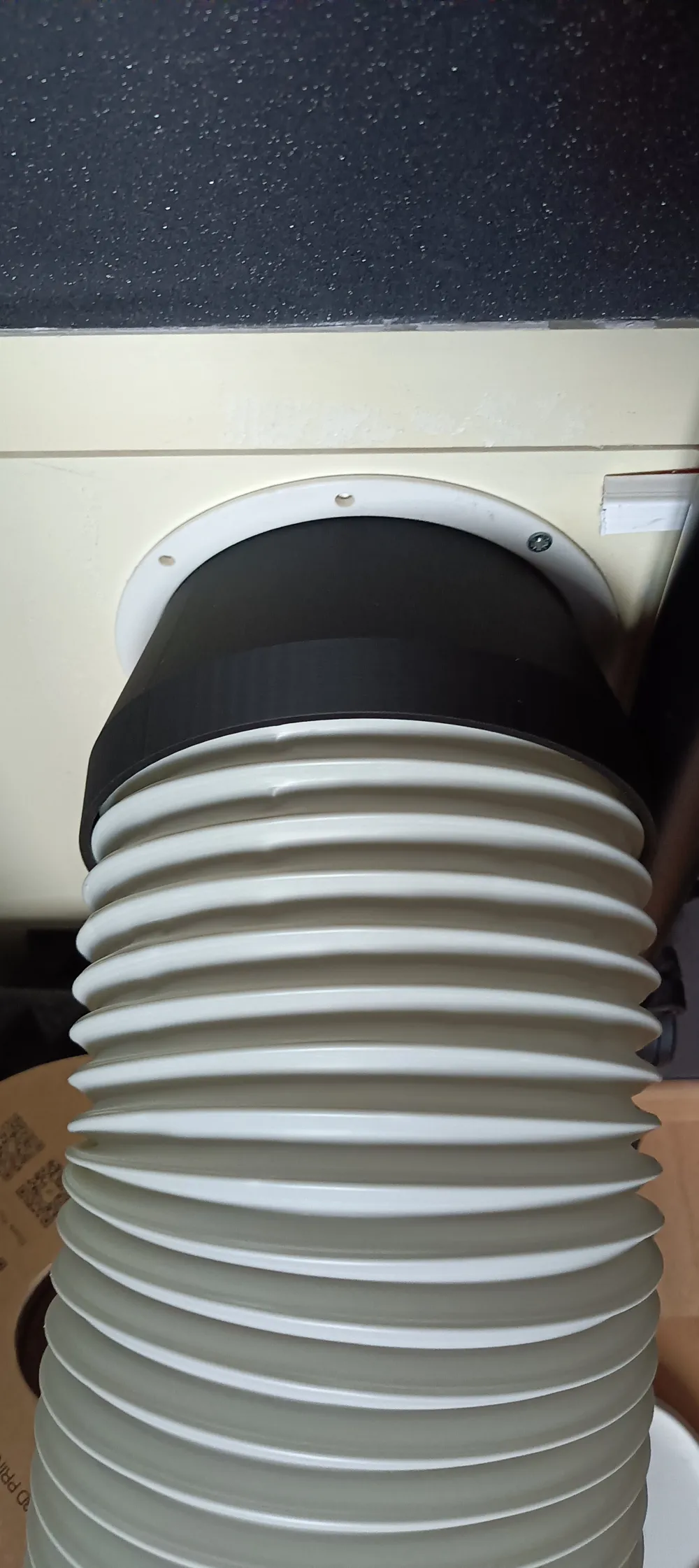

easy to install
It works very well for me.
for my part
I printed it in PLA, 0.20mm standard
infill 20%
with support
nozzle diameter 0.4
