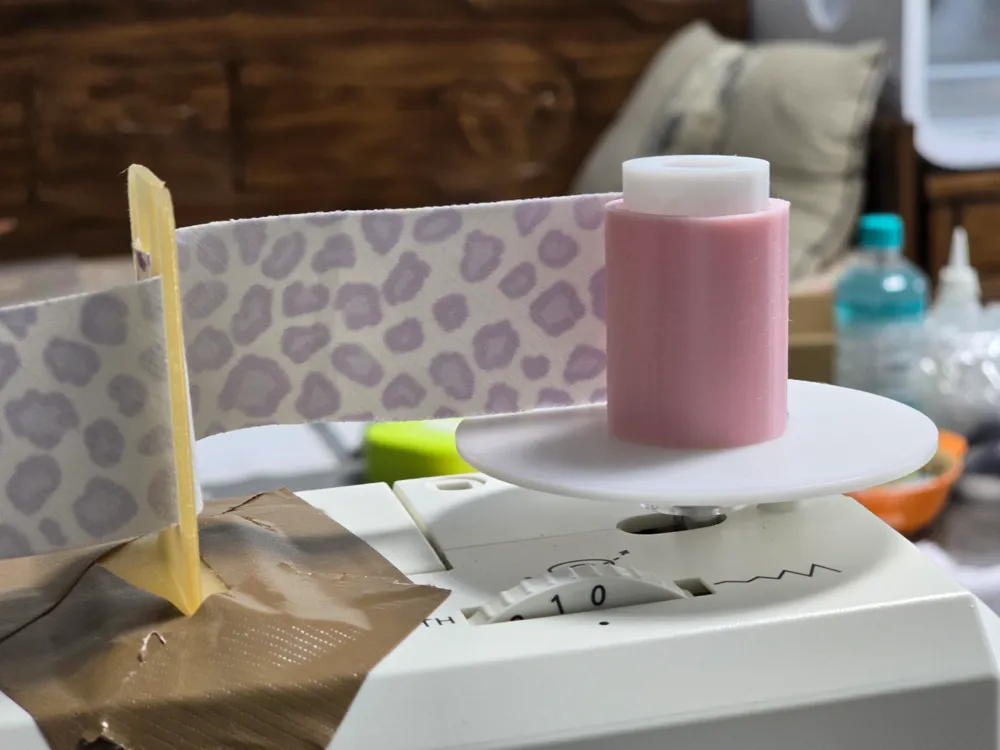

Model 18—Spooling device for winding "binding strips" with the assistance of a household sewing machine
Print Profile(3)
![Tray - [Household Sewing Machine] Bias Tape Winder](https://makerworld.bblmw.com/makerworld/model/USf9b0cdfa2f0d22/850545024/instance/d933e8a333dff0a7.jpg?x-oss-process=image%2Fresize%2Cw_100%2Fformat%2Cwebp)
Description
【Introduction】

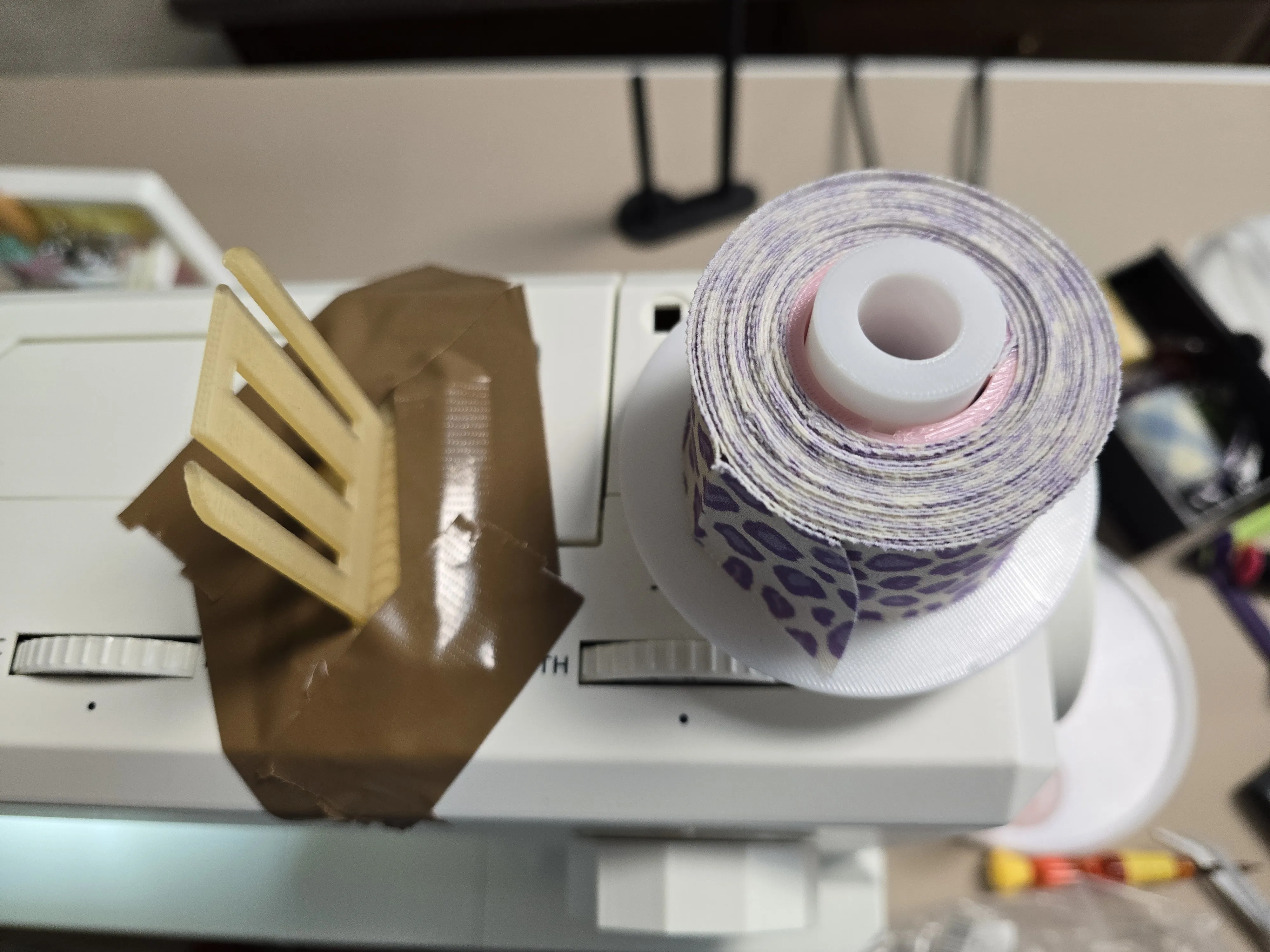

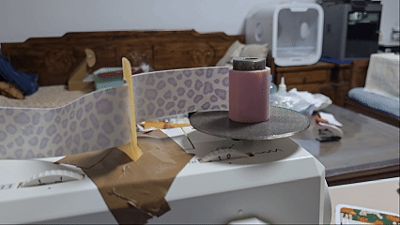

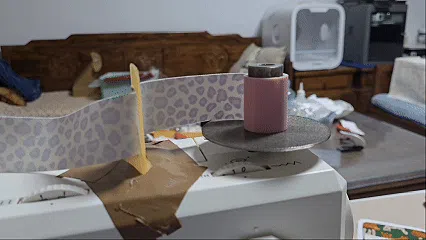

Function: Use this product and the matching spool to wind binding strips with the help of the machine's built-in winding function; The method of use is the same as the principle of winding the bobbin thread
Compatibility: Suitable for household sewing machines with a winding function, the binding strip tray has a diameter of 9cm, please measure whether your machine has enough space to use this product
【Binding Strip Spooler Installation Instructions】
1、Tray

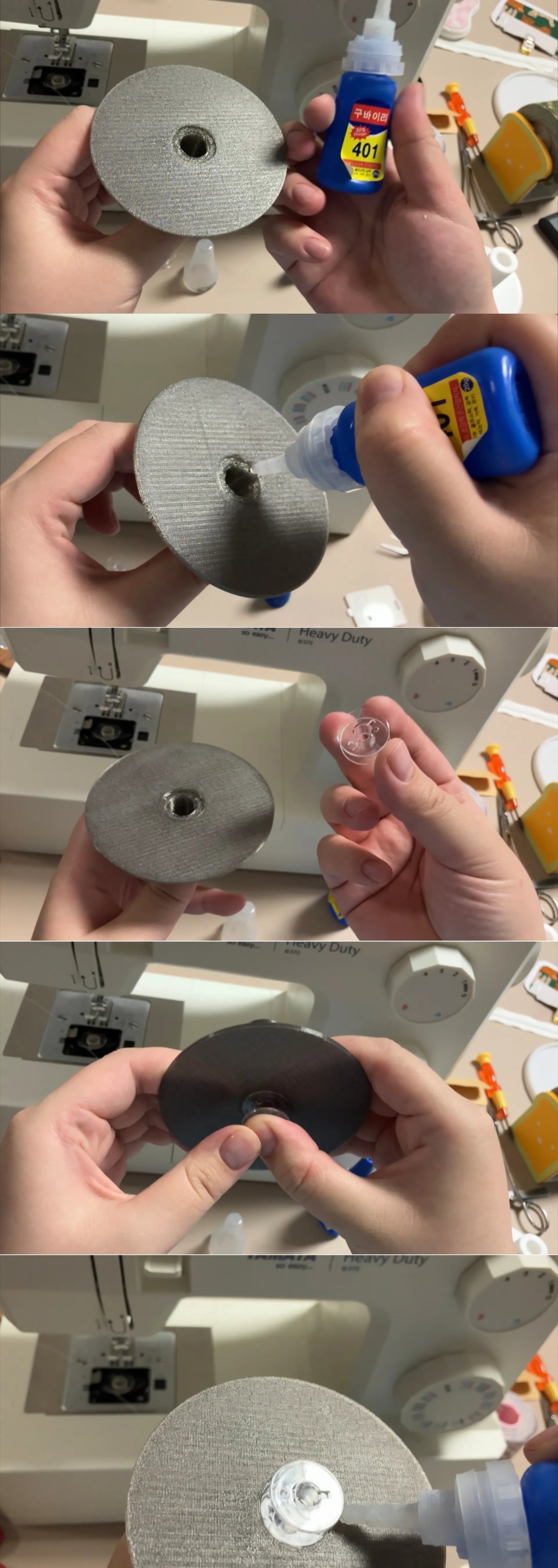

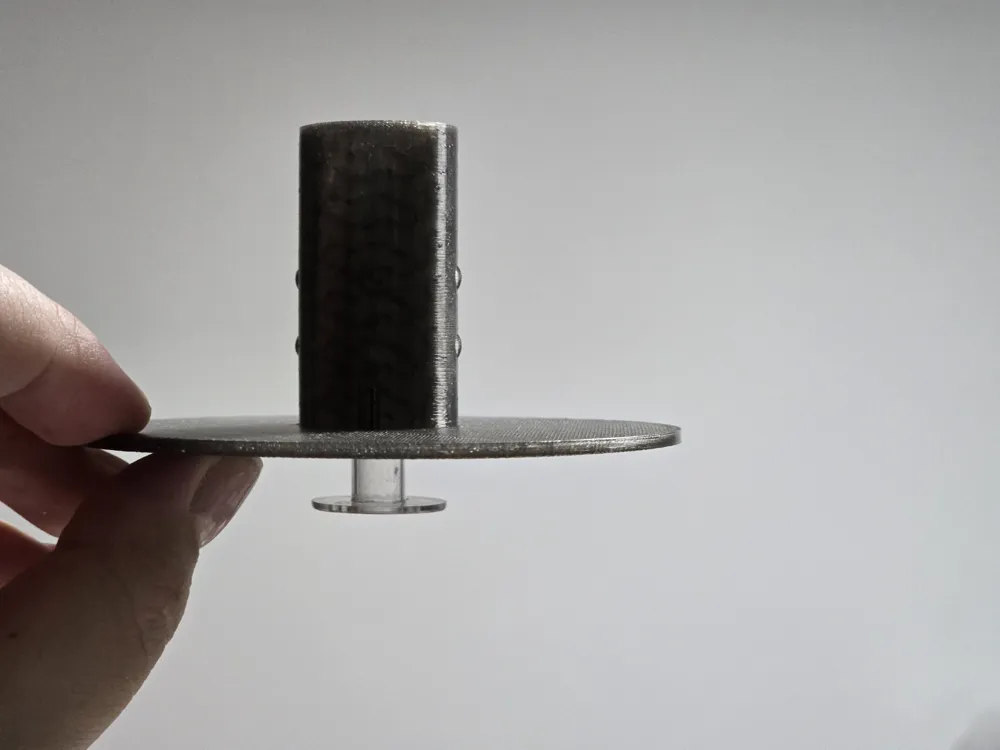

Use super glue to attach the ordinary transparent bobbin to the base of the binding strip spooler As shown in the figure below

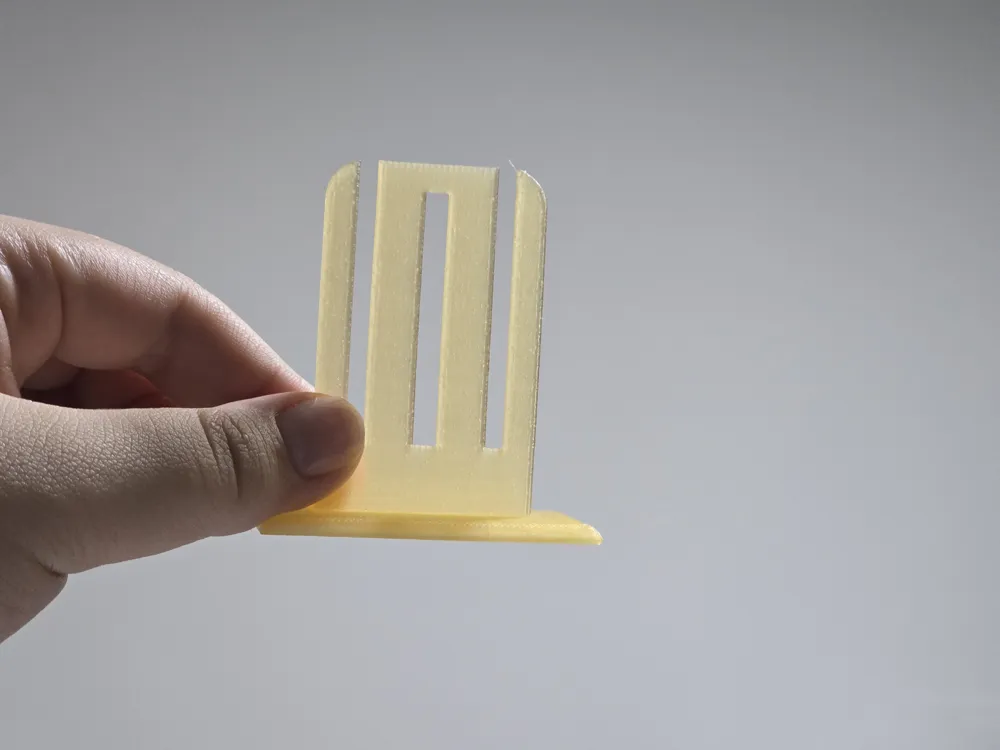

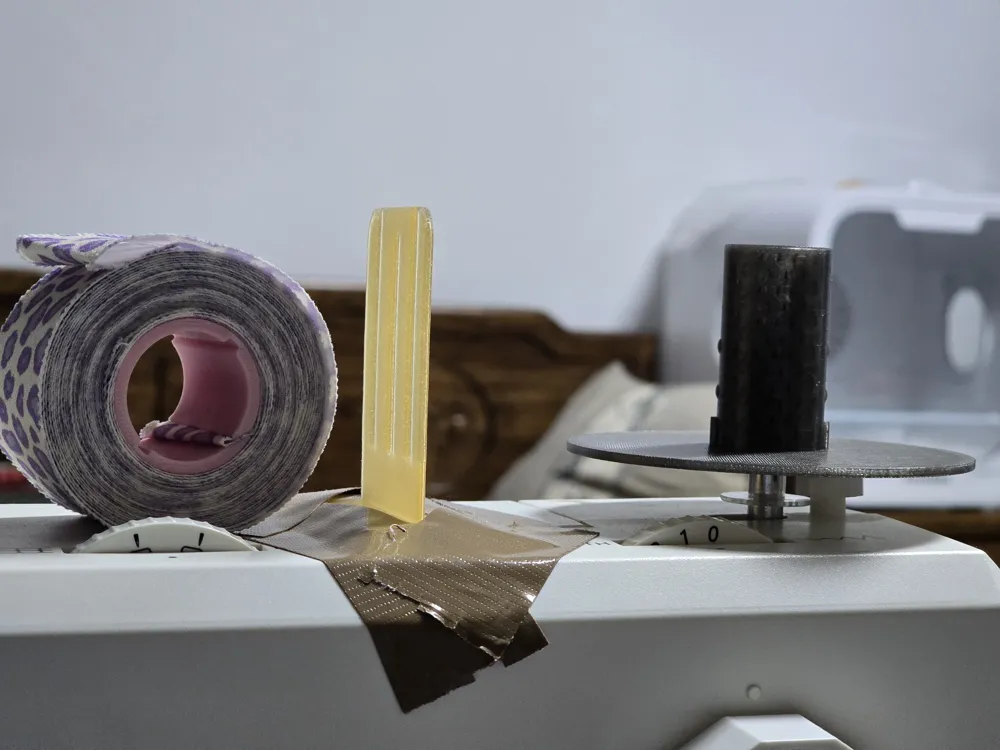

2、The guide plate is assisted by tape to be fixed on the side of the rotating shaft, see the schematic image below Requires fixing at the four corners, making it more robust and preventing the binding strip from shifting easily when passing through

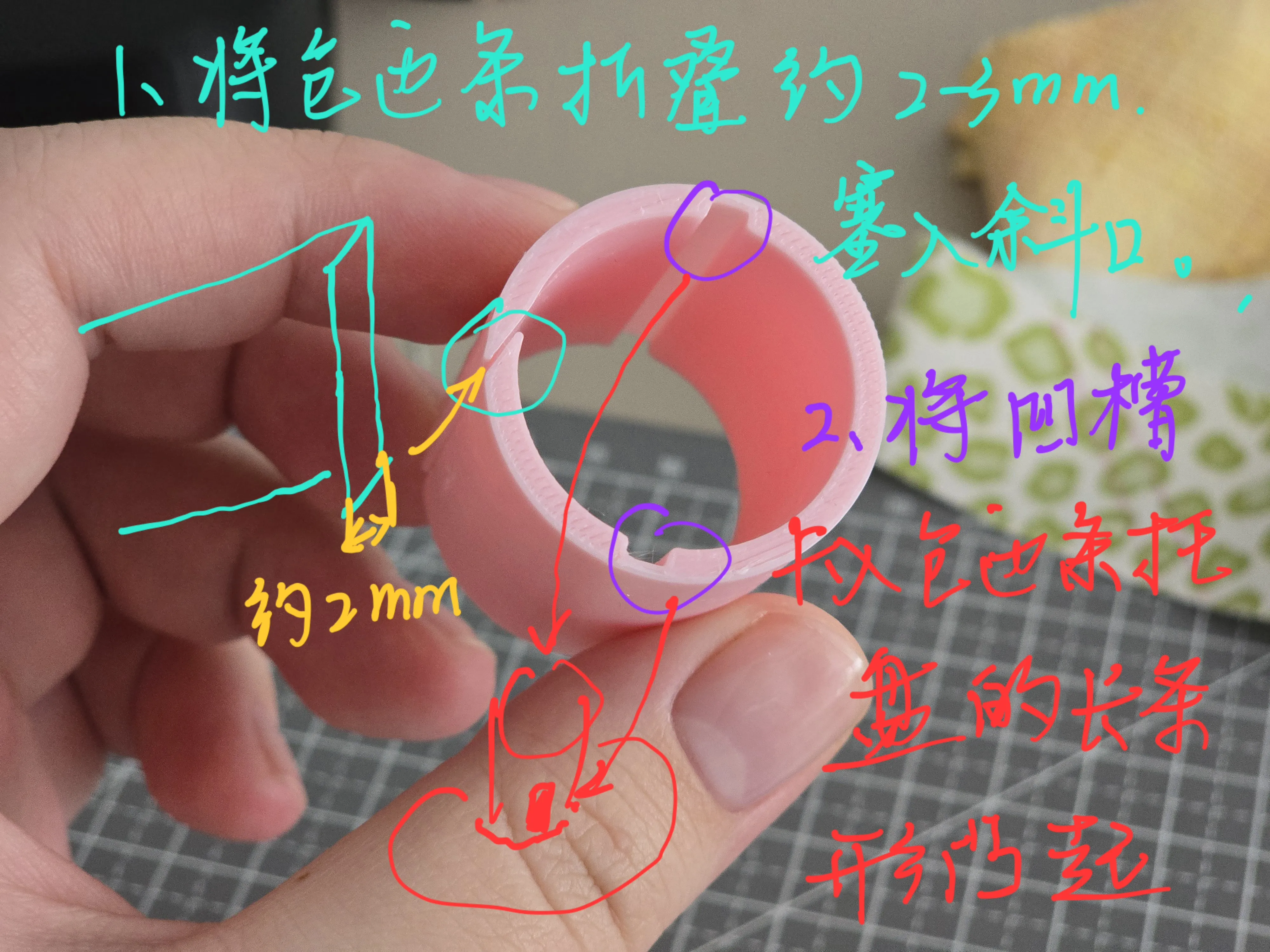

3、Spool installation
