Montessori educational toys, finger exercise, poke ball game
Print Profile(1)
Description

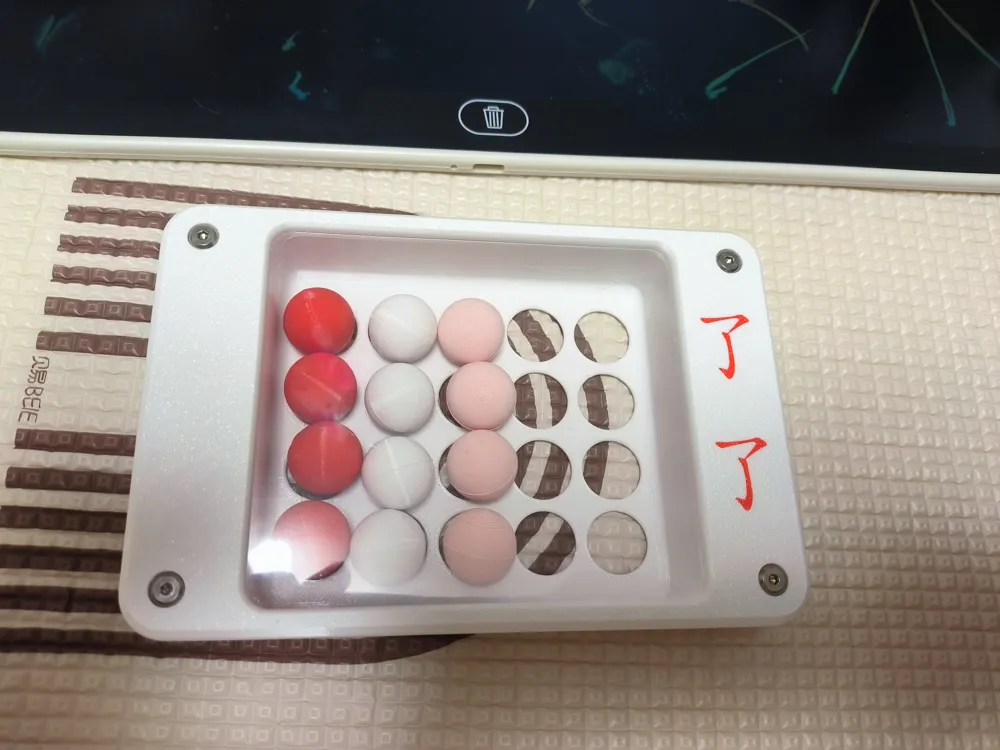

An improved marble run puzzle toy, suitable for young babies, with large rounded edges all over to prevent bumps and scrapes.
The complete 3MF project is open source, with part arrangement, color separation, and printing parameters all pre-set, and can be sent directly to print from a mobile phone. Both PLA and PETG filaments can be used.

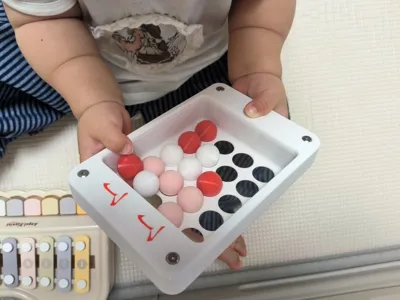

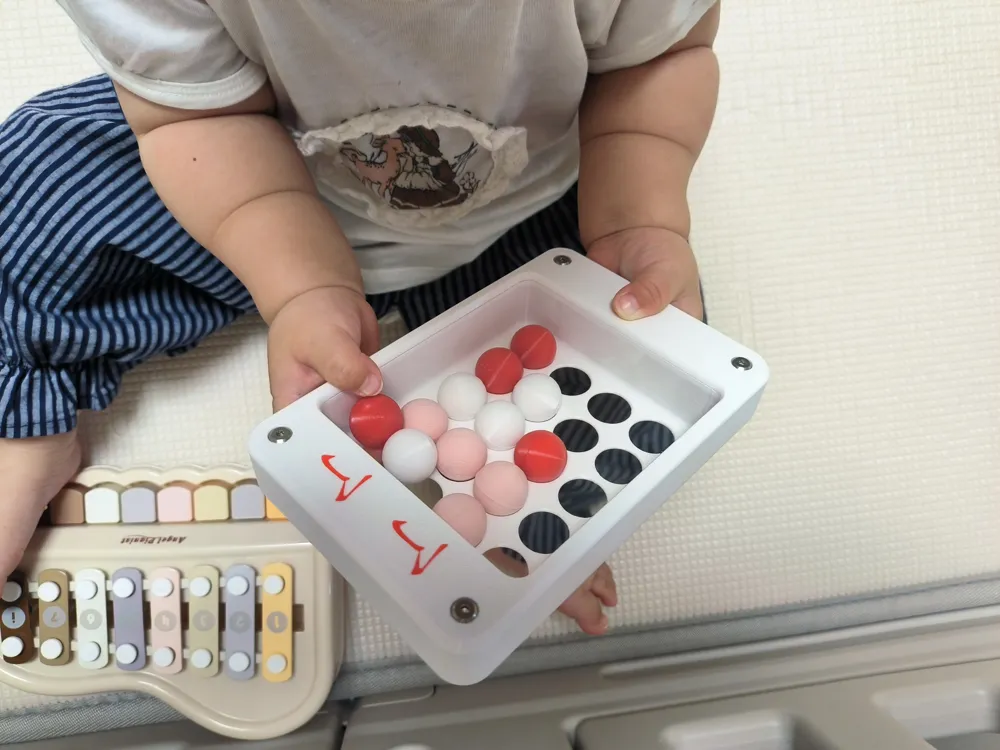

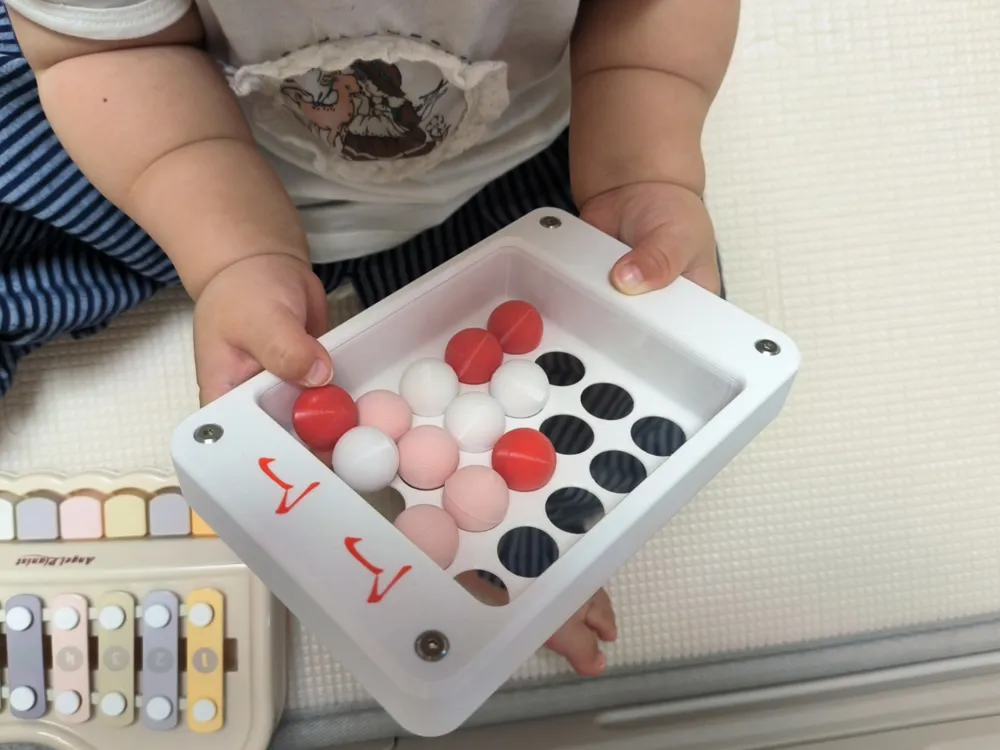

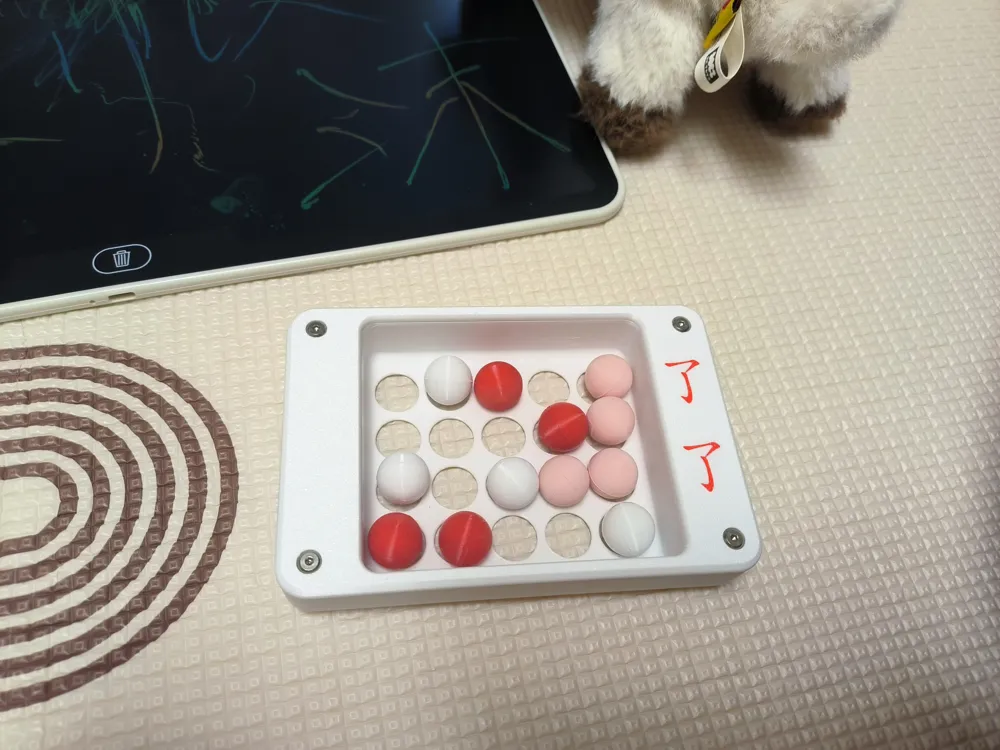

By poking and tilting the marbles to complete color matching and pattern replication, it exercises concentration and hand-eye coordination. The three-color marbles can be extended to various early education games.
Accompanying graphic combination cards will be released later.
I. Material list and purchase links:

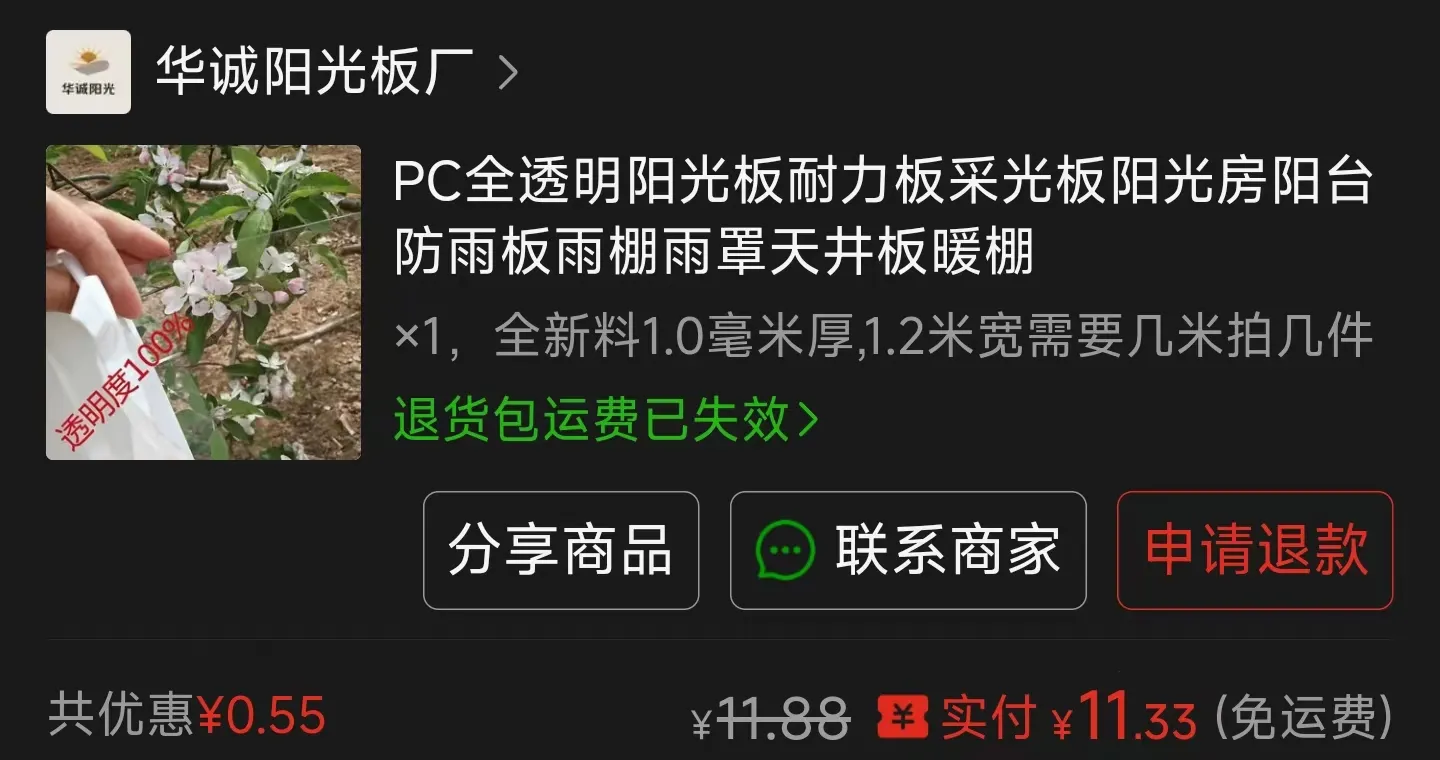

1. 0.6mm transparent card: Click image to jump
A 1mm thick curved sheet (actual thickness about 0.6mm) needs to be placed on the heated bed (do not tear off the film), pressed with a PEI plate. Adjust the heated bed temperature to 80, then after it reaches 80℃, adjust it to 0, and wait for natural cooling to obtain a flat sheet.

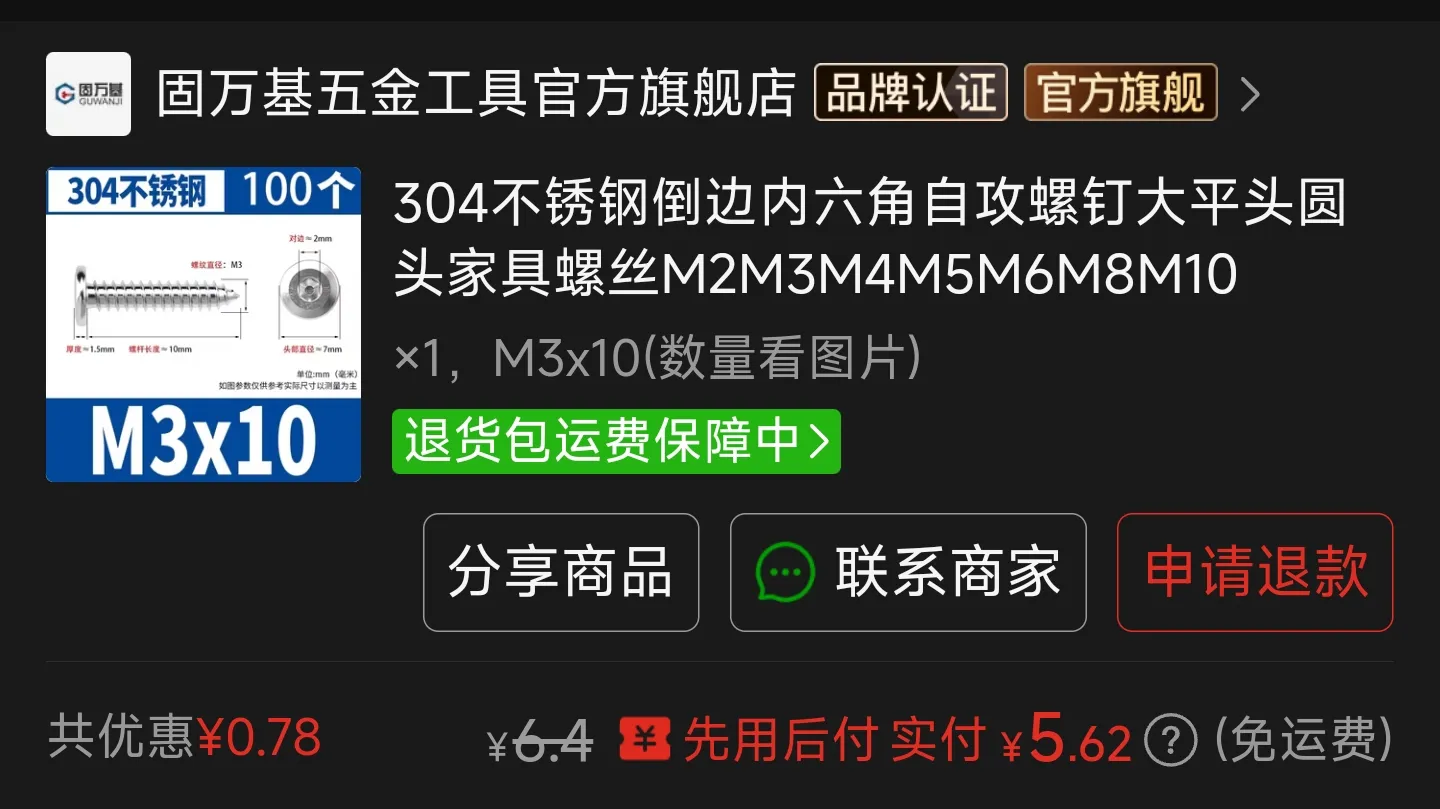

2. Screws: M3*10, 4 pieces, click image to jump
II. Assembly steps

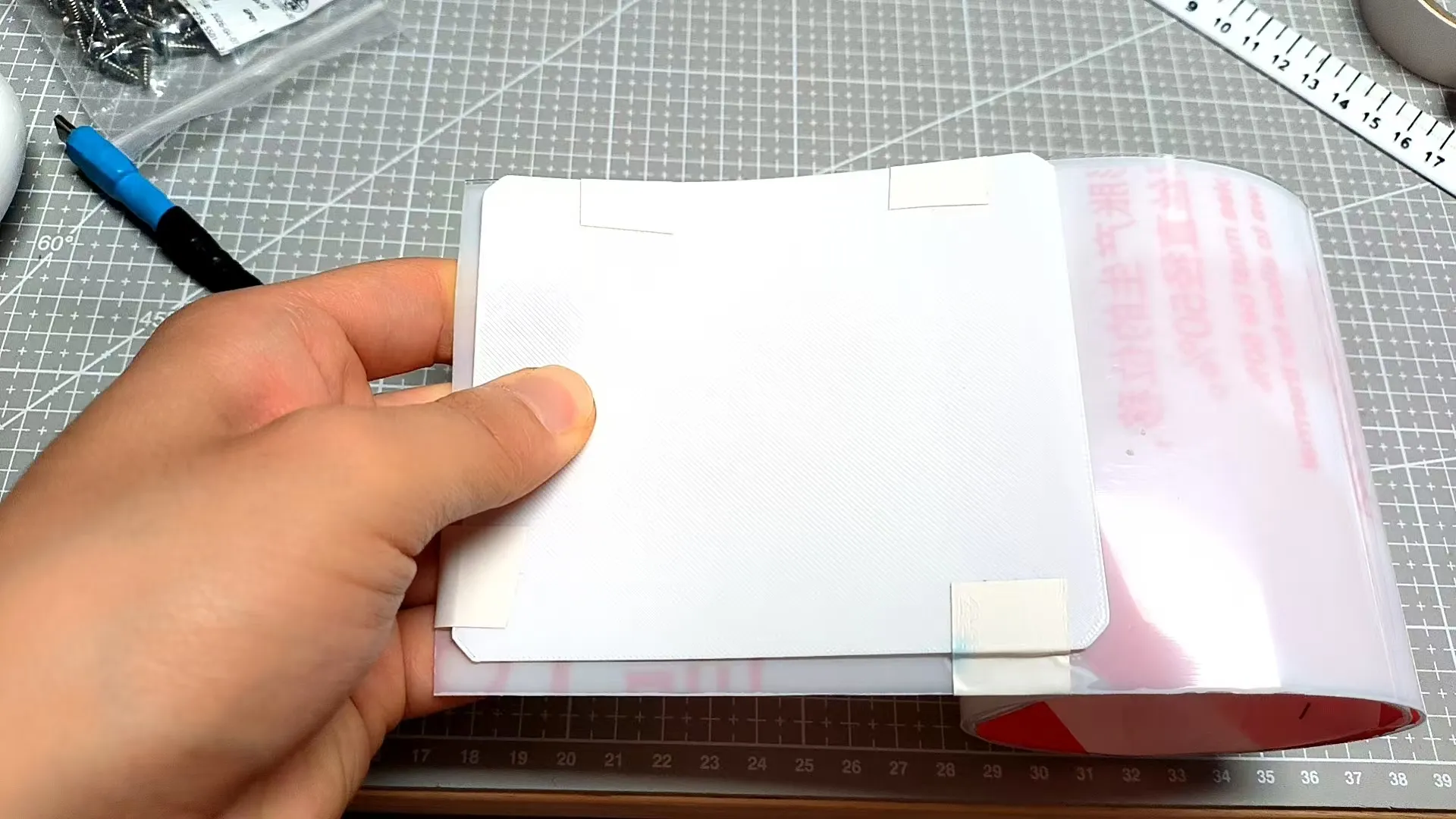

1. Transparent panel: Paste the printed template onto the panel flattened by the heated bed, then trim with scissors.

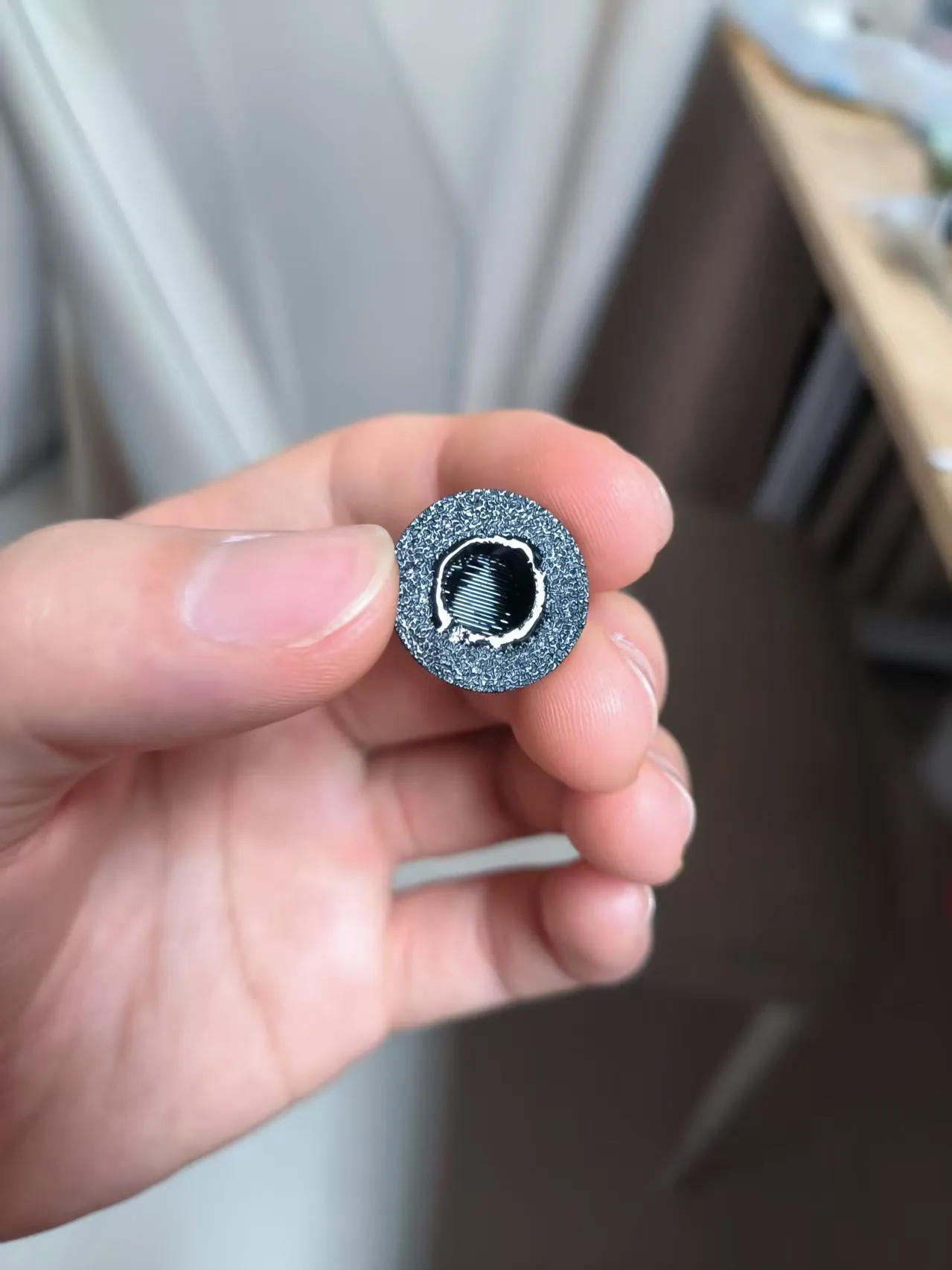

2. Ball adhesion: Refer to the image for the amount and position of glue, apply glue to one side.
