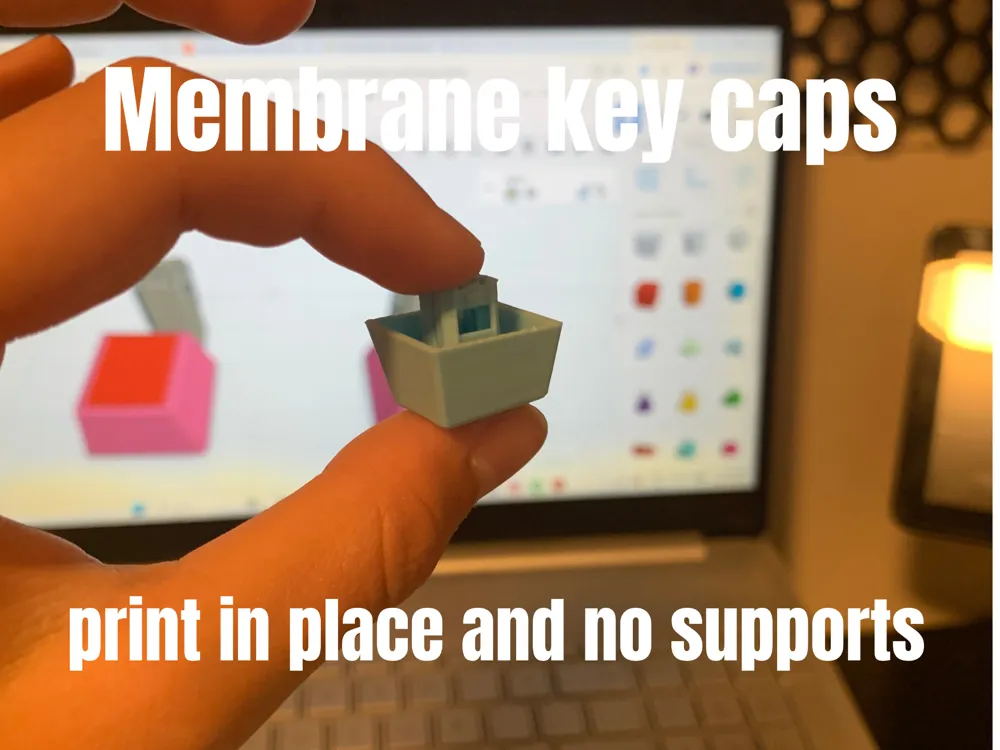

membrane keycaps no supports
Print Profile(2)
Description
I designed these replacement keycaps after finding that existing membrane keyboard models were incompatible with my hardware. After attempting to use several designs available on MakerWorld without success, I developed this custom solution to ensure a proper fit and optimal functionality.

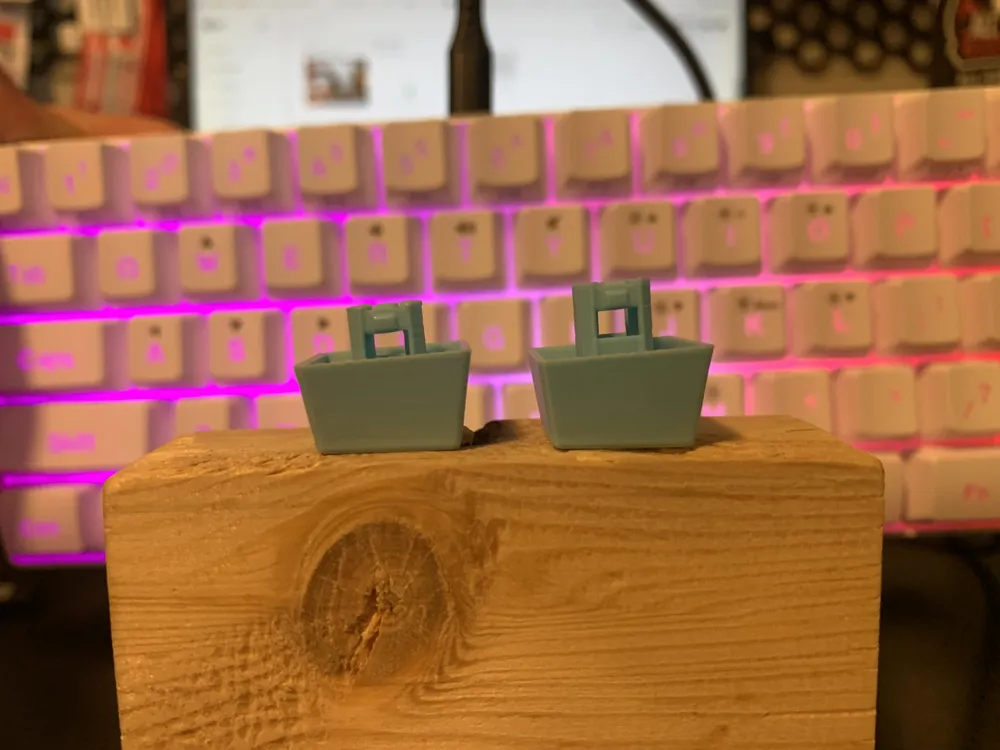

This model includes two variations to accommodate the different stem lengths commonly found on membrane keyboards:
### Recommended Print Settings
* **Layer Height:** 0.1 mm
* **Infill:** 10% or higher
* **Elephant's Foot Compensation:** 0.2 mm (Required)
* **Material:** Designed for PLA; PETG should also be compatible.
### Determining Your Keycap Type

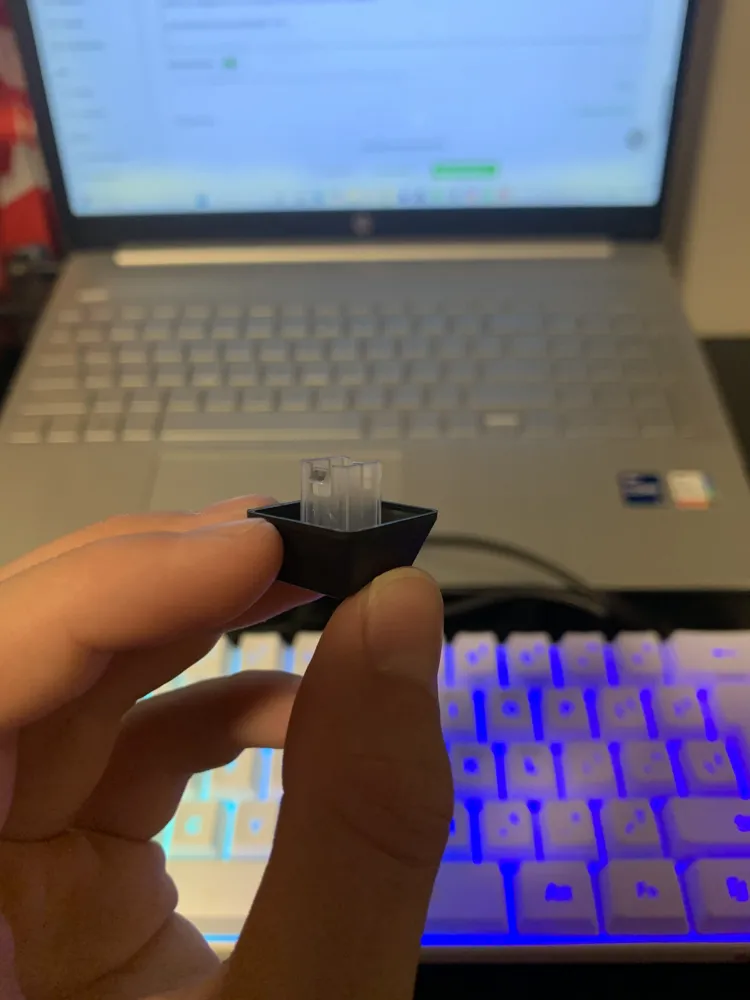

* **Type 1 (Short/Stubby):** Recommended if your keycap stem matches the profile of the black version included in the photos below.

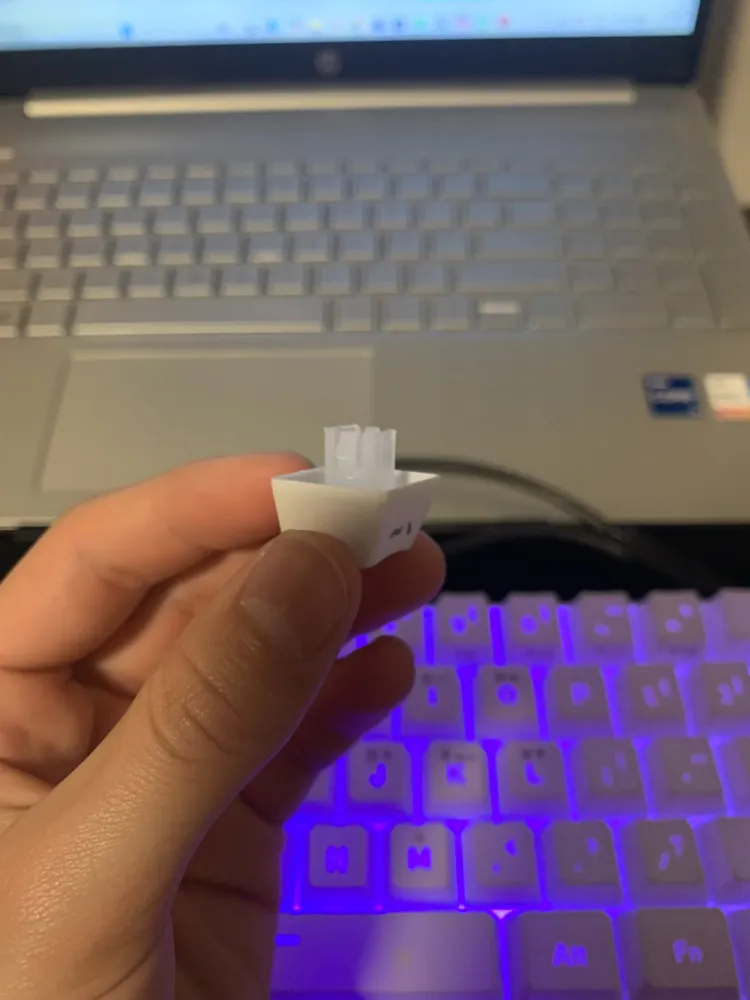

* **Type 2 (Long/Thin):** Recommended if your keycap stem matches the profile of the white version included in the photos below.
**Troubleshooting:** If you print Type 1 and find the key does not move freely, please switch to Type 2. If it is already working smoothly, no further adjustment is needed. If you print type two and it is very shaky please print type one
type one
type two
With a properly fitted keycap you will not need to super glue the two parts together but it is still recommended . I will eventually have a full set with all of the keys and full sets of them with all the letters on them but for right now its just these. Please comment any issues you have so i can improve this model. Thank you
