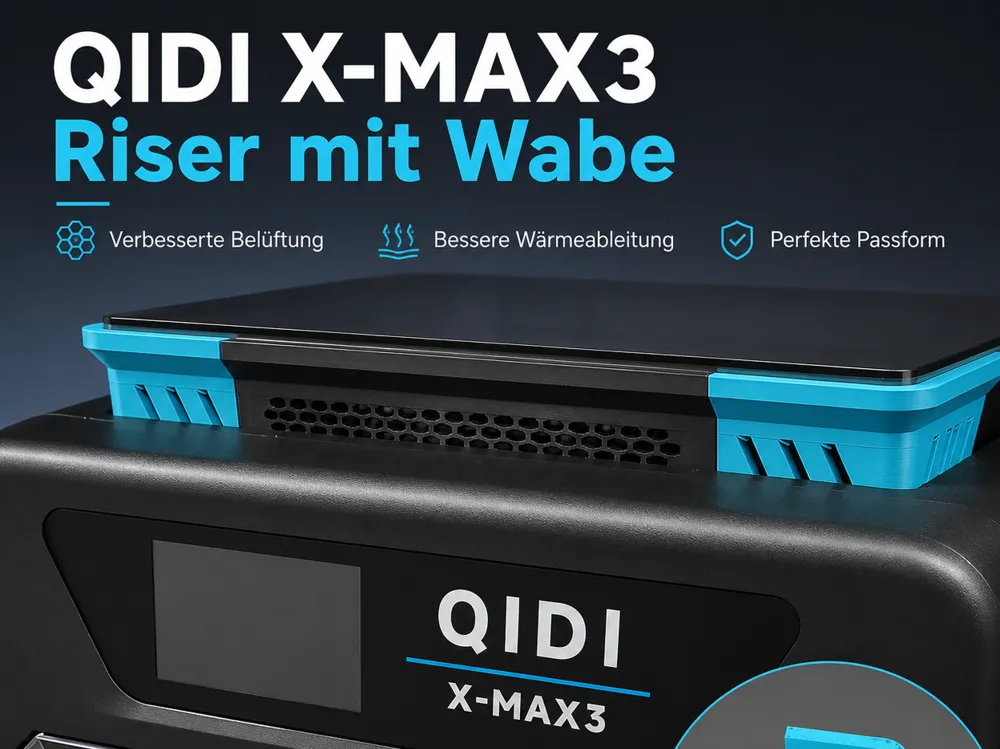

QIDI X-MAX3 Riser with Honeycomb Ventilation

QIDI X-MAX3 Riser with Honeycomb – Better Ventilation, Clean Look, Perfect Fit

This **riser for the QIDI X-MAX3** was designed to slightly raise the top area of the printer, thereby **improving air circulation in the build chamber**. Especially with filaments where excessive heat build-up in the enclosed print chamber can be problematic, the riser ensures better heat dissipation upwards.

The design combines a stable frame with **honeycomb ventilation** and side ventilation slots. This keeps the part stable, saves material, and still allows good airflow. The honeycomb structure is not only functional but also visually matches the technical look of the QIDI X-MAX3 very well.

The riser sits on top of the printer and raises the cover in a controlled manner. The ventilation openings only begin above the lower insertion area, so that the area disappearing into the printer remains stable and the visible ventilation is not blocked. This creates a clean combination of fit, stability, and airflow.

Advantages

Improved Ventilation
The honeycomb opening supports air exchange in the upper area of the printer.

Better Heat Dissipation
Helps reduce heat build-up under the top cover.

Perfect Fit for the QIDI X-MAX3
The riser was specially adapted for the QIDI X-MAX3 and fits neatly on the device.

Stable, Material-Saving Design
The combination of frame, honeycomb, and ventilation slots saves material without losing functionality.

Visual Upgrade
The riser acts like a technical tuning part and visibly enhances the printer.

No Modification Needed
Simply insert, place the top cover, and use.

Area of Application

Ideal for **QIDI X-MAX3** users who want more air exchange in the upper area without leaving the lid completely open. Especially practical for longer prints or materials where controlled ventilation is beneficial.

Print Recommendation

The model can be printed **without support**.

Recommended Material:
PLA, PETG, ASA, or ABS

For normal use, PLA is sufficient. Those who frequently operate the printer with high chamber temperatures should use PETG, ASA, or ABS.

Recommended settings:

• Layer height: 0.20 mm
• Walls: 3
• Infill: 10–20%
• Support: No
• Brim: optional, depending on print bed adhesion
• Orientation: print flat on the print bed

Note

This model is a self-created accessory part for the **QIDI X-MAX3**. It is not an official spare part from QIDI. Please check the fit on the device after printing and only use the part if it rests cleanly and stably.
