Siren Speaker Mount for Tiny Whoop
Print Profile(1)
Description
Boost Me (for free)
Your BOOST would really motivate me to keep creating 3D data—thank you in advance!

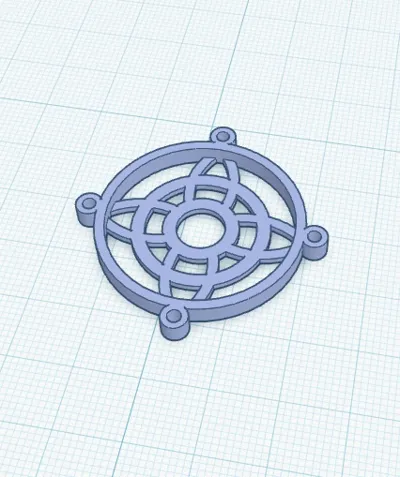

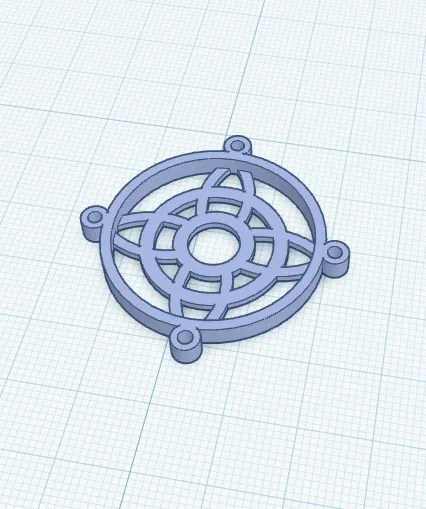

I created a speaker mount part for TinyWhoop to play police siren sounds.

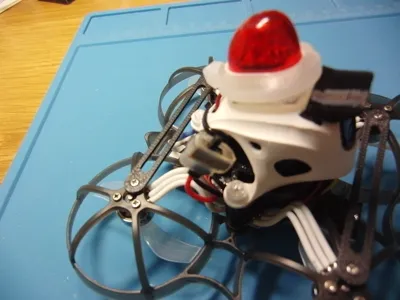

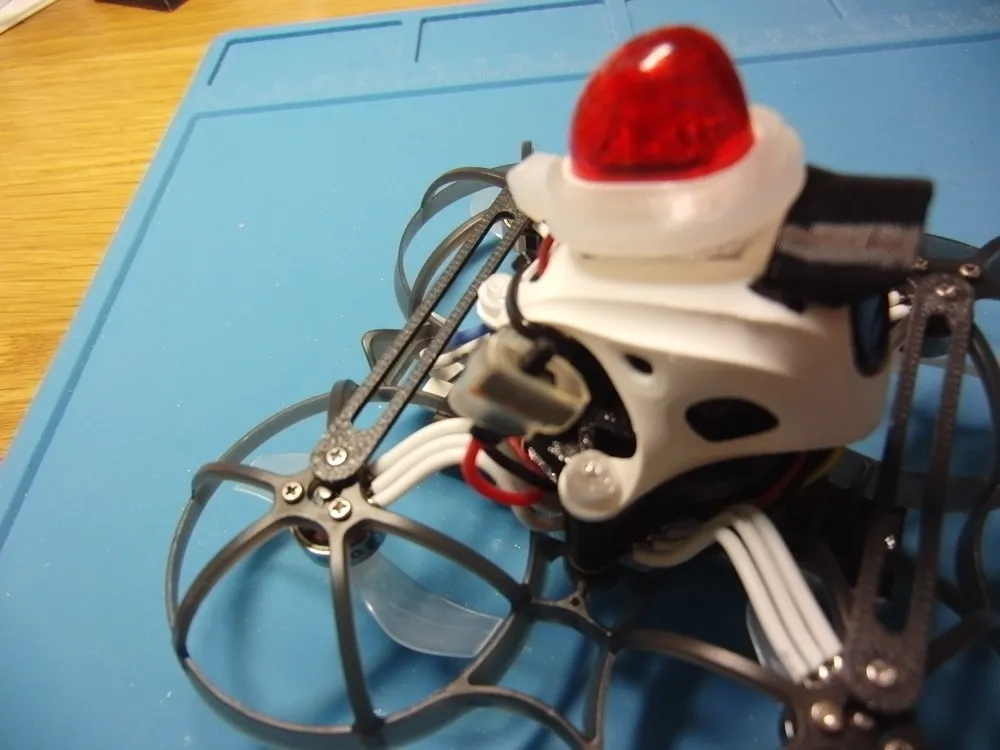

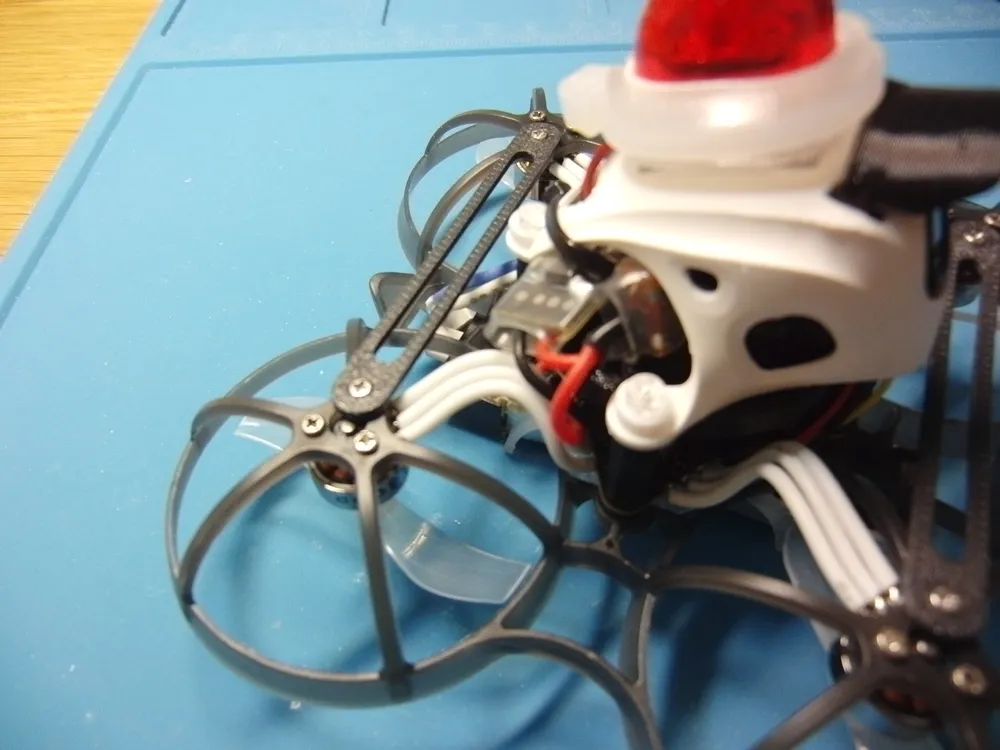

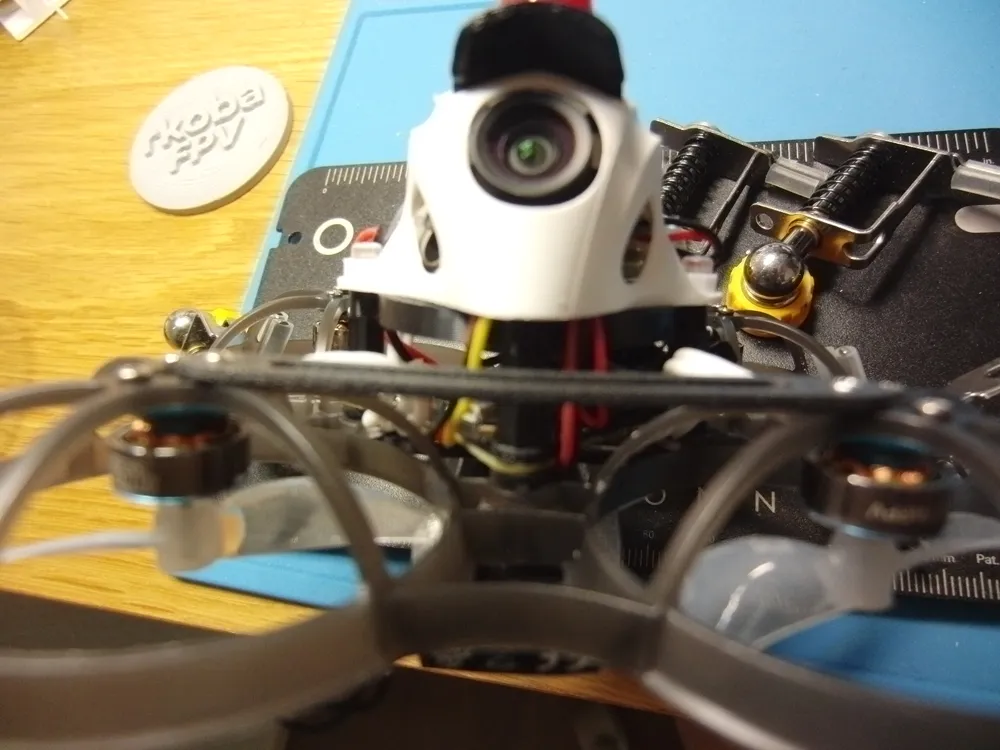

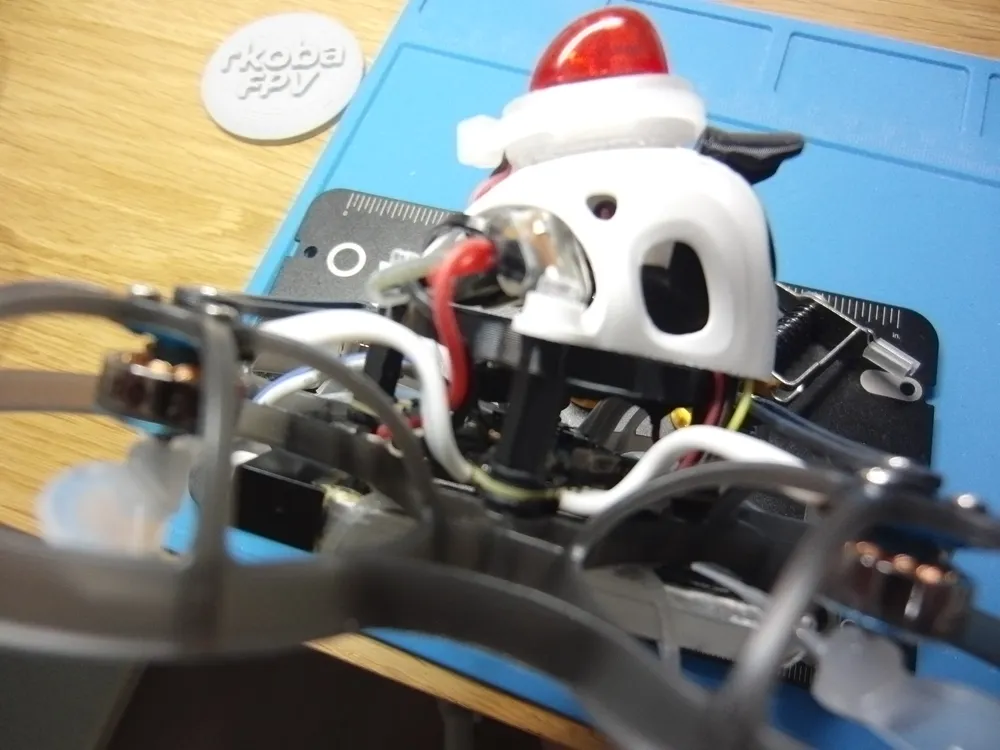

The mount is installed between the FC and the canopy.

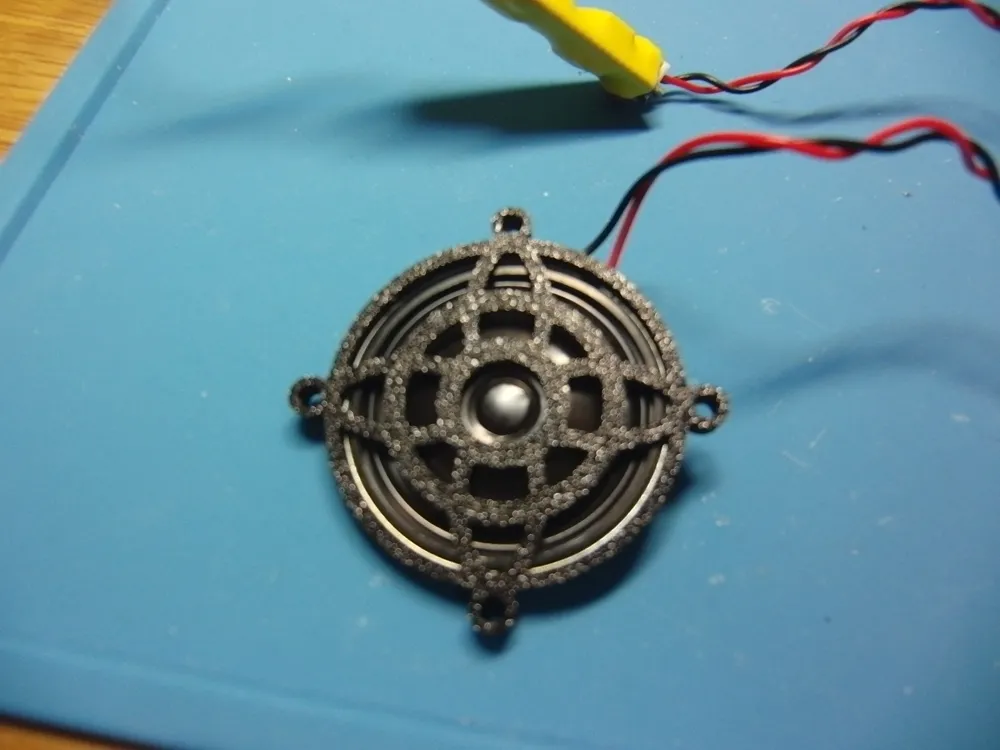

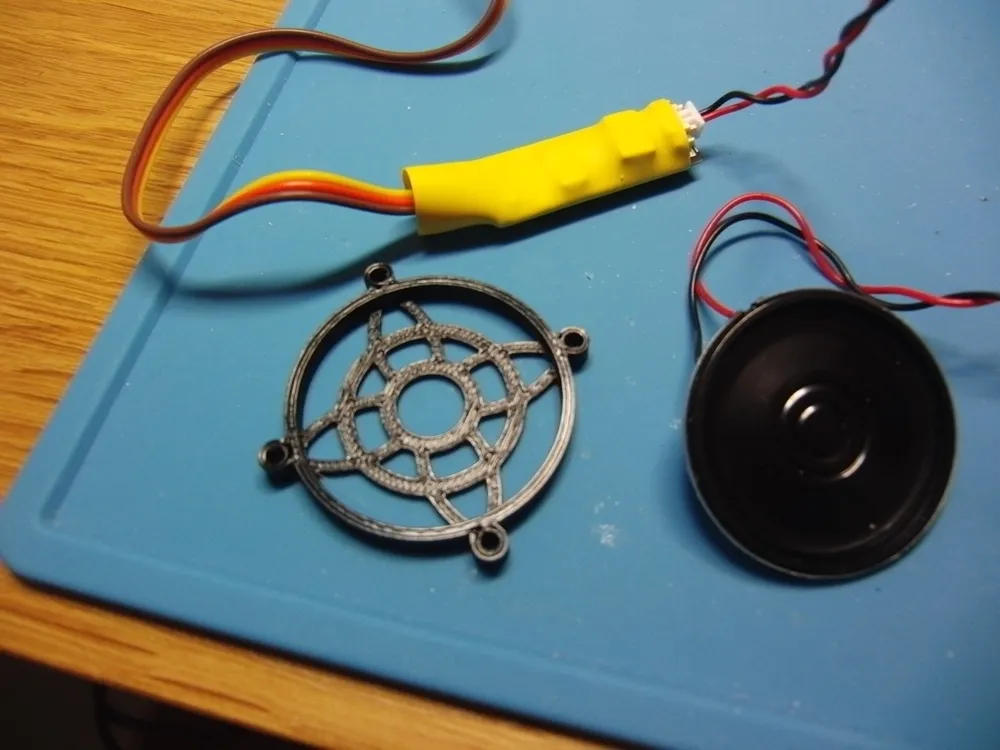

Attach the speaker to the mount and secure it from the back side using soft resin at several points.

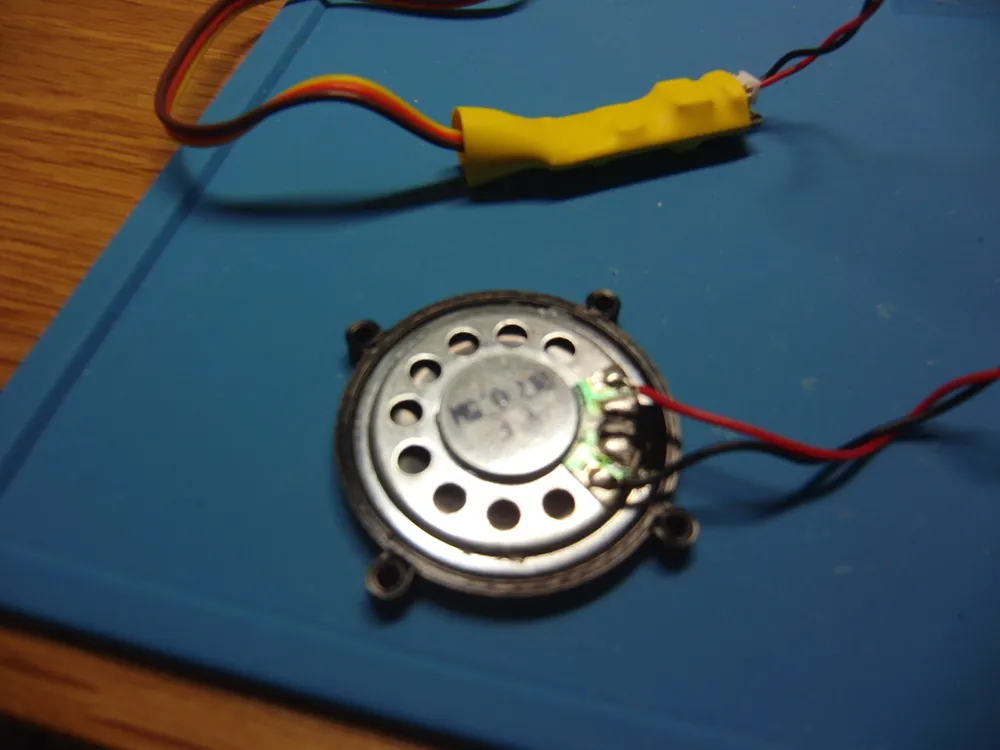

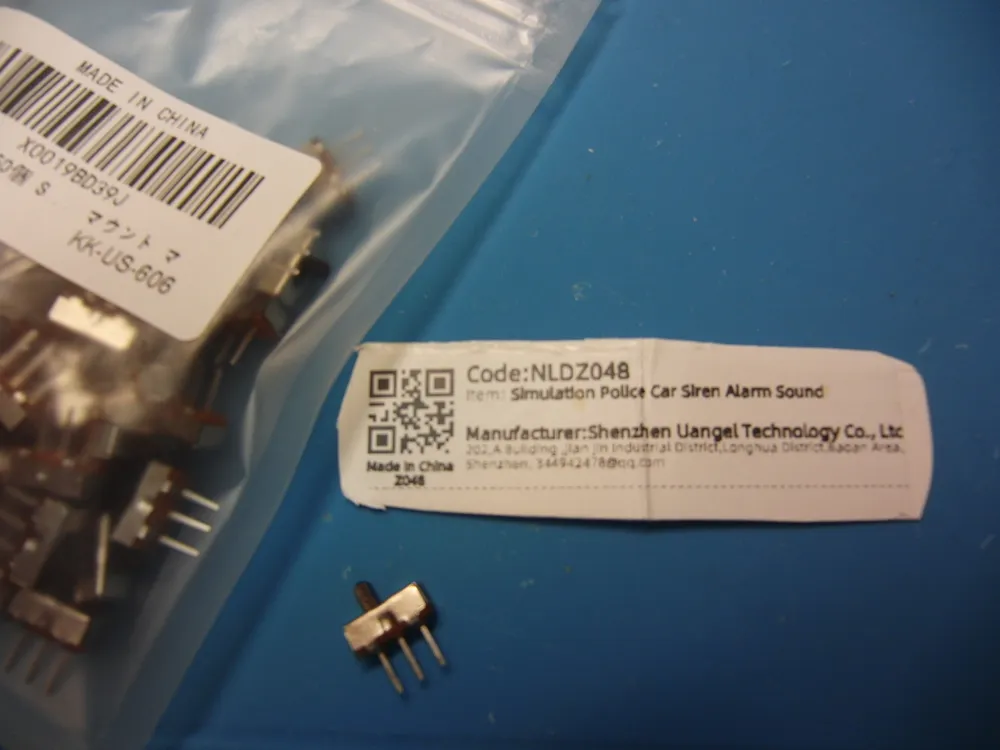

The speaker used is the “Simulation Police Car Siren Alarm Sound” model “NLDZ048,” which appears to be available on AliExpress.

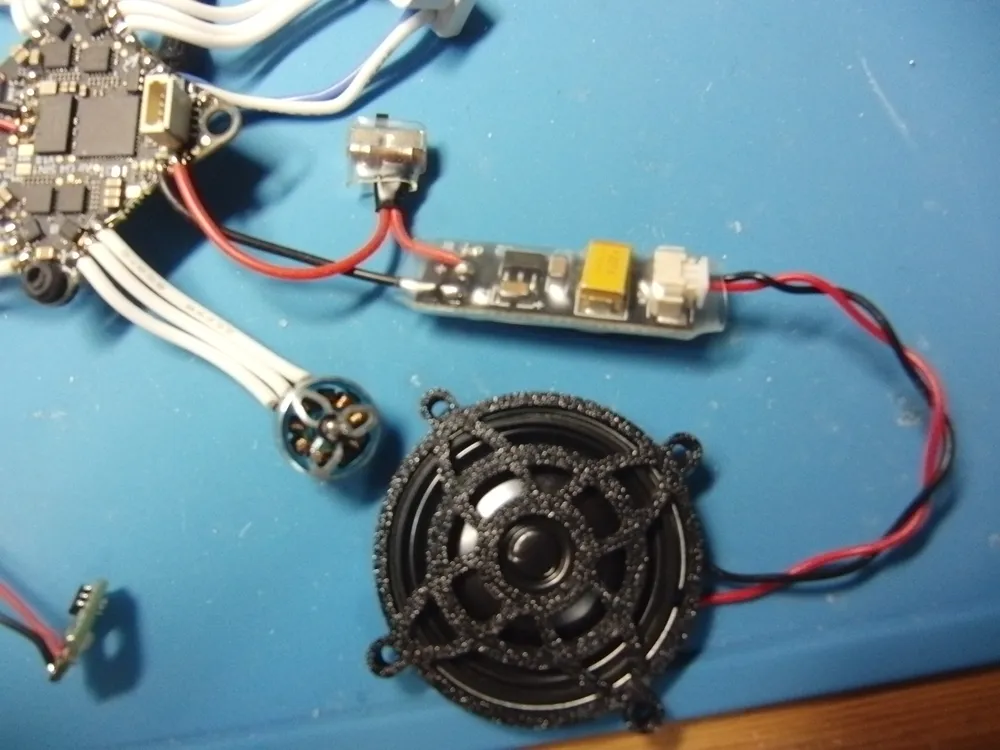

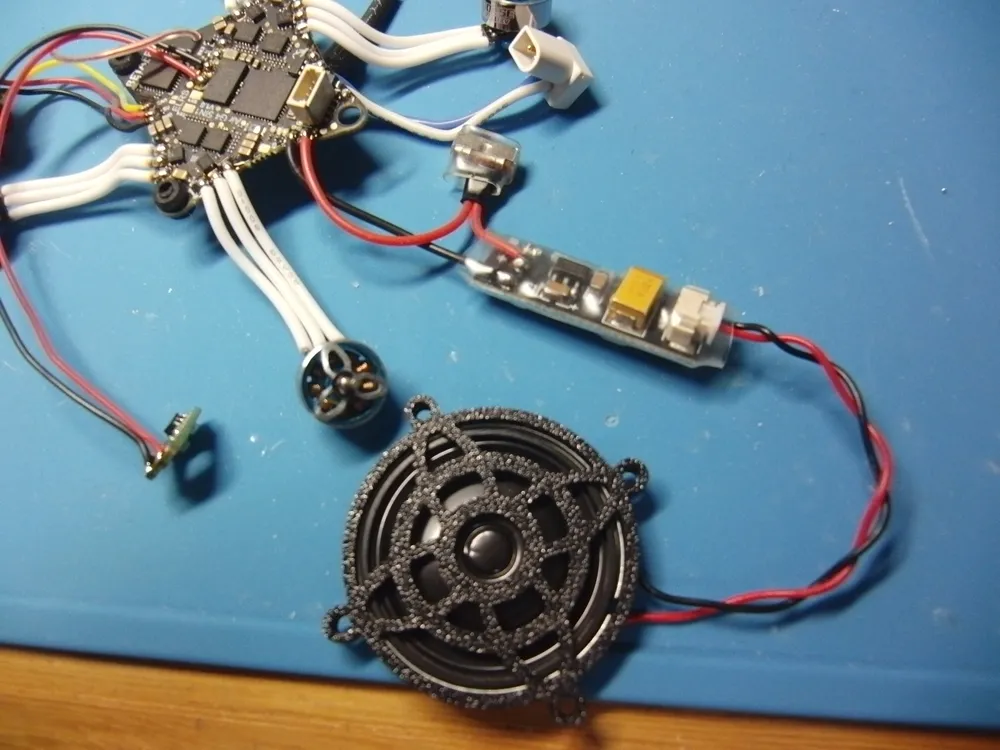

It operates by connecting to 5V and GND.
I also used a small switch to control the speaker sound and power on/off.

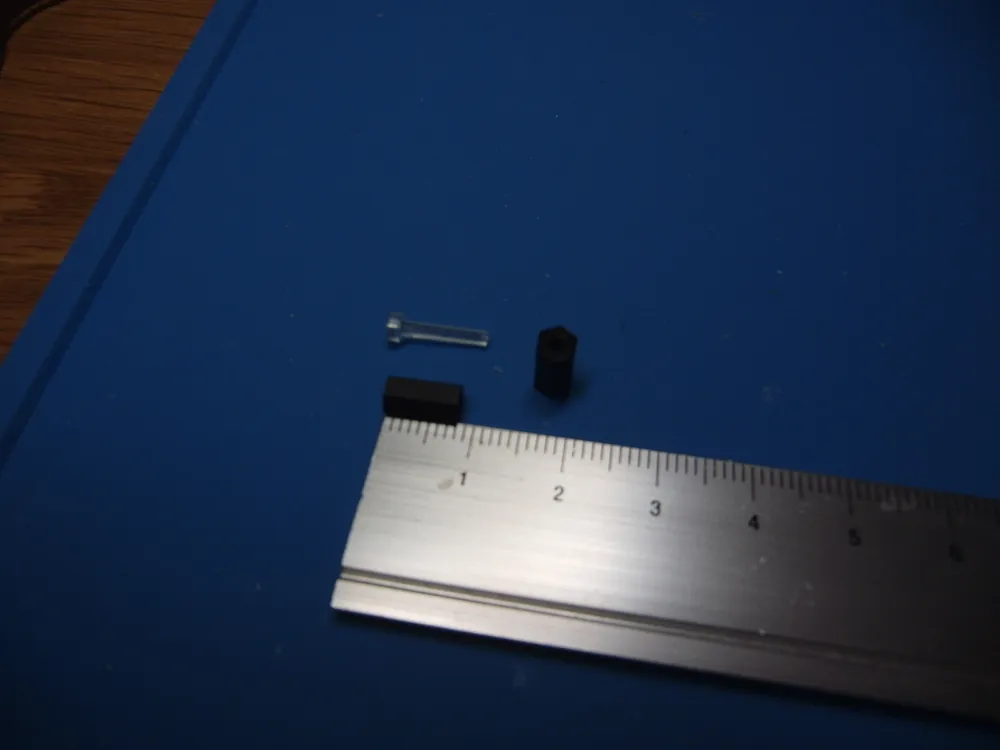

Additionally, I used 8 mm hex standoff nuts and M2 nylon screws around 10 mm in length.
Please print the speaker mounting part using PETG or similar materials.

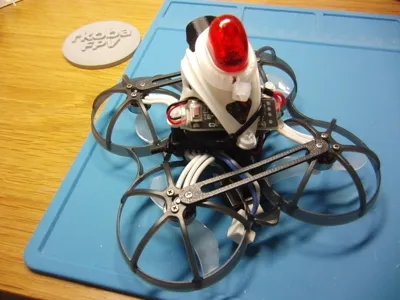

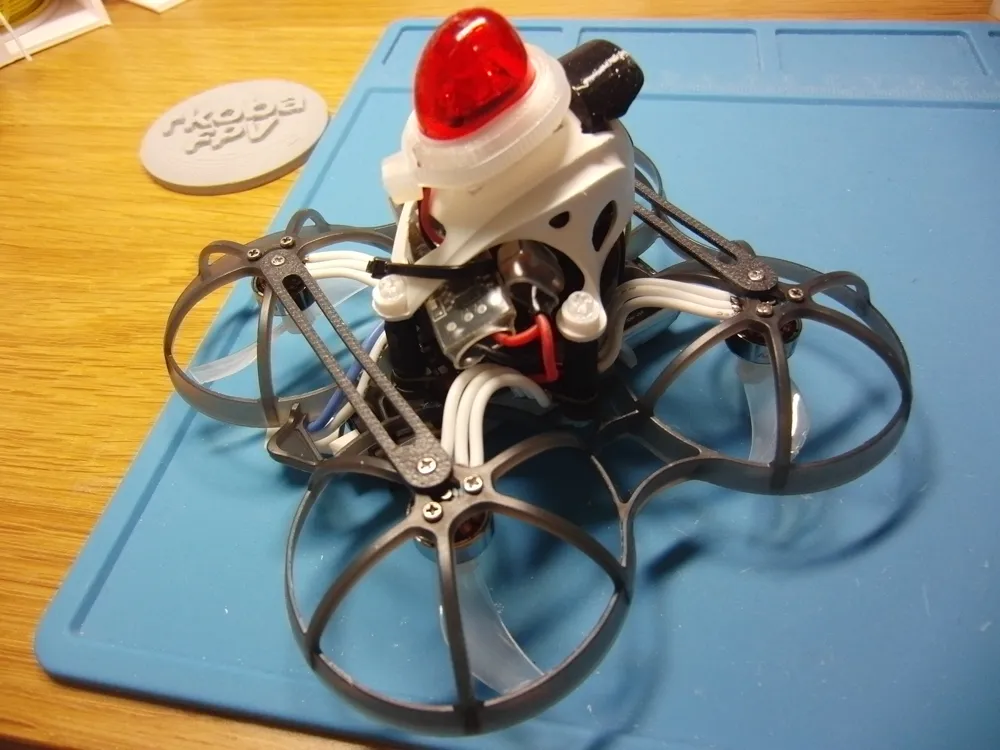

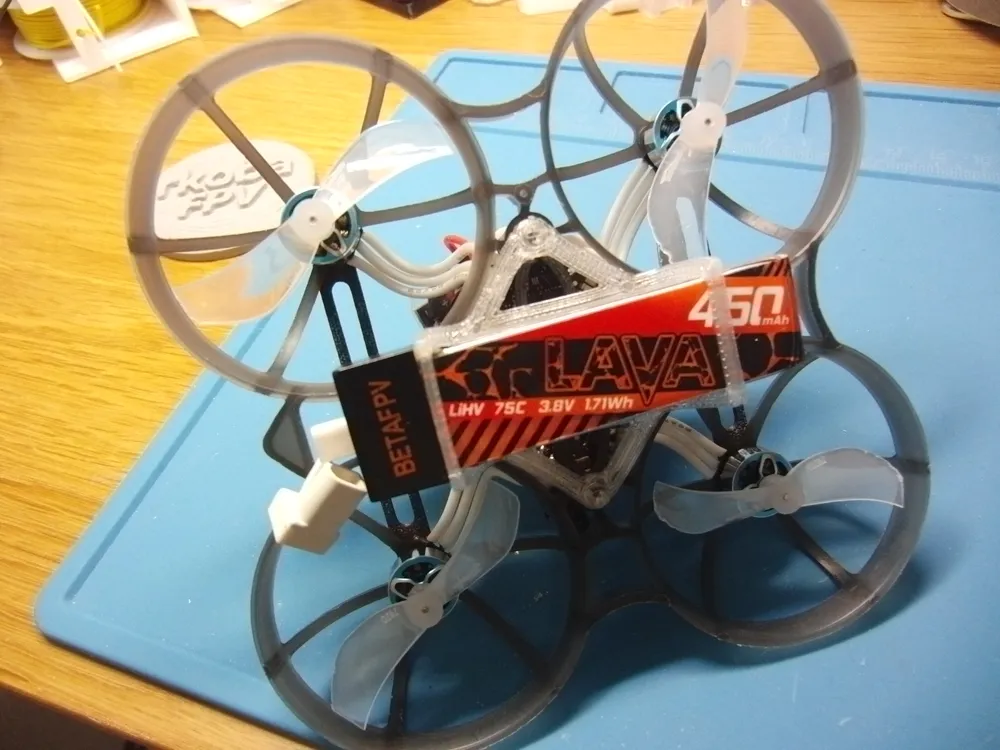

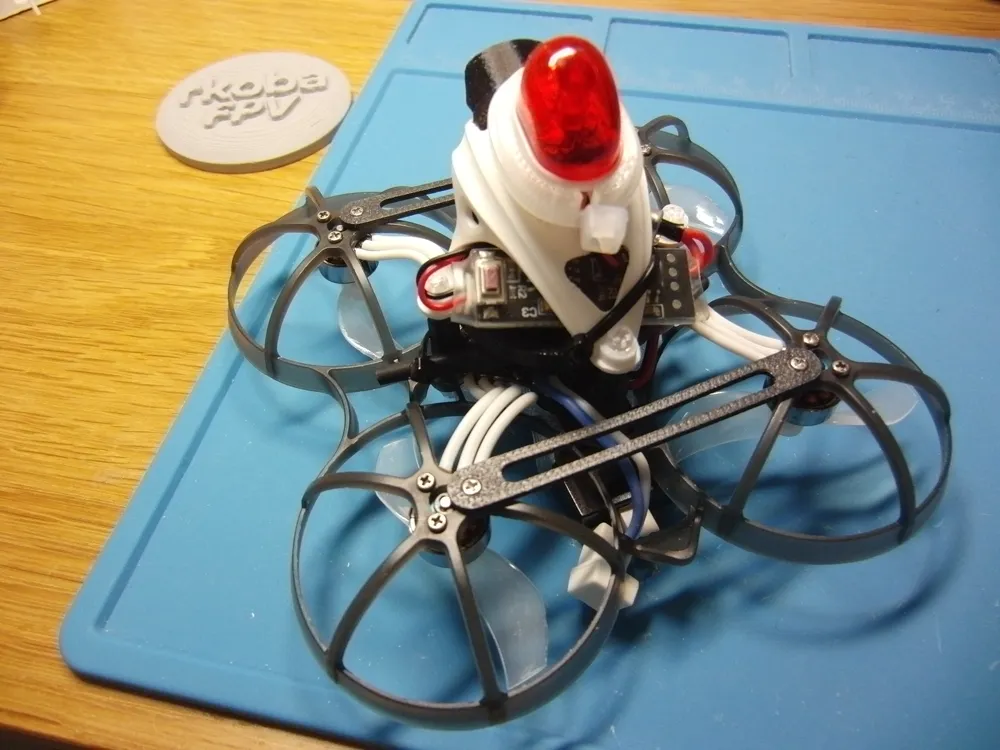

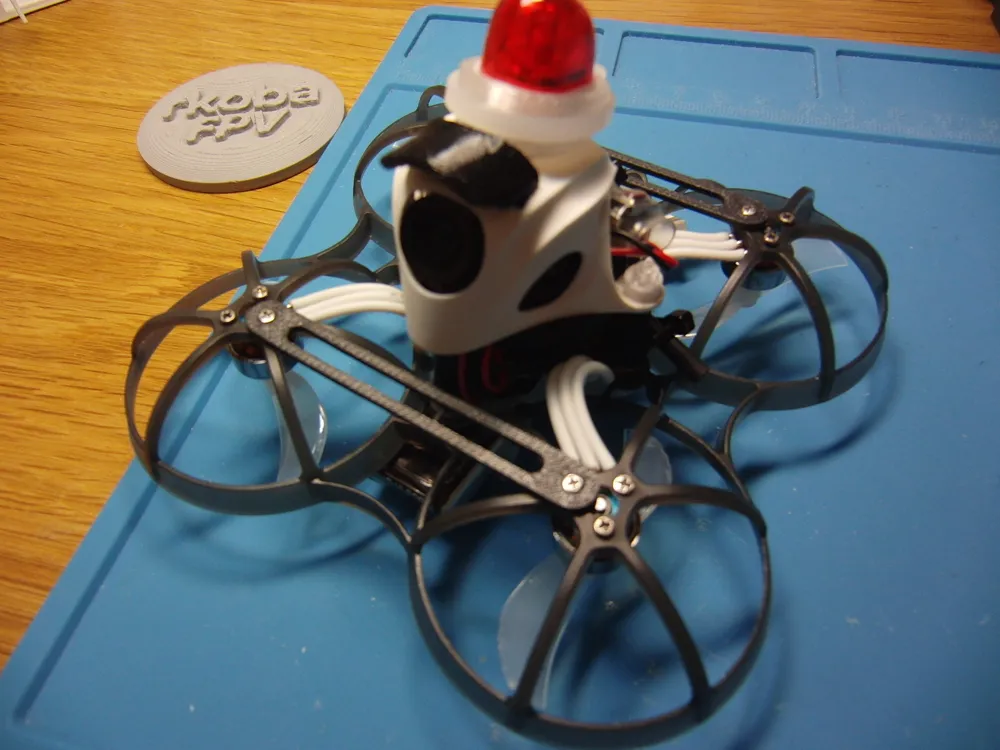

When mounted on the Air75 frame, the total weight of the setup shown in the photo (including the battery) is about 49 g.
If you have any questions, feel free to leave a comment.
