Parametric Spool Label Drying Sleeve | Snap-on Filament Desiccant Organizer no supports printing

🧵 Parametric Spool Label Drying Sleeve | Snap-on Filament Storage Box No-supports printing

Hello Makers, this spool-adaptive drying label sleeve designed specifically for 3D printing filament perfectly solves the three major pain points of filament differentiation, drying storage, and identification management, with a lightweight structure that prints entirely without supports and offers excellent value for money

💡 Design Inspiration

When multiple rolls of filament are mixed and dried, it's very easy to confuse materials and colors Ordinary labels stuck on spools easily peel off or blur when exposed to high temperatures and moisture Separate label holders cannot be fixed on the spool and are easily dropped or lost when moving in and out of the dryer For this reason, I designed this integrated sleeve which tightly clips to the spool edge without falling off, has a built-in label slot for custom content, is compatible with most filament spools, and can be used repeatedly in the dryer along with the spool

✨ Key Features

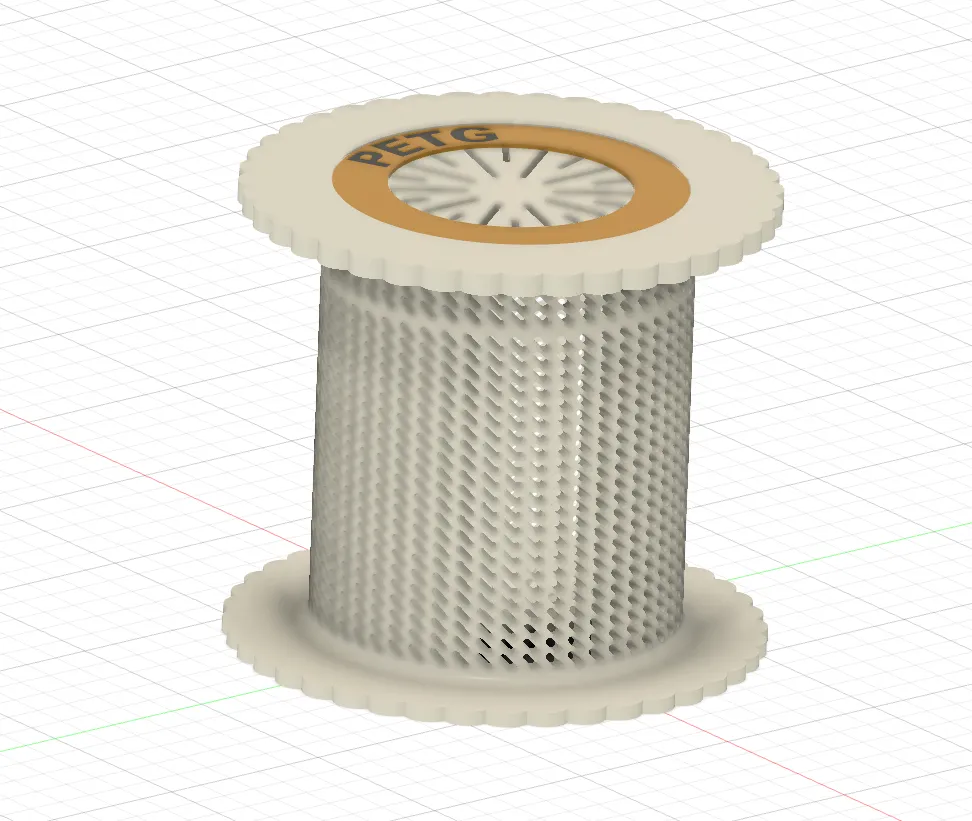

1. Fully Parametric and Freely Adaptable Diameter, height, and snap-fit opening range are all parametrically modifiable, compatible with mainstream 1kg/500g/2kg PLA, PETG, TPU filament spools on the market, both large and small spools can be securely clipped and will not come loose during bumps or drying vibrations

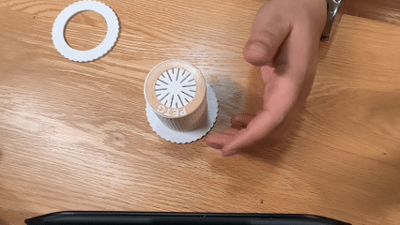

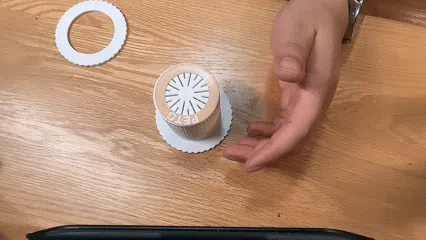

2. Snap-fit Locking Structure Circular elastic snap-fit design, tightly fits after snapping onto the outer ring of the spool, easy to assemble and disassemble, remains stable and does not shift during hot air circulation in the dryer
3. Custom Label Slot A dedicated identification slot is reserved at the top, where material name, color, printing temperature, and moisture resistance level labels can be printed and inserted PETG material is high-temperature and moisture-resistant, so the text will not melt or blur under high drying temperatures
4. Entire Structure Prints Without Supports Hollow heat dissipation mesh tube + lace upper and lower edges, optimized tilt angles, no support filament needed throughout the printing process, beginner-friendly, slice and print directly

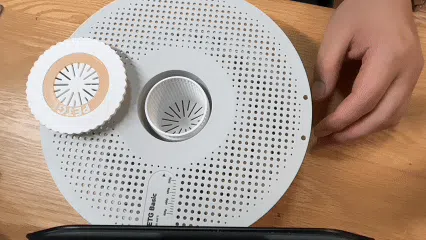

5. Drying-Specific Material Compatibility PETG is optimally recommended for printing, as it is heat and moisture resistant, the entire sleeve can be placed directly into the filament dryer along with the spool, hot air penetrates the hollow mesh, efficiently aiding filament ventilation and drying without obstructing hot air circulation
6. Hollow Ventilated Structure Dense breathable mesh holes throughout ensure smooth air convection during drying, prevent wrapping the filament and causing localized heat accumulation, combining the triple functions of fixing, identification, and auxiliary drying

🛠️ Recommended Printing Settings

• Recommended filament: PETG (preferred), high-temperature resistant, moisture resistant, and strong toughness suitable for drying environments PLA+ (for room temperature identification only, not recommended for high-temperature drying)
• Layer height: 0.2mm
• Infill density: 15%~20%, lightweight while maintaining snap-fit structural strength
• Support requirements: no supports throughout the printing process, self-supporting structure
• Applicable scenarios: filament dryer, sealed moisture-proof storage cabinet, desktop filament organizer

🎯 Target Audience

Users with multiple filament stockpiles, studios with bulk filament management needs, regular users of filament dryers, DIY makers who pursue neat categorization, printing enthusiasts who don't want to repeatedly handwrite filament labels
