DJI O4 wide air unit lens spacer
Print Profile(1)
Description

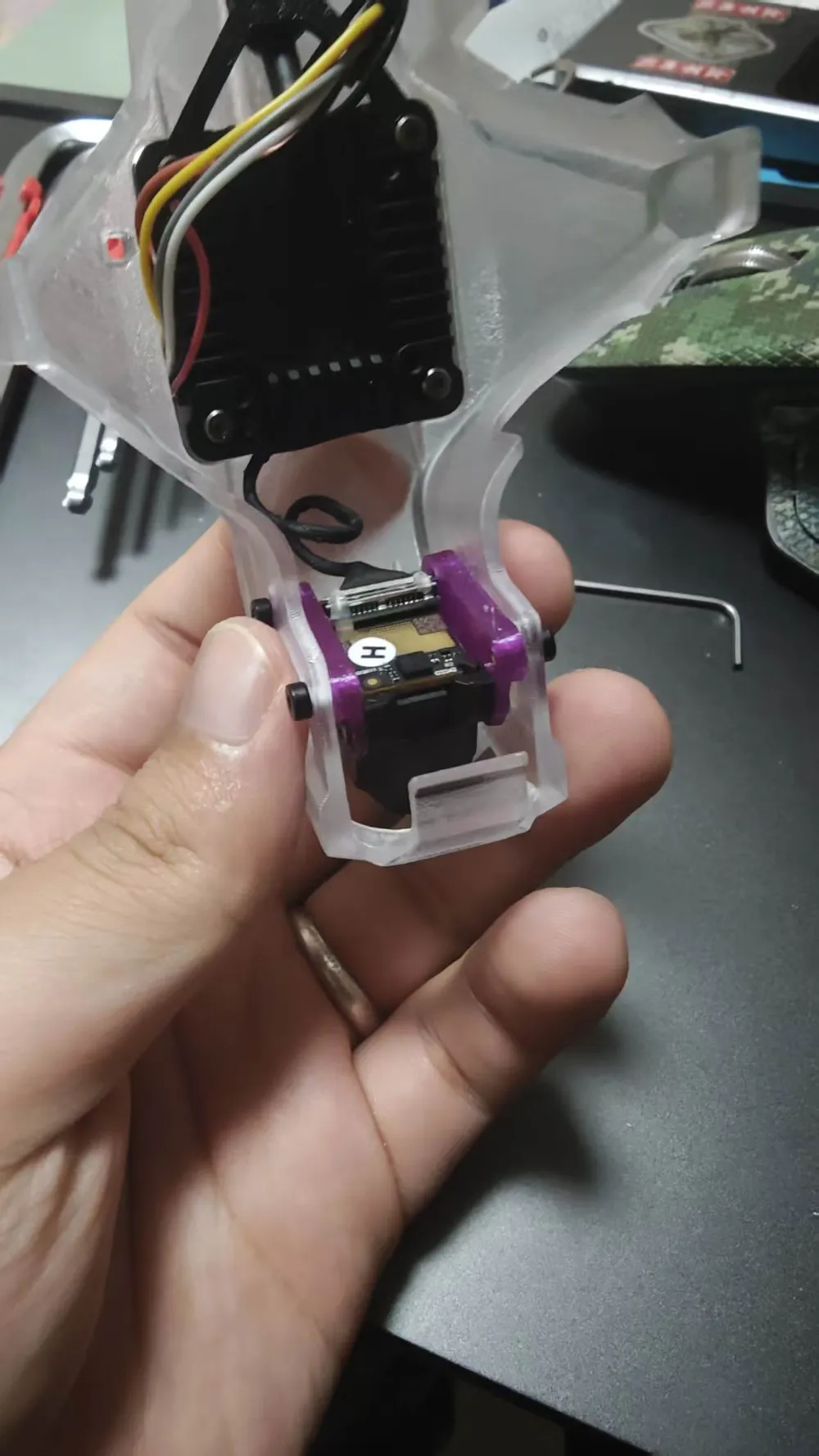

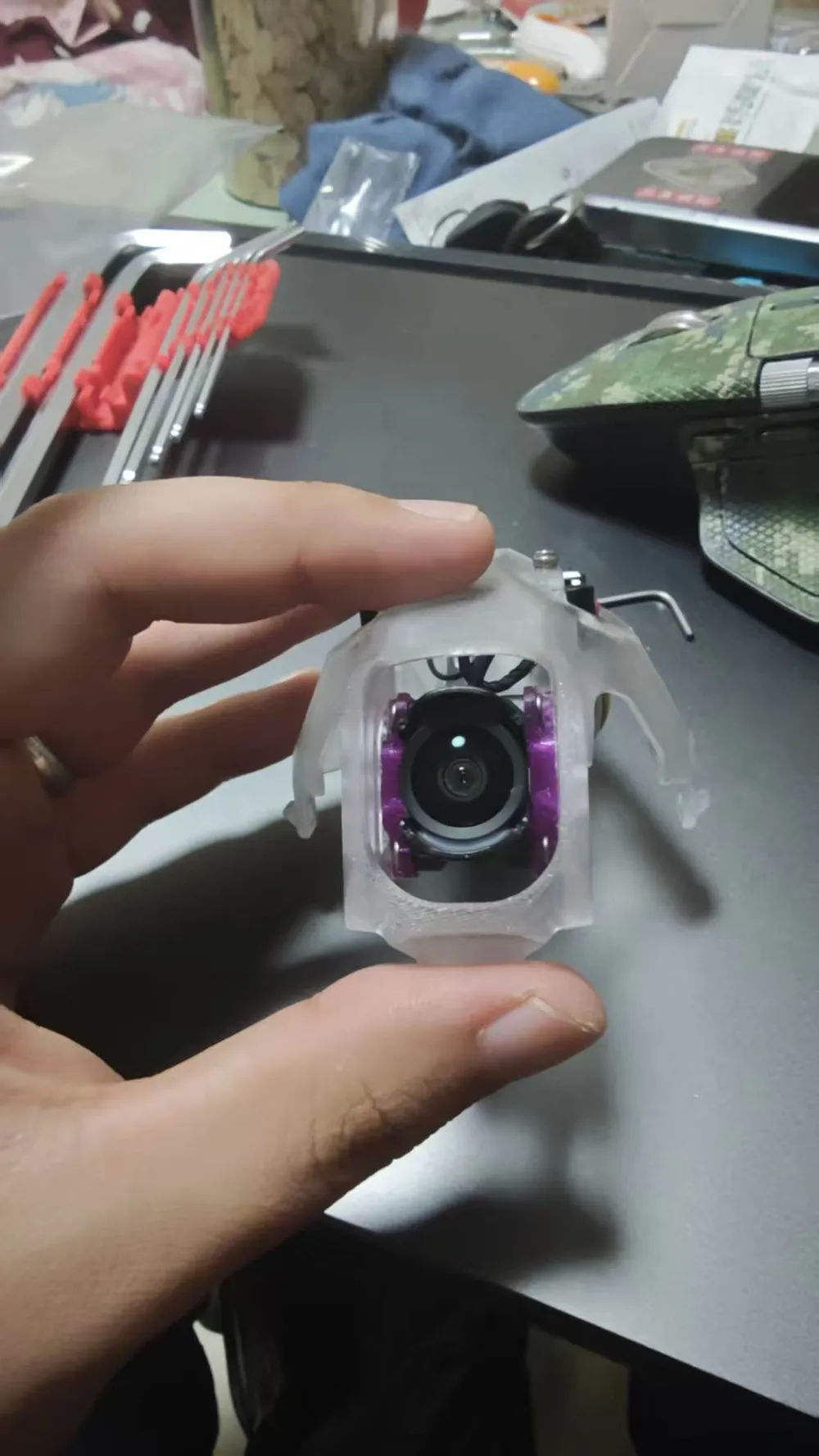

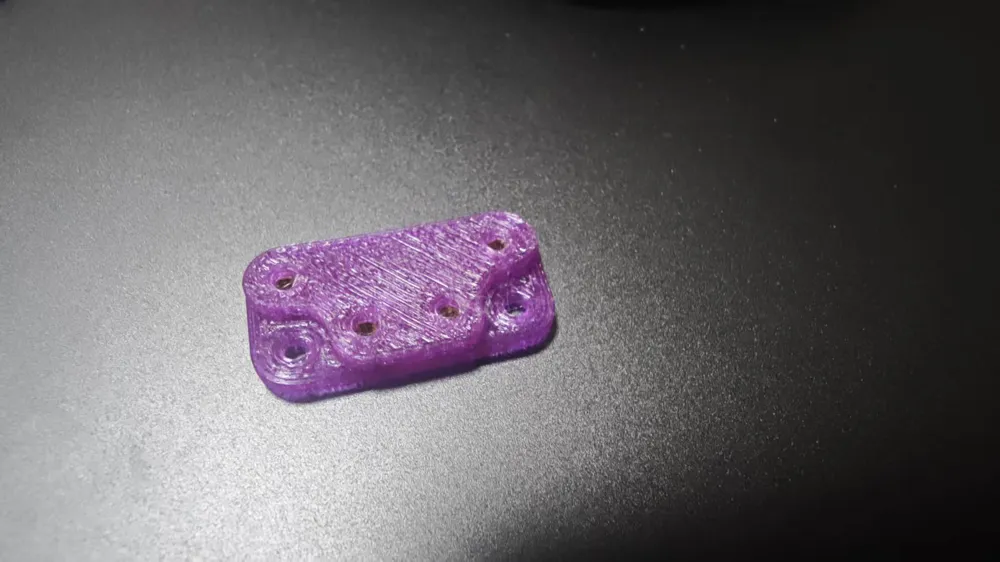

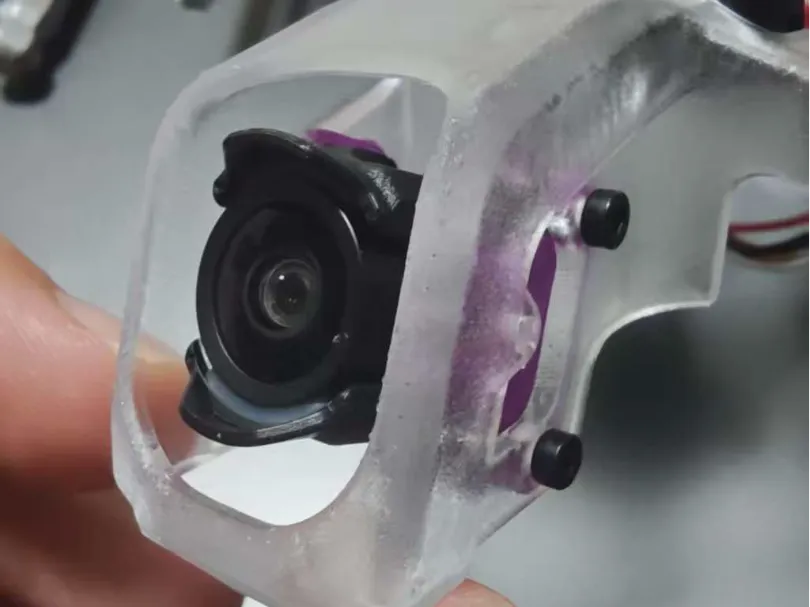

DJI O4 wide air unit lens shim, fixed with a rigid link

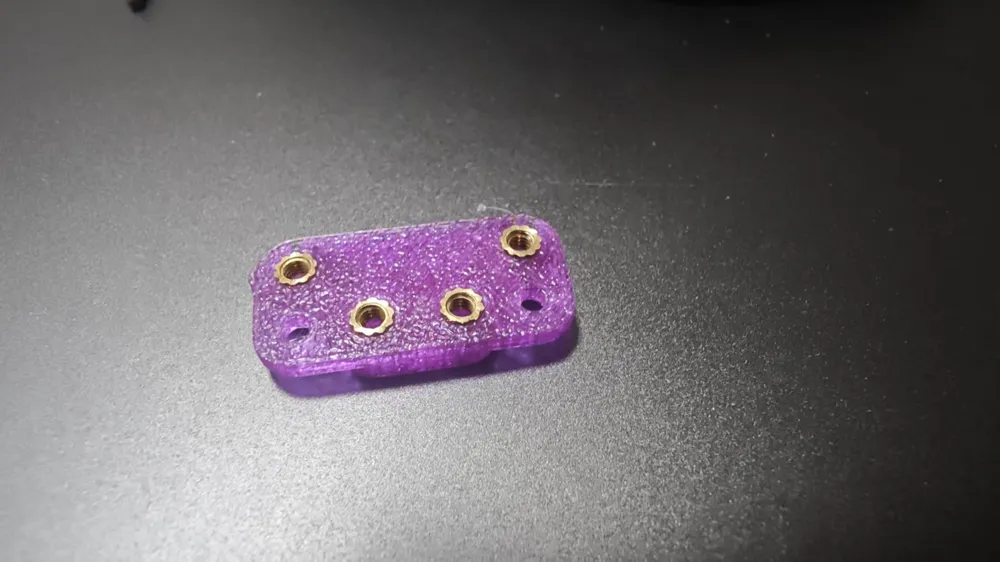

Requires 4-8 m2 heat-set inserts, model 2*3*2, both O3/O4 hole positions are available, insert as needed

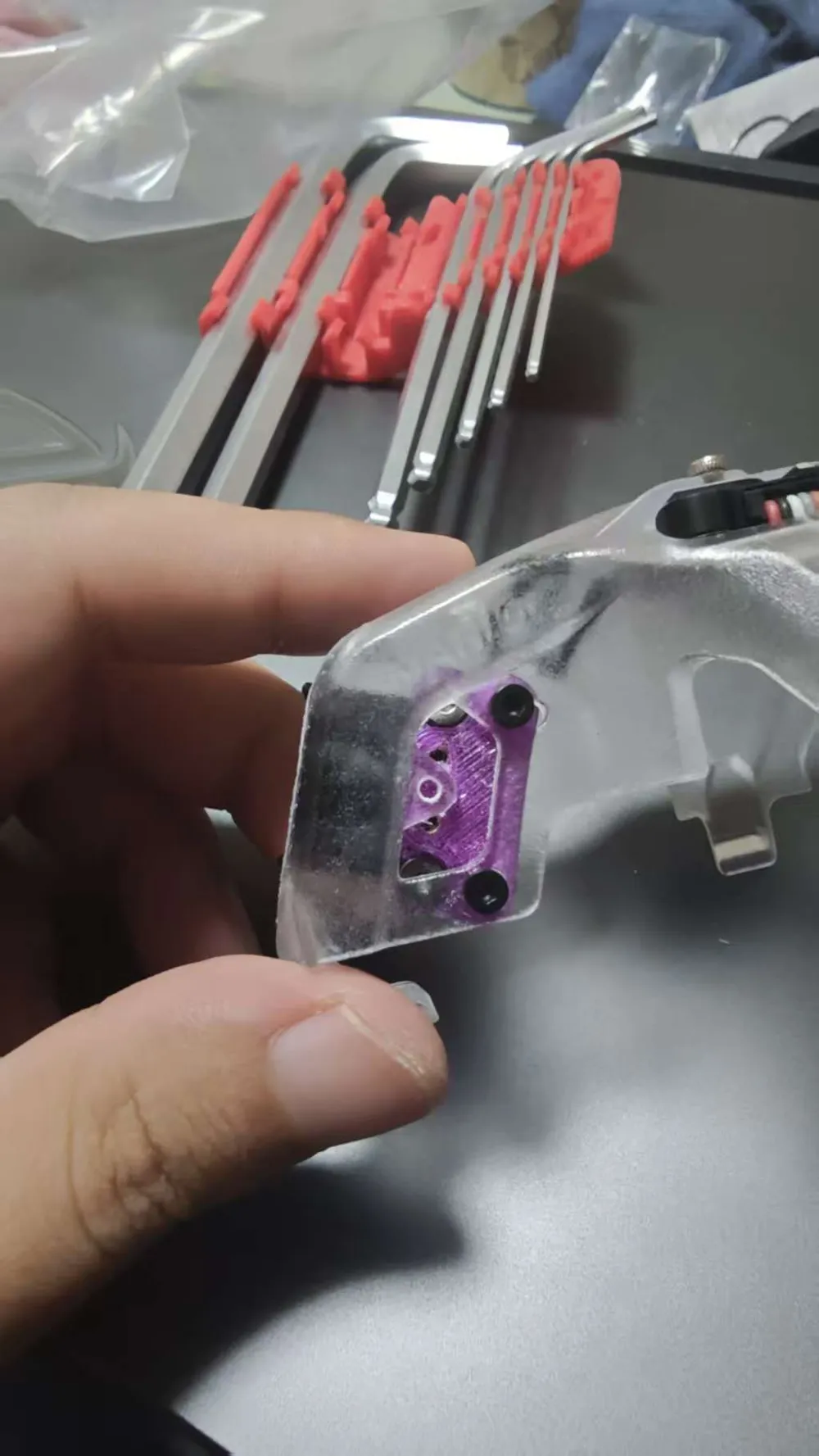

For fixing, in addition to the original screws, four m2 screws with a cup head thickness of ≤1.6 are needed
Stabilization works normally on mario mini 3 pro without jello effect or other issues (flight footage is normal, but recorded footage still has stuttering issues), if recording video, please use the official flexible mount print (shape reference from Cloudy FPV open-source model)
