<p>File completo con tutti i piatti ottimizzati: tubo principale, dado speciale per doppio estrusore, dado standard e guarnizioni (TPU).</p>

<p>Complete file with all optimized plates: main pipe, special nut for dual extruder, standard nut, and gaskets (TPU).</p>

Complete Kit - Intex to Bestway Adapter

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>🚀 BOOST ME!</boostcontent></boostme><h2>Intex to Bestway Threaded Pool Adapter</h2><h3>🎯 Scopo del Progetto</h3><p>Questo upgrade permette di installare le tubazioni filettate Intex ad alta portata (tipiche delle pompe a sabbia più potenti) sulle piscine <strong>Bestway Power Steel</strong> nate originariamente con i restrittivi passanti in gomma liscia da 32 mm. Invece di usare riduzioni che strozzano il flusso, questo sistema clona i passanti a vite Intex direttamente sulla parete della piscina.</p><h3>✂️ Note Importanti per l&#39;Installazione</h3><ul><li><strong>Taglio del liner:</strong> È necessario tagliare via il vecchio tubetto liscio da 32 mm a filo del PVC.</li><li><strong>Diametro del foro:</strong> Si consiglia caldamente di rifilare il foro sul PVC facendolo <strong>leggermente più grande</strong> rispetto al diametro esterno del tubo filettato stampato. Questo evita che la struttura del liner crei tensioni, si pieghi o si incastri all&#39;interno della filettatura durante il serraggio della ghiera.</li><li><strong>Posizione Guarnizioni (Ranelle):</strong> La ranella in TPU più grande va inserita <strong>all&#39;interno della piscina</strong>, incastrata tra la flangia dell&#39;adattatore stampato e il telo in PVC. Sarà la pressione stessa dell&#39;acqua a schiacciarla, garantendo la tenuta stagna perfetta. La ranella più piccola va invece posizionata all&#39;esterno, dentro la ghiera del tubo Intex.</li><li><strong>Serraggio:</strong> Stringere la ghiera saldamente a mano. Non usare attrezzi meccanici per non snervare il filetto in plastica.</li></ul><h3>🖨️ Guida ai Piatti di Stampa (Print Plates Guide)</h3><p>Il file .3mf è già diviso in piatti pronti con i parametri ottimizzati:</p><ol><li><strong>X2D support</strong>: Contiene il dado speciale con i dentini di ritenuta. Configurato per stampanti IDEX con distanza Z a 0 mm e supporti impostati sul secondo estrusore con filamento PLA (distacco perfetto).</li><li><strong>generic printer no support</strong>: Contiene la tubazione principale e il dado standard (liscio). Ottimizzato per stampanti standard a singolo estrusore, non richiede alcun supporto.</li><li><strong>generic printer support</strong>: Contiene il dado con i dentini di ritenuta configurato per stampanti a singolo estrusore. I supporti sono dello stesso materiale con Distanza Z superiore impostata a <strong>0.24 mm</strong> e distanza X/Y a <strong>0.8 mm</strong> per una rimozione facile.</li><li><strong>ranelle TPU</strong>: Contiene le guarnizioni di tenuta. Stampare rigorosamente in <strong>TPU</strong> con <strong>Infill 100% Concentrico</strong> per garantire la massima impermeabilità sotto pressione.</li></ol><h3>⚠️ Parametri Consigliati per i pezzi in PETG</h3><ul><li><strong>Materiale:</strong> PETG (altamente consigliato contro cloro e agenti chimici) o ASA (per massima resistenza UV).</li><li><strong>Pareti (Walls):</strong> Minimo <strong>4 - 5 perimetri</strong> per garantire la tenuta stagna del pezzo lungo i layer.</li><li><strong>Infill:</strong> 35% - 50% Giroide o Cubico.</li></ul>

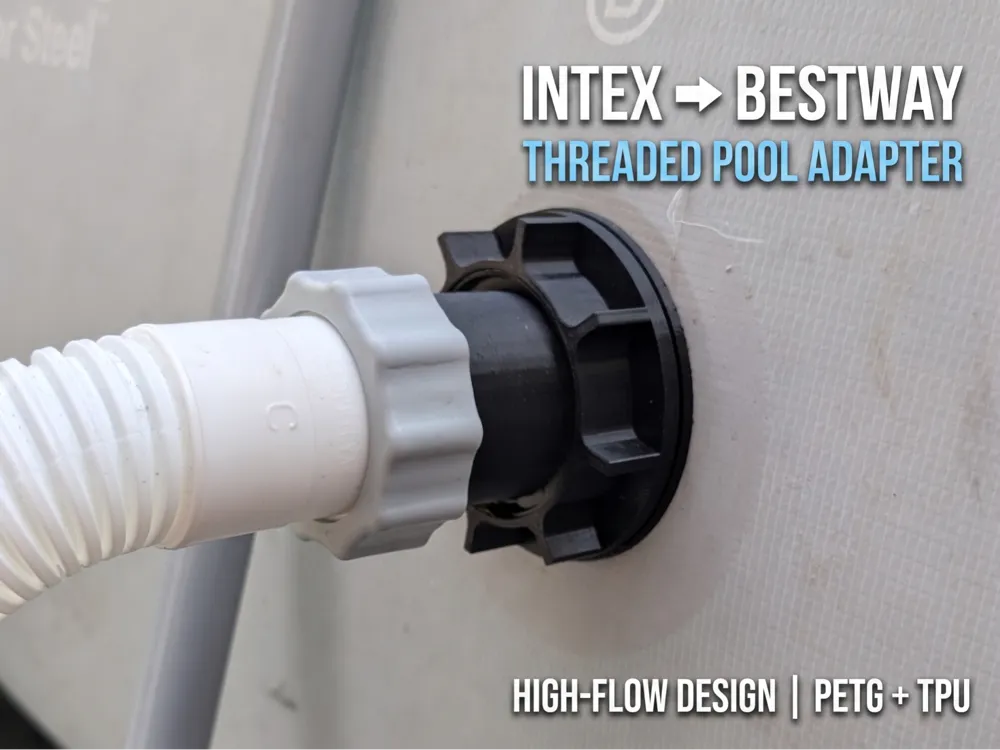

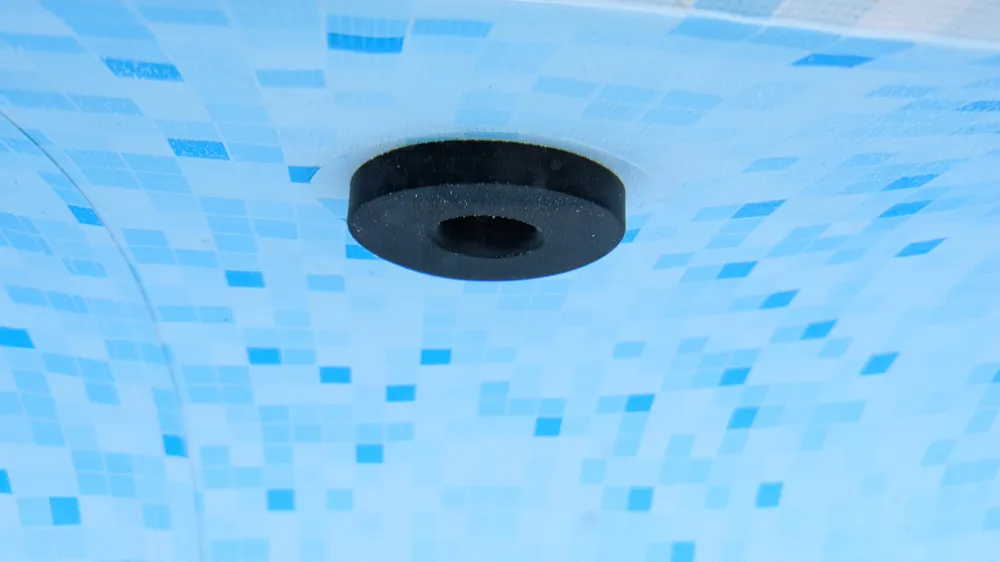

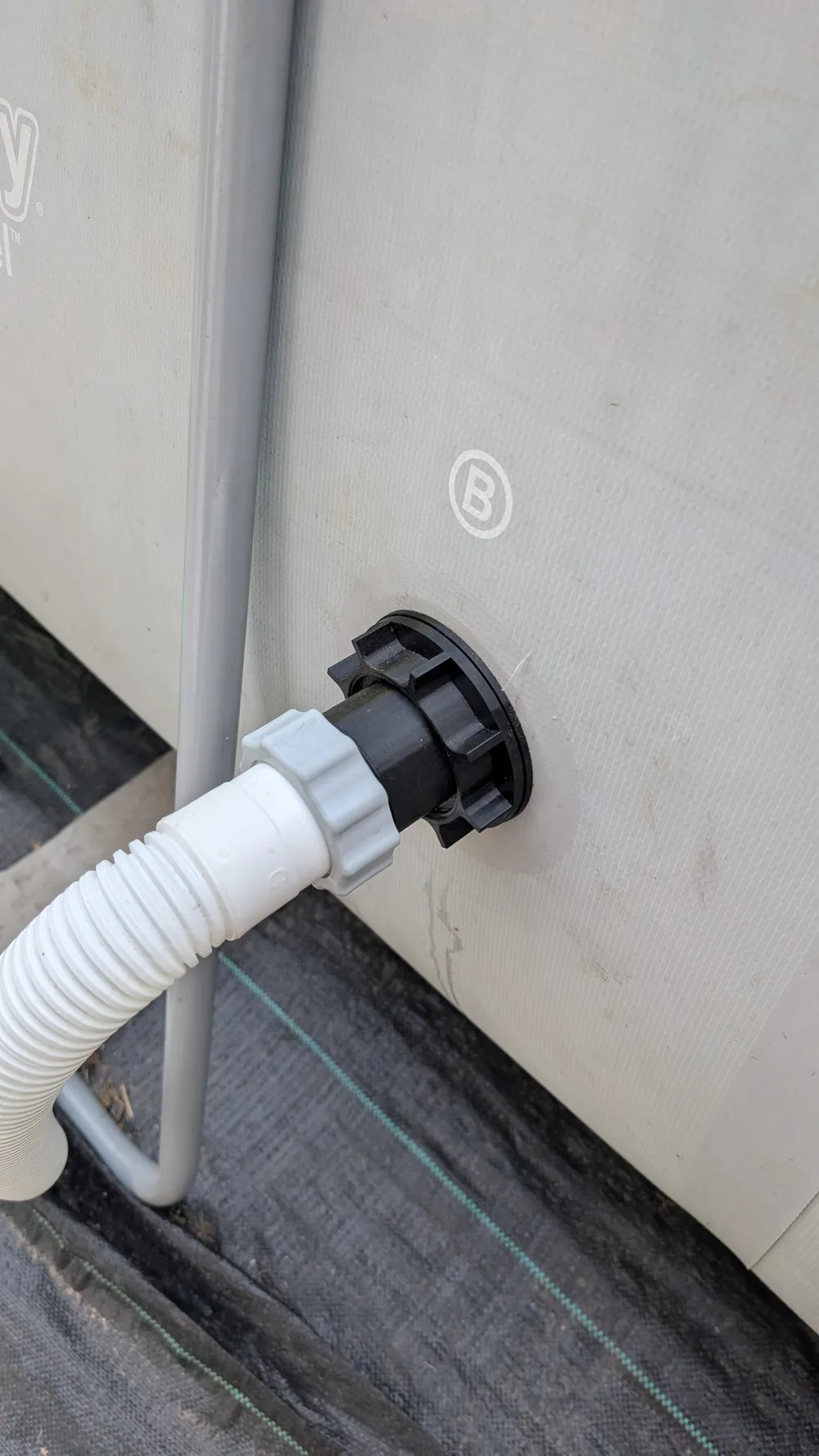

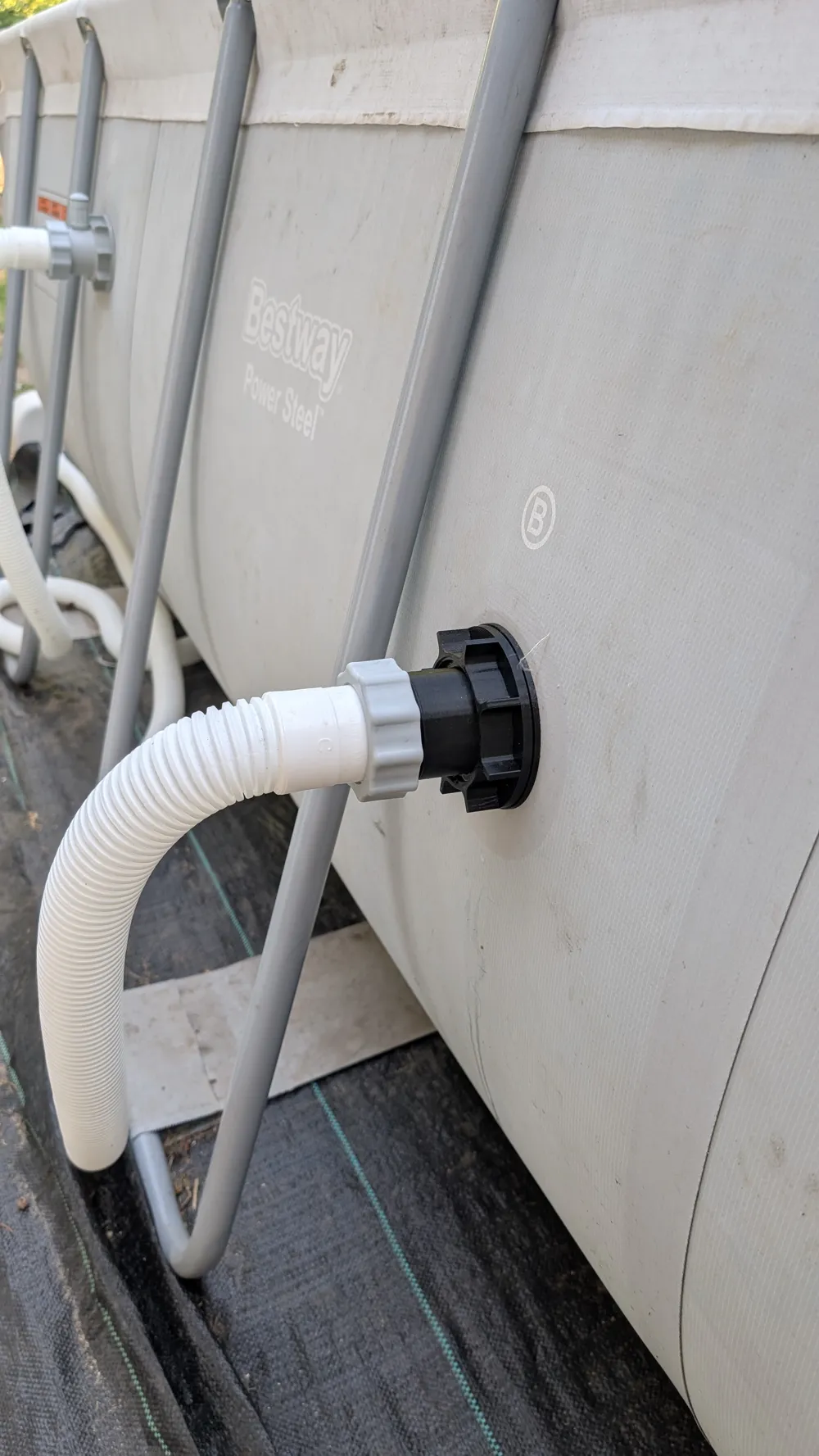

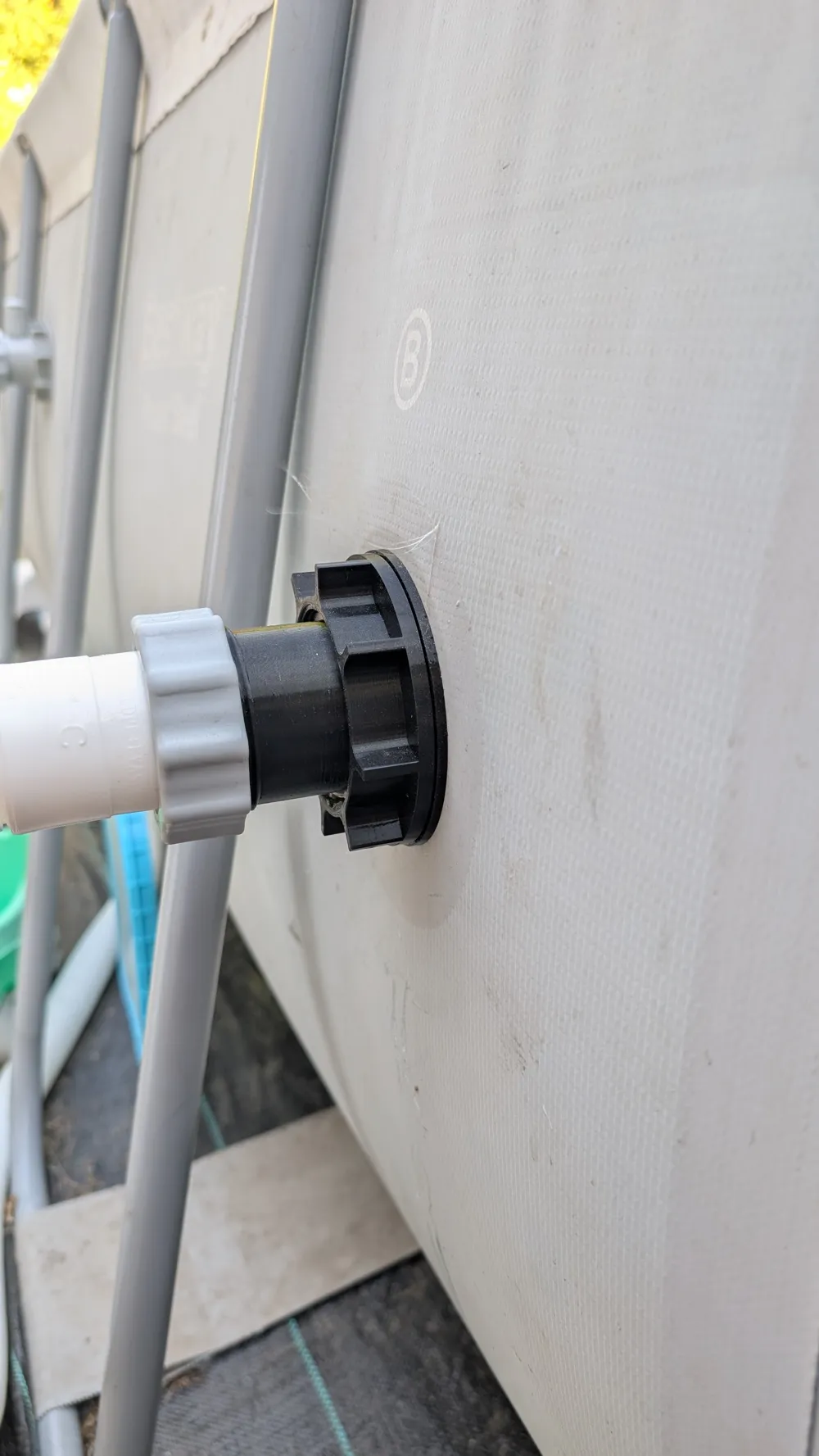

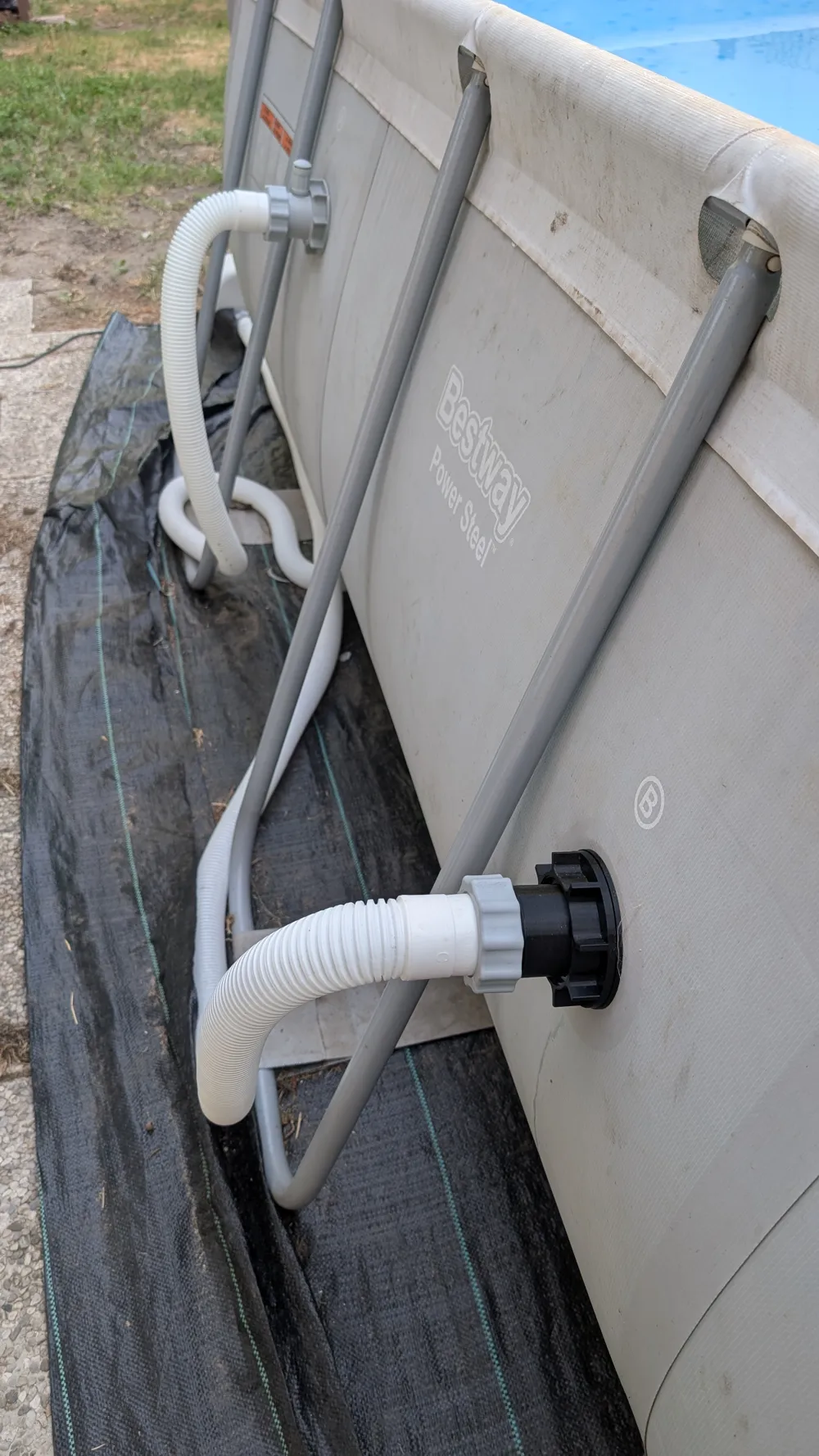

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>🚀 BOOST ME!</boostcontent></boostme><h2>Intex to Bestway Threaded Pool Adapter</h2><h3>🎯 Project Purpose</h3><p>This upgrade allows the installation of high-flow Intex threaded pipes (typical of more powerful sand filters) on <strong>Bestway Power Steel</strong> pools, which originally came with restrictive 32 mm smooth rubber thru-wall fittings. Instead of using flow-restricting reducers, this system replicates Intex screw-on thru-wall fittings directly onto the pool wall.</p><h3>✂️ Important Installation Notes</h3><ul><li><strong>Liner cutting:</strong> It is necessary to cut off the old 32 mm smooth tube flush with the PVC.</li><li><strong>Hole diameter:</strong> It is highly recommended to trim the hole in the PVC, making it <strong>slightly larger</strong> than the outer diameter of the printed threaded pipe. This prevents the liner structure from creating tension, bending, or getting stuck within the threading during ring tightening.</li><li><strong>Gasket Position (Washers):</strong> The larger TPU washer should be inserted <strong>inside the pool</strong>, sandwiched between the printed adapter flange and the PVC liner. The water pressure itself will compress it, ensuring a perfect watertight seal. The smaller washer, on the other hand, should be placed externally, inside the Intex pipe nut.</li><li><strong>Tightening:</strong> Tighten the nut firmly by hand. Do not use mechanical tools to avoid stripping the plastic thread.</li></ul><h3>🖨️ Print Plates Guide</h3><p>The .3mf file is already divided into ready-to-print plates with optimized parameters:</p><ol><li><strong>X2D support</strong>: Contains the special nut with retaining teeth. Configured for IDEX printers with Z distance at 0 mm and supports set on the second extruder with PLA filament (perfect detachment).</li><li><strong>generic printer no support</strong>: Contains the main pipe and the standard (smooth) nut. Optimized for standard single-extruder printers, no support required.</li><li><strong>generic printer support</strong>: Contains the nut with retaining teeth configured for single-extruder printers. Supports are of the same material with Z distance top set to <strong>0.24 mm</strong> and X/Y distance to <strong>0.8 mm</strong> for easy removal.</li><li><strong>TPU washers</strong>: Contains the sealing gaskets. Print strictly in <strong>TPU</strong> with <strong>100% Concentric Infill</strong> to ensure maximum watertightness under pressure.</li></ol><h3>⚠️ Recommended Parameters for PETG parts</h3><ul><li><strong>Material:</strong> PETG (highly recommended against chlorine and chemicals) or ASA (for maximum UV resistance).</li><li><strong>Walls:</strong> Minimum <strong>4 - 5 perimeters</strong> to ensure the watertightness of the part along the layers.</li><li><strong>Infill:</strong> 35% - 50% Gyroid or Cubic.</li></ul>

Intex to Bestway Threaded Pool Adapter

ASIA

Print Profile(1)

Description

Intex to Bestway Threaded Pool Adapter

🎯 Project Purpose

✂️ Important Installation Notes

🖨️ Print Plates Guide

⚠️ Recommended Parameters for PETG parts
