Smart display series - Waveshare 5" ESP32 case
Print Profile(1)
Description

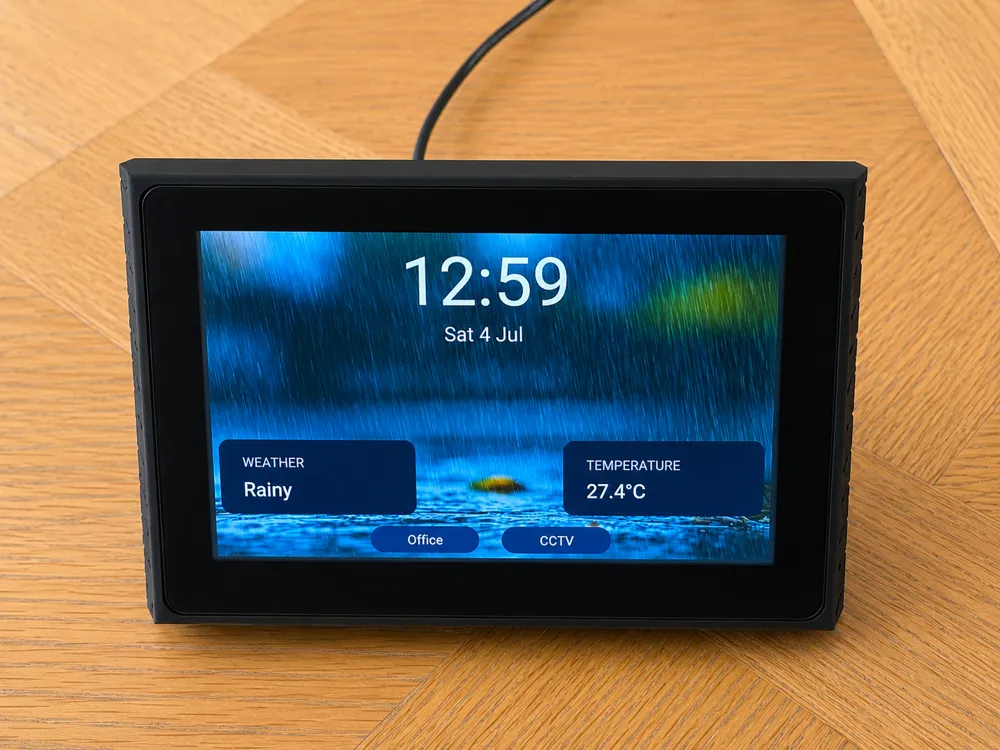

Give your Waveshare 5" ESP32 display a clean, professional look.
Unlike most enclosures, this case routes the USB-C connection to the rear of the enclosure using an inexpensive USB-C extension, so there isn't an unsightly cable sticking out of the side. The result is a display that looks much more like a finished commercial product.
Designed from the ground up for easy 3D printing, assembly and everyday use.
Features

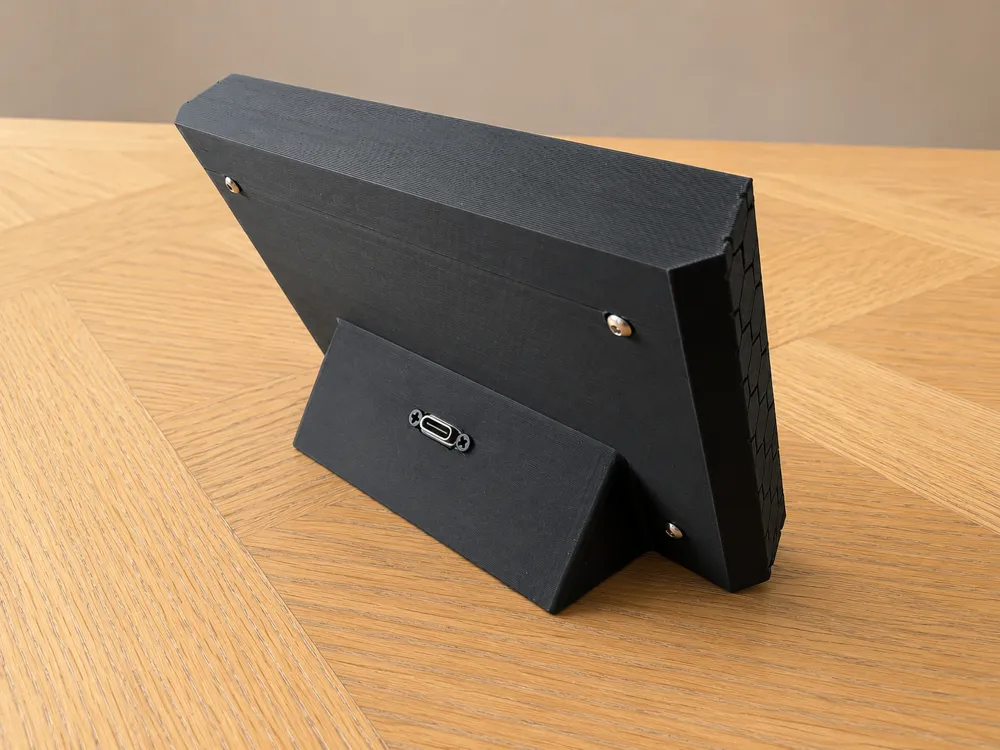

- ✅ Rear-mounted USB-C connector for a much cleaner appearance
- ✅ No supports required

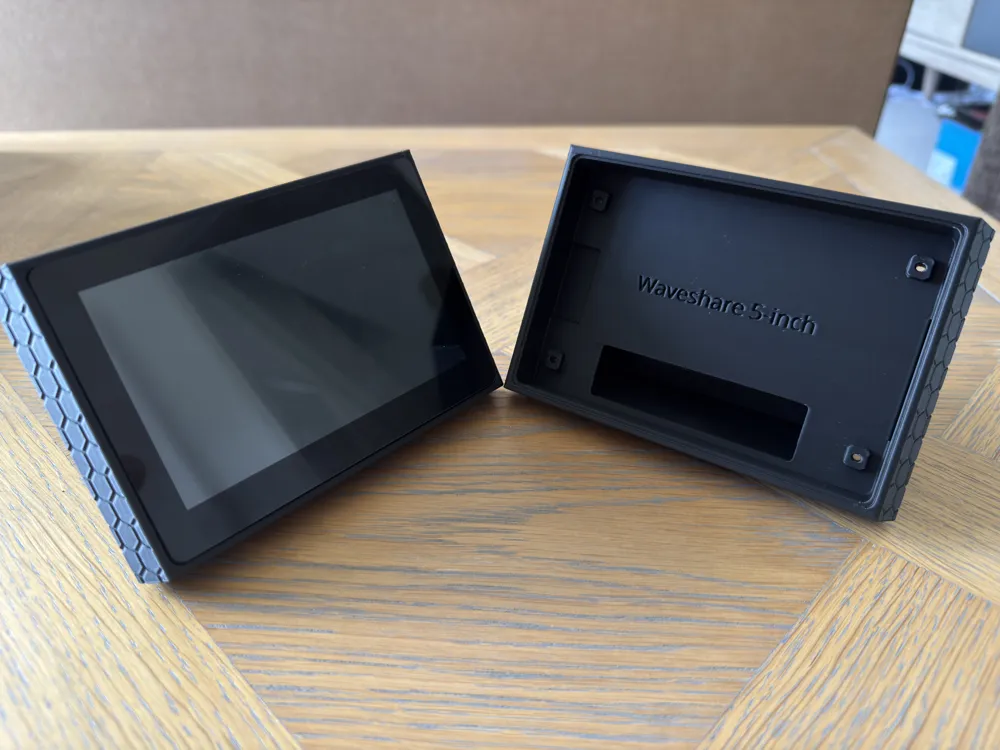

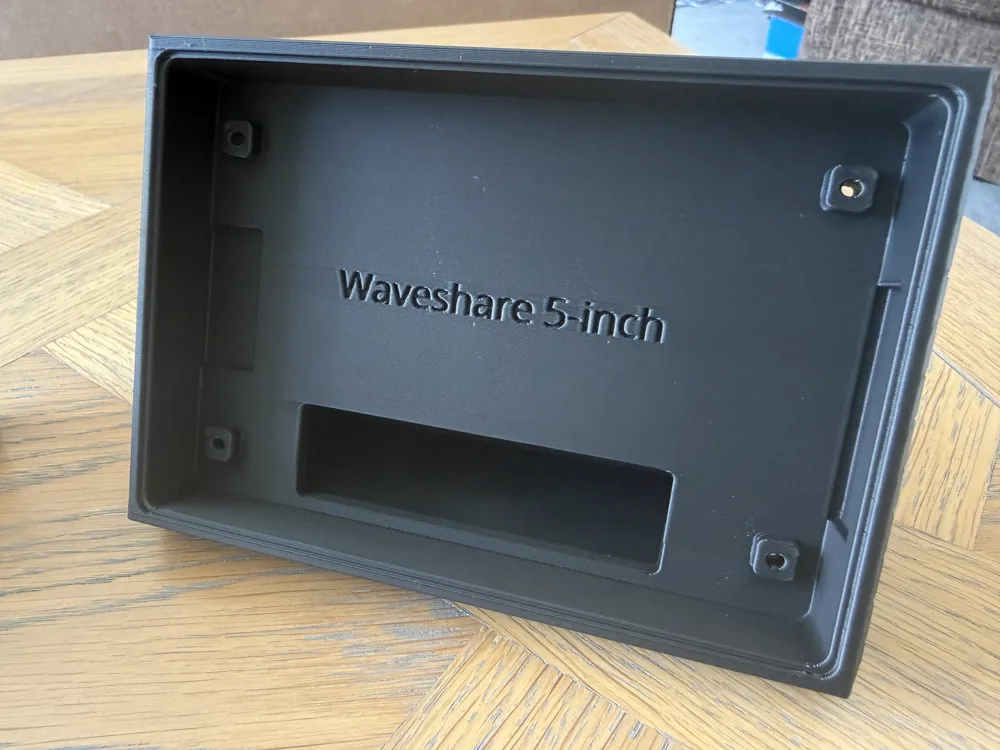

- ✅ Front-loading design - simply insert the display from the front
- ✅ No separate rear cover to print
- ✅ All screws are hidden at the rear
- ✅ Built-in stand with two viewing angles
- Upright
- Approximately 45° reclined

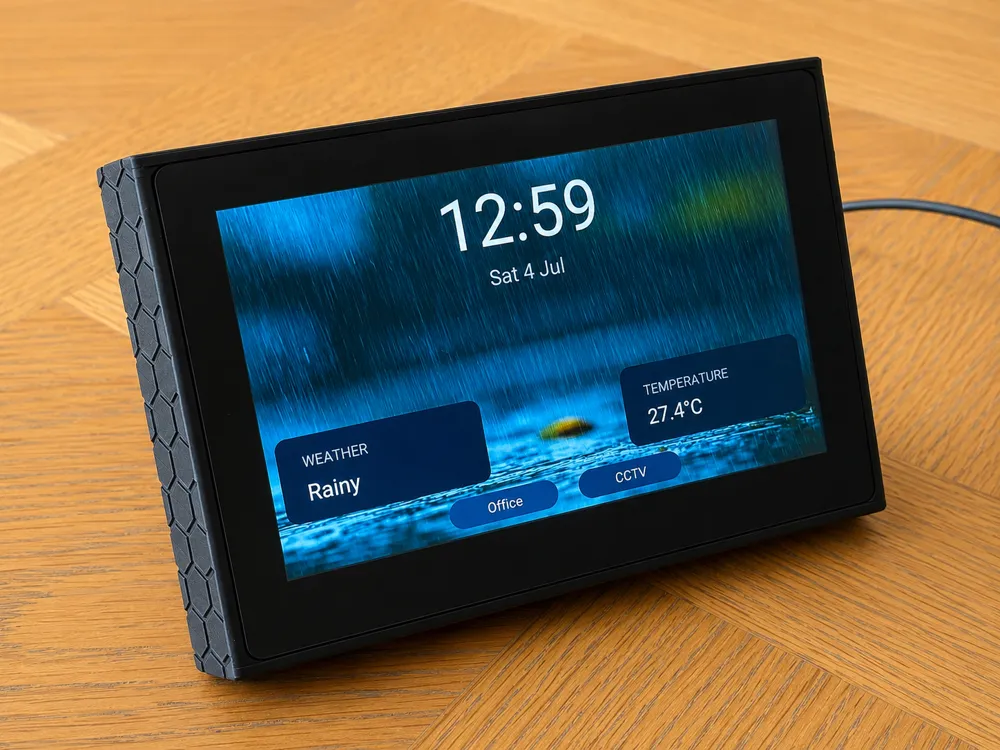

- ✅ Decorative honeycomb side panels
- ✅ Compact, strong design with minimal material usage
- ✅ Easy to assemble
Printing
The model has been designed specifically for reliable printing.
- No supports required
- Minimal post-processing
- Suitable for PLA, PETG or similar materials
Hardware Required
In addition to the printed parts and screws, you will need:

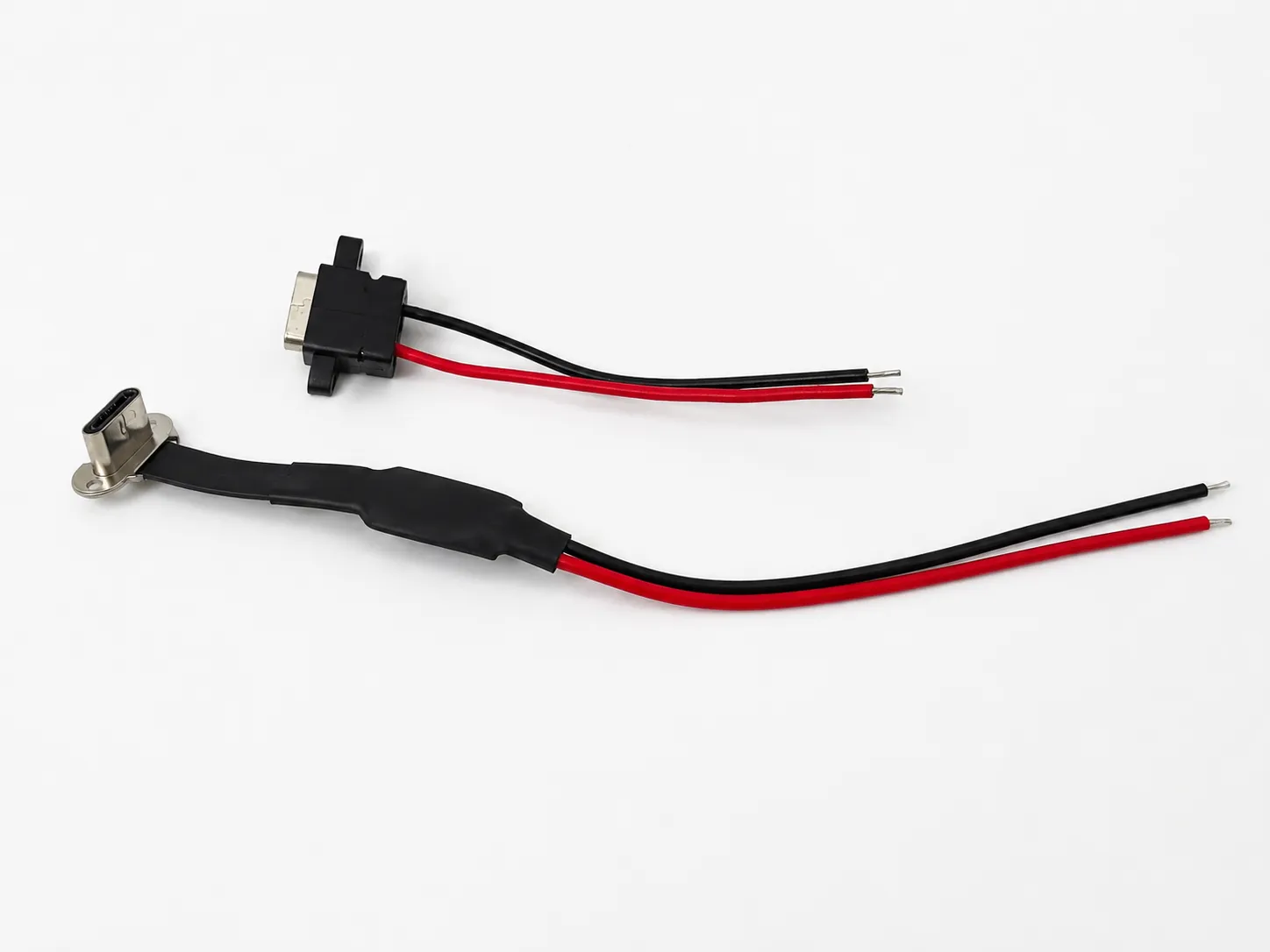

- Low-profile USB-C connector
- USB-C chassis connector
(See links below.)
The two cables simply need connecting together. I soldered mine and covered the joints with heat shrink tubing, but twisting the wires together and insulating them with electrical tape will also work.
Why the rear USB-C?
Most cases leave the USB cable exiting from the side, which can make even a nice dashboard look unfinished.
By moving the connector to the rear you get:
- Cleaner cable management
- Better appearance on a desk
- A more professional finished look
Perfect For
This enclosure is ideal for:
- Home Assistant dashboards
- ESPHome projects
- Smart home control panels
- Weather displays
- Clock dashboards
- Status displays
- Information panels
- Custom IoT projects
Future Variants
I'm gradually designing matching cases for additional ESP32 display boards to create a consistent family of enclosures.
Current roadmap includes:
- ✅ Waveshare 4.3"
- ✅ Waveshare 5" (this model)
- Planned support for additional Waveshare displays
- Planned support for Guition and ESP32-P4 based boards
If this model is useful, please consider leaving a Like, Download, or Boost—it really helps me continue designing and releasing new versions.
