Stop for Bending Brake
Print Profile(2)
Description

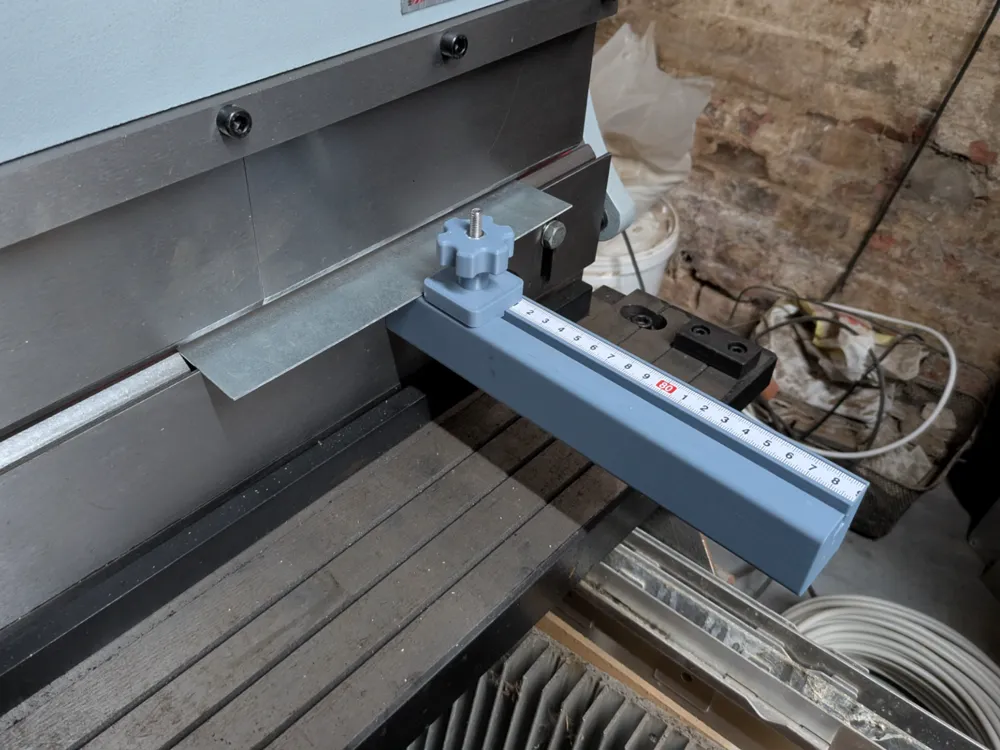

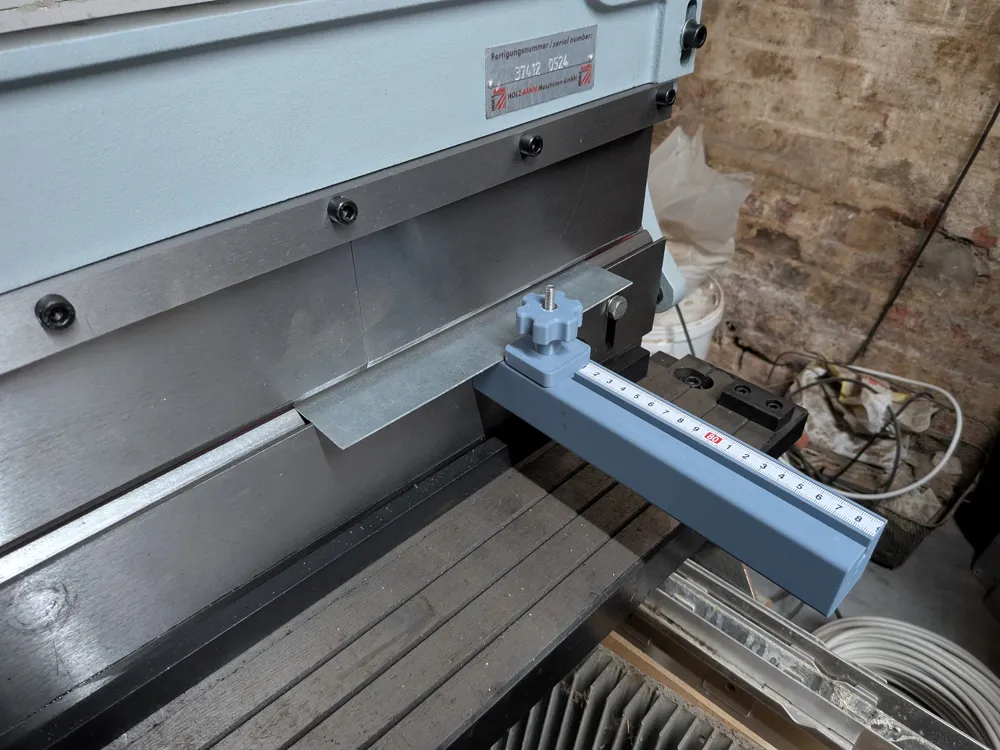

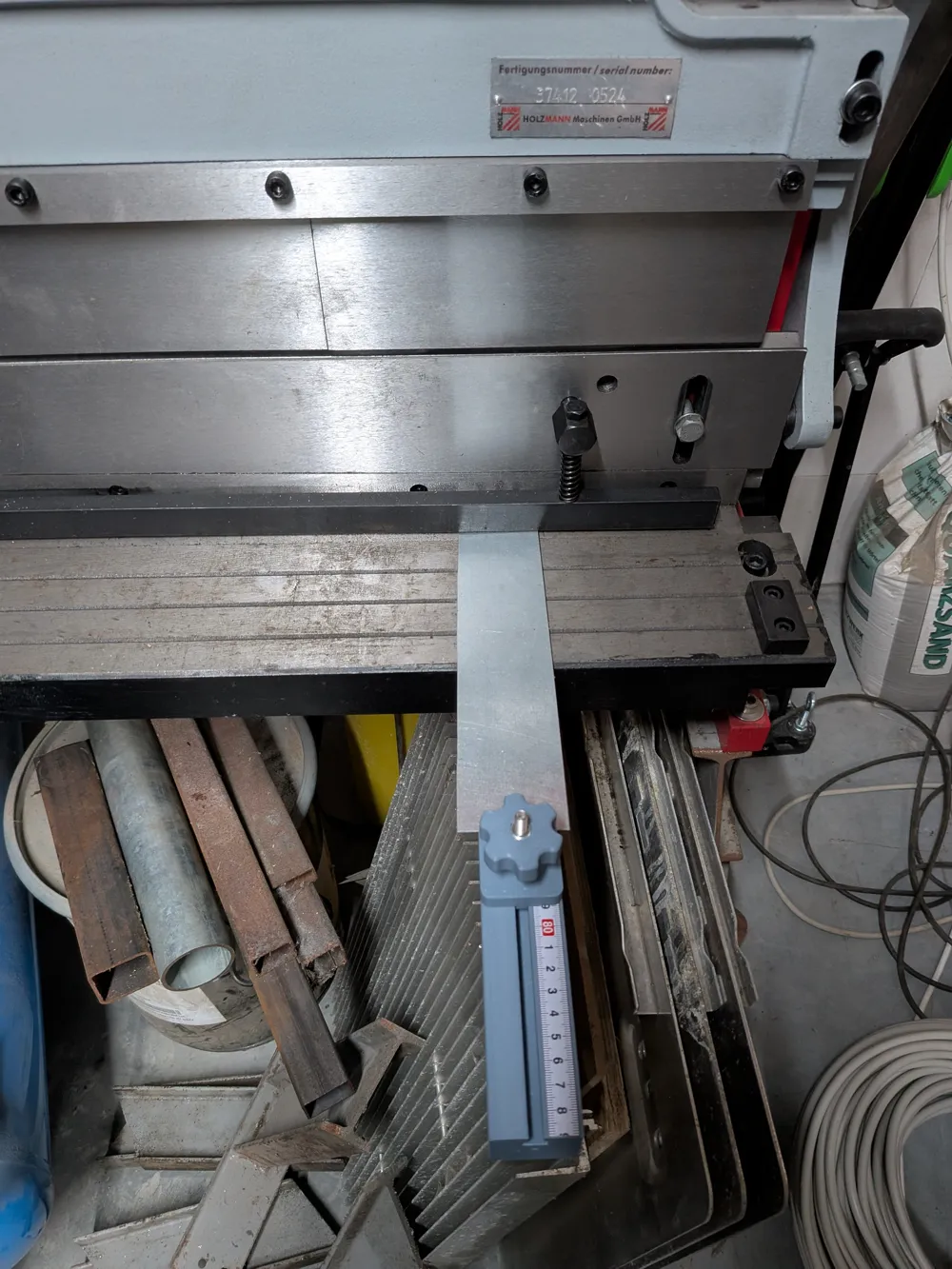

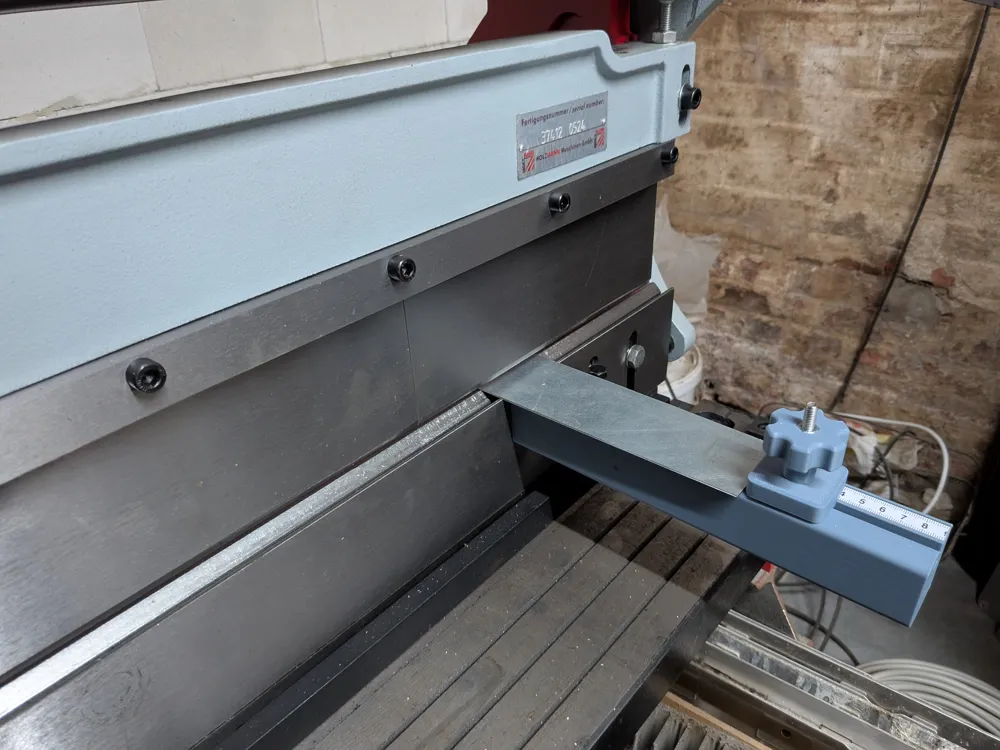

I have designed a stop here for a bending brake or guillotine shear.

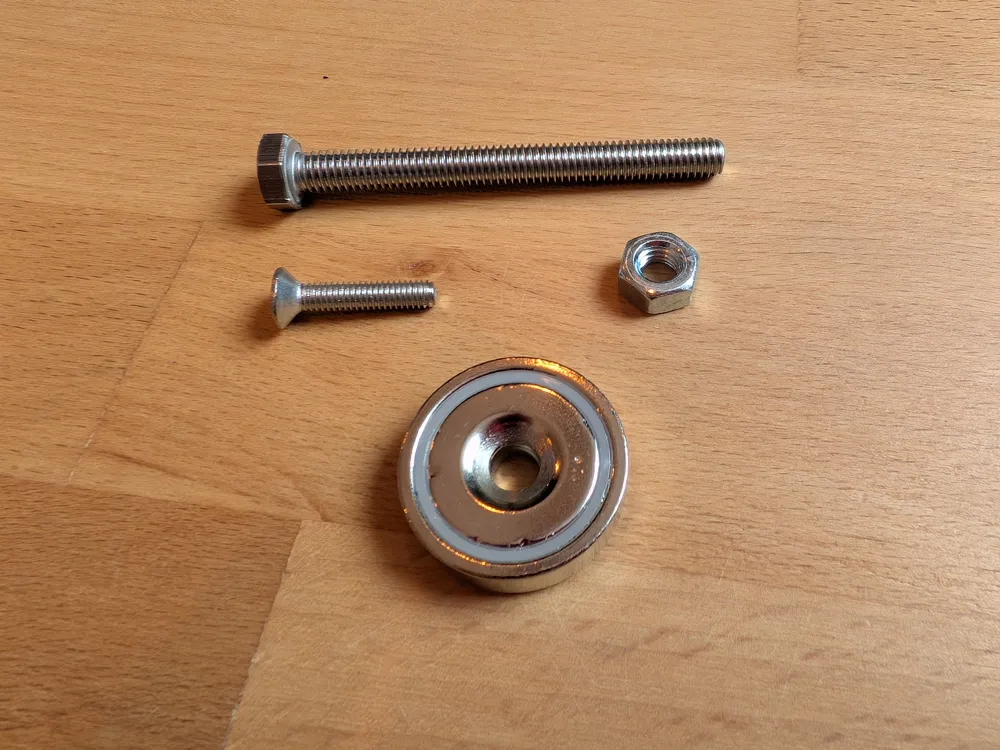

The following materials are also required
- an M6 hex screw, at least 50mm long
- an M6 nut
- a screw-on magnet, 25mm diameter and 7.5mm height
- an M4 countersunk screw with a length of at least 20mm
- and a piece of adhesive measuring tape

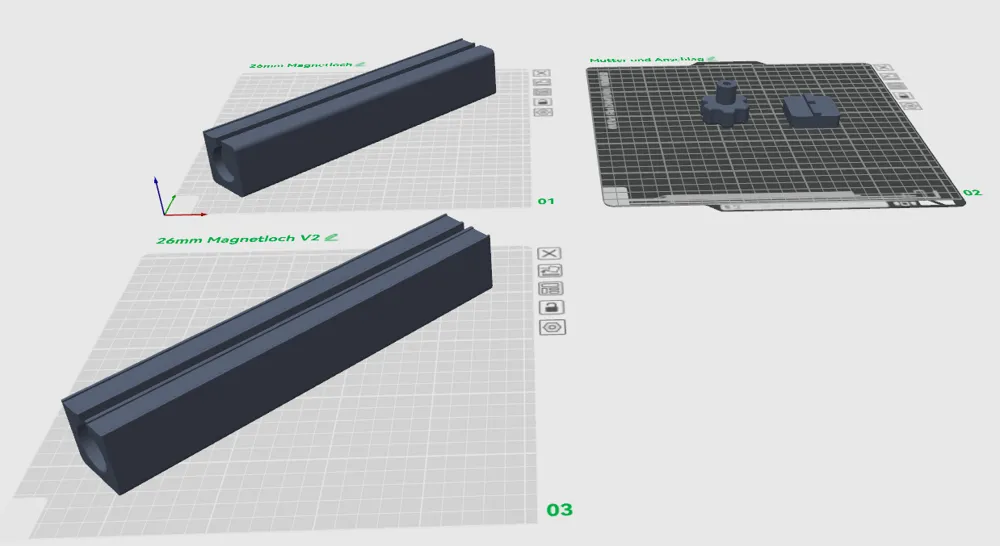

A version is also included where you can glue in 2 measuring tapes to combine 2 different stops into one, for example, for shears and a bending brake.
PS. The adhesive measuring tape was a leftover piece, it was perfectly sufficient for me to demonstrate the function ;D
