Home Plate Number 28 Multi-Color or Paintable

Give your home's entrance a clean, modern upgrade with this durable, functional house number plate. Designed specifically for outdoor longevity and secure mounting, this plaque features crisp, raised numerals framed by a sturdy raised border.

Whether you have a multi-material setup (AMS) or prefer standard single-colour printing, this model is engineered for clean extrusion and high visibility from the street.

✨ Key Features

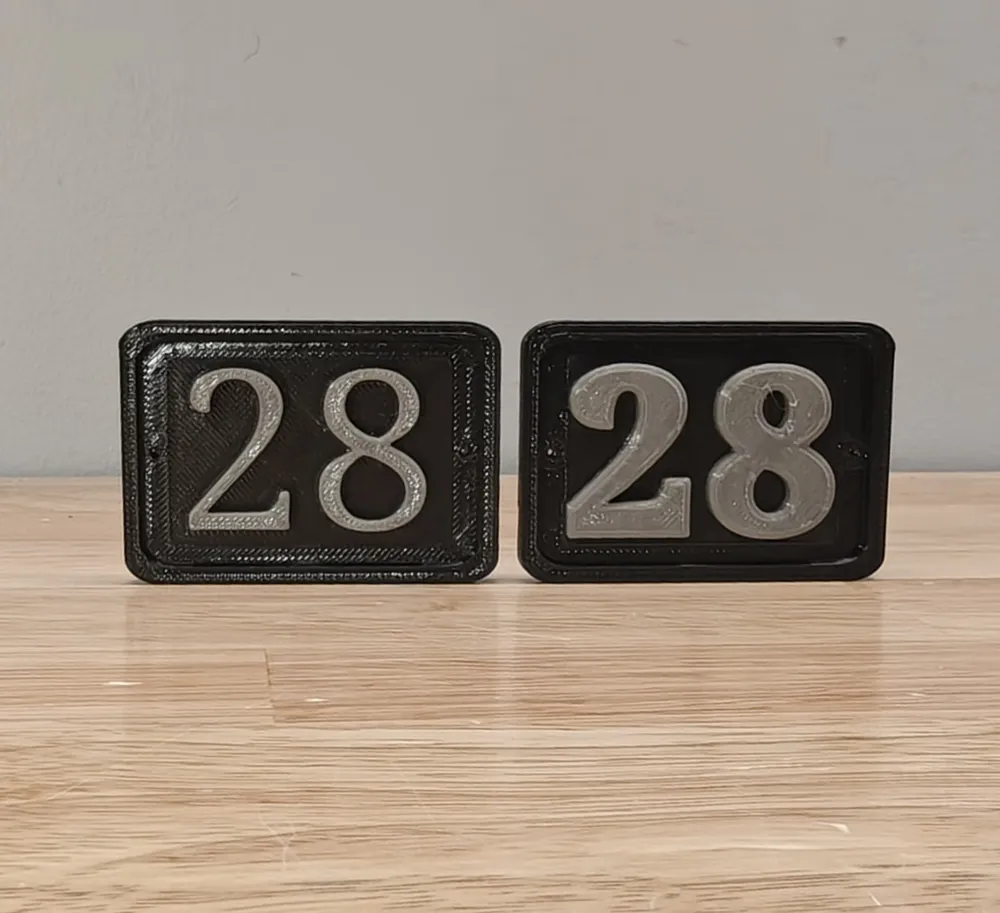

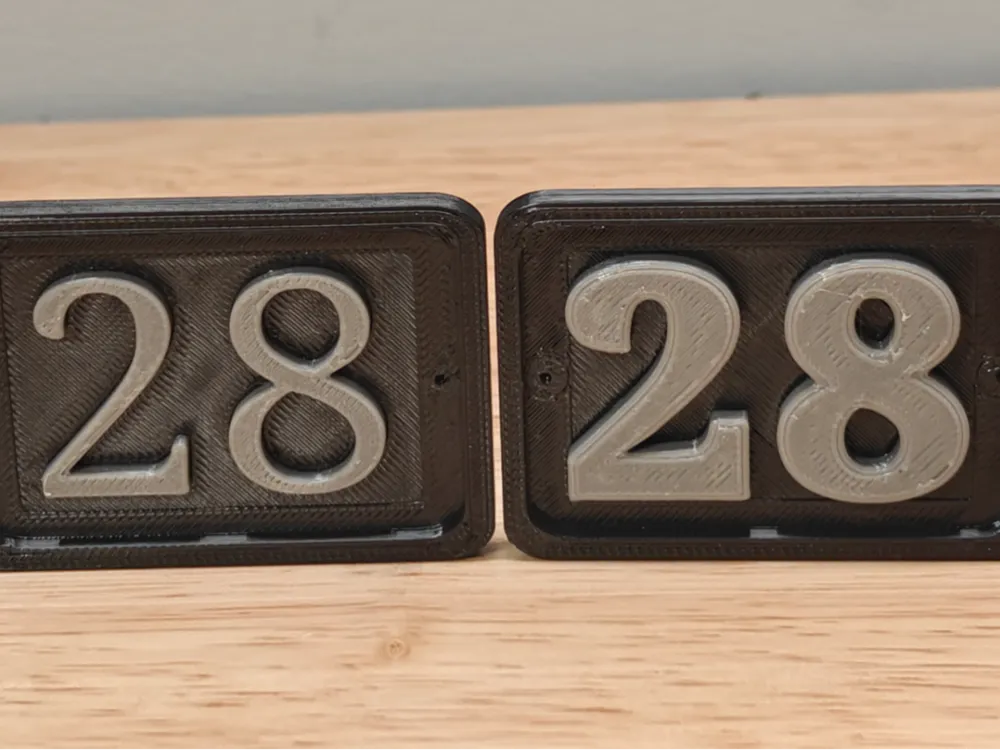

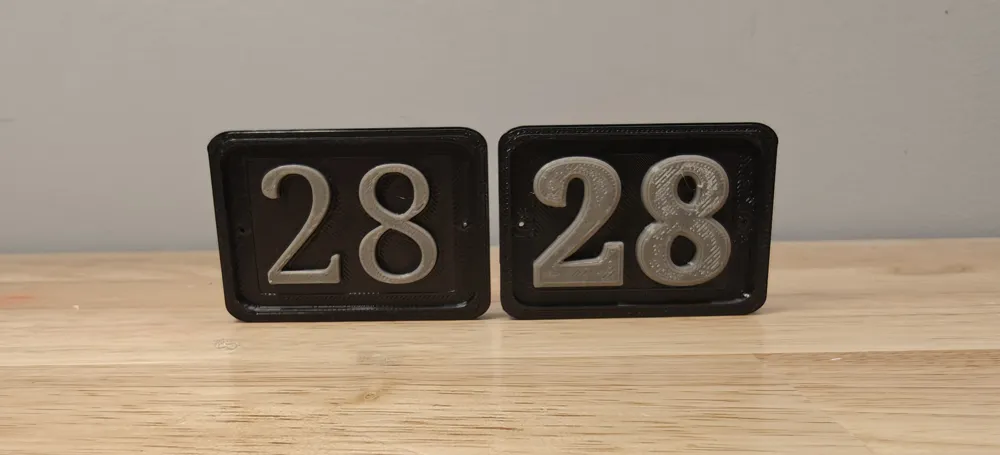

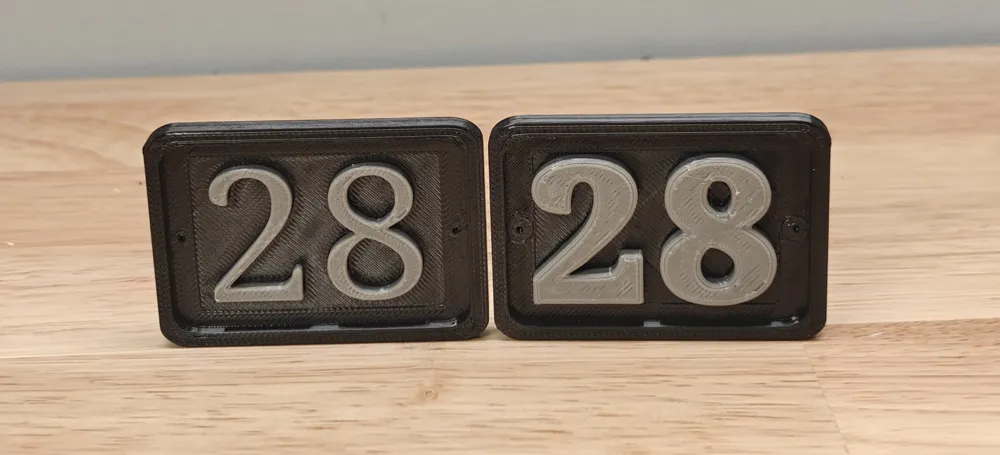

• Two Typography Options: Includes separate files for both Bold and Thin font styles so you can match your exterior aesthetic.
• Dual-Color or Painted Finish: Easily print in two colors using filament pause/swap (or an AMS/MMU), or print in a single color and finish with outdoor-grade weatherproof paint.
• Reinforced Mounting Points: Features pre-designed countersunk screw holes on the left and right edges for a flush, secure installation against brick, siding, or wood surfaces.

Recommended Print Settings

Since this sign is intended for outdoor use, choosing UV- and UV/temperature-resistant plastics ensures it will withstand direct sunlight, rain, and freezing temperatures without warping or degrading.

Filament Recommendations

• Best for Outdoors: ASA, PETG, or ABS
• Note: PLA is not recommended for exterior installation directly exposed to harsh weather or intense direct sunlight.

Slicer & Profiling Settings

• Nozzle Size: 0.4 mm
• Layer Height: 0.2 mm (provides a great balance of smooth top surfaces and print speed)
• General Infill: 15% (Grid or Gyroid)
• Top/Bottom Layers: 4–5 layers (ensures solid, watertight faceplate coverage)

💡 Pro-Tip for Extra Strength (Slicer Modifier): To prevent over-tightened mounting screws from cracking the plate, add a local modifier around the mounting holes set to 75% infill and 4 wall loops (perimeters). This gives the structural reinforcement exactly where needed while saving filament and time across the rest of the print!

Post-Processing & Installation

• Multi-Color Printing: If printing single-extruder without an AMS, schedule a color change at the layer where the raised numbers and border begin.
• Painting: If painting a single-color print, lightly sand the raised surfaces and apply an outdoor acrylic or spray paint designed for plastics, followed by a UV-resistant clear coat.

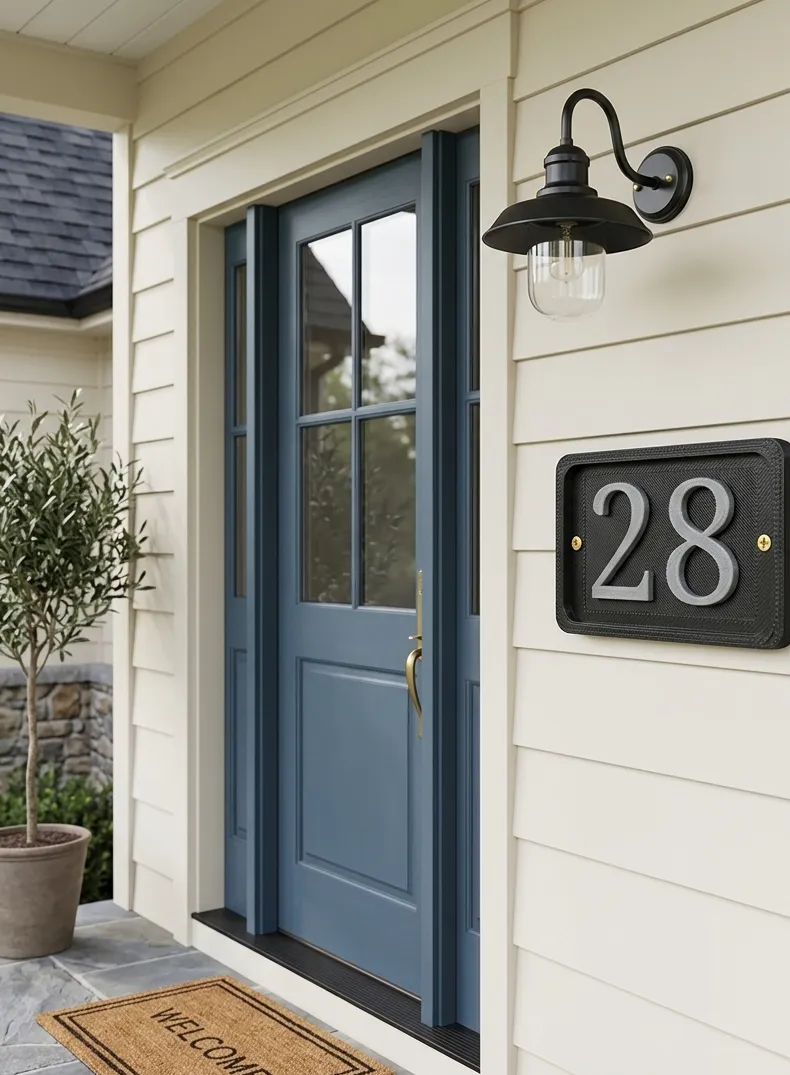

• Mounting: Use two exterior-grade wood or masonry screws with anchors suited for your wall material. Avoid overtightening to preserve the structural integrity of the mounting tabs.
